COMPASS

Description

INFOID:0000000010049563

DESCRIPTION

With the ignition switch in the ON position, and the mode (N) switch

ON, the compass display will indicate the direction the vehicle is

heading.

Vehicle direction is displayed as follows:

• N: north

• E: east

• S: south

• W:  west

ZONE VARIATION SETTING PROCEDURE

The difference between magnetic north and geographical north can sometimes be great enough to cause

false compass readings. This difference is known as variance. In order for the compass to operate properly

(accurately) in a particular zone, the zone variation must be calibrated using the following procedure.

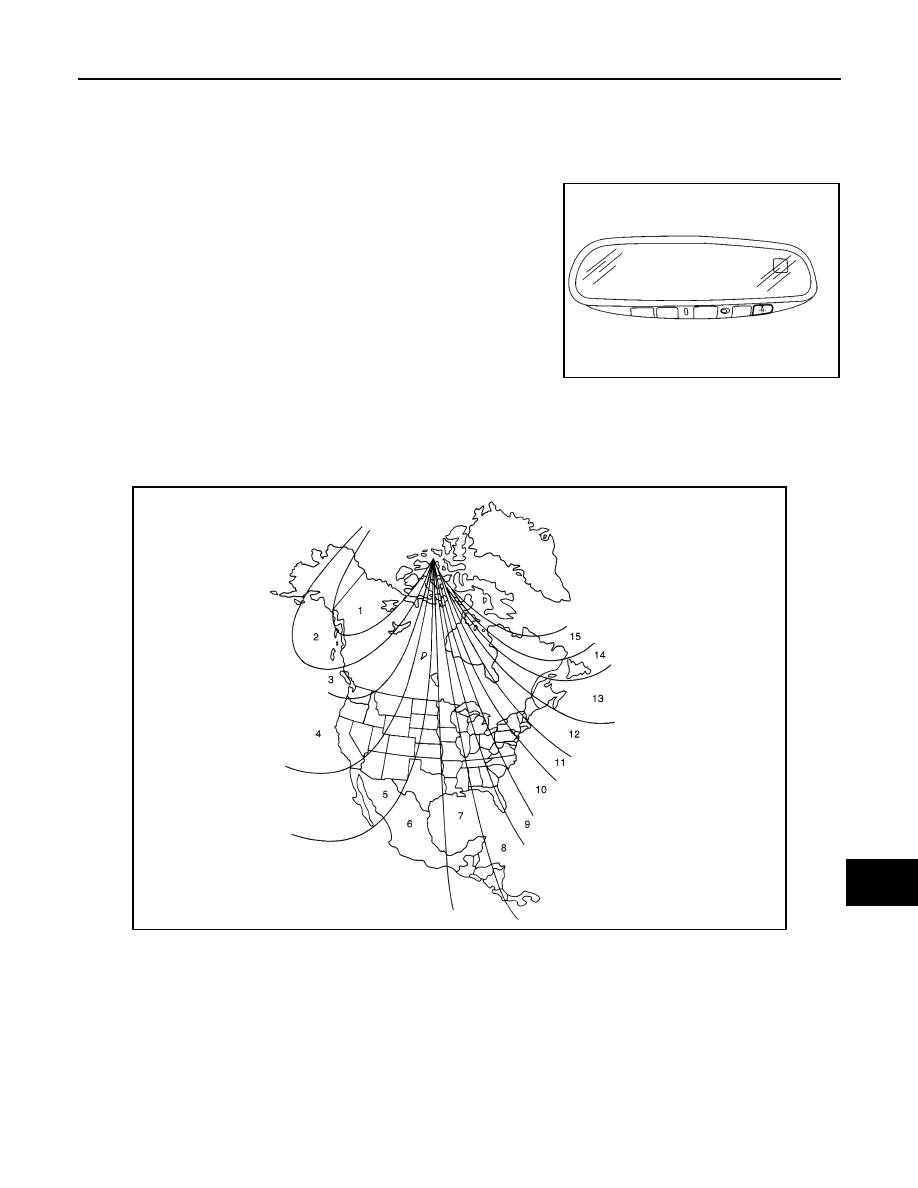

Zone Variation Chart

1. Determine your location on the zone map.
2. Turn the ignition switch to the ON position.
3. Hold the mode (N) switch down until the current zone number is displayed.
4. Press the mode (N) switch repeatedly until the desired zone number appears in the display.
Compass will exit zone setting mode and display correct heading automatically.

NOTE:

Use zone number 5 for Hawaii.

CALIBRATION PROCEDURE

The compass display is equipped with an automatic correction function. If the compass display reads “C” or

the direction is not shown correctly, perform the correction procedure below.

LKIA0447E

WKIA4148E

MWI-28

< SYSTEM DESCRIPTION >

COMPASS

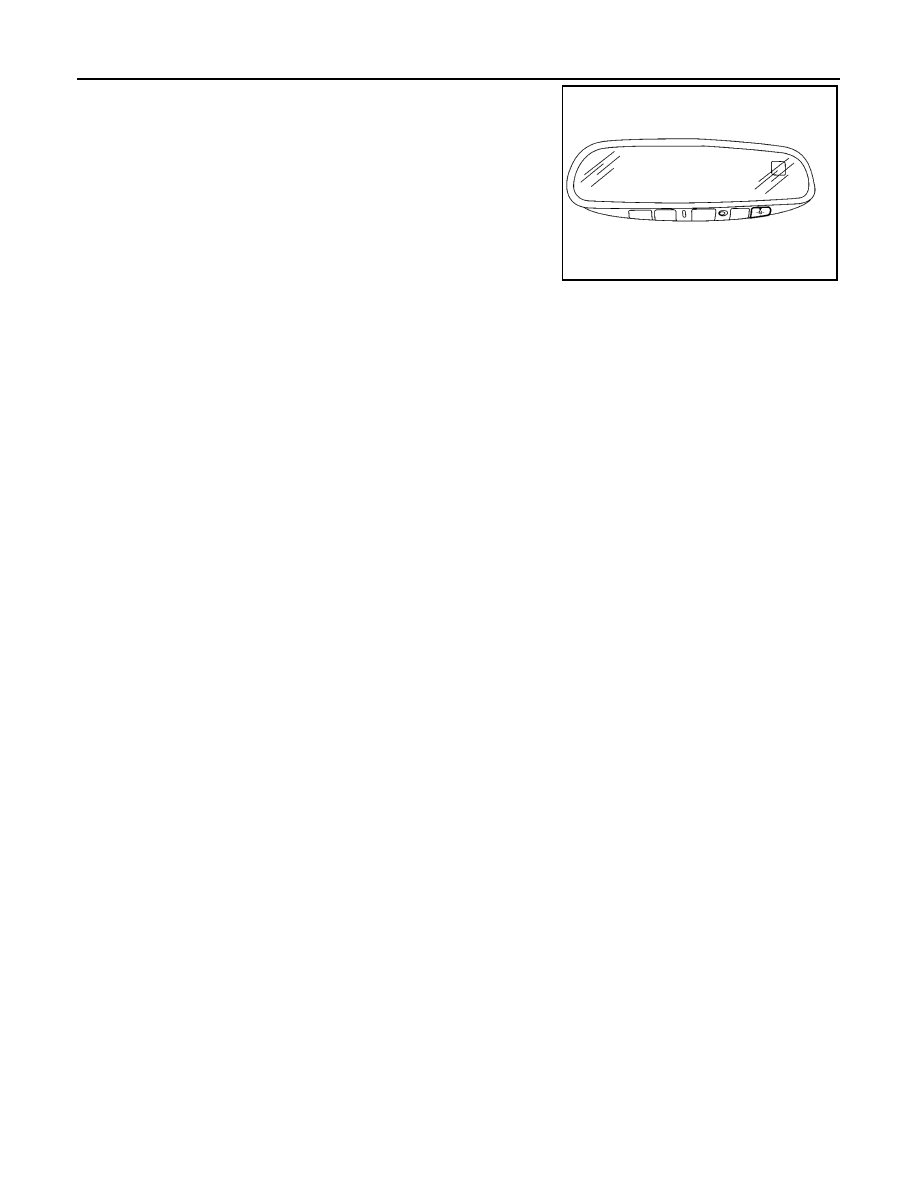

1. Hold the mode (N) switch until the display reads “C”.

2. Drive the vehicle slowly in a circle, in an open, safe place. The

initial calibration is completed in about three turns.

NOTE:

In places where the terrestrial magnetism is extremely disturbed, the

initial correction may start automatically.

LKIA0447E

MWI

DIAGNOSIS SYSTEM (METER)

MWI-29

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

DIAGNOSIS SYSTEM (METER)

Diagnosis Description

INFOID:0000000010049564

SELF-DIAGNOSIS MODE

• Odo/trip meter and information display segment operation can be checked in self-diagnosis mode.

• Meters/gauges can be checked in self-diagnosis mode.

OPERATION PROCEDURE

1. Turn the ignition switch OFF.
2. While pushing the odo/trip meter switch, turn the ignition switch ON again.
3. Push the odo/trip meter switch at least 3 times within 7 seconds after the ignition switch is turned ON.
4. The unified meter control unit is turned to self-diagnosis mode.

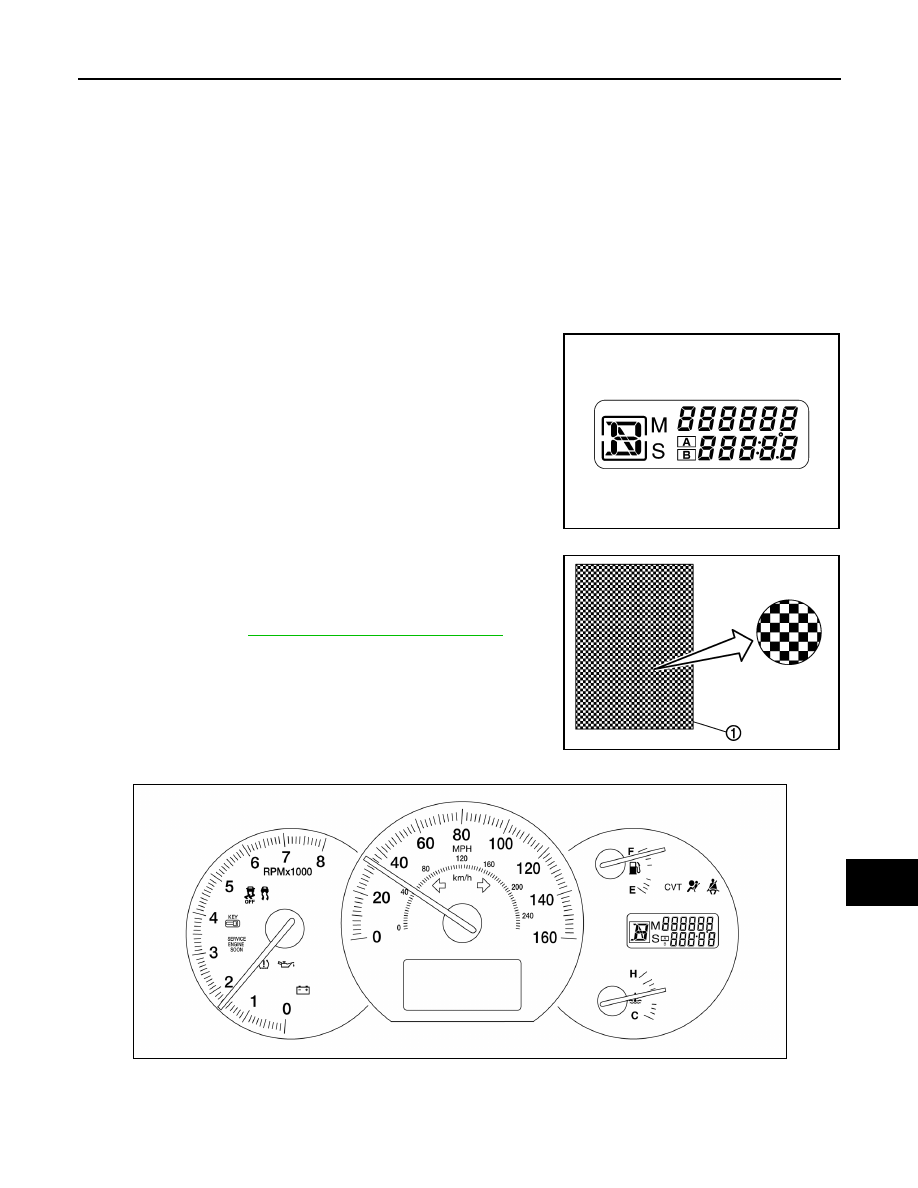

• All the segments on the odo/trip meter illuminate.

• Dots in all segments of information display LCD (1) flash alter-

nately.

NOTE:

If any of the segments are not displayed, replace the combina-

tion meter. Refer to

MWI-122, "Removal and Installation"

.

5. Push the odo/trip meter switch. Each meter/gauge should indicate as shown in the figure.

CONSULT Function (METER/M&A)

INFOID:0000000010049565

CONSULT can display each diagnostic item using the diagnostic test modes shown following.

SKIB1206J

JSNIA0020GB

AWNIA2309ZZ

MWI-30

< SYSTEM DESCRIPTION >

DIAGNOSIS SYSTEM (METER)

SELF-DIAG RESULTS

Display Item List

Refer to

MWI-51, "DTC Index"

.

DATA MONITOR

Display Item List

X: Applicable

METER/M&A diagnosis mode

Description

SELF DIAGNOSTIC RESULT

Displays combination meter self-diagnosis results.

DATA MONITOR

Displays combination meter input/output data in real time.

CAN DIAG SUPPORT MNTR

The result of transmit/receive diagnosis of CAN communication can be read.

Display item [Unit]

MAIN

SIGNALS

SELECTION

FROM MENU

Description

SPEED METER [km/h] or [mph]

X

X

Displays the value of vehicle speed signal.

SPEED OUTPUT [km/h] or [mph]

X

X

Displays the value of vehicle speed signal, which is transmitted to
each unit with CAN communication.

ODO OUTPUT

X

Displays the value, which is calculated by vehicle speed signal.

TACHO METER [rpm]

X

X

Displays the value of engine speed signal, which is input from ECM.

FUEL METER [lit.]

X

X

Displays the value, which processes a resistance signal from fuel
gauge.

W TEMP METER [

°C] or [°F]

X

X

Displays the value of engine coolant temperature signal, which is in-
put from ECM.

ABS W/L [ON/OFF]

X

Displays [ON/OFF] condition of ABS warning lamp.

VDC/TCS IND [ON/OFF]

X

Displays [ON/OFF] condition of VDC/TCS OFF indicator lamp.

SLIP IND [ON/OFF]

X

Displays [ON/OFF] condition of SLIP indicator lamp.

BRAKE W/L [ON/OFF]

X

Displays [ON/OFF] condition of brake warning lamp.*

DOOR W/L [ON/OFF]

X

Displays [ON/OFF] condition of door warning lamp.

TRUNK/GLAS-H [ON/OFF]

X

Displays [ON/OFF] condition of trunk warning lamp.

HI-BEAM IND [ON/OFF]

X

Displays [ON/OFF] condition of high beam indicator.

TURN IND [ON/OFF]

X

Displays [ON/OFF] condition of turn indicator.

LIGHT IND [ON/OFF]

X

Displays [ON/OFF] condition of light indicator.

OIL W/L [ON/OFF]

X

Displays [ON/OFF] condition of oil pressure warning lamp.

MIL [ON/OFF]

X

Displays [ON/OFF] condition of malfunction indicator lamp.

CRUISE IND [ON/OFF]

X

Displays [ON/OFF] condition of CRUISE indicator.

CVT IND [ON/OFF]

X

Displays [ON/OFF] condition of CVT warning lamp.

FUEL W/L [ON/OFF]

X

Displays [ON/OFF] condition of low-fuel warning lamp.

WASHER W/L [ON/OFF]

X

Displays [ON/OFF] condition of low washer fluid warning lamp.

AIR PRES W/L [ON/OFF]

X

Displays [ON/OFF] condition of tire pressure warning lamp.

KEY G/Y W/L [ON/OFF]

X

Displays [ON/OFF] condition of key warning lamp.

LCD

X

Displays the value of Intelligent Key system message indication.

SHIFT IND [P, R, N, D]

X

Displays [P, R, N, D] range position of CVT.

FUEL CAP W/L [ON/OFF]

X

Status of fuel filler cap warning display detected from fuel filler cap
warning display signal received from ECM via CAN communication.

M RANGE SW [ON/OFF]

X

Displays [ON/OFF] condition of manual mode range switch.

NM RANGE SW [ON/OFF]

X

Displays [ON/OFF] condition of except for manual mode range
switch.

ST SFT UP SW [ON/OFF]

X

Displays [ON/OFF] condition of steering shift-up switch.
