BODY SIDE TRIM

2. Release the clip and pawl using a suitable tool, then remove rear kicking plate.
3. Partially remove front and rear body side welts.
4. Remove center pillar upper finisher cover and remove the screw.
5. Remove front seat belt adjuster cover and shoulder anchor bolt. Refer to

SB-6, "Exploded View"

.

6. Release the clips and pawls using a suitable tool, then remove the center pillar lower finisher.
7. Release the clips using a suitable tool, then remove center pillar upper finisher.

Installation

Installation is in the reverse order of removal.

REAR SILL PLATE COVER

Removal

Release the pawls using a suitable tool, then remove the rear sill plate cover.

Installation

Installation is in the reverse order of removal.

REAR KICKING PLATE

Removal

Release the clip and pawl using a suitable tool, then remove rear kicking plate.

Installation

Installation is in the reverse order of removal.

REAR BODY SIDE WELT

Removal

1. Release the clip and pawl using a suitable tool, then remove rear kicking plate.
2. Release the clips and pawls using a suitable tool, then remove the center pillar lower finisher.
3. Remove rear body side welt from the body opening.

Installation

Installation is in the reverse order of removal.

REAR PARCEL SHELF FINISHER

INT-27

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

REAR PARCEL SHELF FINISHER

Exploded View

INFOID:0000000009465887

With Sunshade

AWJIA0784ZZ

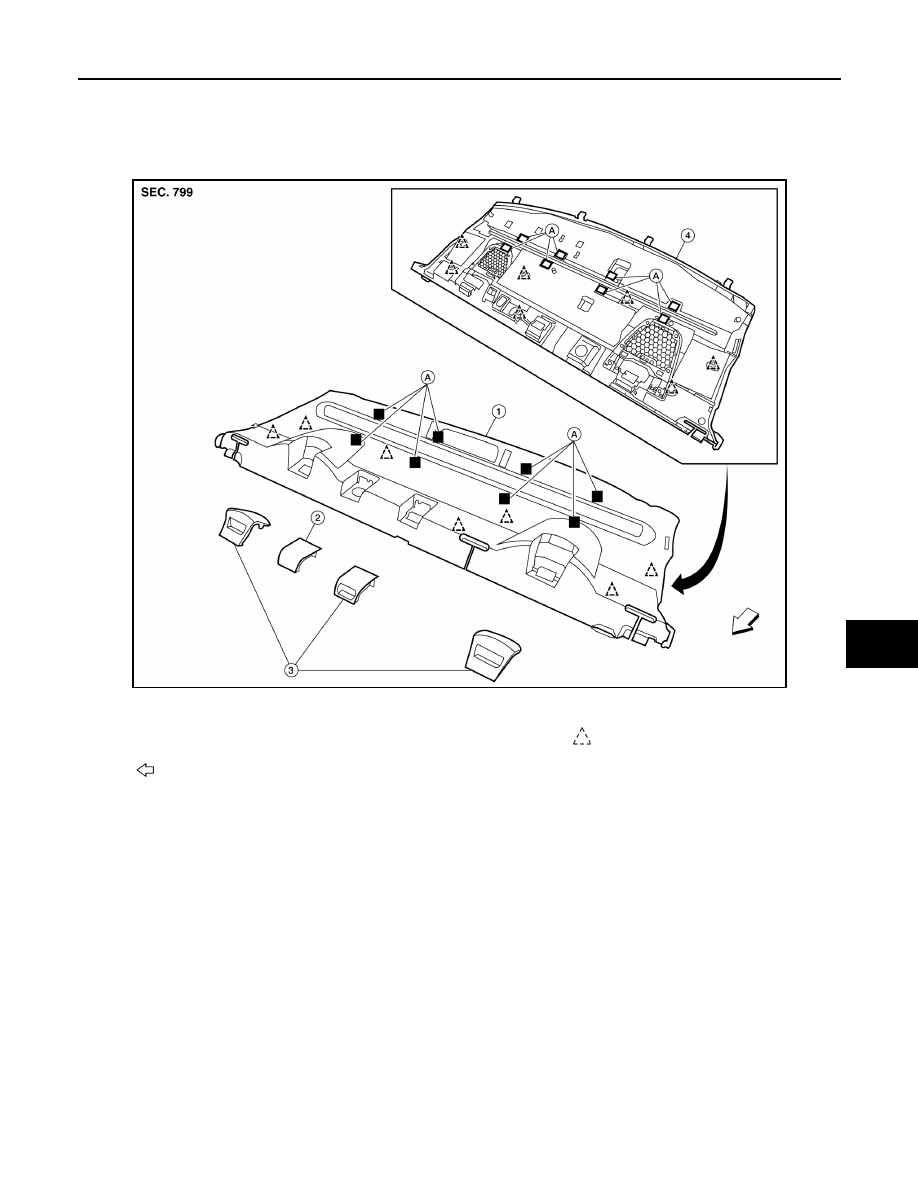

1.

Rear parcel shelf finisher

2. Cover

3.

Child anchor cover

4.

Rear parcel shelf finisher (under
side)

A. Dual lock fasteners

Clip

Front

INT-28

< REMOVAL AND INSTALLATION >

REAR PARCEL SHELF FINISHER

Without Sunshade

Removal and Installation

INFOID:0000000009465888

REMOVAL

1. Remove the halo upper frame assembly. Refer to

SE-70, "Removal and Installation"

 (with fixed seatback,

WITH CLIMATE CONTROLLED SEATS),

SE-73, "Removal and Installation"

 (with split seatback, WITH

CLIMATE CONTROLLED SEATS),

SE-128, "Removal and Installation"

 (with fixed seatback, W/O CLI-

MATE CONTROLLED SEATS)

SE-131, "Removal and Installation"

 (with split seatback, W/O CLIMATE

CONTROLLED SEATS).

2. Remove high mounted stop lamp (if equipped). Refer to

EXL-164, "Removal and Installation"

.

3. Remove rear pillar finishers (RH/LH). Refer to

INT-24, "Removal and Installation"

.

4. Thread the rear seat belts (RH/LH/center) through vertical opening and release from rear parcel shelf fin-

isher.

5. Remove rear parcel shelf finisher using a suitable tool.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

Make sure that clips are fully aligned with panel holes on body when installing, then press them in

completely.

AWJIA0786ZZ

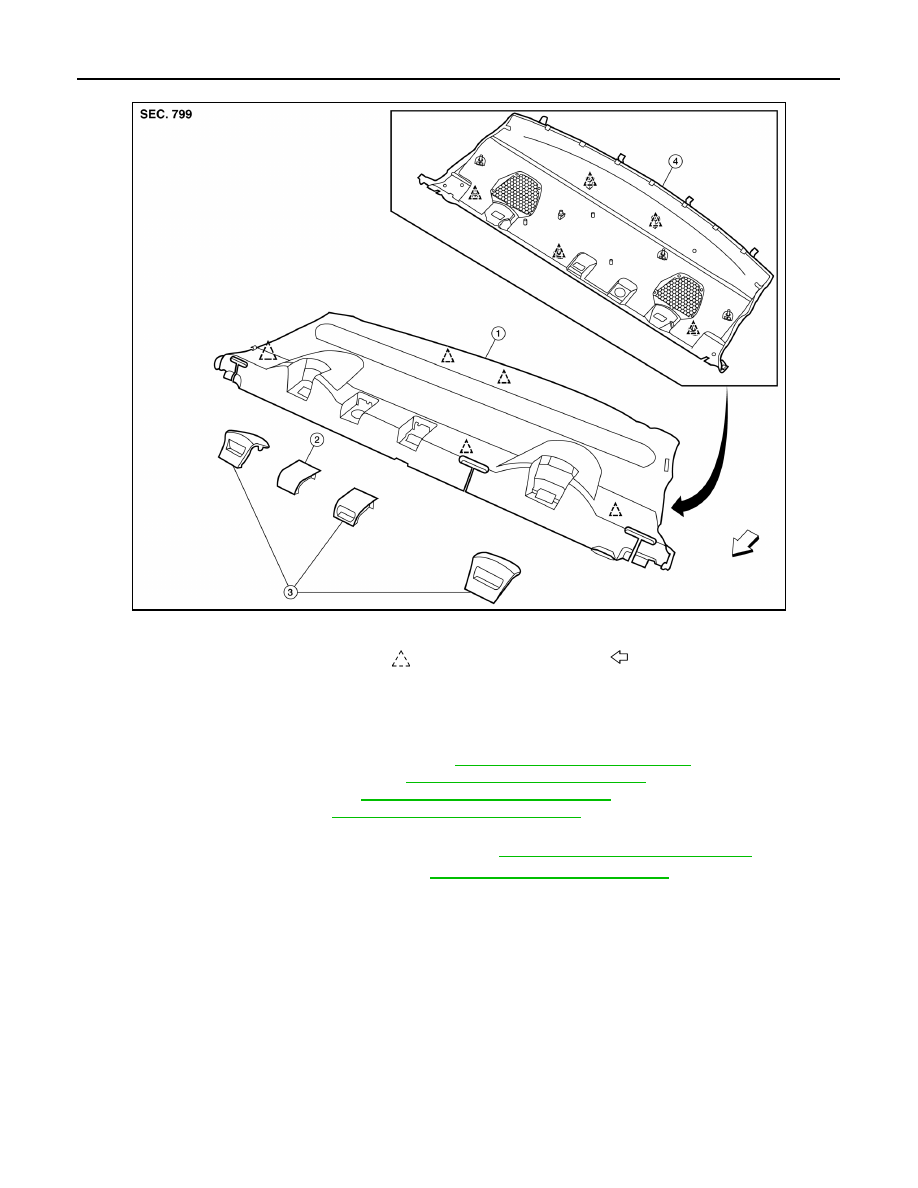

1.

Rear parcel shelf finisher

2. Cover

3. Child anchor cover

4.

Rear parcel shelf finisher (under side)

Clip

Front

REAR SUNSHADE

INT-29

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

REAR SUNSHADE

Removal and Installation

INFOID:0000000009465889

REMOVAL

1. Remove the rear parcel shelf finisher. Refer to

INT-24, "Removal and Installation"

.

2. Remove the rear sunshade unit.
a. Remove the rear sunshade unit bolts.
b. Disconnect the rear sunshade unit harness connector and remove the rear sunshade unit.

INSTALLATION

Installation is in the reverse order of removal.

1.

Rear sunshade unit

Front

AWJIA0407ZZ
