REAR DOOR FINISHER

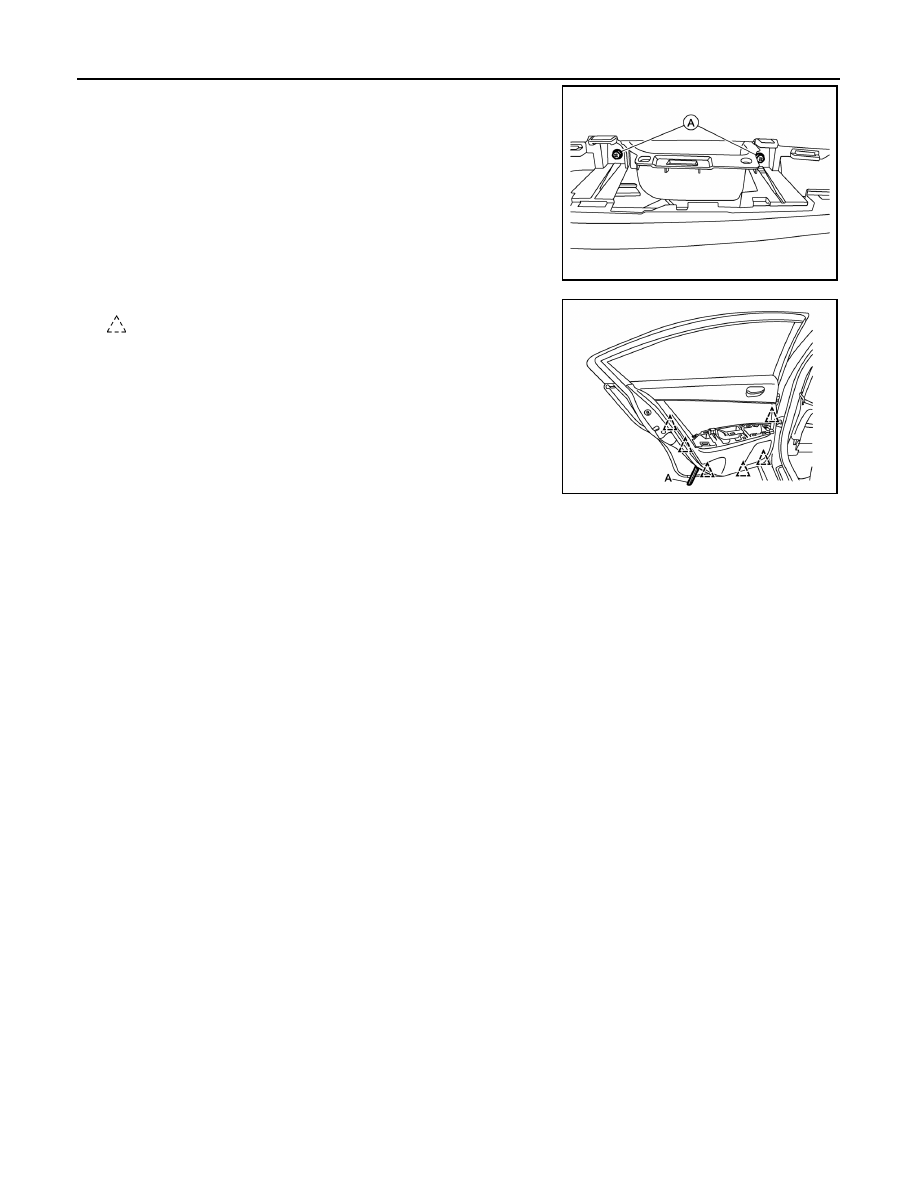

4. Remove the rear door finisher screws (A).

5. Release the rear door finisher clips using a suitable tool (A).

: Clip

6. Disconnect inside handle cable and the door lock cable from the back of rear door finisher.
7. Remove the rear door finisher.

INSTALLATION

Installation is in the reverse order of removal.

ALJIA0731ZZ

ALJIA0732ZZ

BODY SIDE TRIM

INT-23

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

BODY SIDE TRIM

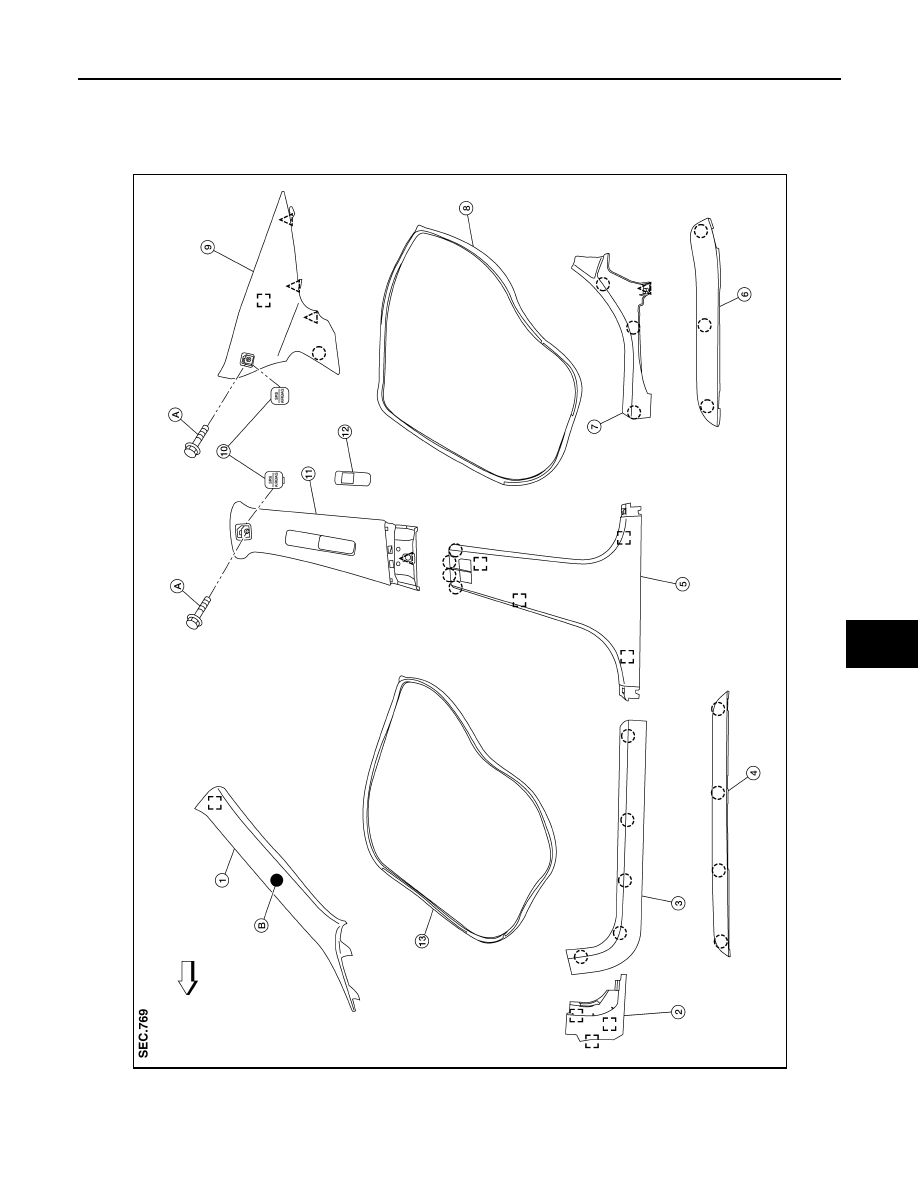

Exploded View

INFOID:0000000009465885

1.

Front pillar finisher

2.

Dash side lower finisher

3.

Front kicking plate

4.

Front sill cover

5.

Center pillar lower finisher

6.

Rear sill cover

7.

Rear kicking plate

8.

Rear body side welt

9.

Rear pillar finisher

ALJIA0356ZZ

INT-24

< REMOVAL AND INSTALLATION >

BODY SIDE TRIM

Removal and Installation

INFOID:0000000009465886

CAUTION:

• Wrap the tip of a suitable tool with a cloth when removing metal clips from finishers.

• When removing or installing body side welts, do not allow butyl seal to come in contact with pillar

finishers.

FRONT PILLAR FINISHER

Removal

1. Remove front body side welt partially.

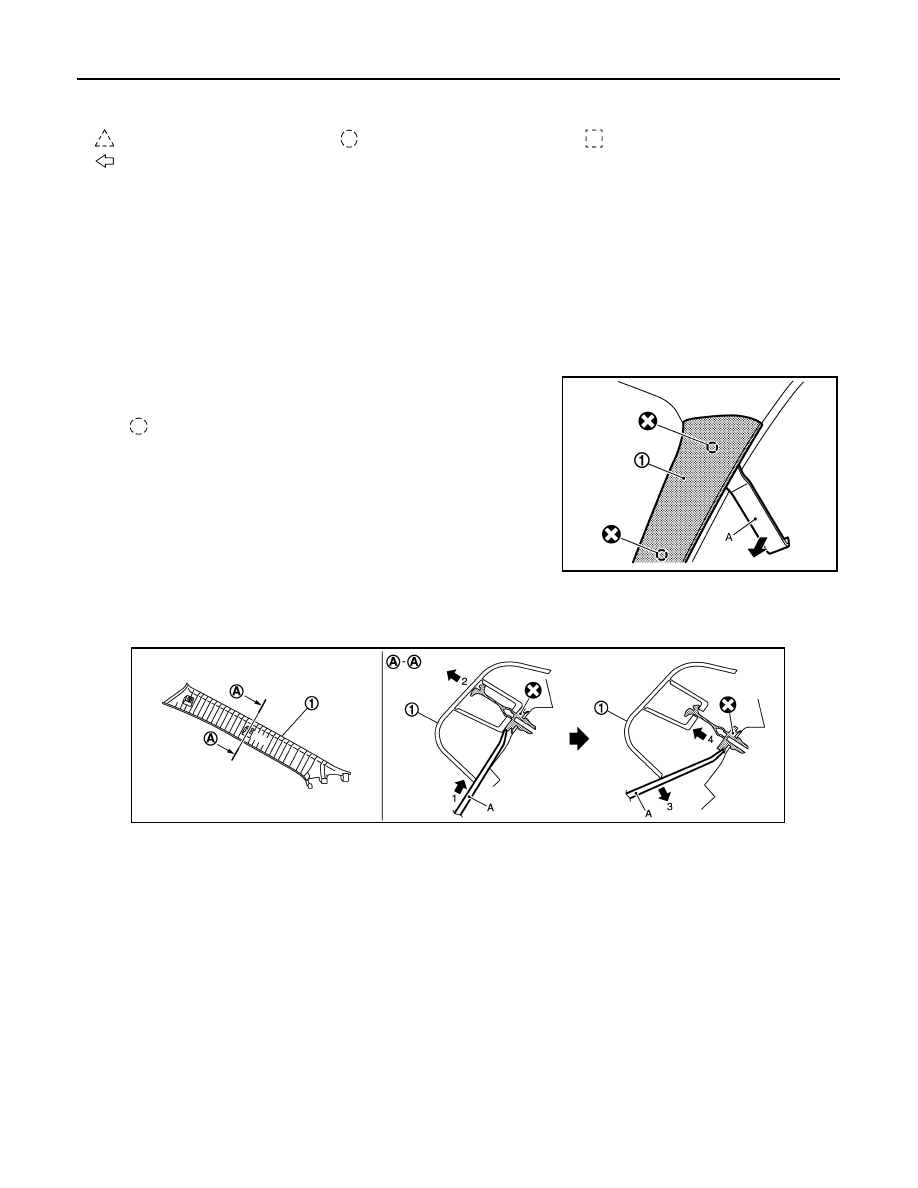

2. Disengage front pillar finisher (1) clip using a suitable tool (A).

3. Pull the front pillar finisher partially toward the vehicle.
4. Insert the a suitable tool (A) between the front pillar finisher bottom side and body side to disengage the

clip.

5. Pull front pillar finisher upwards and use a suitable tool to cut both clips.
6. Remove front pillar finisher (1).

Installation

Installation is in the reverse order of removal.

DASH SIDE LOWER FINISHER

Removal

1. Release the clip and pawls using a suitable tool, then remove front kicking plate.
2. Release the clips using a suitable tool, then remove dash side lower finisher.

Installation

Installation is in the reverse order of removal.

FRONT SILL PLATE COVER

Removal

Release the pawls using a suitable tool, then remove the front sill plate cover.

10. Screw cover

11. Center pillar upper finisher

12. Front seat belt adjuster cover

13. Front body side welt

A.

Screw

B.

Tether clip

Clip

Pawl

Metal clip

Front

: Clip

JMJIA0995ZZ

JMJIA2762ZZ

BODY SIDE TRIM

INT-25

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

Installation

Installation is in the reverse order of removal.

FRONT BODY SIDE WELT

Removal

1. Release the clip and pawls using a suitable tool, then remove front kicking plate.
2. Release the clips and pawls using a suitable tool, then remove the center pillar lower finisher.
3. Remove front body side welt from the body opening.

Installation

Installation is in the reverse order of removal.

FRONT KICKING PLATE INNER

Removal

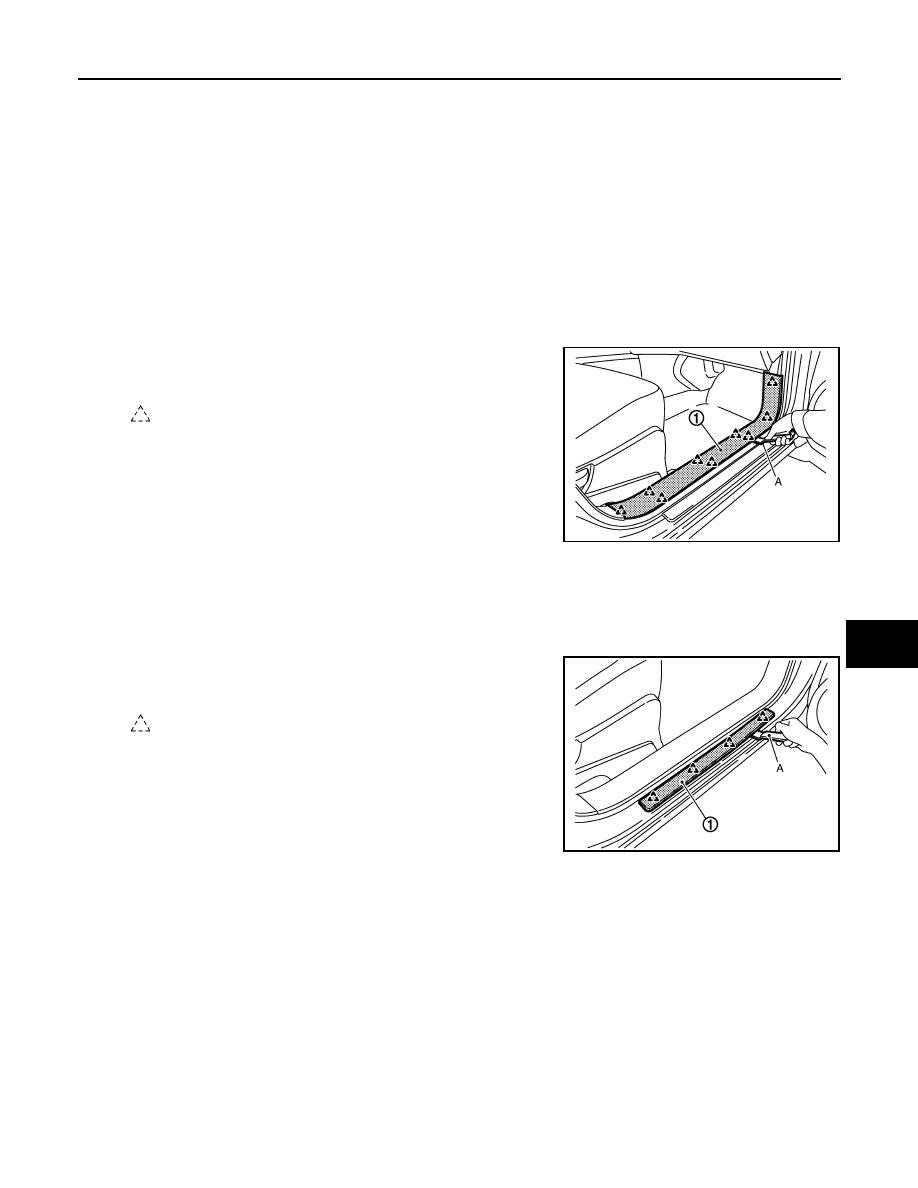

1. Disengage the pawls with a suitable tool (A) from the body.
2. Remove front kicking plate inner (1).

Installation

Installation is in the reverse order of removal.

FRONT KICKING PLATE OUTER

Removal

1. Disengage the pawls from the body with a suitable tool (A).
2. Remove front kicking plate outer (1)

Installation

Installation is in the reverse order of removal.

REAR PILLAR FINISHER

Removal

1. Partially remove rear body side welt.
2. Remove screw cover, then remove the screw.
3. Release the clips using a suitable tool, then remove rear pillar finisher.

Installation

Installation is in the reverse order of removal.

CENTER PILLAR UPPER FINISHER

Removal

1. Release the clip and pawls using a suitable tool, then remove front kicking plate.

: Pawl

JMJIA0996ZZ

: Pawl

JMJIA0999ZZ
