2014

QUICK REFERENCE CHART: MAXIMA

QUICK REFERENCE CHART: MAXIMA

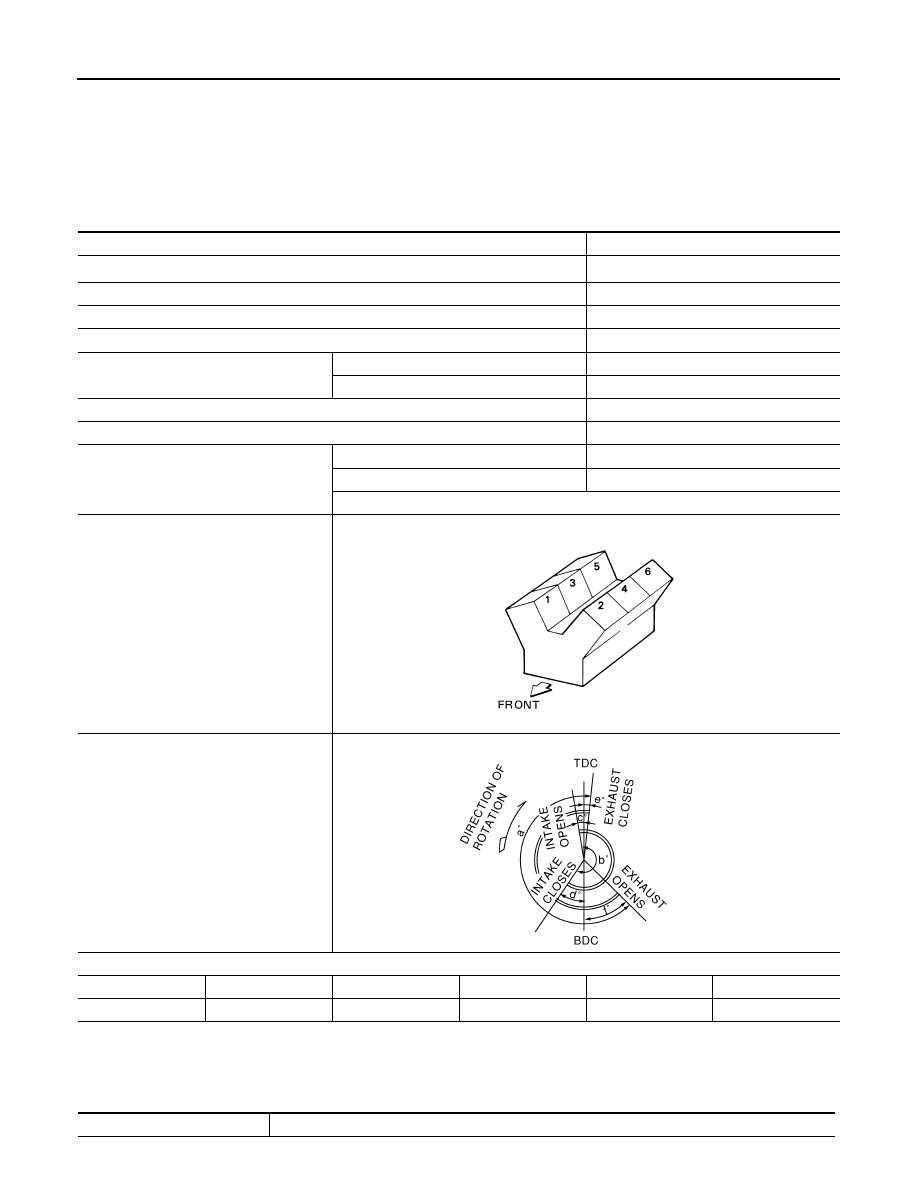

Engine Tune-up Data

INFOID:0000000010197446

GENERAL SPECIFICATIONS

Drive Belt

INFOID:0000000010197447

DRIVE BELT

Cylinder arrangement

V-6

Displacement cm

3

 (cu in)

3,498 (213.45)

Bore and stroke mm (in)

95.5 x 81.4 (3.760 x 3.205)

Valve arrangement

DOHC

Firing order

1-2-3-4-5-6

Number of piston rings

Compression

2

Oil

1

Number of main bearings

4

Compression ratio

10.6:1

Compression pressure
kPa (kg/cm

2

, psi)/300 rpm

Standard

1,275 (13.0, 185)

Minimum

981 (10.0, 142)

Differential limit between cylinders

98 (1.0, 14)

Cylinder number

Valve timing
(Valve timing control - “OFF”)

Unit: degree

a

b

c

d

e

f

240

240

−10

70

10

50

SEM713A

PBIC0187E

Tension of drive belt

Drive belt tension is not necessary, as it is automatically adjusted by drive belt auto-tensioner.

QUICK REFERENCE CHART: MAXIMA

2014

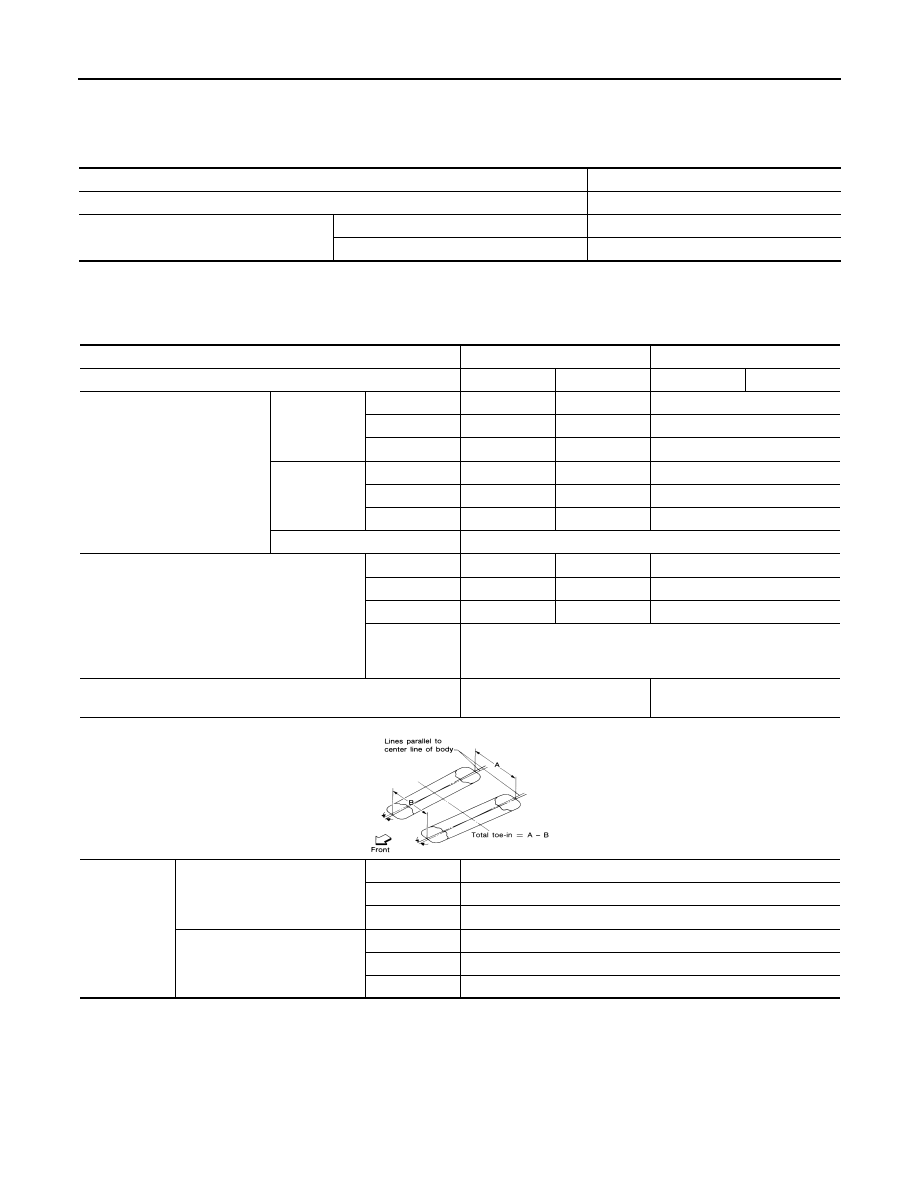

Spark Plug

INFOID:0000000010197448

SPARK PLUG

Unit: mm (in)

*: Always check with the Parts Department for the latest parts information.

Front Wheel Alignment (Unladen*)

INFOID:0000000010197445

*: Fuel, engine coolant, and lubricants are full. Spare tire, jack, hand tools, and mats are in designated positions.

Make

DENSO

Standard type*

FXE22HR11

Gap

Standard

1.1 (0.043)

Limit

1.4 (0.055)

Market

United States/Canada

Mexico

Tire size

P245/45R18

P245/40R19

P245/45R18

P245/40R19

Camber
Degree minute
(Decimal degree)

(LH)

Minimum

-1

°05’ (-1.08°)

-1

°10’ (-1.17°)

-0

°55’ (-0.92°)

Nominal

-0

°20’ (-0.33°)

-0

°25’ (-0.42°)

-0

°10’ (-0.17°)

Maximum

0

°25’ (0.42°)

0

°20’ (0.33°)

0

°35’ (0.58°)

(RH)

Minimum

-1

°20’ (-1.33°)

-1

°25’ (-1.42°)

-1

°10’ (-1.17°)

Nominal

-0

°35’ (-0.58°)

-0

°40’ (-0.67°)

-0

°25’ (-0.42°)

Maximum

0

°10’ (0.17°)

0

°05’ (0.08°)

0

°20’ (0.33°)

(RH) with respect to (LH)

0

°15’ ± 0°33’ (0.25°± 0.55°)

Caster
Degree minute
(Decimal degree)

Minimum

4

°10’ (4.17°)

4

°15’ (4.25°)

3

°45’ (3.75°)

Nominal

4

°55’ (4.92°)

5

°00’ (5.00°)

4

°30’ (4.50°)

Maximum

5

°40’ (5.67°)

5

°45’ (5.75°)

5

°15’ (5.25°)

Maximum left
and right dif-
ference

0

°33’ (0.55°)

Kingpin inclination
Degree minute (Decimal degree)

14

°25’ (14.42°)

14

°05’ (14.08°)

Total toe-in

Distance (A - B)

Minimum

Out 1 mm (Out 0.039 in)

Nominal

In 1 mm (In 0.039 in)

Maximum

In 3 mm (In 0.118 in)

Angle (LH and RH)
Degree minute
(Decimal degree)

Minimum

Out 0

°04′48″ (Out 0.08°)

Nominal

In 0

°04′48″ (In 0.08°)

Maximum

In 0

°14′24″ (In 0.24°)

SFA234AC
