EVAP CONTROL SYSTEM PRESSURE SENSOR

FL-17

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

L

M

A

FL

N

P

O

EVAP CONTROL SYSTEM PRESSURE SENSOR

Removal and Installation

INFOID:0000000009469809

REMOVAL

1. Remove rear stabilizer bar clamps and position rear stabilizer bar aside. Refer to

RSU-13, "Removal and

Installation"

.

2. Disconnect EVAP hose from EVAP canister.
3. Disconnect EVAP control system pressure sensor.
4. Remove EVAP control system pressure sensor and O-ring.

CAUTION:

Do not reuse O-ring.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

Do not reuse O-ring.

FL-18

< DISASSEMBLY AND ASSEMBLY >

FUEL LEVEL SENSOR UNIT

DISASSEMBLY AND ASSEMBLY

FUEL LEVEL SENSOR UNIT

Disassembly and Assembly

INFOID:0000000009469810

Fuel Level Sensor Unit

Disassembly

NOTE:

Before disassembly, note the proper placement of the wires to the correct terminals and correct wire routing to

the terminals.
1. Disconnect the red, white, and double black wire connectors.

• Press the tabs on the terminals to release the locking tabs.

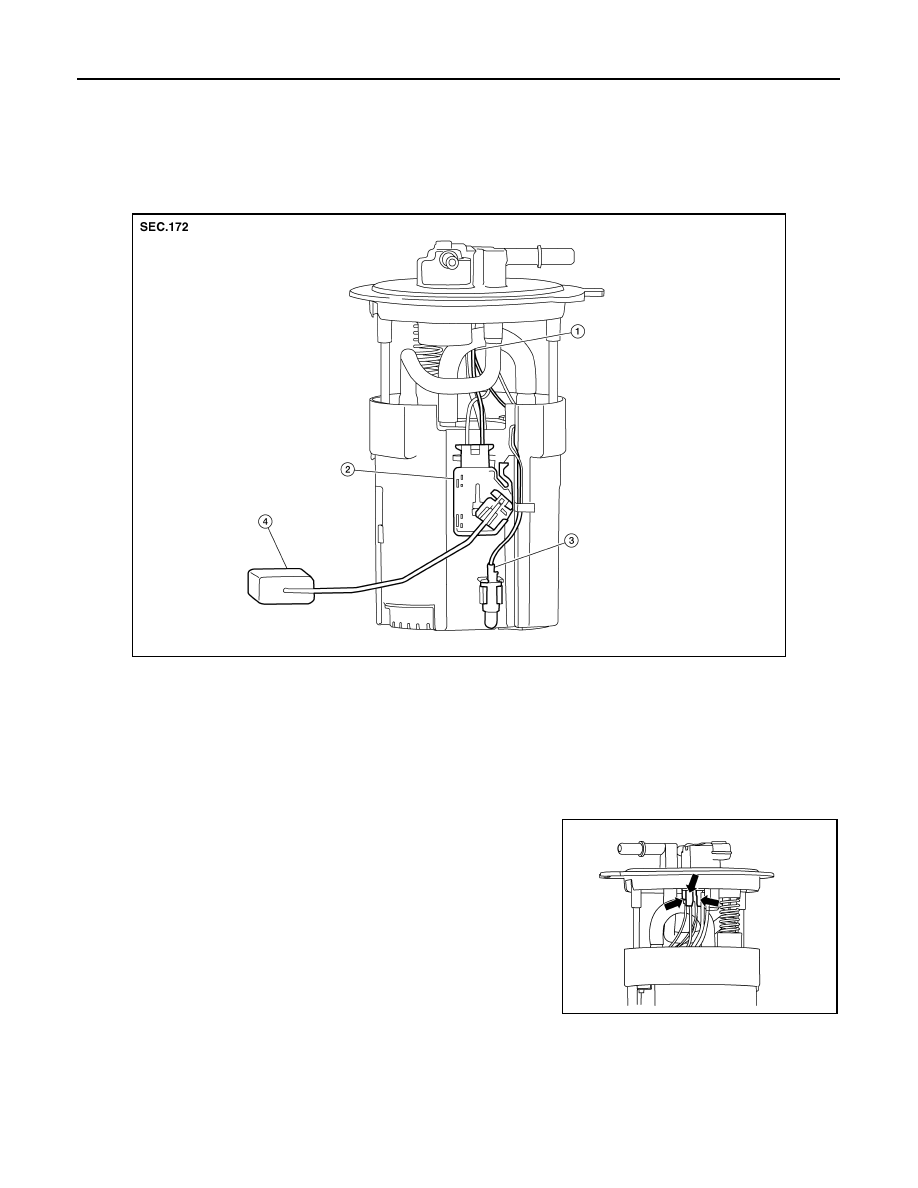

ALBIA0668ZZ

1.

Harness connectors

2.

Fuel level sensor unit

3.

Fuel tank temperature sensor

4.

Float arm assembly

ALBIA0669ZZ

FUEL LEVEL SENSOR UNIT

FL-19

< DISASSEMBLY AND ASSEMBLY >

C

D

E

F

G

H

I

J

K

L

M

A

FL

N

P

O

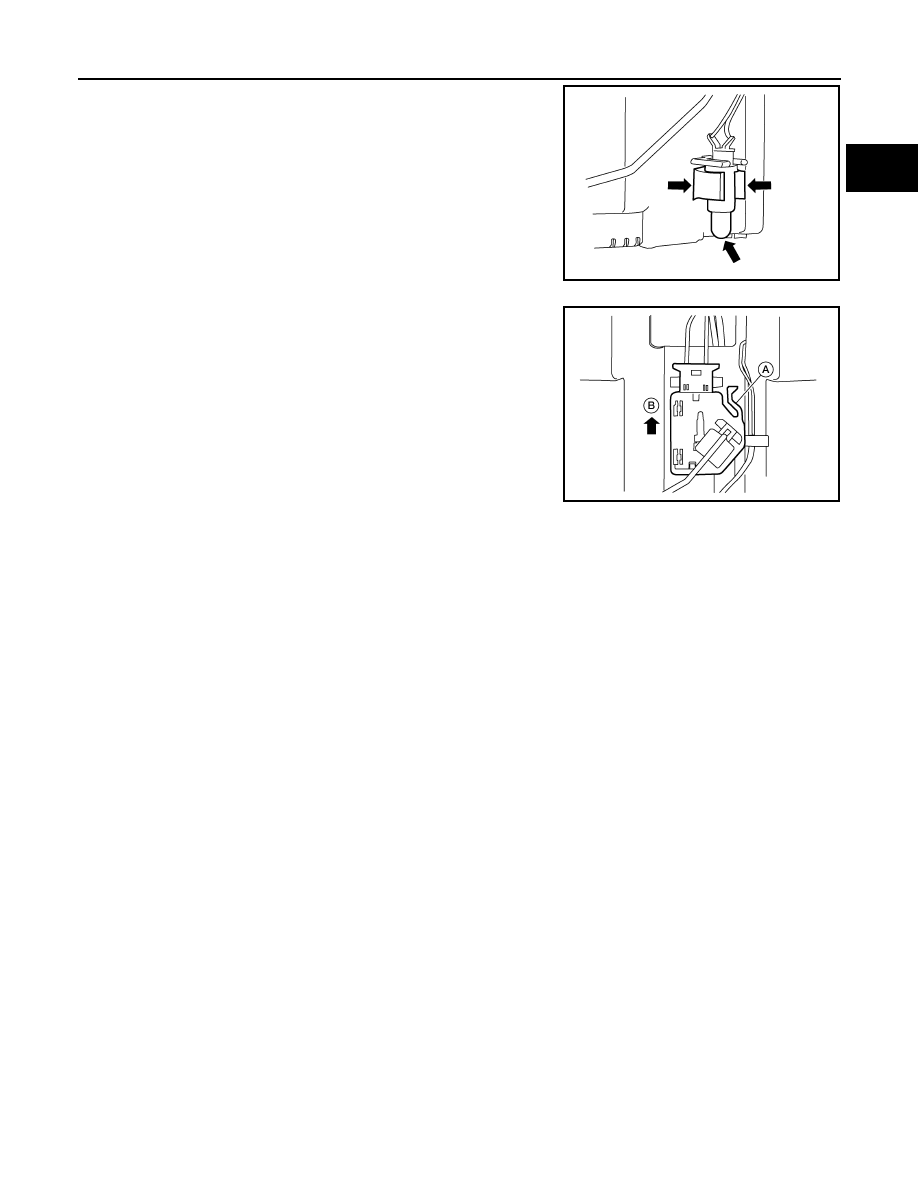

2. Release the two clips and remove the fuel tank temperature

sensor from the pump assembly.

3. Release the tab (A) and slide the fuel level sensor unit and float

arm assembly (B) up to remove.

Assembly

NOTE:

Assembly is the reverse order of disassembly.

• Ensure proper placement of the wires to the correct terminals and correct wire routing to the terminals.

• After connecting terminals, ensure they are securely locked and can not be pulled out.

• When installing the fuel level sensor unit, push down until the tab is locked into place.

ALBIA0670ZZ

ALBIA0671ZZ

FL-20

< SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

Fuel Tank

INFOID:0000000009469811

Standard and Limit

Fuel tank capacity

Approx. 75.6   (20 US gal, 16-5/8 Imp gal)

Fuel recommendation

Refer to

MA-15, "FOR USA AND CANADA : Fluids and Lubri-

cants"

 (United States and Canada),

MA-16, "FOR MEXICO : Flu-

ids and Lubricants"

 (Mexico)
