12. Remove EVAP canister bolts. Then without disconnecting hoses, position EVAP canister aside. Refer to

FL-14, "Removal and Installation (EVAP Canister)"

.

13. Remove the fuel tank protector.
14. Remove the fuel tank mounting strap bolts and mounting straps while supporting the fuel tank with a suit-

able jack.

15. Remove the fuel tank.
16. If replacing the fuel tank, remove the fuel level sensor unit, fuel filter and fuel pump assembly to transfer to

the new fuel tank. Remove and discard the O-ring.

CAUTION:

Do not reuse O-ring.

INSTALLATION

Install in the reverse order of removal paying attention to the following.

CAUTION:

Do not reuse O-ring.

• Before tightening the fuel tank mounting straps, temporarily install the filler hose and the recirculation hose.

Tighten all fuel tank mounting strap bolts to specification, then tighten the hose clamps.

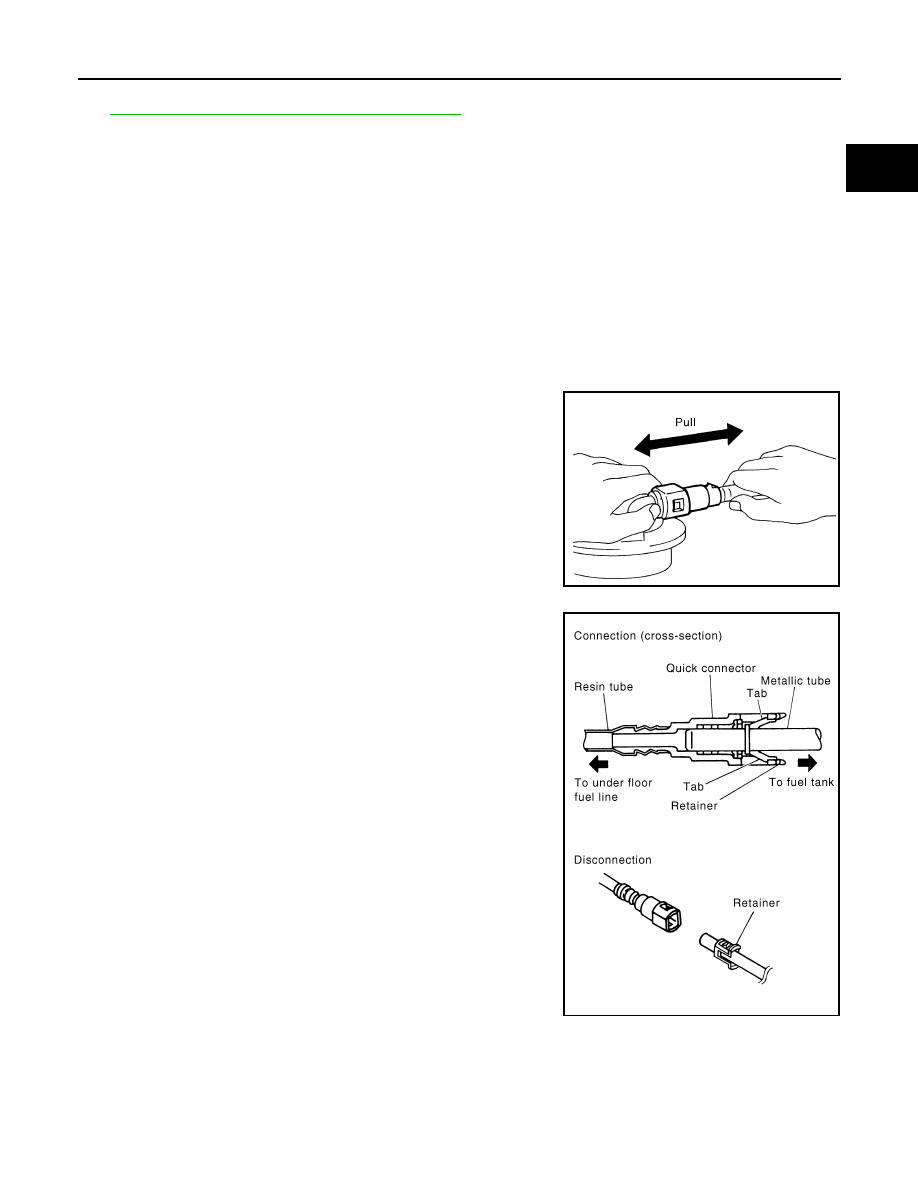

• Connect the quick connector as follows:

- Check the connection for damage or any foreign materials.

- Align the connector with the tube, then insert the connector straight

into the tube until a click is heard.

• After the tube is connected, make sure the connection is secure by

performing the following checks:

- Pull on the tube and the connector to make sure they are securely

connected.

- Visually confirm that the two retainer tabs are connected to the

quick connector.

INSPECTION AFTER INSTALLATION

Use the following procedure to check for fuel leaks.
1. Turn the ignition switch ON (without starting the engine). Then check the connections for fuel leaks by

applying fuel pressure to the fuel piping.

2. Run the engine and check for fuel leaks at the fuel system tube and hose connections.

PBIC1653E

PBIC0199E

FL-14

< REMOVAL AND INSTALLATION >

EVAP CANISTER

EVAP CANISTER

Removal and Installation (EVAP Canister)

INFOID:0000000009469805

NOTE:

The EVAP canister vent control valve and EVAP canister system pressure sensor can be removed without

removing the EVAP canister.

REMOVAL

1. Remove fuel tank. Refer to

FL-10, "Removal and Installation"

.

2. Disconnect EVAP hose from EVAP canister.
3. Disconnect EVAP control system pressure sensor.
4. Disconnect EVAP canister vent control valve and hose.
5. Disconnect main EVAP hose from canister.
6. Remove EVAP canister.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

Do not reuse O-rings.

NOTE:

Tighten EVAP canister bolt to the specified torque.

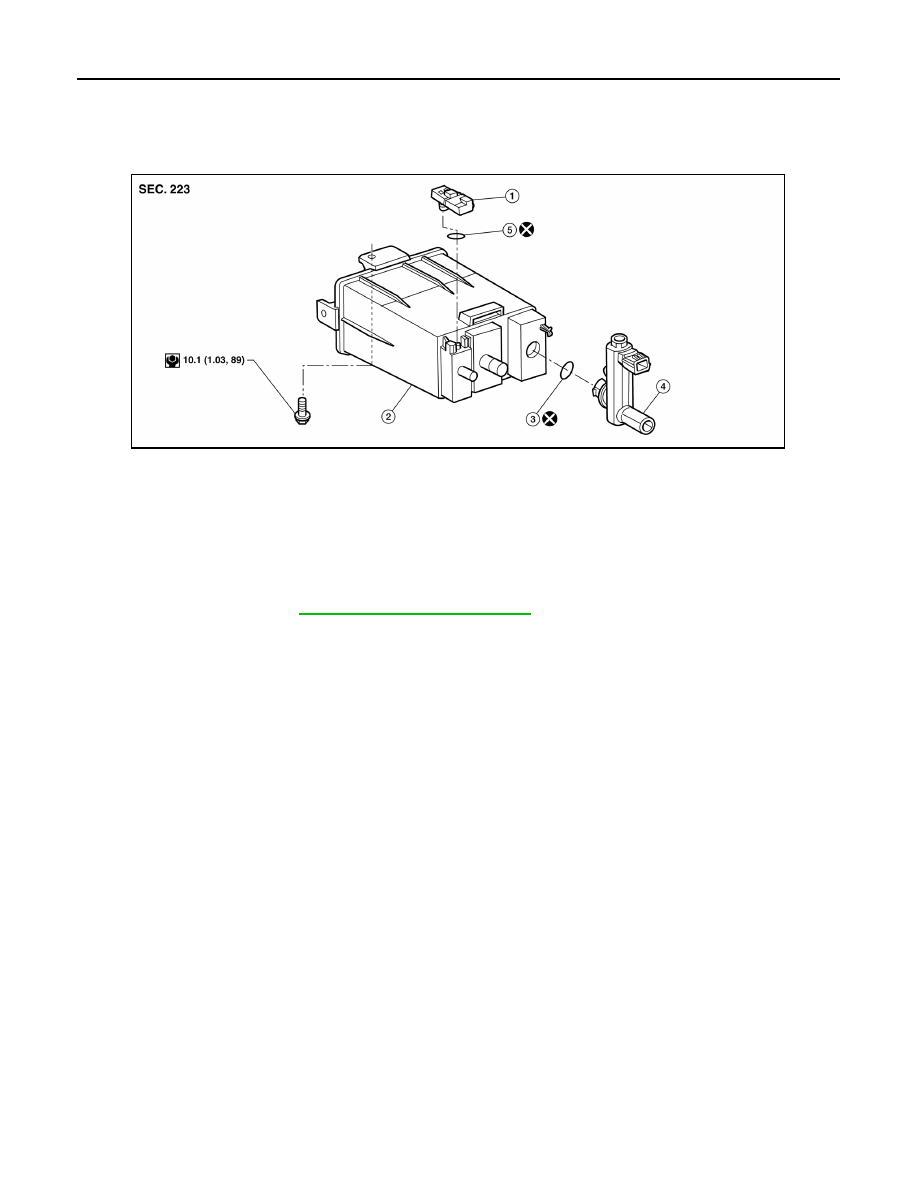

1.

EVAP control system pressure sensor 2.

EVAP canister

3.

O-ring

4.

EVAP canister vent control valve

5.

O-ring

AWBIA0992GB

EVAP CANISTER

FL-15

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

L

M

A

FL

N

P

O

Removal and Installation (EVAP Canister Filter)

INFOID:0000000009469806

REMOVAL

1. Remove rear stabilizer bar clamps and position rear stabilizer bar aside. Refer to

RSU-13, "Removal and

Installation"

.

2. Disconnect the EVAP hose from the EVAP canister filter.
3. Remove the EVAP filter bracket bolt and position the EVAP filter canister aside.
4. Remove the canister drain hose from the EVAP canister filter.
5. Remove EVAP canister filter.

INSTALLATION

Installation is in the reverse order of removal.

Inspection

INFOID:0000000009469807

Check EVAP canister as per the following:
1. Block port (B).
2. Blow air into port (A) and check that it flows freely out of port (C).
3. Release blocked port (B).
4. Apply vacuum pressure to port (B) and check that vacuum pres-

sure exists at the ports (A) and (C).

5. Block port (A) and (B).
6. Apply pressure to port (C) and check that there is no leakage.

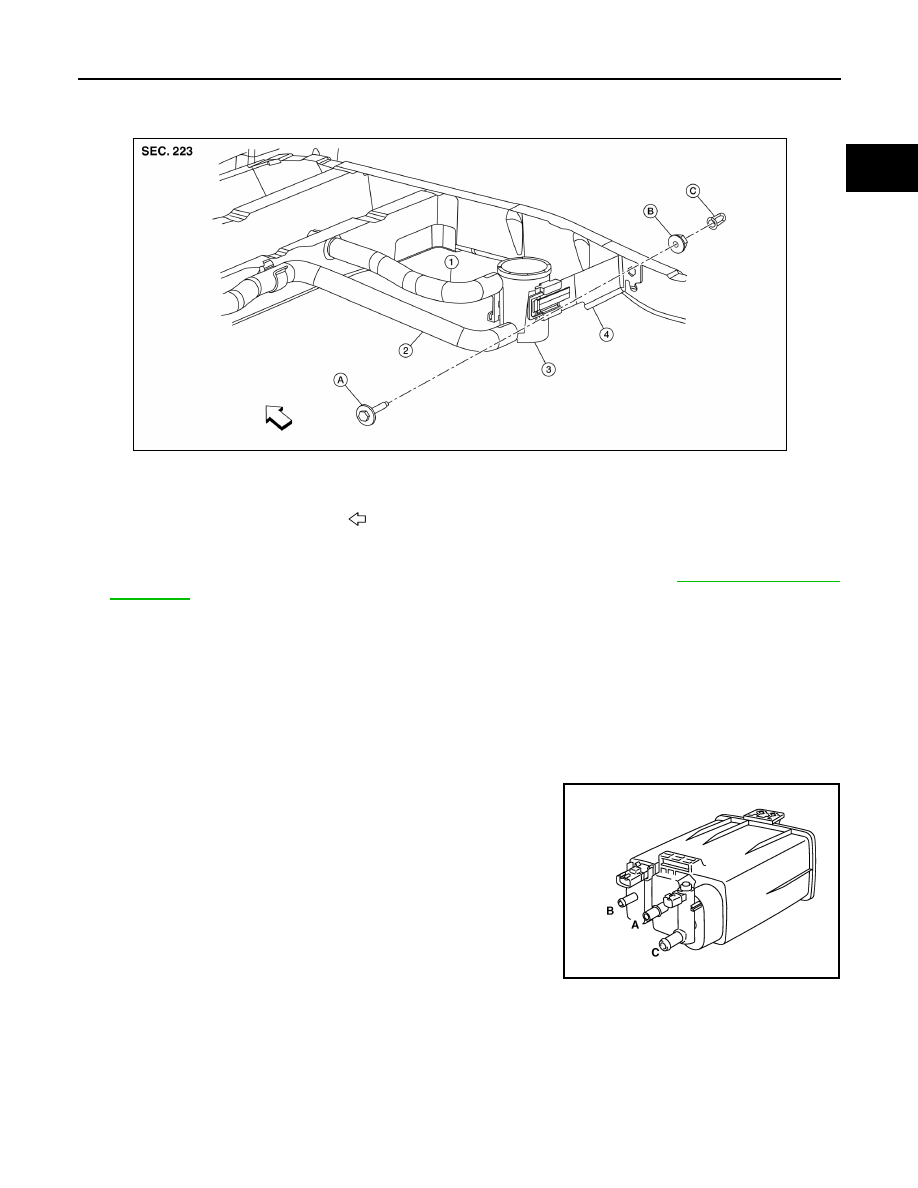

1.

Canister drain hose

2.

EVAP hose

3.

EVAP canister filter

4.

EVAP filter bracket

A.

Bolt

B.

Nut

C.

Nut

Front

ALBIA0694ZZ

PBIB1212E

FL-16

< REMOVAL AND INSTALLATION >

EVAP CANISTER VENT CONTROL VALVE

EVAP CANISTER VENT CONTROL VALVE

Removal and Installation

INFOID:0000000009469808

REMOVAL

1. Remove rear stabilizer bar clamps and position rear stabilizer bar aside. Refer to

RSU-13, "Removal and

Installation"

.

2. Disconnect breather hose from EVAP canister.
3. Disconnect EVAP canister vent control valve.

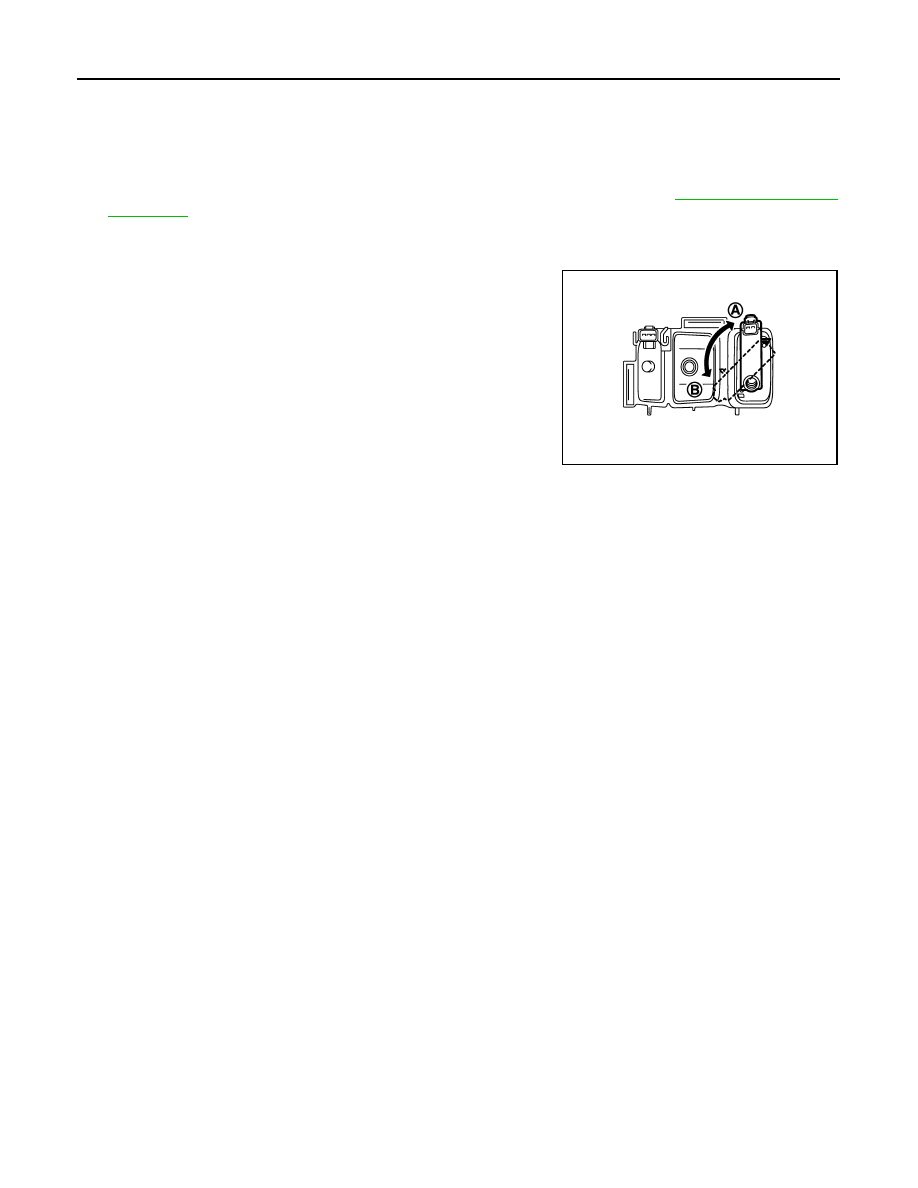

4. Turn EVAP canister vent control valve counterclockwise.

5. Remove the EVAP canister vent control valve and O-ring.

CAUTION:

Do not reuse O-ring.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

Do not reuse O-ring.

A

:  Lock

B

:  Unlock

PBIB3091E
