FUEL LEVEL SENSOR UNIT, FUEL FILTER AND FUEL PUMP ASSEMBLY

FL-9

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

L

M

A

FL

N

P

O

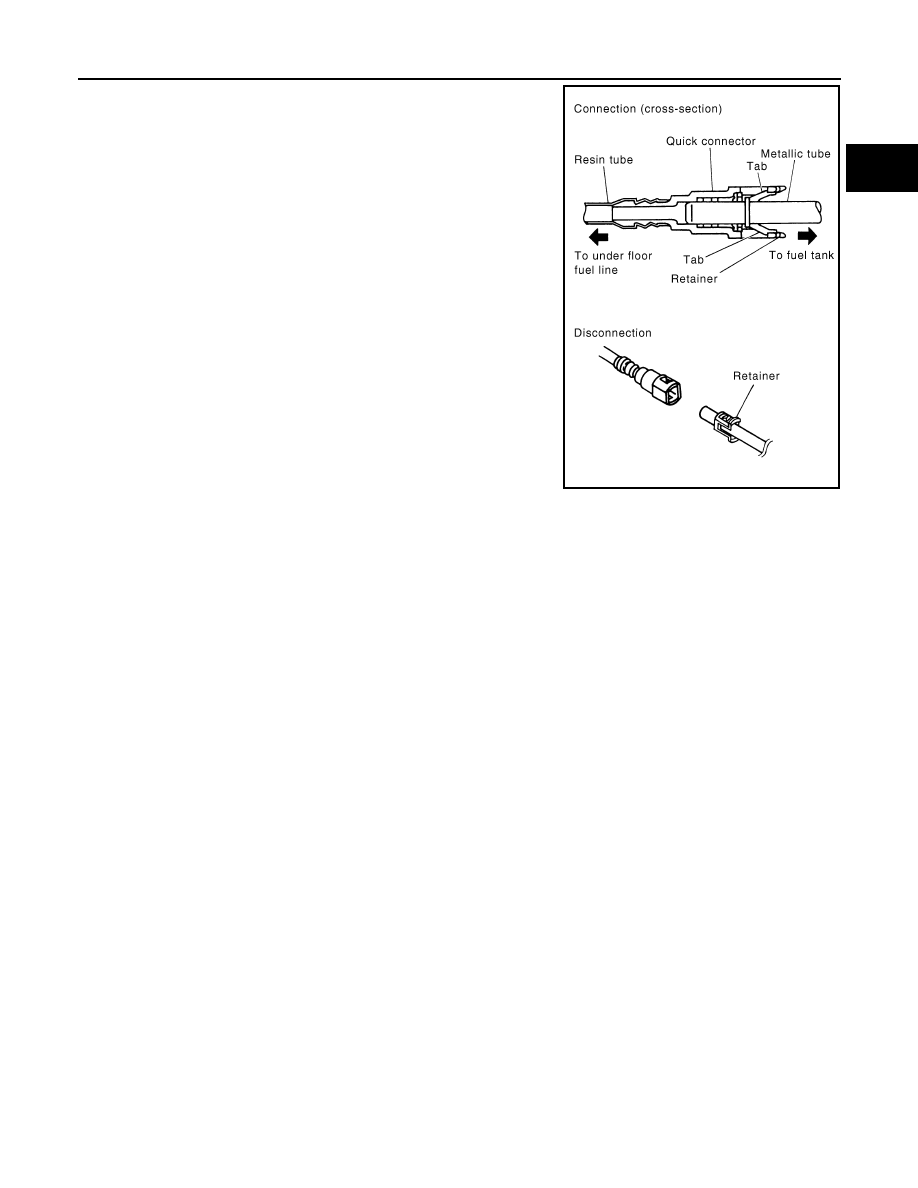

- Visually confirm that the two retainer tabs are connected to the

quick connector.

INSPECTION AFTER INSTALLATION

Use the following procedure to check for fuel leaks.
1. Turn the ignition switch to ON (without starting the engine) to apply fuel pressure to the fuel system, then

check the connections for fuel leaks.

2. Start the engine and let it idle and check for fuel leaks at the fuel system connections.

PBIC0199E

F

L

- 1

0

< REMOVAL AND INSTALLATION >

FUEL TANK

FUEL TANK

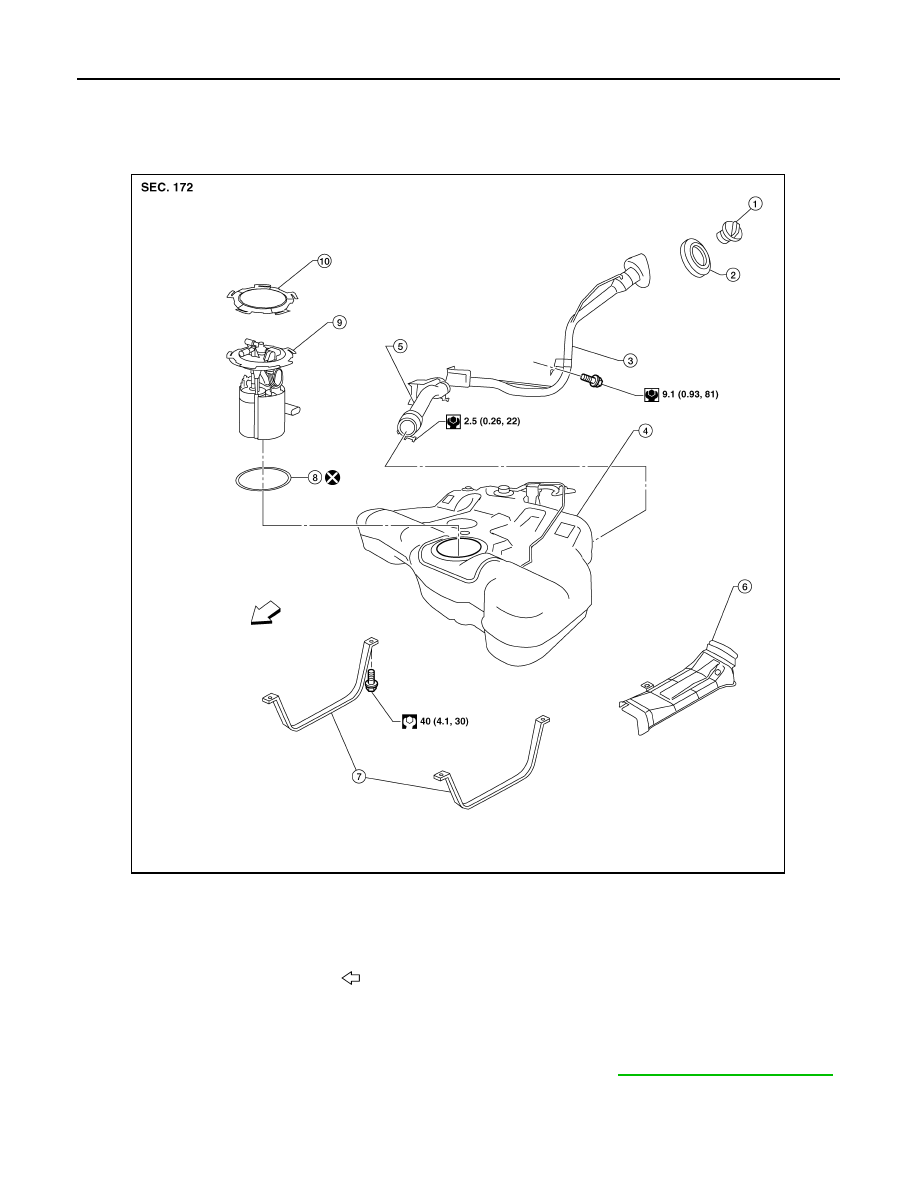

Exploded View

INFOID:0000000009469803

Removal and Installation

INFOID:0000000009469804

WARNING:

Read “General Precautions” before working on the fuel system. Refer to

GI-27, "General Precautions"

.

NOTE:

When removing components such as hoses, tubes/lines, etc., cap or plug openings to prevent fluid from spill-

ing.

1.

Fuel filler cap

2.

Grommet

3.

Fuel filler tube

4.

Fuel tank

5.

Fuel filler hose

6.

Fuel tank protector

7.

Fuel tank mounting straps

8.

O-ring

9.

Fuel level sensor, fuel filter and fuel
pump assembly

10. Lock ring

Front

AWBIA0997GB

FUEL TANK

FL-11

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

L

M

A

FL

N

P

O

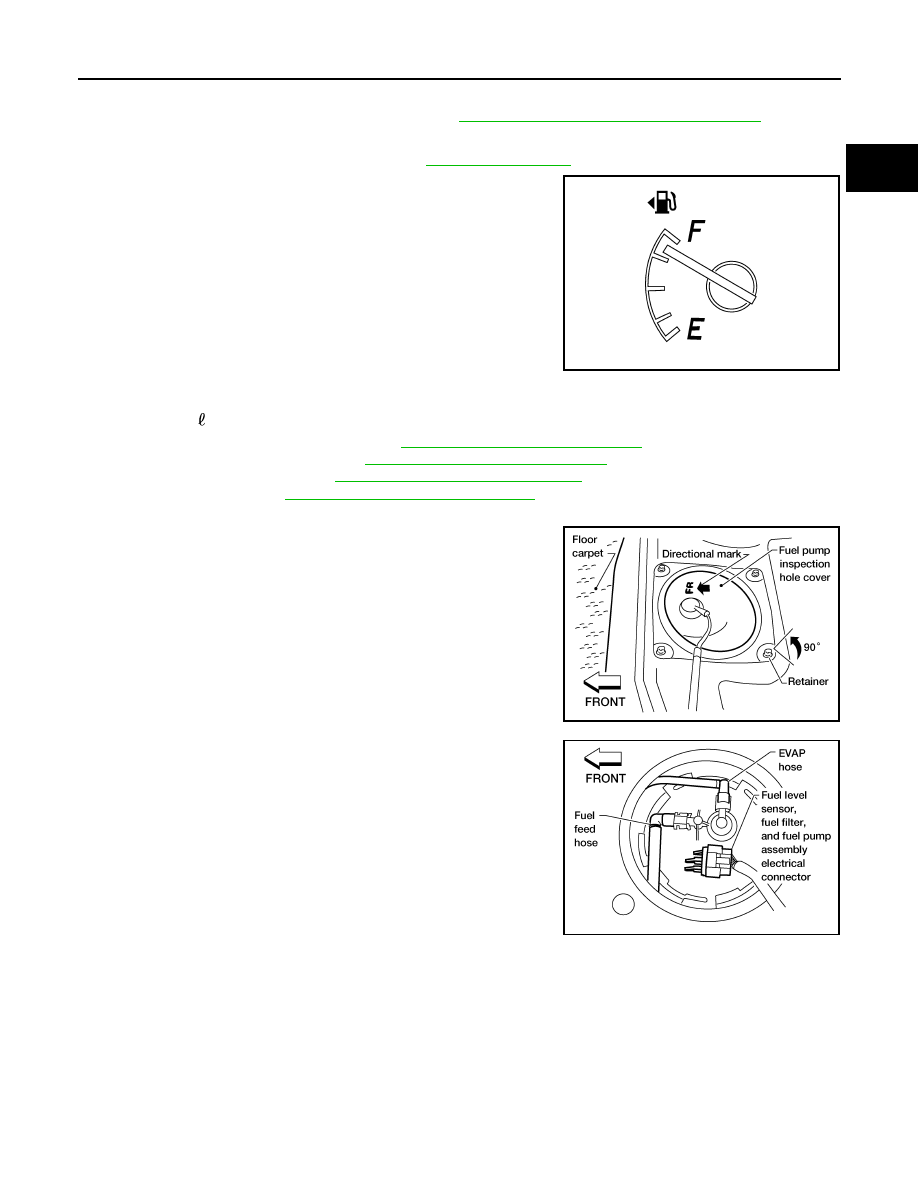

REMOVAL

1. Disconnect the battery negative terminal. Refer to

PG-67, "Removal and Installation (Battery)"

.

2. Open the fuel filler cap to release the pressure inside the fuel tank.
3. Release fuel pressure from fuel line. Refer to

EC-592, "Inspection"

.

4. Check the fuel level with the vehicle on a level surface. If the fuel

gauge indicates more than the level as shown (7/8 full), drain

the fuel from the fuel tank until the fuel gauge indicates a level at

or below as shown (7/8 full).

• In case the fuel pump does not operate, use the following pro-

cedure.

a. Insert fuel tubing of less than 25mm (0.98in) diameter into the

fuel filler tube through the fuel filler opening to drain fuel from the

fuel filler tube.

b. Disconnect the fuel filler hose from the fuel filler tube.
c. Insert fuel tubing into the fuel tank through the fuel filler hose to

drain fuel from the fuel tank.

• As a guide, the fuel level reaches or is less than the level on the fuel gauge as shown, when approxi-

mately 10   (2 5/8 US gal, 2 1/4 Imp gal) of fuel is drained from a full fuel tank.

5. Remove the rear seat cushion. Refer to

SE-70, "Removal and Installation"

 (with fixed seatback, WITH

CLIMATE CONTROLLED SEATS),

SE-73, "Removal and Installation"

 (with split seatback, WITH CLI-

MATE CONTROLLED SEATS),

SE-128, "Removal and Installation"

 (with fixed seatback, W/O CLIMATE

CONTROLLED SEATS)

SE-131, "Removal and Installation"

 (with split seatback, W/O CLIMATE CON-

TROLLED SEATS).

6. Turn the four retainers 90 degrees in a clockwise direction and

remove the fuel pump inspection hole cover.

7. Disconnect the fuel level sensor, fuel filter, and fuel pump

assembly harness connector, EVAP hose quick connector, and

fuel feed hose quick connector.

SBIA0393E

LBIA0337E

LBIA0338E

FL-12

< REMOVAL AND INSTALLATION >

FUEL TANK

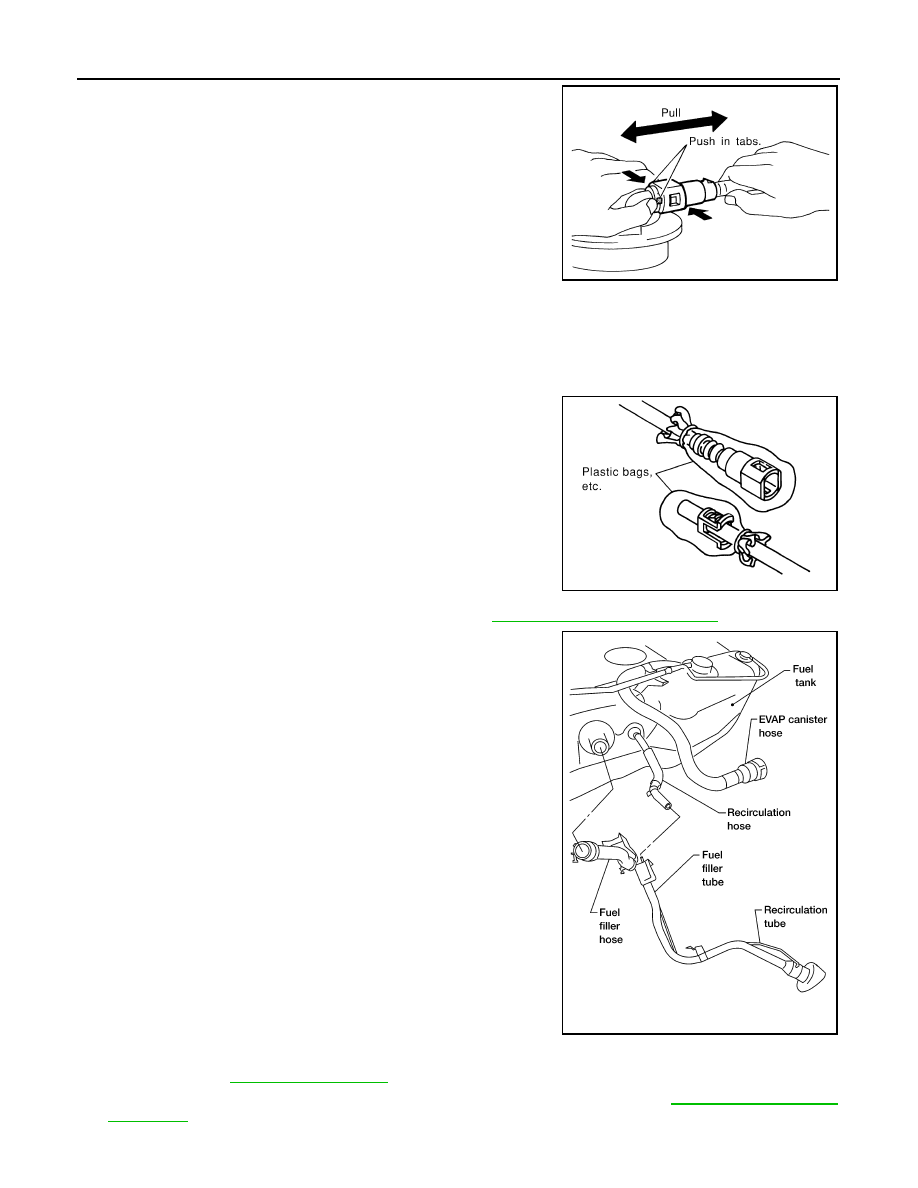

a. Disconnect the quick connectors as follows:

• Hold the sides of the connector, push in tabs and pull out the

tube.

• If the connector and the tube are stuck together, push and pull

several times until they start to move. Then disconnect them

by pulling.

CAUTION:

• The tube can be removed when the tabs are completely

depressed. Do not twist it more than necessary.

• Do not use any tools to remove the quick connector.

• Keep the resin tube away from heat. Be especially careful

when welding near the tube.

• Prevent acid liquid such as battery electrolyte, from getting on the resin tube.

• Do not bend or twist the tube during installation and removal.

• Only when the tube is replaced, remove the remaining retainer on the tube or fuel level sensor,

fuel filter, and fuel pump assembly.

• When the tube or fuel level sensor, fuel filter, and fuel pump assembly is replaced, also replace

the retainer with a new one (green colored retainer).

• To keep the connecting portion clean and to avoid dam-

age and foreign materials, cover them completely with

plastic bags or something similar.

8. Remove the center exhaust tube, with muffler. Refer to

EX-5, "Removal and Installation"

.

9. Disconnect the fuel filler hose and recirculation hose at the fuel

tank side.

10. Disconnect the three parking brake cable mounting brackets on each cable and position the cables out of

the way. Refer to

PB-6, "Exploded View"

.

11. Remove rear stabilizer bar clamps, then allow stabilizer bar to hang. Refer to

RSU-13, "Removal and

Installation"

.

SFE562A

PBIC0163E

LBIA0341E
