CONTENTS

FUEL SYSTEM

PRECAUTION ...............................................

2

PRECAUTIONS ...................................................

2

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" ...................................................................

2

General Precaution  ...................................................

2

PREPARATION ............................................

4

PREPARATION ...................................................

4

Special Service Tool  .................................................

4

Commercial Service Tool  ..........................................

4

PERIODIC MAINTENANCE ..........................

5

FUEL SYSTEM ....................................................

5

Inspection ..................................................................

5

Quick Connector  .......................................................

5

REMOVAL AND INSTALLATION ................

6

FUEL LEVEL SENSOR UNIT, FUEL FILTER
AND FUEL PUMP ASSEMBLY  ..........................

6

Exploded View  ..........................................................

6

Removal and Installation ...........................................

6

FUEL TANK  ......................................................

10

Exploded View .........................................................

10

Removal and Installation  .........................................

10

EVAP CANISTER ..............................................

14

Removal and Installation (EVAP Canister) ..............

14

Removal and Installation (EVAP Canister Filter) .....

15

Inspection ................................................................

15

EVAP CANISTER VENT CONTROL VALVE  ...

16

Removal and Installation  .........................................

16

EVAP CONTROL SYSTEM PRESSURE SEN-
SOR ...................................................................

17

Removal and Installation  .........................................

17

DISASSEMBLY AND ASSEMBLY ..............

18

FUEL LEVEL SENSOR UNIT  ...........................

18

Disassembly and Assembly .....................................

18

SERVICE DATA AND SPECIFICATIONS
(SDS) ............................................................

20

SERVICE DATA AND SPECIFICATIONS
(SDS) .................................................................

20

Fuel Tank .................................................................

20

FL-2

< PRECAUTION >

PRECAUTIONS

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000009469795

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along

with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain

types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS

system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front

air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.

Information necessary to service the system safely is included in the SR and SB section of this Service Man-

ual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by

an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag

Module, see the SR section.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-

ness connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

• When working near the Airbag Diagnosis Sensor Unit or other Airbag System sensors with the Igni-

tion ON or engine running, DO NOT use air or electric power tools or strike near the sensor(s) with a

hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing

serious injury.

• When using air or electric power tools or hammers, always switch the Ignition OFF, disconnect the

battery, and wait at least 3 minutes before performing any service.

General Precaution

INFOID:0000000009469796

WARNING:

When replacing fuel line parts, be sure to observe the following.

• Put a “CAUTION: FLAMMABLE” sign in the work area.
• Be sure to work in a well ventilated area and have a CO

2

 fire extinguisher.

• Do not smoke while working on the fuel system. Keep open flames and sparks away from the work

area.

CAUTION:

• Before removing fuel line parts, carry out the following procedures:

- Put drained fuel in an explosion-proof container and put the lid on securely. Keep the container in

safe area.

- Release fuel pressure from the fuel lines. Refer to

EC-592, "Inspection"

.

- Disconnect the battery ground cable.

• Always replace O-rings and clamps with new ones.

• Do not kink or twist tubes when they are being installed.

• Do not tighten hose clamps excessively to avoid damaging hoses.

PRECAUTIONS

FL-3

< PRECAUTION >

C

D

E

F

G

H

I

J

K

L

M

A

FL

N

P

O

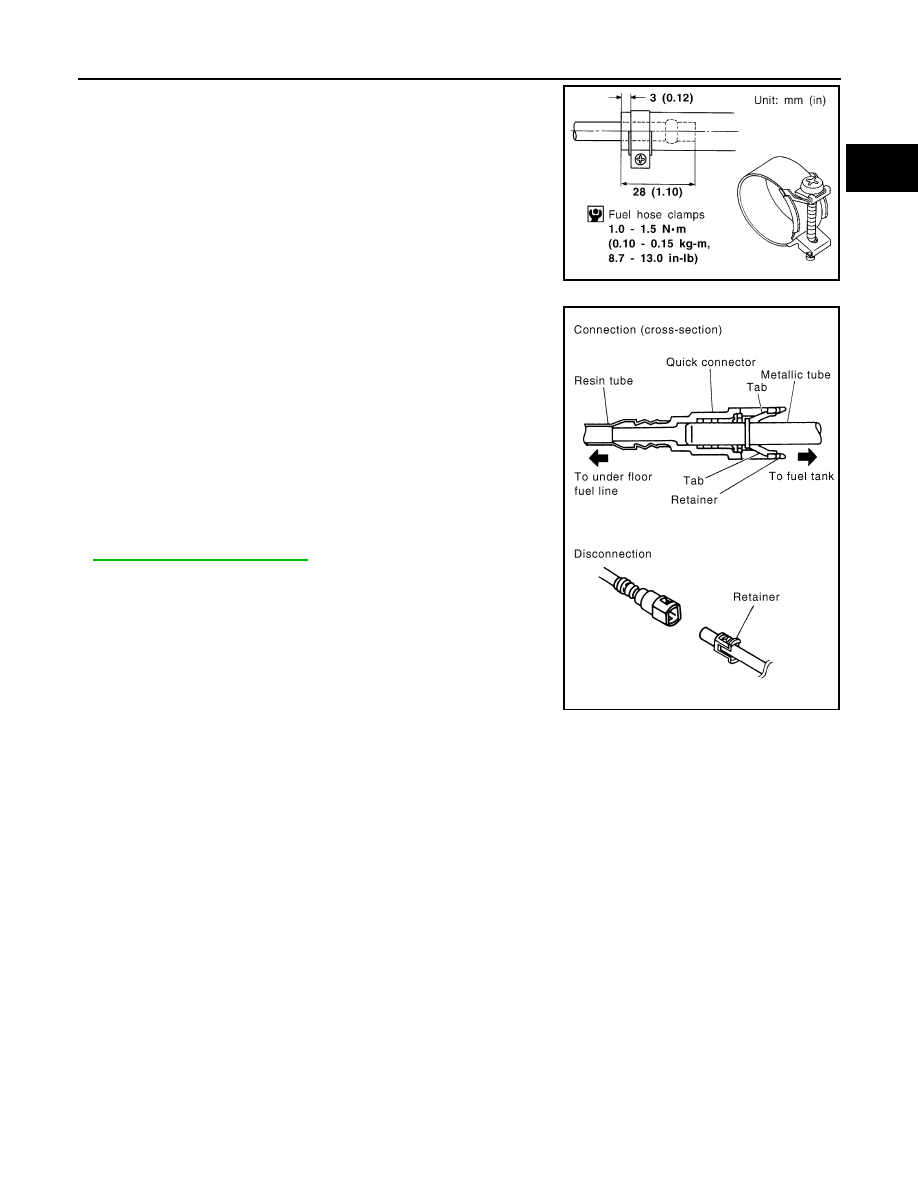

Tighten high-pressure rubber hose clamp so that clamp end

is 3 mm (0.12 in) from hose end.

Tightening torque specifications are the same for all rubber

hose clamps.

Ensure that screw does not contact adjacent parts.

• After connecting the fuel tube quick connectors, make sure

the quick connectors are secure.

Check that the connector and resin tube do not contact any

adjacent parts.

- a) Apply fuel pressure to the fuel system by turning the igni-

tion switch to ON (without starting the engine). Then check for

fuel leaks at the fuel tube connections.

- b) Start the engine and rev the engine, then check for fuel

leaks at the fuel tube connections.

• After installing the tubes, run the engine and check for fuel

leaks at the connections.

• Use only a Genuine NISSAN fuel filler cap as a replacement. If

an incorrect fuel filler cap is used, the MIL may come on.

• For servicing “Evaporative Emission System” parts, refer to

EC-94, "System Description"

.

MMA104A

PBIC0199E

FL-4

< PREPARATION >

PREPARATION

PREPARATION

PREPARATION

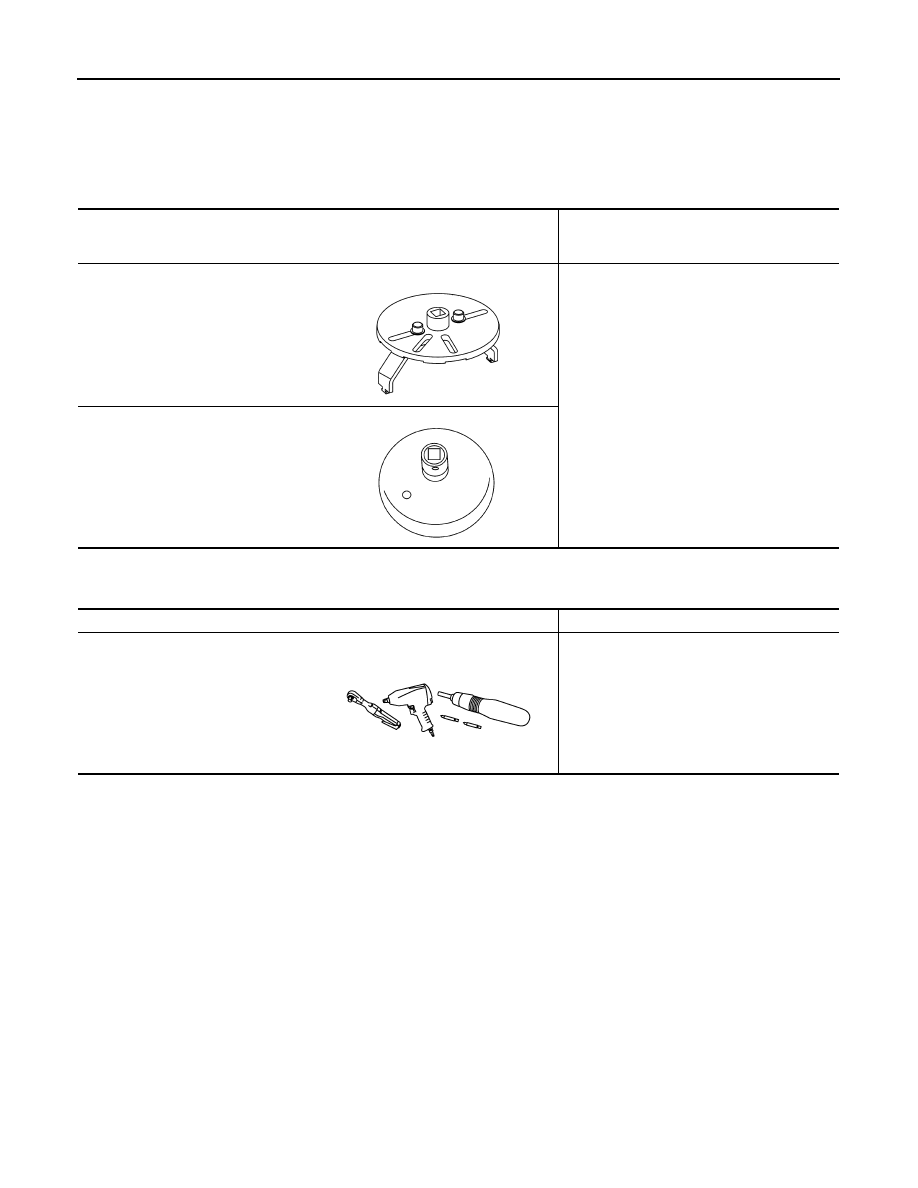

Special Service Tool

INFOID:0000000009469797

The actual shapes of the tools may differ from those illustrated here.

Commercial Service Tool

INFOID:0000000009469798

Tool number
(TechMate No.)
Tool name

Description

KV101207S0
( — )
Unified fuel lock ring wrench

Removing and installing fuel tank lock ring

KV991J0090
(J-46214)
Fuel tank lock ring wrench

JPBIA6384ZZ

LBIA0353E

Tool name

Description

Power tool

Loosening nuts, screws and bolts

PIIB1407E
