Nissan Maxima. Manual - part 653





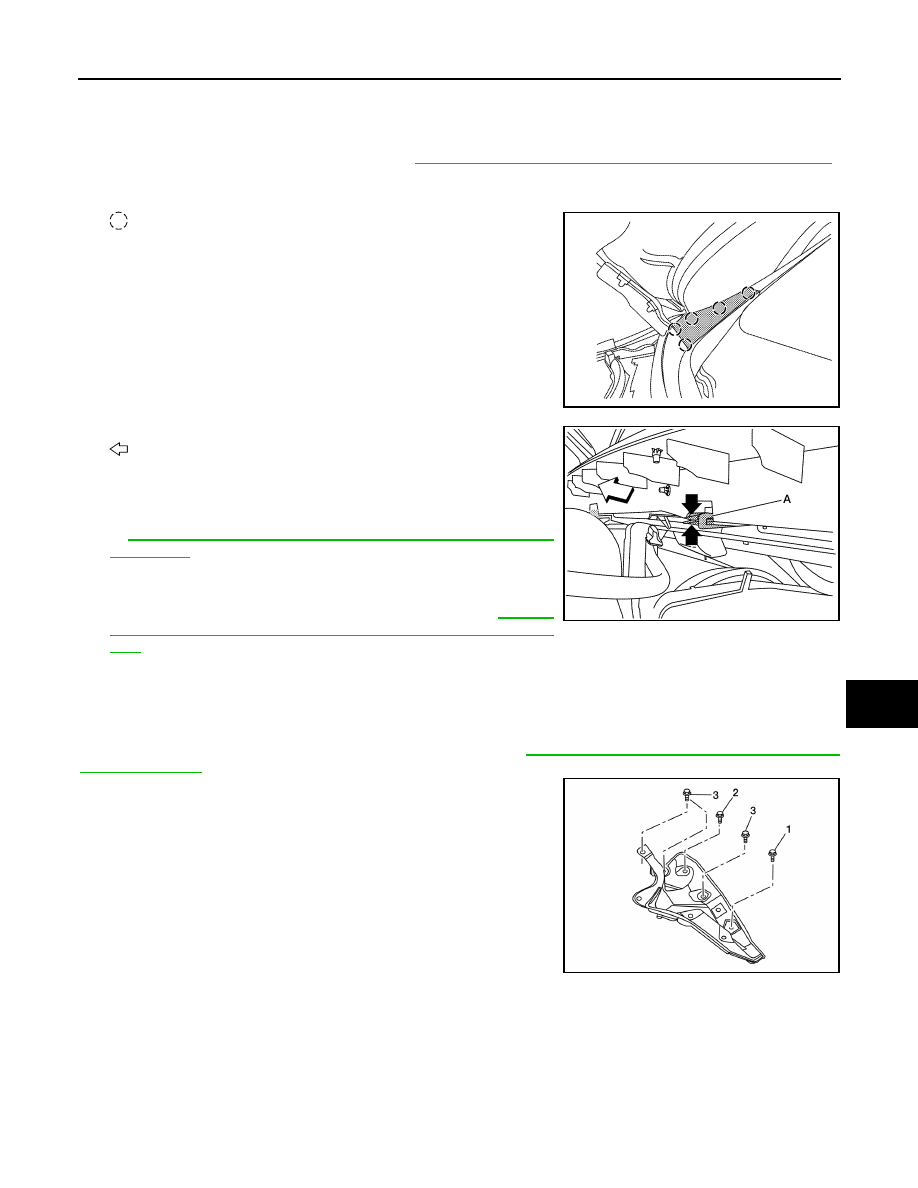

COWL TOP

EXT-21

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

Removal and Installation

INFOID:0000000009465813

REMOVAL

1. Remove both wiper arms (RH/LH). Refer to

WW-78, "FRONT WIPER ARMS : Removal and Installation"

.

2. Remove the cowl top weatherstrip clips, then remove cowl top weatherstrip.
3. Release the pawls, then remove the cowl top side trim covers (RH/LH).

: Pawl

4. Pinch the cowl top extension clips (A) to release, then remove.

: Front

5. Disconnect the washer nozzle supply hose.
6. Release the cowl top grille clips, then remove cowl top.
7. Disconnect the harness connector from the wiper motor. Refer

to

WW-78, "FRONT WIPER DRIVE ASSEMBLY : Removal and

Installation"

.

8. Remove the lower cowl top extension brace bolts, then remove

the lower cowl extension brace.

9. Remove the front wiper drive assembly. Refer to

WW-78,

"FRONT WIPER DRIVE ASSEMBLY : Removal and Installa-

tion"

.

10. Remove the lower cowl top extension RH/LH bolts, then remove lower cowl top extensions (RH/LH).

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

After installing, perform adjustment of wiper arm. Refer to

WW-78, "FRONT WIPER ARMS : Removal

and Installation"

.

• When installing the lower cowl top extension RH, tighten the bolts

in the order shown.

ALKIA1585ZZ

ALKIA1584ZZ

ALKIA2820ZZ

EXT-22

< REMOVAL AND INSTALLATION >

COWL TOP

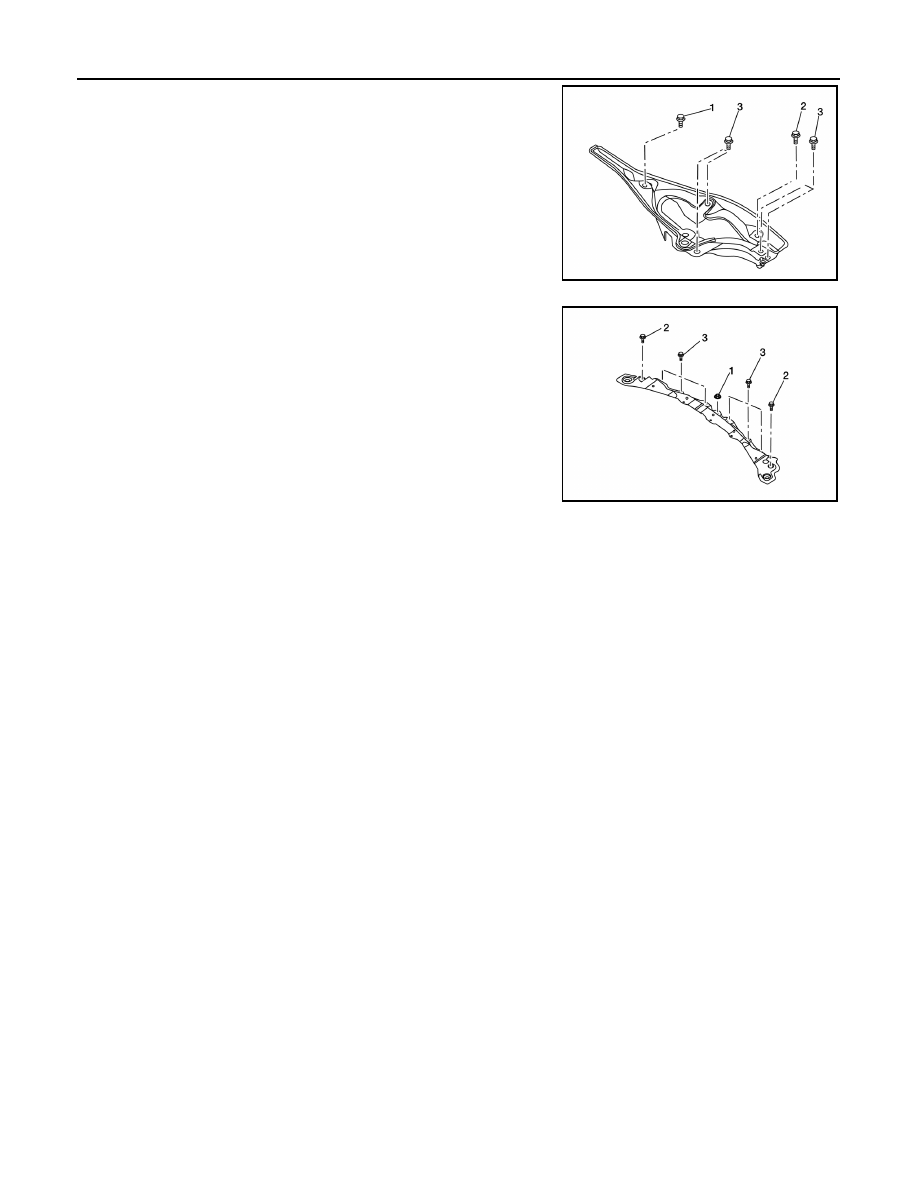

• When installing the lower cowl top extension LH, tighten the bolts

in the order shown.

• When installing the lower cowl top extension brace, tighten the

bolts in the order shown.

ALKIA2821ZZ

ALKIA2822ZZ

FENDER PROTECTOR

EXT-23

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

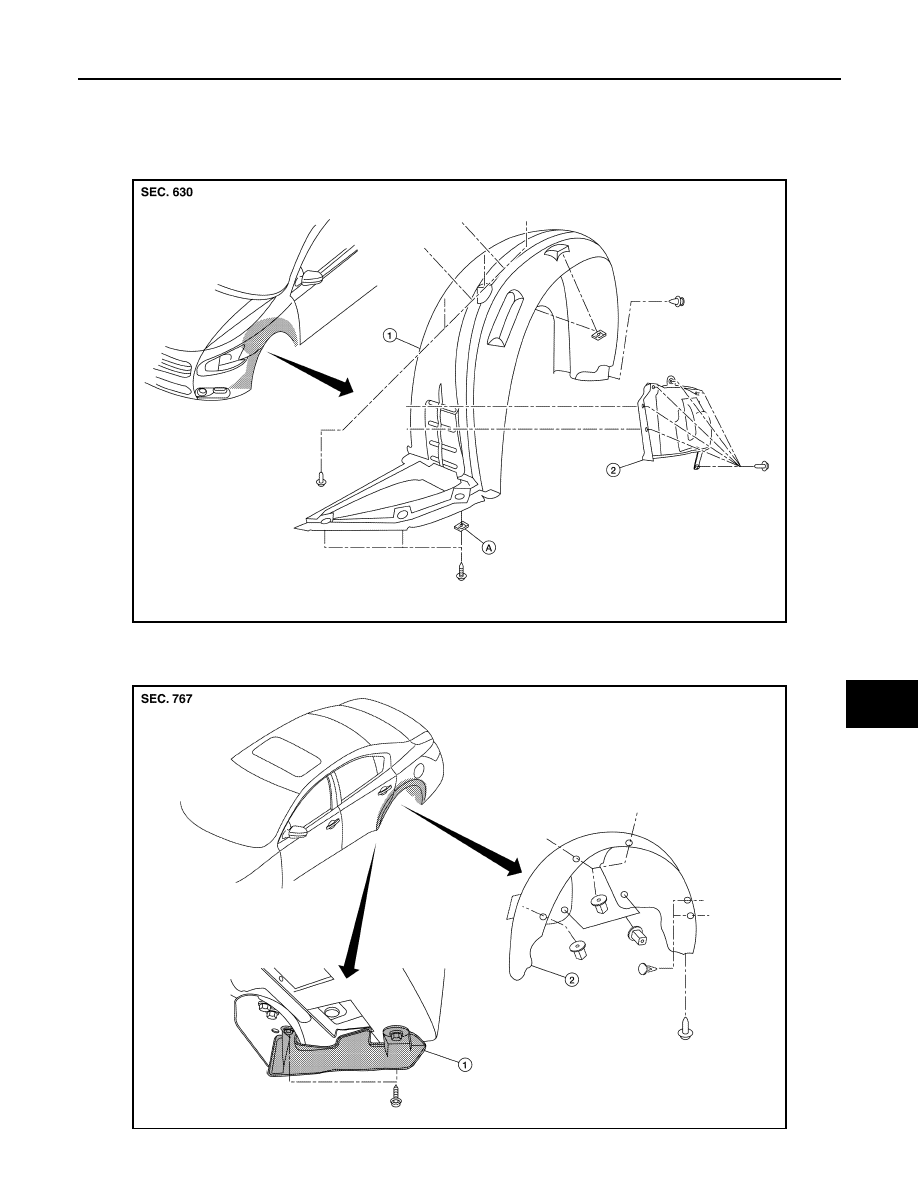

FENDER PROTECTOR

Exploded View

INFOID:0000000009465814

Front

Rear

ALKIA1586ZZ

1.

Front fender protector

2.

Front fender protector side cover

A.

J-clip

ALKIA1587ZZ

EXT-24

< REMOVAL AND INSTALLATION >

FENDER PROTECTOR

Removal and Installation

INFOID:0000000009465815

FRONT FENDER PROTECTOR

Removal

NOTE:

Position front tires as necessary to remove the front fender protectors.
1. Remove the front screw from center mudguard.
2. Remove the front fender protector side cover clips, then remove front fender protector side cover.
3. Remove the front fender protector screws and clips, then remove front fender protector.

Installation

Installation is in the reverse order of removal.

NOTE:

Position front tires as necessary to install the front fender protectors.

REAR FENDER PROTECTOR

Removal

1. Remove the rear tire/wheel assembly. Refer to

WT-60, "Adjustment"

.

2. Remove the rear fender protector screws and clips.
3. Remove the fender protector.
4. Remove the wind deflector screws, then remove the wind deflector.

Installation

Installation is in the reverse order of removal.

1.

Rear wind deflector

2.

Rear fender protector
