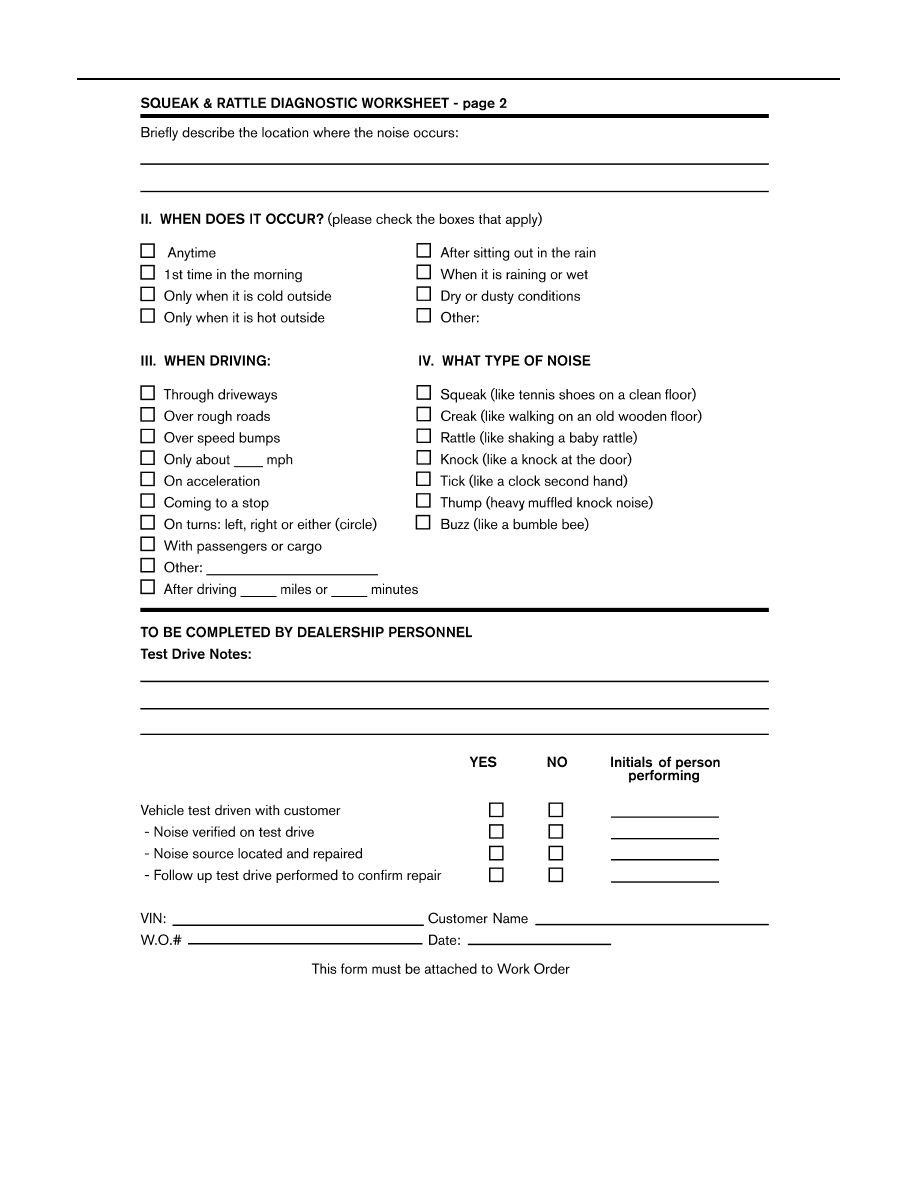

Diagnostic Worksheet

INFOID:0000000009895313

LAIA0072E

EXT-14

< PERIODIC MAINTENANCE >

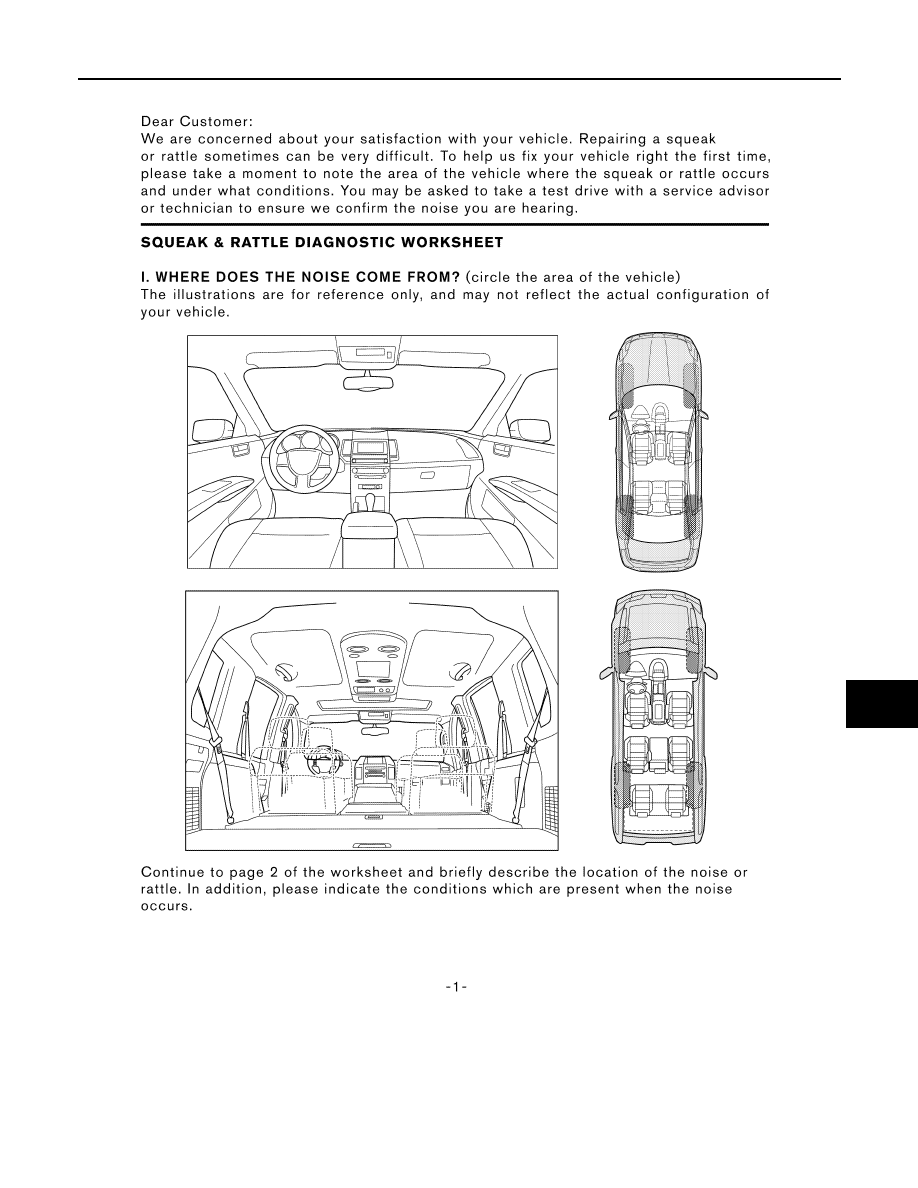

SQUEAK AND RATTLE TROUBLE DIAGNOSES

LAIA0071E

FRONT BUMPER

EXT-15

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

REMOVAL AND INSTALLATION

FRONT BUMPER

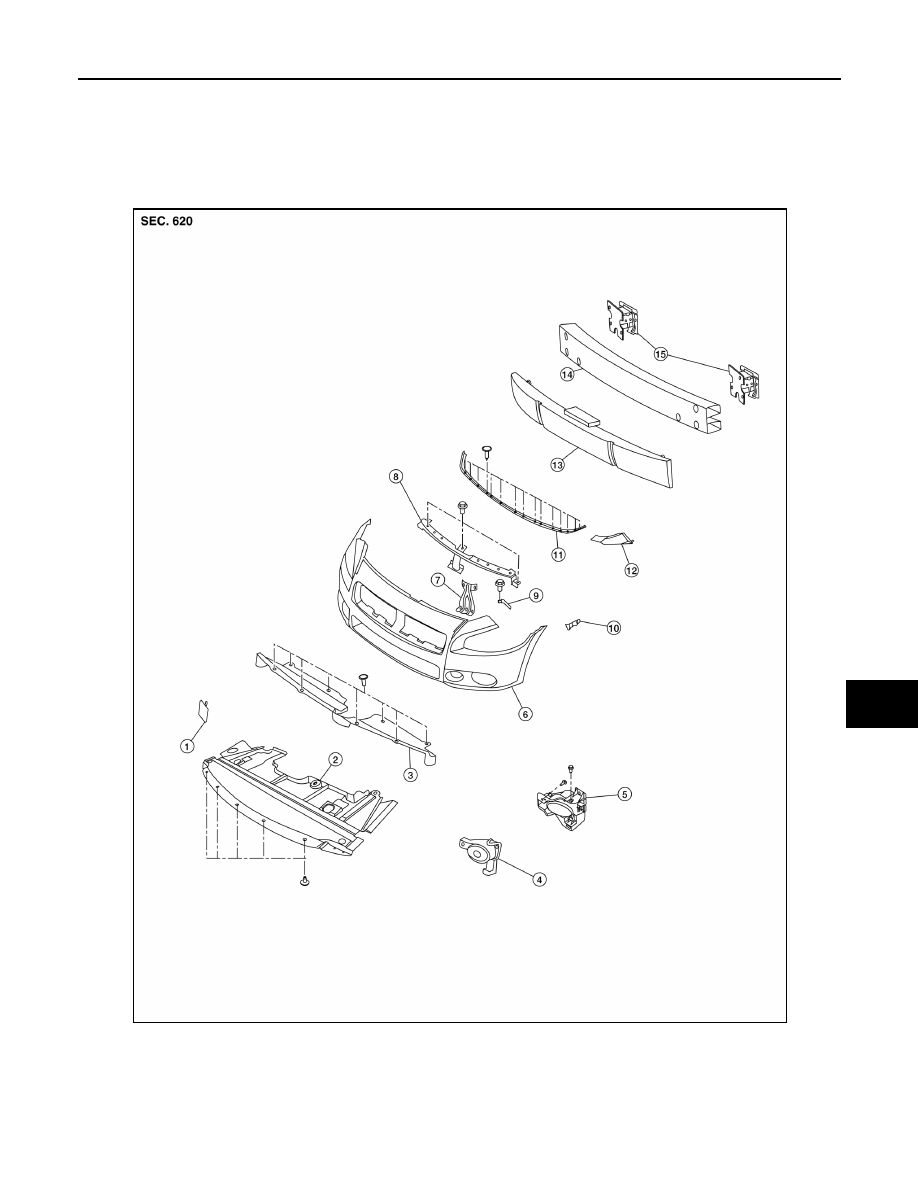

Exploded View

INFOID:0000000009465807

1.

Tow cover

2.

Engine under cover

3.

Core support cover

4.

Fog lamp cover

5.

Fog lamp (if equipped)

6.

Front bumper fascia

7.

Center support bracket

8.

Upper fascia support

9.

Front bumper upper bracket

10. Front bumper side bracket

11. Front bumper fascia seal

12. Front bumper stiffener

13. Front energy absorber

14. Front bumper reinforcement

15. Front bumper supports (RH/LH)

AWKIA1919ZZ

EXT-16

< REMOVAL AND INSTALLATION >

FRONT BUMPER

Removal and Installation

INFOID:0000000009465808

REMOVAL

1. Release the core support cover clips, then remove the core support cover.
2. Release the engine under cover clips, then remove engine under cover.
3. Remove the front fender protector side covers (RH/LH). Refer to

EXT-24, "Removal and Installation"

.

4. Remove both front fender protectors clips and screws from the front edge and partially remove, moving

the protectors as necessary for access.

5. Remove the front bumper fascia clips and screws, then remove front bumper fascia.
6. Remove the fog lamps (if equipped). Refer to

EXL-156, "Removal and Installation"

.

7. Remove the front grille. Refer to

EXT-19, "Removal and Installation"

.

8. Remove the front energy absorber.
9. Disconnect the harness connector, then remove the ambient temperature sensor.
10. Remove the upper fascia support bolts, then remove upper fascia support.
11. Remove the front bumper reinforcement bolts, then remove front bumper reinforcement.
12. Remove the front bumper support bolts, then remove the front bumper supports (RH/LH).

INSTALLATION

Installation is in the reverse order of removal.

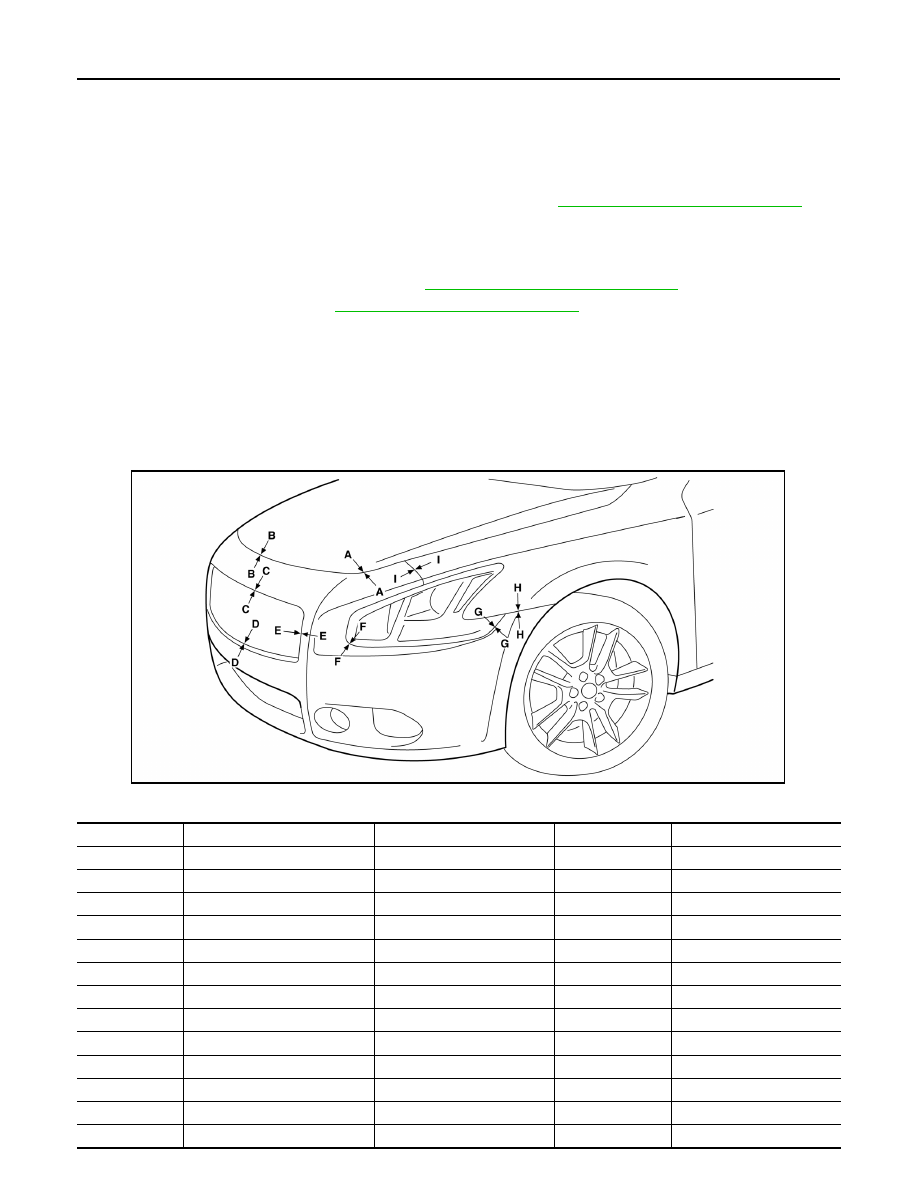

mm (in)

ALKIA1946ZZ

Section

Measurement

Minimum

Target Value

Maximum

A-A

Surface height

-2.23 (-0.088)

-0.63 (-0.025)

0.97 (0.038)

B-B

Clearance

2.1 (0.083)

4.1 (0.161)

6.1 (0.240)

B-B

Surface height

-2.6 (-0.102)

-1.0 (-0.039)

0.6 (0.024)

C-C

Clearance

1.0 (0.039)

2.0 (0.079)

3.0 (0.118)

D-D

Clearance

1.0 (0.039)

2.0 (0.079)

3.0 (0.118)

E-E

Clearance

0.6 (0.024)

2.0 (0.079)

3.4 (0.134)

F-F

Clearance

0.3 (0.012)

1.5 (0.059)

2.7 (0.106)

G-G

Clearance

0.3 (0.012)

1.5 (0.059)

2.7 (0.106)

G-G

Surface height

-1.1 (-0.043)

0.0 (0.000)

1.1 (0.043)

H-H

Clearance

0.0 (0.000)

0.0 (0.000)

0.8 (0.031)

H-H

Surface height

-0.3 (-0.012)

0.7 (0.028)

1.7 (0.067)

I-I

Clearance

0.0 (0.000)

0.0 (0.000)

0.7 (0.028)

I-I

Surface height

-1.0 (-0.039)

0.0 (0.000)

1.0 (0.039)
