Nissan Maxima. Manual - part 405





EC-104

< SYSTEM DESCRIPTION >

[VQ35DE]

EXHAUST VALVE TIMING CONTROL

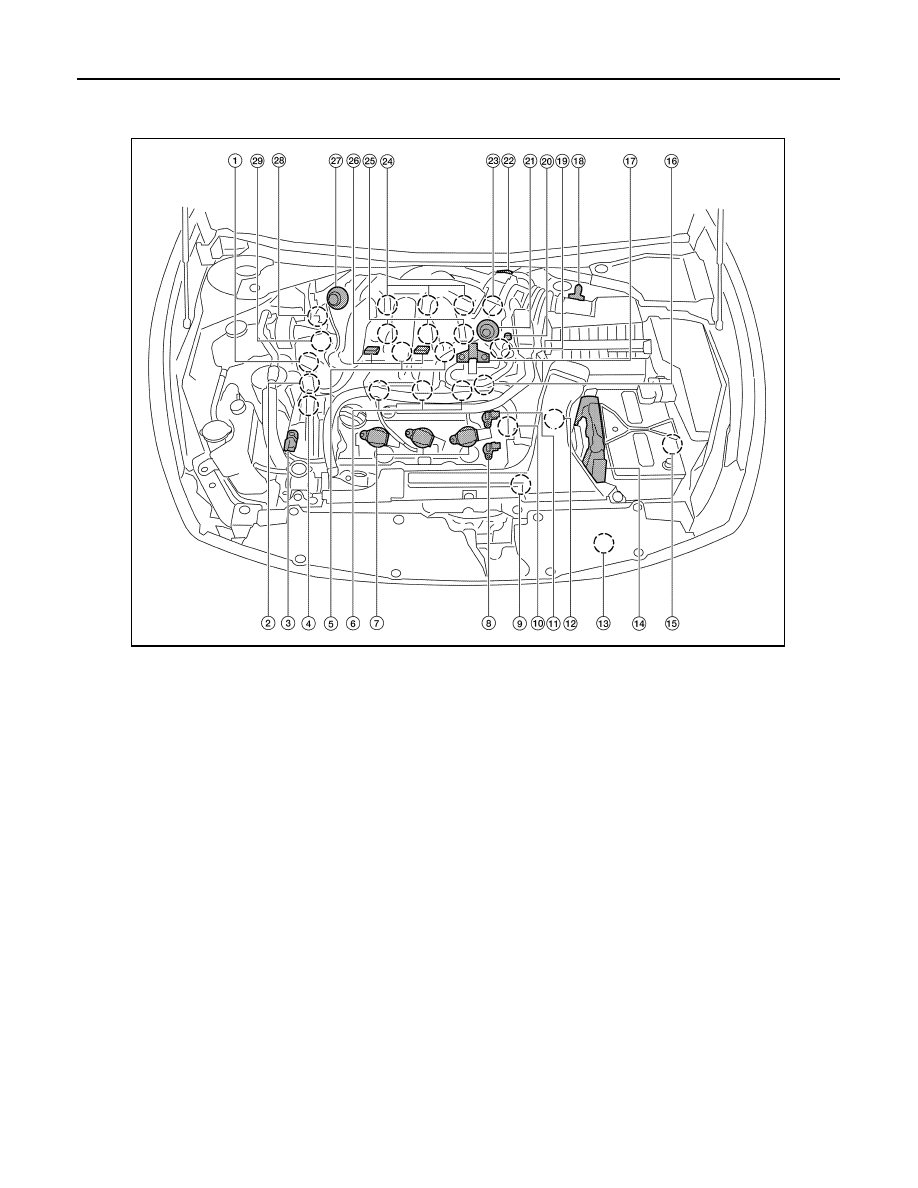

Component Parts Location

INFOID:0000000010094832

1.

Intake valve timing control solenoid
valve (bank 1)

2.

Electronic controlled engine mount
control solenoid valve

3.

Exhaust valve timing control magnet
retarder (bank 2)

4.

Intake valve timing control solenoid
valve (bank 2)

5.

Knock sensor (bank 1 and 2)

6.

Fuel injector (bank 2)

7.

Ignition coil (with power transistor) and
spark plug (bank 2)

8.

Exhaust valve timing control position
sensor (bank 2)

9.

Crankshaft position sensor (POS)

10. Engine coolant temperature sensor

11. Camshaft position sensor (PHASE)

(bank 2)

12. Transmission range switch

13. Refrigerant pressure sensor

14. ECM

15. Battery current sensor

16. Condenser-2

17. EVAP canister purge volume control

solenoid valve

18. Mass air flow sensor (with intake air

temperature sensor)

19. Camshaft position sensor (PHASE)

(bank 1)

20. EVAP service port

21. Power valve actuator 2

22. Electric throttle control actuator

23. Exhaust valve timing control position

sensor (bank 1)

24. Ignition coil (with power transistor) and

spark plug (bank 1)

25. Fuel injector (bank 1)

26. VIAS control solenoid valve 1 and 2

27. Power valve actuator 1

28. Exhaust valve timing control magnet

retarder (bank 1)

29. Power steering pressure sensor

ALBIA0603ZZ

EXHAUST VALVE TIMING CONTROL

EC-105

< SYSTEM DESCRIPTION >

[VQ35DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

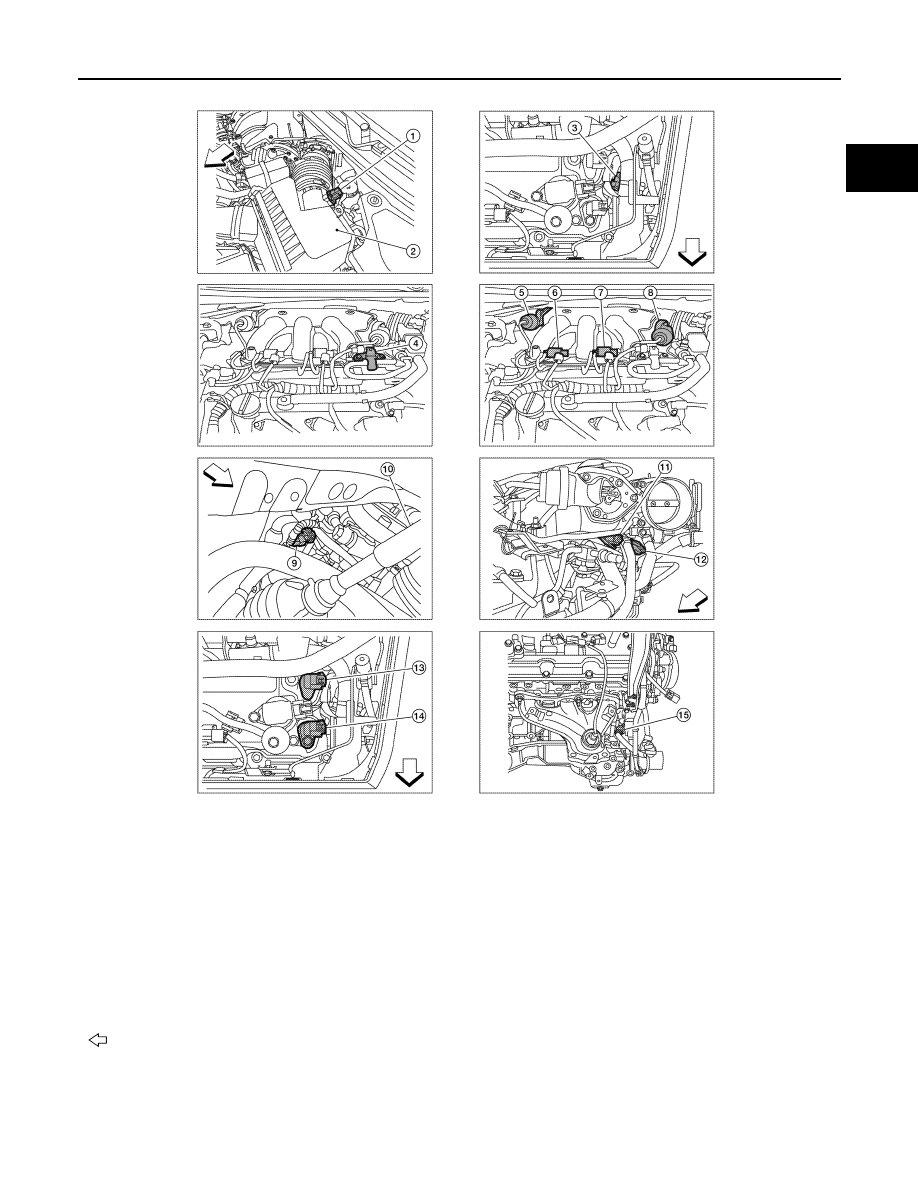

1.

Mas air flow sensor (with intake air
temperature sensor)

2.

Air cleaner case

3.

Engine coolant temperature sensor
(view with engine cover removed)

4.

EVAP canister purge volume control
solenoid valve (view with engine cover
removed)

5.

Power valve actuator 1 (view with en-
gine cover removed)

6.

VIAS control solenoid valve 1

7.

VIAS control solenoid valve 2

8.

Power valve actuator 2

9.

Power steering pressure sensor

10. Tie rod (RH)

11. Camshaft position sensor (PHASE)

(bank 1) (view with air cleaner case re-
moved)

12. Exhaust valve timing control position

sensor (bank 1)

13. Camshaft position sensor (PHASE)

(bank 2) (view with air cleaner case re-
moved)

14. Exhaust valve timing control position

sensor (bank 2)

15. Engine oil temperature sensor

: Vehicle front

ALBIA0604ZZ

EC-106

< SYSTEM DESCRIPTION >

[VQ35DE]

EXHAUST VALVE TIMING CONTROL

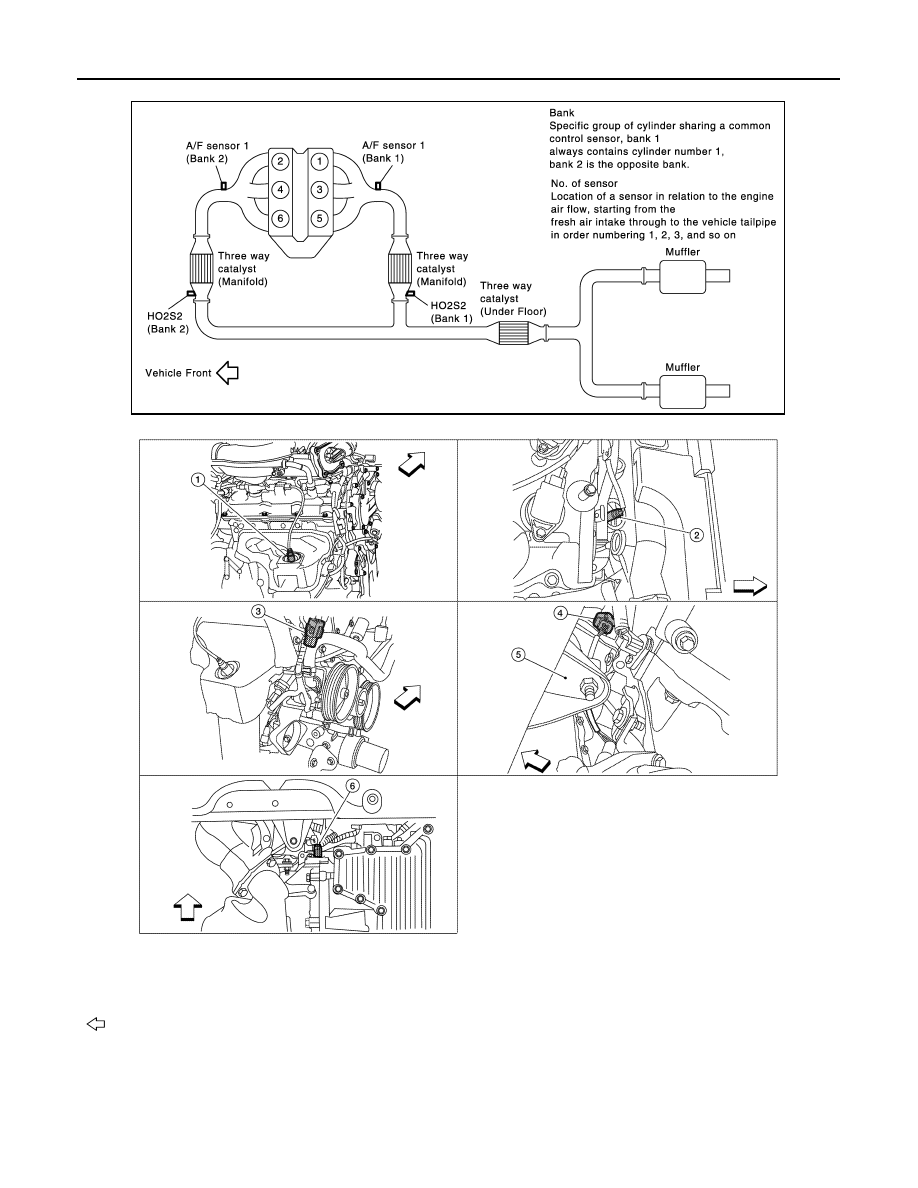

1.

A/F sensor 1 (bank 1) (view with en-
gine removed)

2.

A/F sensor 1 (bank 2)

3.

HO2S2 (bank 1) harness connector
(view with engine removed)

4.

HO2S2 (bank 2) harness connector

5.

Front engine mount

6.

Crankshaft position sensor (POS)

: Vehicle front

JMBIA1832GB

ALBIA0605ZZ

EXHAUST VALVE TIMING CONTROL

EC-107

< SYSTEM DESCRIPTION >

[VQ35DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

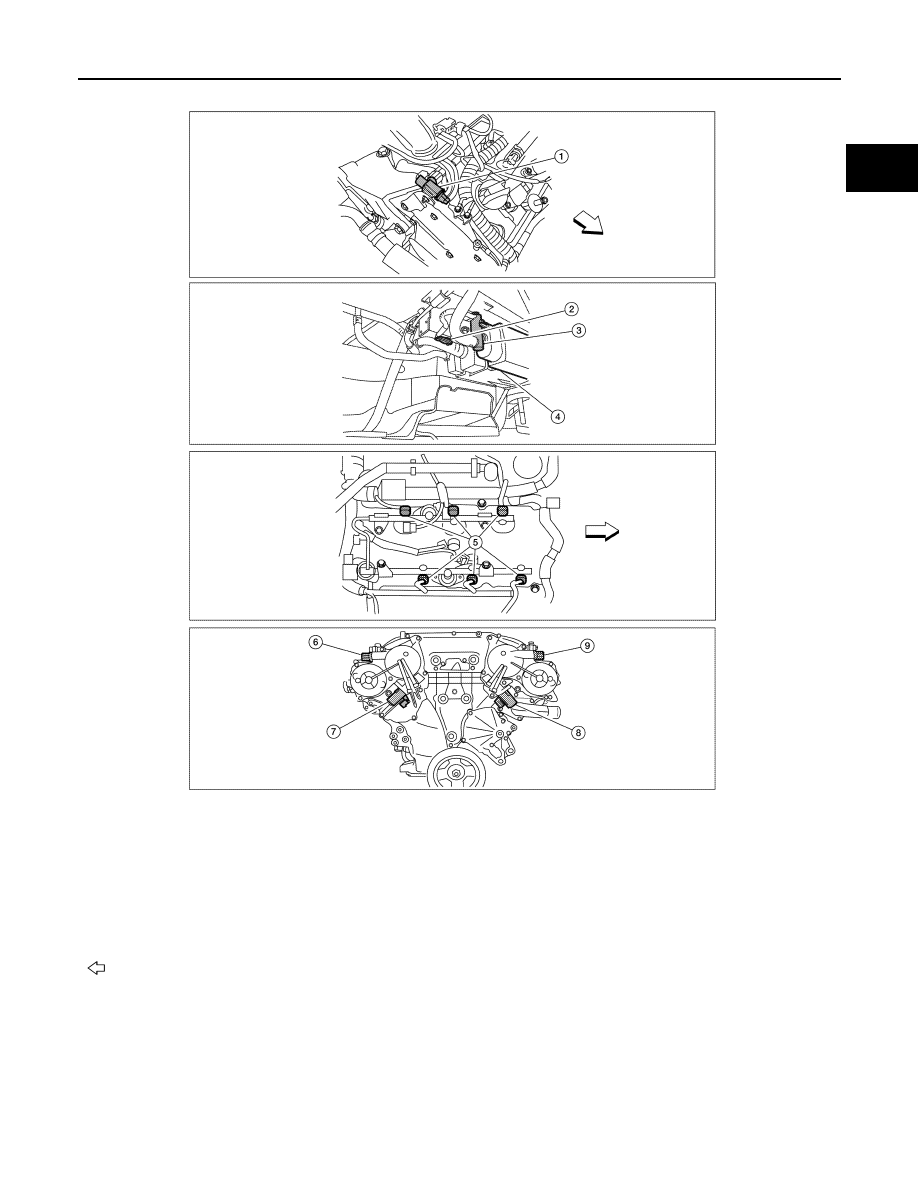

1.

Electronic controlled engine mount
control solenoid valve (view with en-
gine cover removed)

2.

EVAP control system pressure sensor
(view with rear suspension member re-
moved)

3.

EVAP canister vent control valve

4.

EVAP canister

5.

Fuel injector harness connector (view
with intake manifold collector removed)

6.

Exhaust valve timing control magnet
retarder (bank 1) (view with engine re-
moved)

7.

Intake valve timing control solenoid
valve (bank 1)

8.

Intake valve timing control solenoid
valve (bank 2)

9.

Exhaust valve timing control magnet
retarder (bank 2)

: Vehicle front

ALBIA0606ZZ
