EC-96

< SYSTEM DESCRIPTION >

[VQ35DE]

EVAPORATIVE EMISSION SYSTEM

NOTE:

Do not use soapy water or any type of solvent while installing vacuum hose or purge hoses.

1.

Intake manifold collector

2.

EVAP canister purge volume control
solenoid valve

3.

EVAP service port

A.

From EVAP canister
: Vehicle front

ALBIA0639ZZ

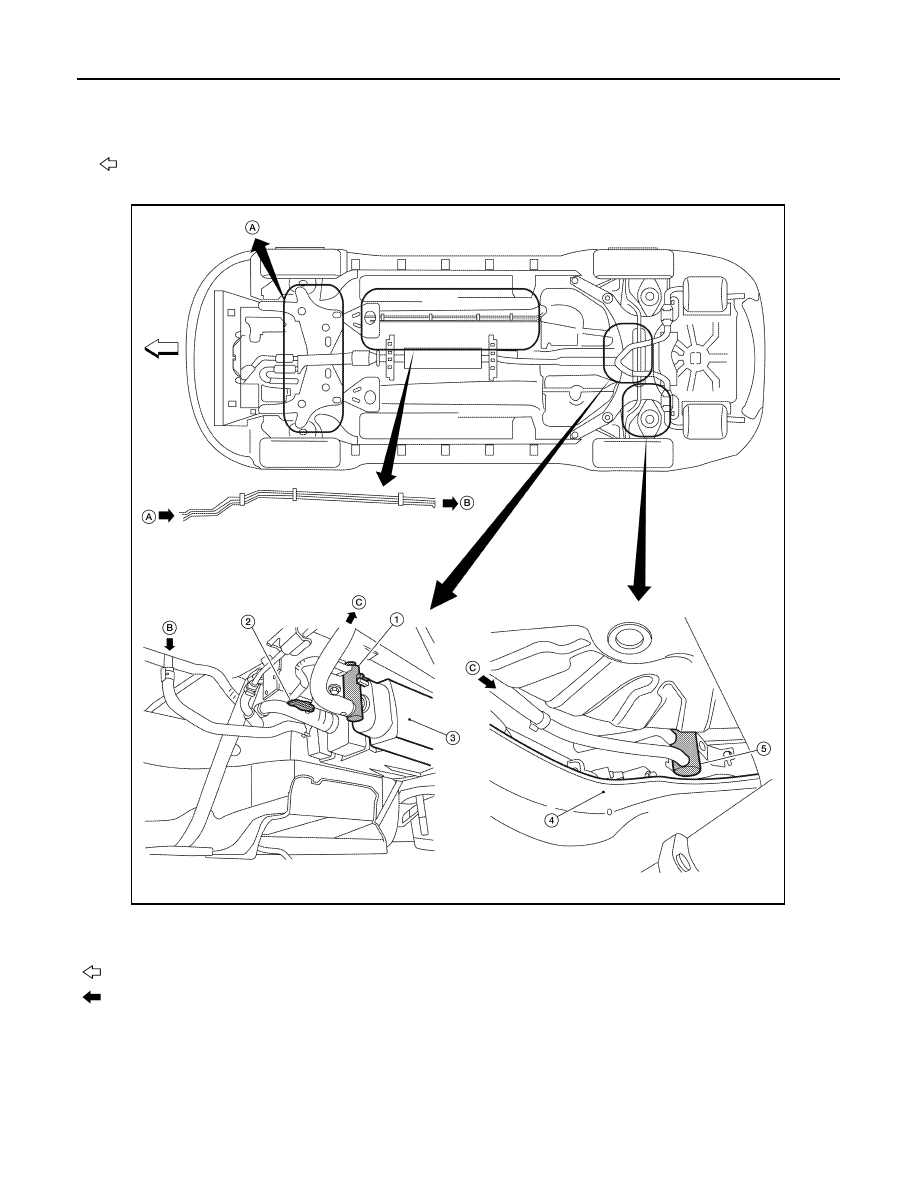

1.

EVAP canister vent control valve

2.

EVAP canister system pressure sensor 3.

EVAP canister

4.

Rear suspension member

5.

Drain filter

: Front

: Previous/next figure

EVAPORATIVE EMISSION SYSTEM

EC-97

< SYSTEM DESCRIPTION >

[VQ35DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

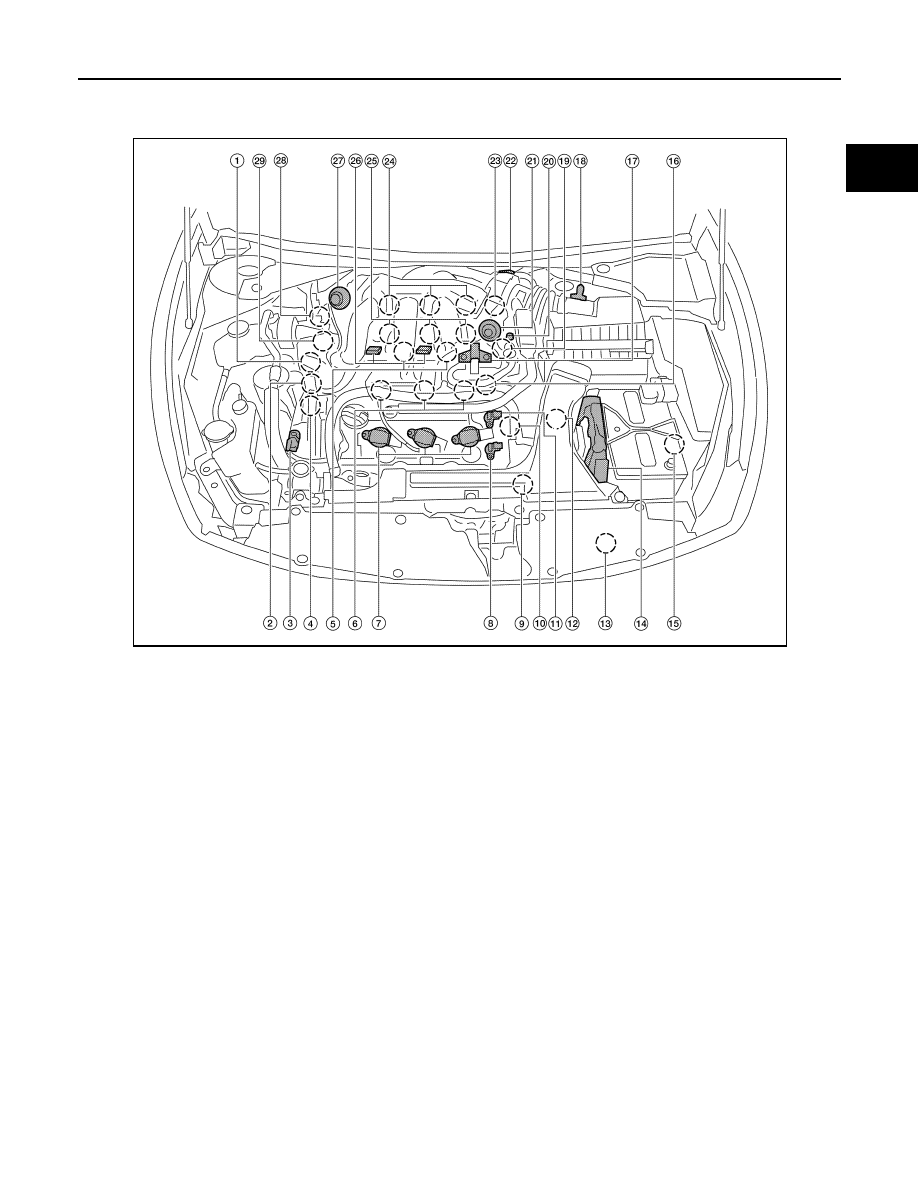

Component Parts Location

INFOID:0000000010094828

1.

Intake valve timing control solenoid
valve (bank 1)

2.

Electronic controlled engine mount
control solenoid valve

3.

Exhaust valve timing control magnet
retarder (bank 2)

4.

Intake valve timing control solenoid
valve (bank 2)

5.

Knock sensor (bank 1 and 2)

6.

Fuel injector (bank 2)

7.

Ignition coil (with power transistor) and
spark plug (bank 2)

8.

Exhaust valve timing control position
sensor (bank 2)

9.

Crankshaft position sensor (POS)

10. Engine coolant temperature sensor

11. Camshaft position sensor (PHASE)

(bank 2)

12. Transmission range switch

13. Refrigerant pressure sensor

14. ECM

15. Battery current sensor

16. Condenser-2

17. EVAP canister purge volume control

solenoid valve

18. Mass air flow sensor (with intake air

temperature sensor)

19. Camshaft position sensor (PHASE)

(bank 1)

20. EVAP service port

21. Power valve actuator 2

22. Electric throttle control actuator

23. Exhaust valve timing control position

sensor (bank 1)

24. Ignition coil (with power transistor) and

spark plug (bank 1)

25. Fuel injector (bank 1)

26. VIAS control solenoid valve 1 and 2

27. Power valve actuator 1

28. Exhaust valve timing control magnet

retarder (bank 1)

29. Power steering pressure sensor

ALBIA0603ZZ

EC-98

< SYSTEM DESCRIPTION >

[VQ35DE]

EVAPORATIVE EMISSION SYSTEM

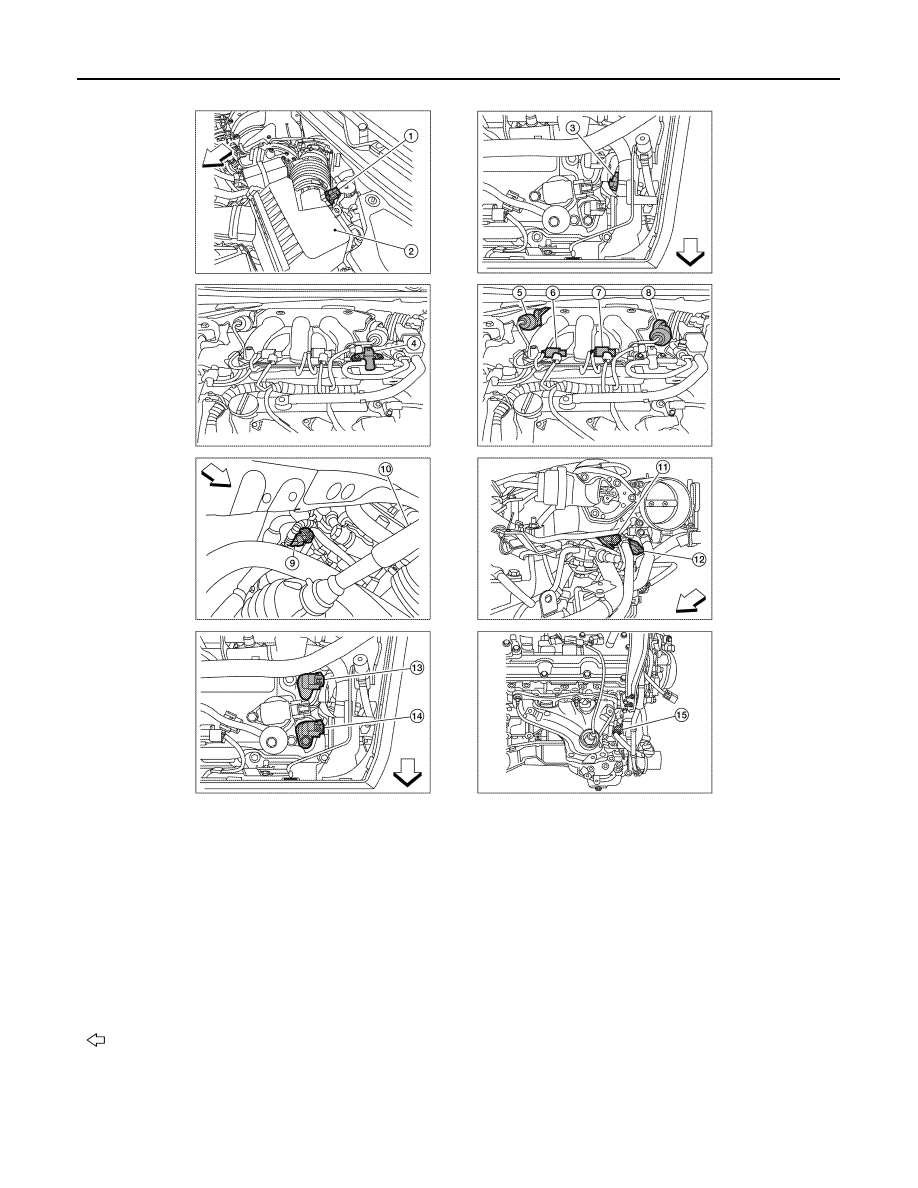

1.

Mas air flow sensor (with intake air
temperature sensor)

2.

Air cleaner case

3.

Engine coolant temperature sensor
(view with engine cover removed)

4.

EVAP canister purge volume control
solenoid valve (view with engine cover
removed)

5.

Power valve actuator 1 (view with en-
gine cover removed)

6.

VIAS control solenoid valve 1

7.

VIAS control solenoid valve 2

8.

Power valve actuator 2

9.

Power steering pressure sensor

10. Tie rod (RH)

11. Camshaft position sensor (PHASE)

(bank 1) (view with air cleaner case re-
moved)

12. Exhaust valve timing control position

sensor (bank 1)

13. Camshaft position sensor (PHASE)

(bank 2) (view with air cleaner case re-
moved)

14. Exhaust valve timing control position

sensor (bank 2)

15. Engine oil temperature sensor

: Vehicle front

ALBIA0604ZZ

EVAPORATIVE EMISSION SYSTEM

EC-99

< SYSTEM DESCRIPTION >

[VQ35DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

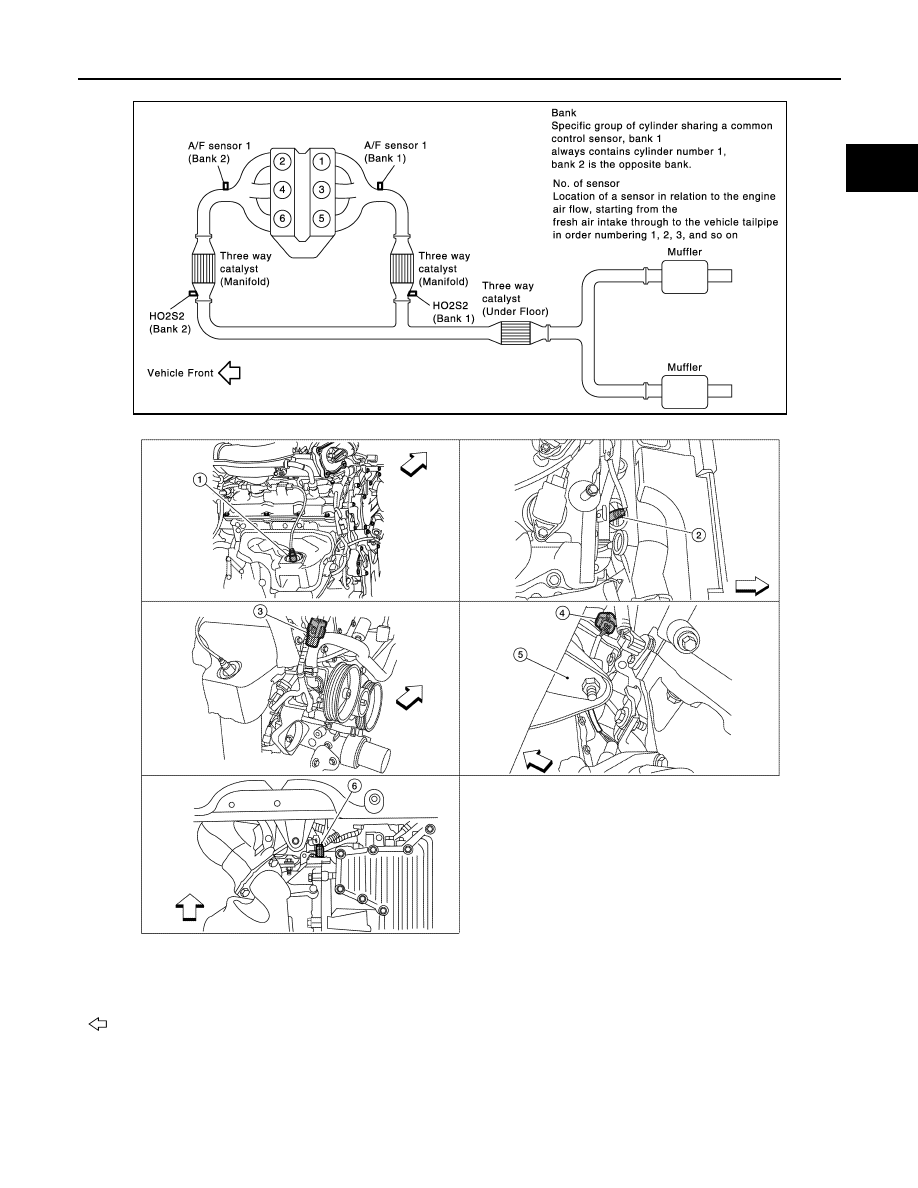

1.

A/F sensor 1 (bank 1) (view with en-
gine removed)

2.

A/F sensor 1 (bank 2)

3.

HO2S2 (bank 1) harness connector
(view with engine removed)

4.

HO2S2 (bank 2) harness connector

5.

Front engine mount

6.

Crankshaft position sensor (POS)

: Vehicle front

JMBIA1832GB

ALBIA0605ZZ
