TRUNK LID OPENER SWITCH

DLK-231

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

TRUNK LID OPENER SWITCH

Removal and Installation

INFOID:0000000009471783

REMOVAL

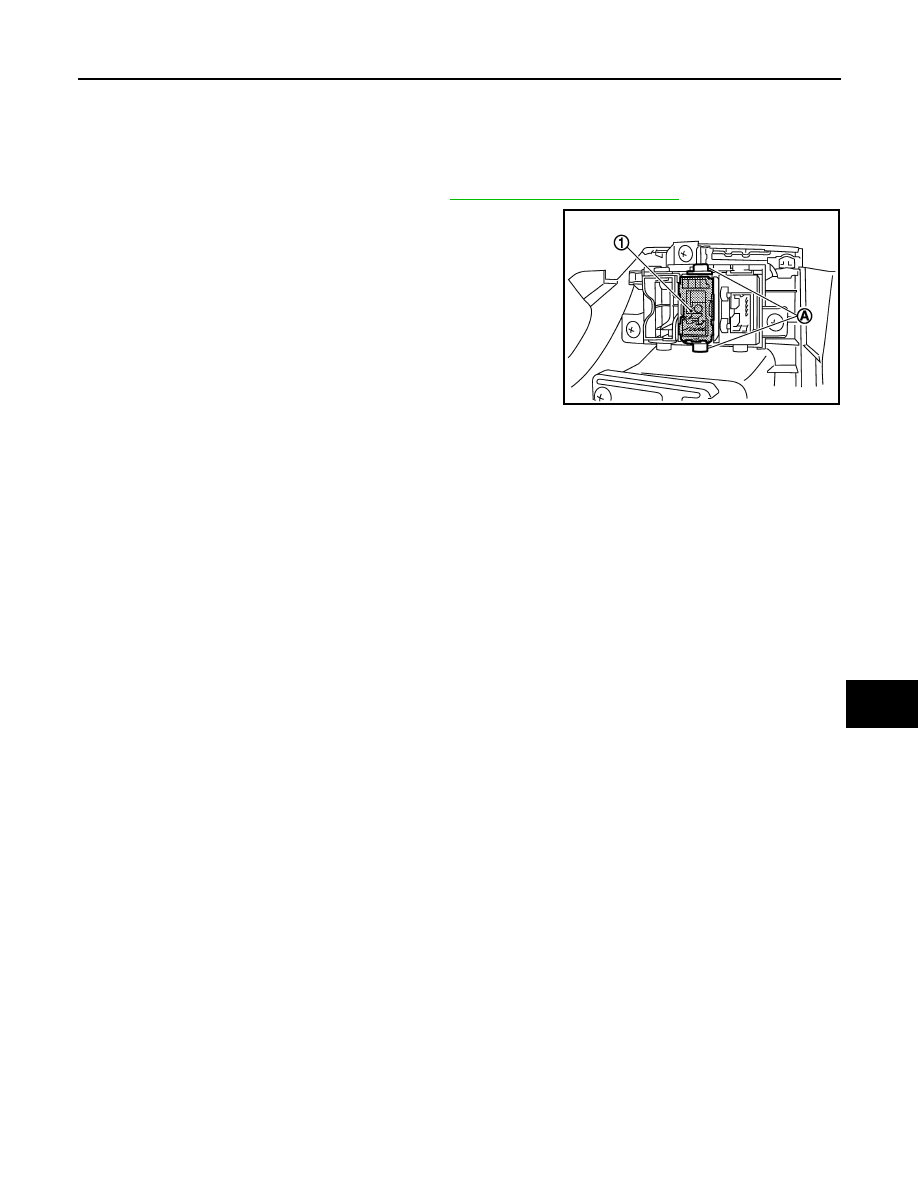

1. Remove the instrument lower panel LH. Refer to

IP-19, "Removal and Installation"

.

2. Release pawls (A), and press trunk lid opener switch (1) front

side to remove from instrument lower panel LH.

INSTALLATION

Installation is in the reverse order of removal.

JMKIA0165ZZ

DLK-232

< REMOVAL AND INSTALLATION >

TRUNK OPENER REQUEST SWITCH

TRUNK OPENER REQUEST SWITCH

Removal and Installation

INFOID:0000000009471784

REMOVAL

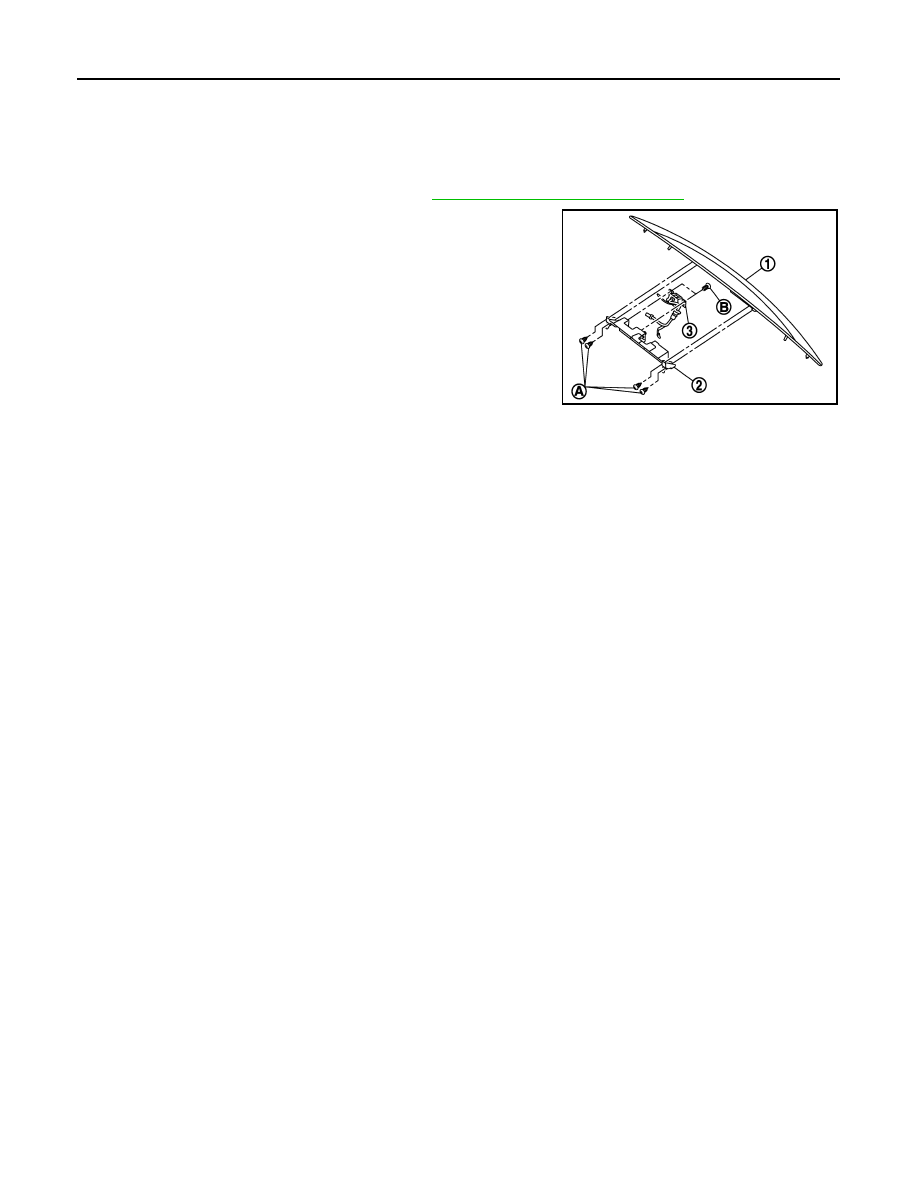

1. Remove the license lamp finisher (1). Refer to

EXL-166, "Removal and Installation"

.

2. Remove the inner bracket screws (A) and inner bracket (2) from

license lamp finisher (1).

3. Remove the trunk lid request switch screw (B) and trunk lid

request switch (3).

INSTALLATION

Installation is in the reverse order of removal.

JMKIA0149ZZ

INTELLIGENT KEY BATTERY

DLK-233

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

INTELLIGENT KEY BATTERY

Removal and Installation

INFOID:0000000009471785

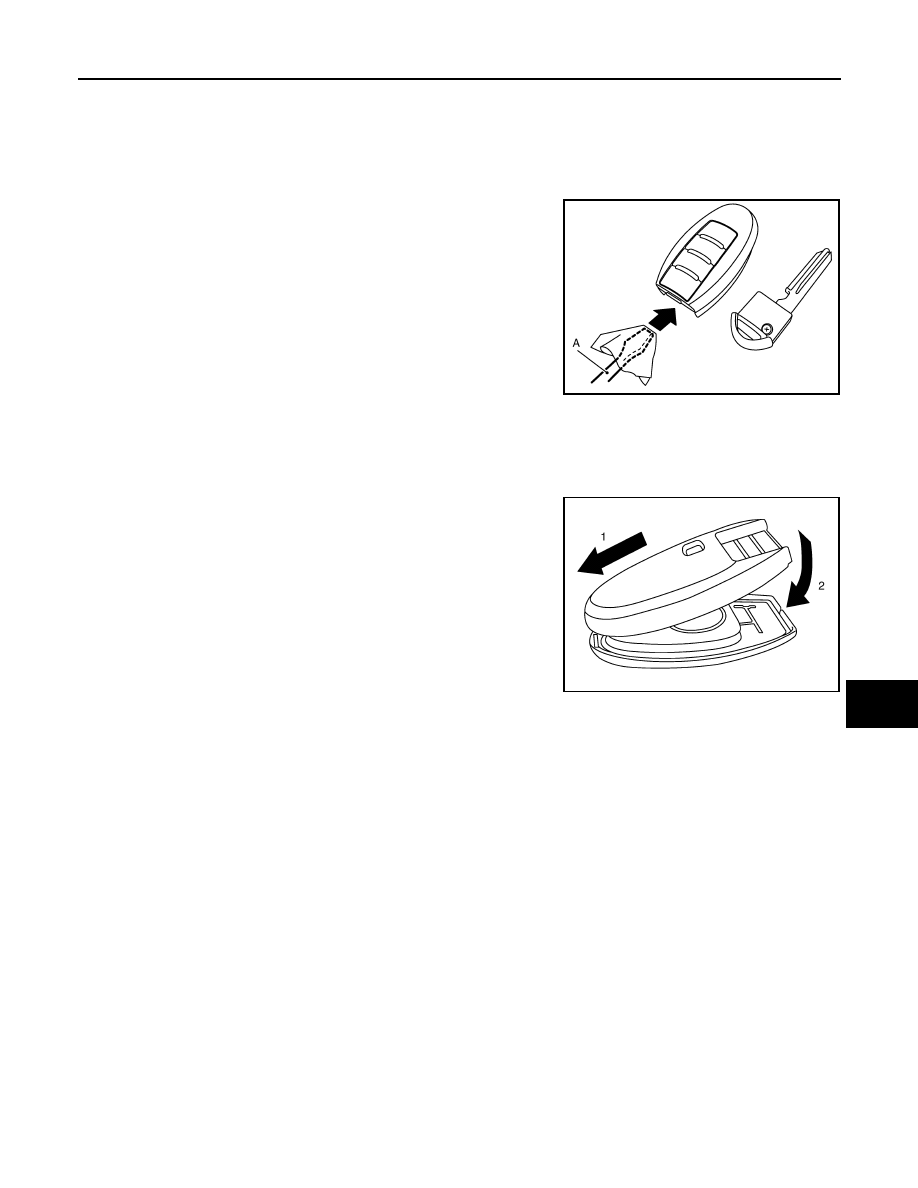

1. Release the lock knob at the back of the Intelligent Key and remove the mechanical key.

2. Insert a suitable tool (A) wrapped with a cloth into the slit of the

corner and twist it to separate the upper part from the lower part.

CAUTION:

• Do not touch the circuit board or battery terminal.

• The key fob is water-resistant. However, if it does get wet,

immediately wipe it dry.

3. Replace the battery with new one.

4. Align the tips of the upper and lower parts, and then push them

together until it is securely closed.

CAUTION:

• When replacing battery, keep dirt, grease, and other for-

eign materials off the electrode contact area.

• After replacing the battery, check that all Intelligent Key

functions work normally.

PIIB6221E

Battery replacement

:Coin-type lithium battery (CR2032)

PIIB6222E

DLK-234

< REMOVAL AND INSTALLATION >

REMOTE KEYLESS ENTRY RECEIVER

REMOTE KEYLESS ENTRY RECEIVER

Removal and Installation

INFOID:0000000009471786

REMOVAL

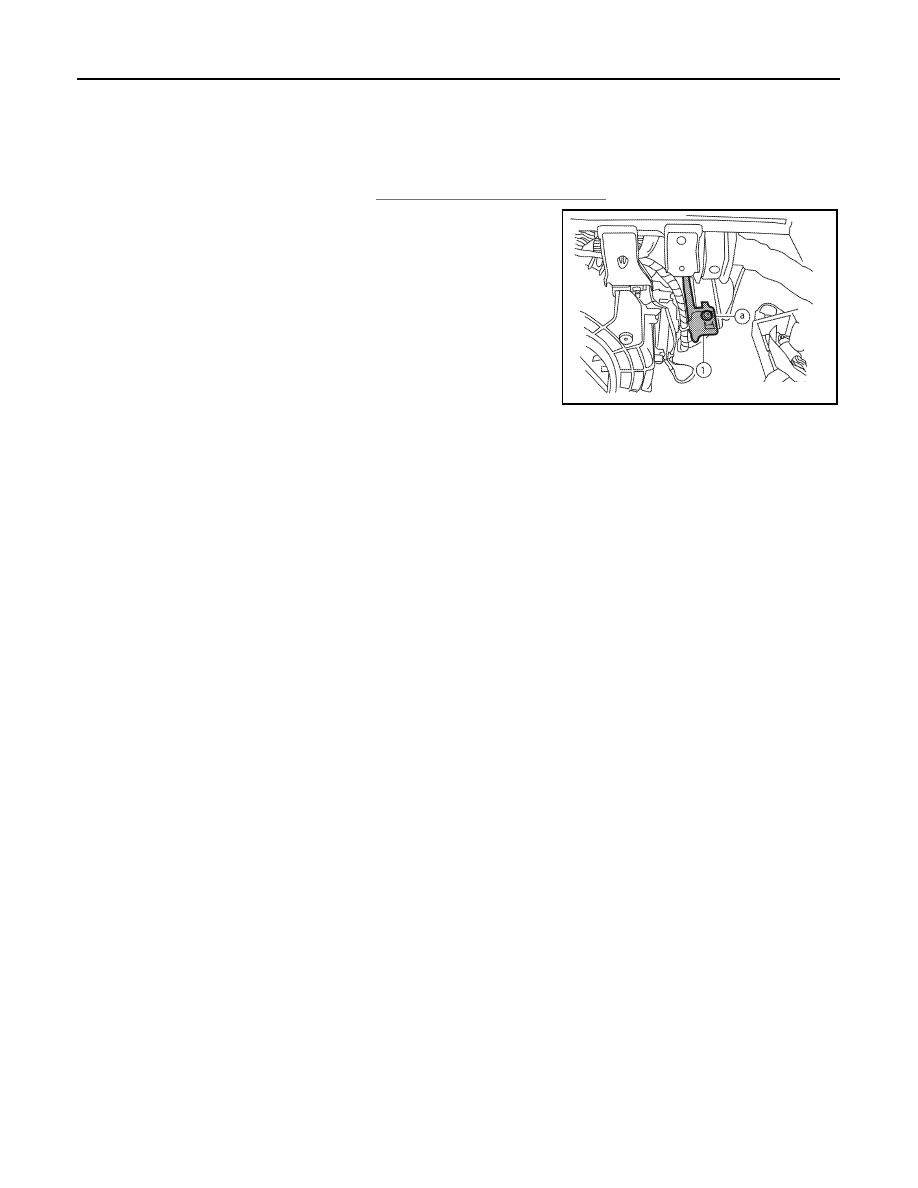

1. Remove glove box assembly. Refer to

IP-20, "Removal and Installation"

.

2. Disconnect the harness connector from the remote keyless

entry receiver (1).

3. Remove the screw (a) and remote keyless entry receiver (1).

INSTALLATION

Installation is in the reverse order of removal.

ALKIA0019GB
