TRUNK LID

DLK-227

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

TRUNK LID ASSEMBLY : Adjustment

INFOID:0000000009471778

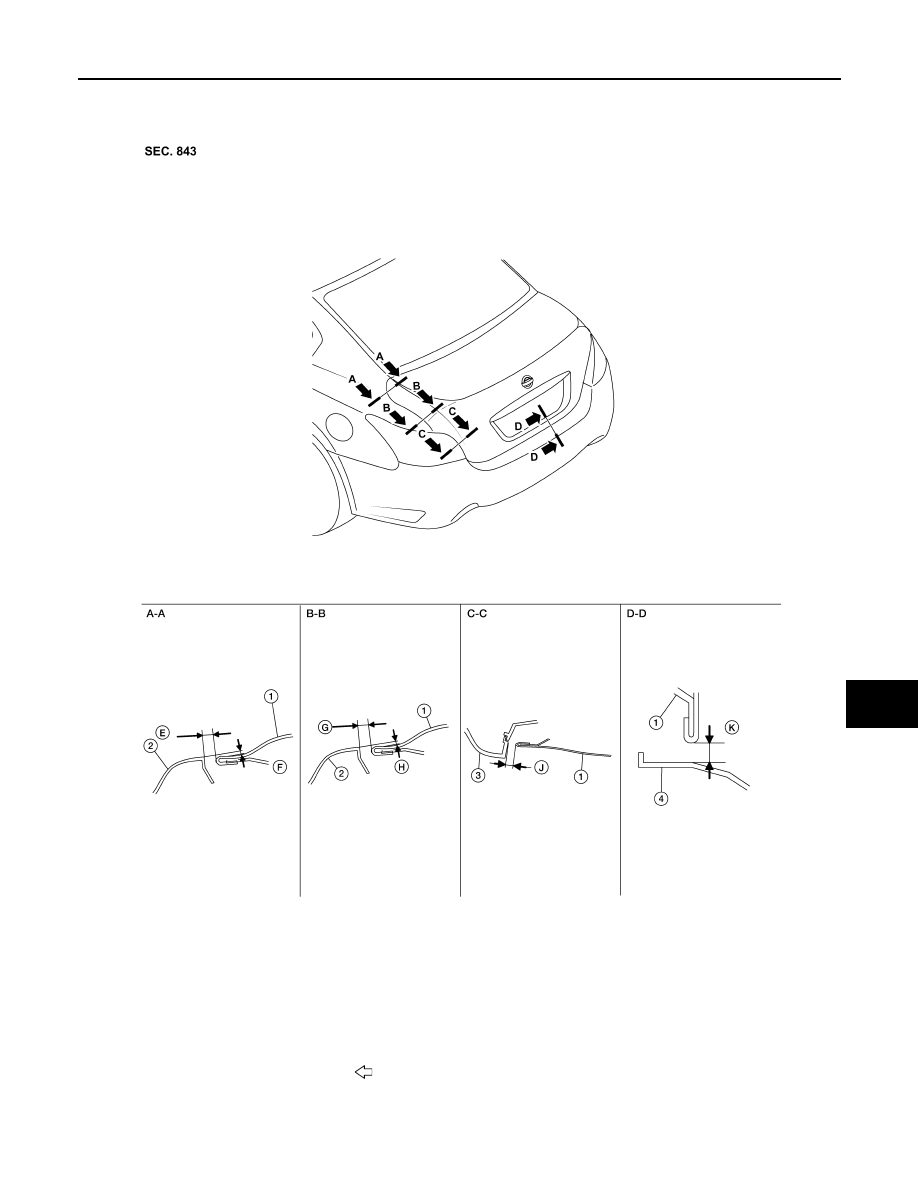

Check the clearance and the surface height between trunk lid and each part by visual inspection and tactile

feel.

1.

Trunk lid assembly

2.

Body side outer

3.

Rear combination lamp

4.

Rear bumper fascia

Front

AWKIA1553GB

DLK-228

< REMOVAL AND INSTALLATION >

TRUNK LID

If the clearance and the surface height are out of specification, adjust them according to the adjustment proce-

dures.

Unit: mm (in)

LONGITUDINAL CLEARANCE

Trunk Lid Removed From Hinge

1. Loosen the trunk lid to hinge bolts.
2. Move the trunk lid so that the clearance measurements are within specifications provided.
3. Tighten the trunk lid to hinge bolts.

Trunk Lid Hinge Removed From Vehicle

1. Remove the parcel shelf trim. Refer to

INT-28, "Removal and Installation"

.

2. Loosen the hinge to parcel shelf bolts.
3. Move the trunk lid so that the clearance measurements are within specifications provided.
4. Tighten the hinge to parcel shelf bolts.
5. Install the parcel shelf trim. Refer to

INT-28, "Removal and Installation"

.

SURFACE HEIGHT ADJUSTMENT

1. Loosen the bumper rubber.
2. Loosen the striker bolts.
3. Lift up the trunk lid approx. 100 - 150 mm (3.94 - 5.91 in) then close it lightly. Make sure it engages firmly

with the trunk lid closed.

4. Tighten the trunk lid striker.

TRUNK LID LOCK
TRUNK LID LOCK : Removal and Installation

INFOID:0000000009471779

LOCK

Removal

1. Remove the trunk lid finisher. Refer to

INT-36, "Removal and Installation"

.

2. Remove the trunk lid lock bolts.
3. Disconnect the harness connector and emergency release handle from the trunk lid lock and remove.

Installation

Installation is in the reverse order of removal.

STRIKER

Removal

1. Remove the trunk rear finisher. Refer to

INT-36, "Removal and Installation"

.

2. Remove the bolts and the striker.

Installation

Installation is in the reverse order of removal.

NOTE:

Align the trunk lid lock. Refer to

DLK-228, "TRUNK LID LOCK : Removal and Installation"

.

TRUNK LID STAY

Section

Item

Standard

Right/left clearance (MAX)

A – A

E

4.5

± 1.0 (0.18 ± 0.04)

≤2.0 (0.08)

F

-0.5

± 1.0 (-0.02 ± 0.04)

≤2.0 (0.08)

B – B

G

5.0

± 1.0 (0.20 ± 0.04)

≤2.0 (0.08)

H

-0.5

± 1.0 (-0.02 ± 0.04)

≤2.0 (0.08)

C – C

J

4.5

± 1.5 (0.18 ± 0.06)

≤2.0 (0.08)

D – D

K

7.0

± 2.0 (0.28 ± 0.08)

TRUNK LID

DLK-229

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

TRUNK LID STAY : Disposal

INFOID:0000000009471780

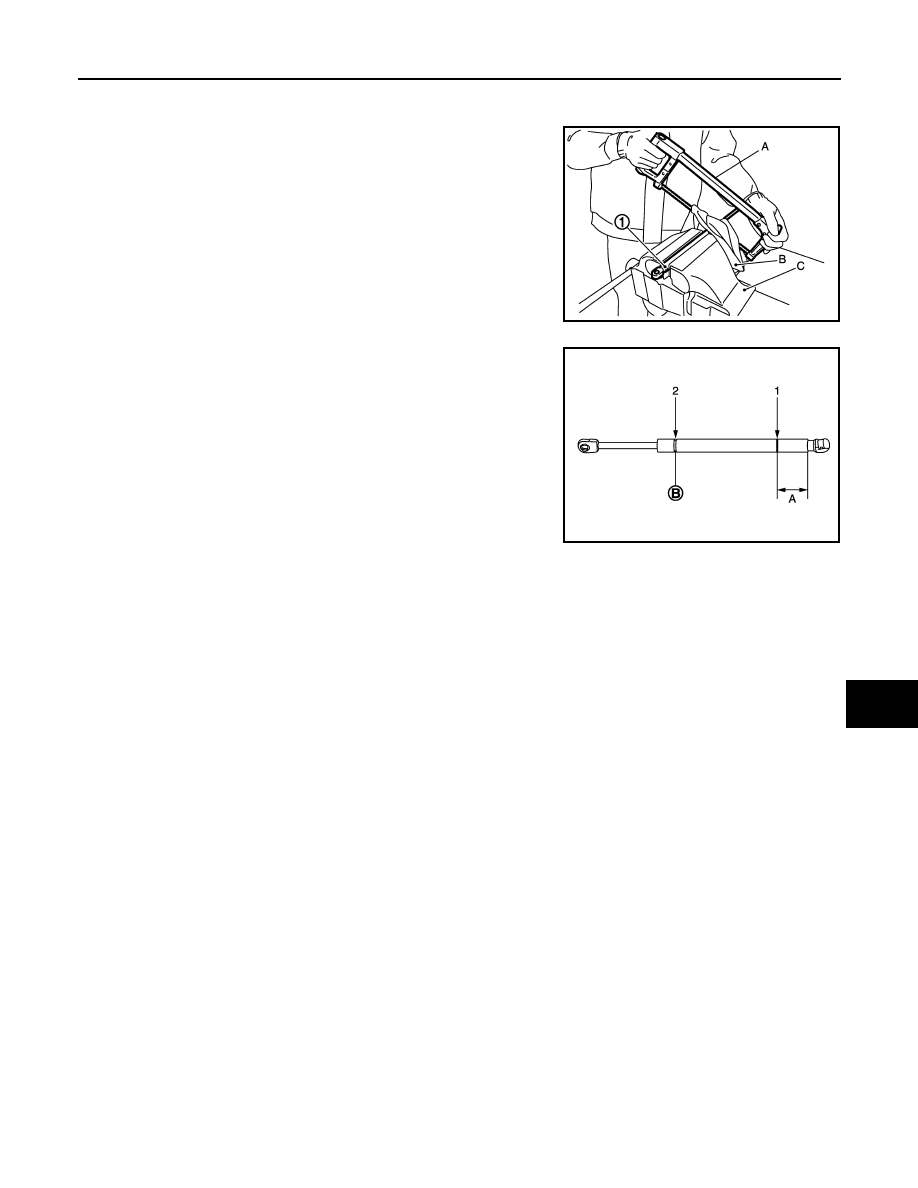

1. Fix trunk lid stay (1) using a vise (C).
2. Using hacksaw (A) slowly make 2 holes in the trunk lid stay, in

numerical order as shown.

CAUTION:

• When cutting a hole on trunk lid stay, always cover hack-

saw with a shop cloth (B) to avoid scattering metal frag-

ments or oil.

• Wear eye protection (safety glasses).

• Wear gloves.

JMKIA3336ZZ

A: 20 mm (0.8 in)
B: Cut at the groove.

JMKIA3609ZZ

DLK-230

< REMOVAL AND INSTALLATION >

DOOR SWITCH

DOOR SWITCH

Exploded View

INFOID:0000000009471781

Removal and Installation

INFOID:0000000009471782

REMOVAL

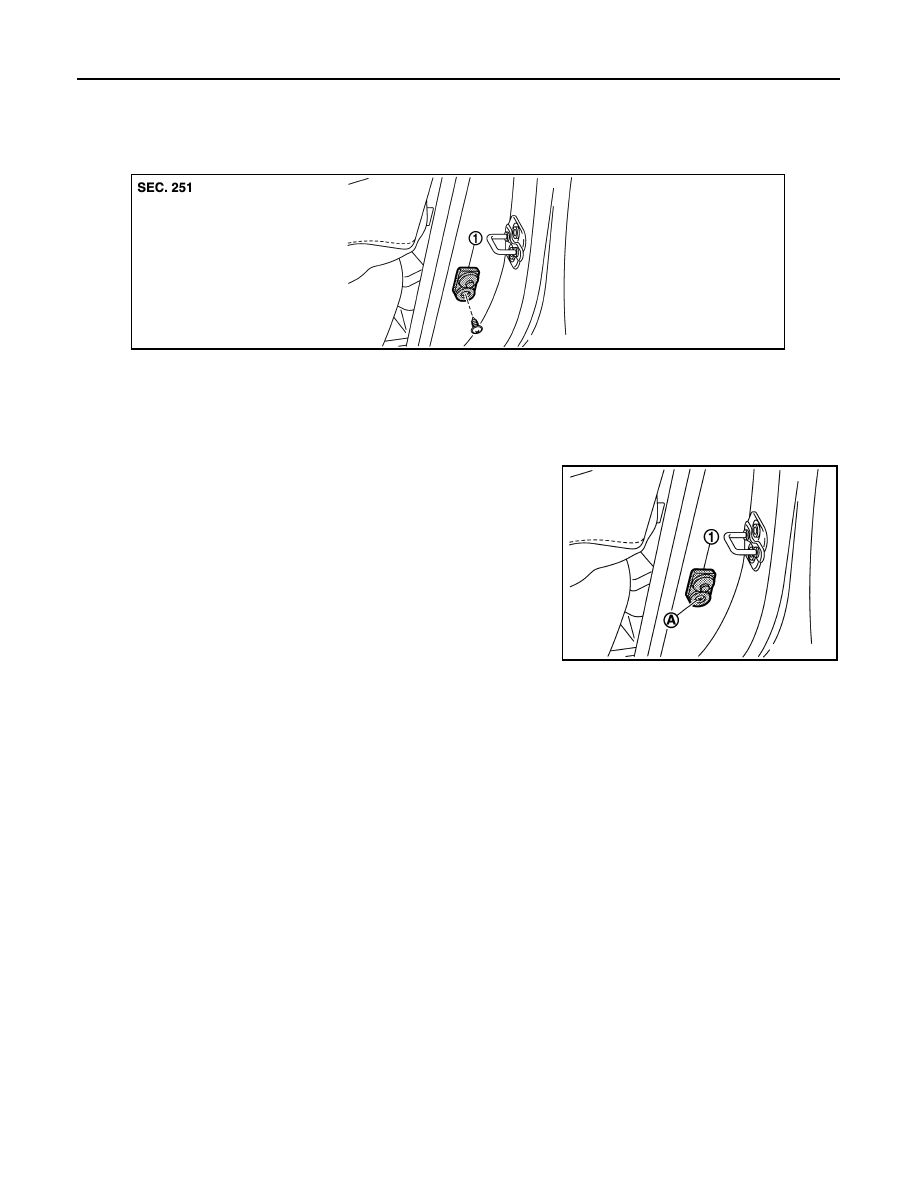

1. Remove the door switch screw (A).
2. Disconnect the harness connector from the door switch (1) and

remove.

INSTALLATION

Installation is in the reverse order of removal.

1.

Door switch

JMKIA2180ZZ

JMKIA2173ZZ
