COMBINATION METER DISPLAY FUNCTION

Description

INFOID:0000000009471718

Displays each operation method guide and warning for system malfunction.

Component Function Check

INFOID:0000000009471719

1.

CHECK FUNCTION

 With CONSULT

Check the operation with (“LCD”) in the Active Test.

Is the inspection result normal?

YES

>> Meter display is OK.

NO

>> Refer to

DLK-119, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000009471720

1.

CHECK COMBINATION METER

Refer to

MWI-51, "DTC Index"

.

Is the inspection result normal?

YES

>> GO TO 2

NO

>> Check combination meter. Refer to

MWI-29, "Diagnosis Description"

.

2.

CHECK INTERMITTENT INCIDENT

Refer to

GI-41, "Intermittent Incident"

.

>> Inspection End.

Is each warning displayed on meter display?

DLK-120

< DTC/CIRCUIT DIAGNOSIS >

WARNING CHIME FUNCTION

WARNING CHIME FUNCTION

Description

INFOID:0000000009471721

Performs operation method guide and warning with buzzer.

Component Function Check

INFOID:0000000009471722

1.

CHECK FUNCTION

 With CONSULT

1. Check the operation with “INSIDE BUZZER” in the Active Test.

2. Touch “TAKE OUT”, “KNOB”or “KEY”on screen.
Is the inspection result normal?

YES

>> Warning buzzer into combination meter is OK.

NO

>> Refer to

DLK-120, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000009471723

1.

CHECK METER BUZZER CIRCUIT

Refer to

WCS-20, "Component Function Check"

.

Is the inspection result normal?

YES

>> GO TO 2

NO

>> Replace combination meter. Refer to

MWI-122, "Removal and Installation"

.

2.

CHECK INTERMITTENT INCIDENT

Refer to

GI-41, "Intermittent Incident"

.

>> Inspection End.

HAZARD FUNCTION

DLK-121

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

HAZARD FUNCTION

Description

INFOID:0000000009471724

Perform answer-back for each operation with number of blinks.

Component Function Check

INFOID:0000000009471725

1.

CHECK FUNCTION

Check hazard warning lamp (“FLASHER”) in Active Test.
Is the inspection result normal?

YES

>> Hazard warning lamp circuit is OK.

NO

>> Refer to

DLK-121, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000009471726

1.

CHECK HAZARD SWITCH CIRCUIT

Operate the hazard lights by turning ON the hazard warning switch.
Is the inspection result normal?

YES

>> GO TO 2

NO

>> Repair or replace hazard warning switch circuit. Refer to

EXL-56, "Diagnosis Procedure"

.

2.

CHECK INTERMITTENT INCIDENT

Refer to

GI-41, "Intermittent Incident"

.

>> Inspection End.

DLK-122

< DTC/CIRCUIT DIAGNOSIS >

HOMELINK UNIVERSAL TRANSCEIVER

HOMELINK UNIVERSAL TRANSCEIVER

Description

INFOID:0000000009471727

Homelink universal transceiver can store and transmit a maximum of 3 radio signals.

Allows operation of garage doors, gates, home and office lighting, entry door locks and security system, etc.

Homelink universal transceiver power supply uses vehicle battery, which enables it to maintain every program

in case battery is discharged or removed.

Component Function Check

INFOID:0000000009471728

1.

CHECK FUNCTION

Check that system receiver (garage door opener, etc.) operates with original hand-held transmitter.
Is the inspection result normal?

YES

>> GO TO 2

NO

>> Receiver or hand-held transmitter is malfunctioning.

2.

CHECK ILLUMINATE

1. Turn ignition switch “OFF”.

2. Press each of the transmitter buttons and watch for the red light to illuminate with each button.
Is the inspection result normal?

YES

>> GO TO 3

NO

>> Refer to

DLK-122, "Diagnosis Procedure"

.

3.

CHECK TRANSMITTER

Check transmitter with Tool*.

*:For details, refer to Technical Service Bulletin.
Is the inspection result normal?

YES

>> Receiver or hand-held transmitter malfunction, not vehicle related.

NO

>> Replace auto anti-dazzling inside mirror (homelink universal transceiver). Refer to

MIR-18,

"Removal and Installation"

.

Diagnosis Procedure

INFOID:0000000009471729

Regarding Wiring Diagram information, refer to

DLK-181, "Wiring Diagram"

.

1.

CHECK POWER SUPPLY

1. Disconnect auto anti-dazzling inside mirror (homelink universal transceiver) connector.

2. Check voltage between auto anti-dazzling inside mirror

(homelink universal transceiver) harness connector and ground.

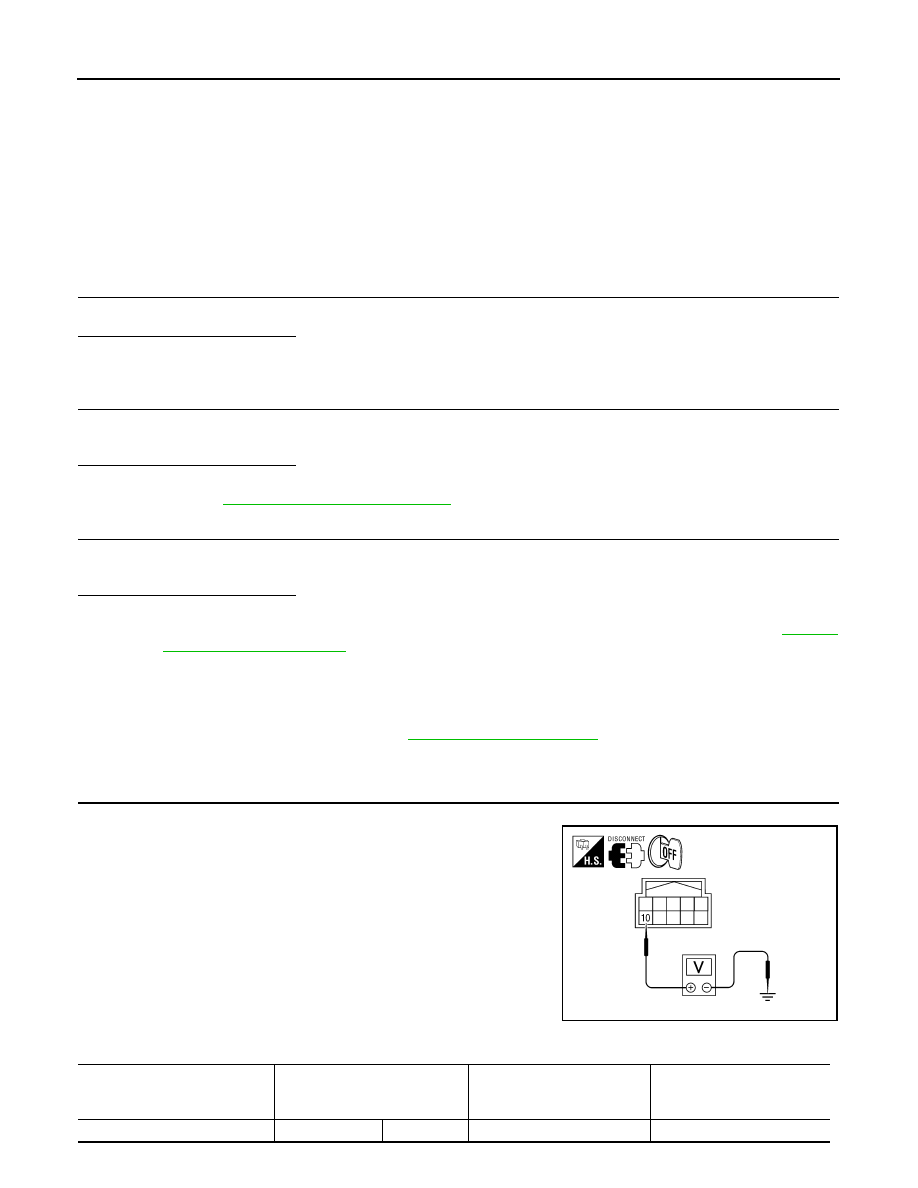

ALKIA0426ZZ

Auto anti-dazzling inside mirror

(Homelink universal transceiver)

connector

Terminal Condition

Voltage (V)

(Approx.)

R4

10

Ground

Ignition switch position: LOCK

Battery voltage
