TRUNK LID OPENER CANCEL SWITCH

DLK-87

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

NO

>> Replace trunk lid opener cancel switch.

DLK-88

< DTC/CIRCUIT DIAGNOSIS >

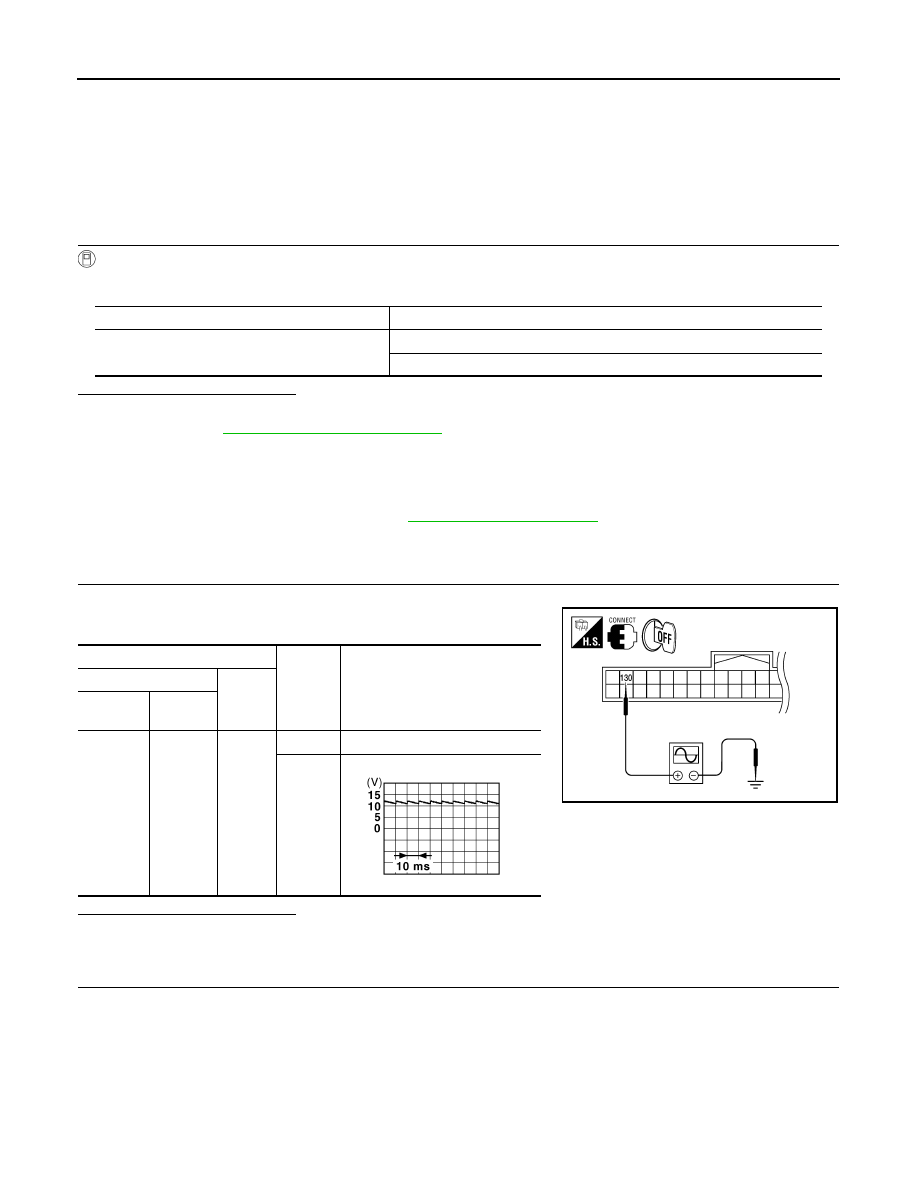

TRUNK LAMP SWITCH

TRUNK LAMP SWITCH

Description

INFOID:0000000009471669

Detects trunk open/close condition.

Component Function Check

INFOID:0000000009471670

1.

CHECK FUNCTION

 With CONSULT

Check TRNK/HAT MNTR in Data Monitor mode with CONSULT.

Is the inspection result normal?

YES

>> Trunk room lamp switch is OK.

NO

>> Refer to

DLK-88, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000009471671

Regarding Wiring Diagram information, refer to

DLK-161, "Wiring Diagram"

.

1.

CHECK TRUNK LAMP SWITCH INPUT SIGNAL

1. Turn ignition switch OFF.

2. Check voltage between BCM connector and ground.

Is the inspection result normal?

YES

>> GO TO 6

NO

>> GO TO 2

2.

CHECK TRUNK LAMP SWITCH CIRCUIT

1. Disconnect BCM connector.

Monitor item

Condition

TRNK/HAT MNTR

OPEN

: ON

CLOSE

: OFF

Terminals

Trunk

condition

Voltage (V)

(Approx.)

(+)

(–)

BCM

connector

Terminal

M21

130

Ground

OPEN

0

CLOSE

ALKIA0370ZZ

JPMIA0011GB

TRUNK LAMP SWITCH

DLK-89

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

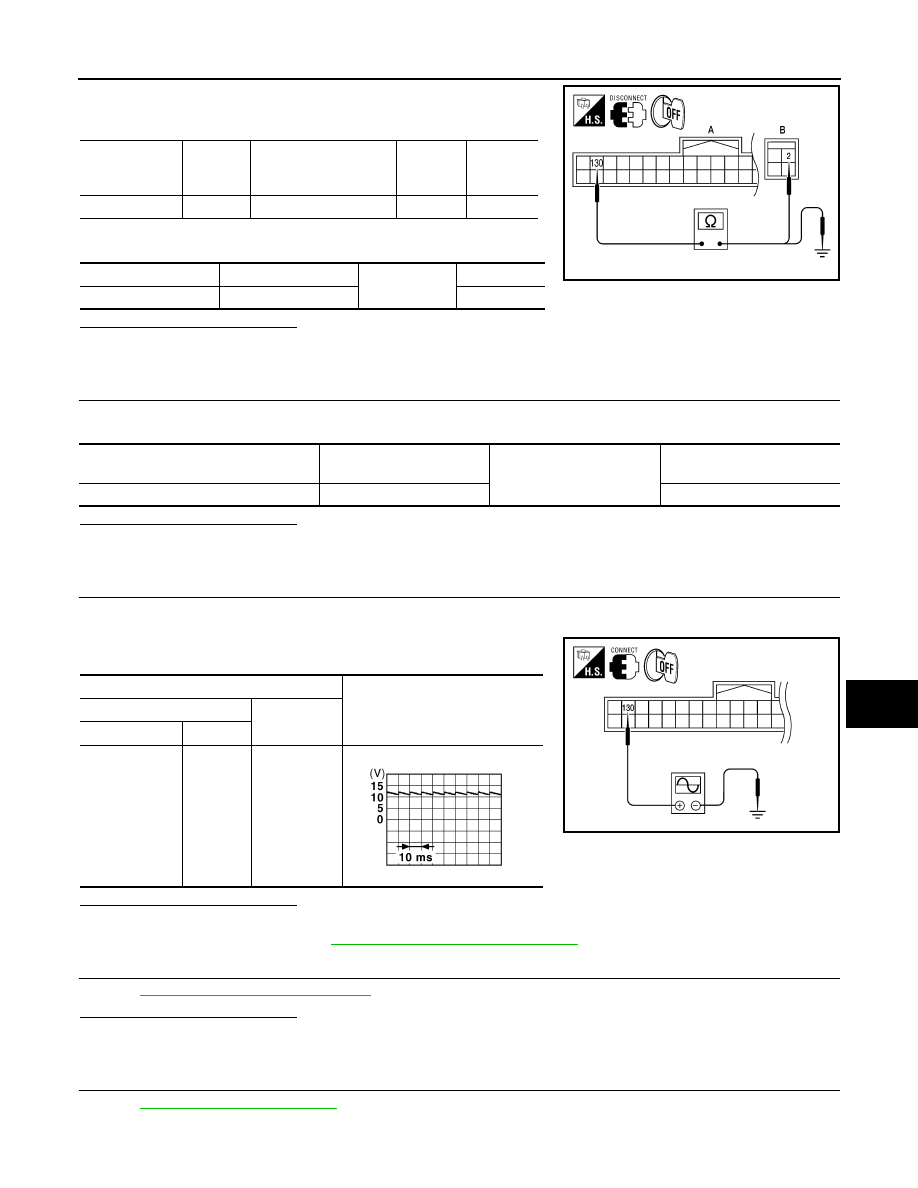

2. Check continuity between BCM connector and trunk lamp switch

and trunk release solenoid connector.

3. Check continuity between BCM connector and ground.

Is the inspection result normal?

YES

>> GO TO 3

NO

>> Repair or replace harness between BCM and trunk lamp switch and trunk release solenoid.

3.

CHECK TRUNK LAMP SWITCH GROUND CIRCUIT

Check continuity between trunk lid lock assembly connector and ground.

Is the inspection result normal?

YES

>> GO TO 4

NO

>> Repair or replace trunk lamp switch and trunk release solenoid ground circuit.

4.

CHECK BCM OUTPUT SIGNAL

1. Insure trunk remains closed during this step.

2. Connect BCM connector.

3. Check voltage between BCM connector and ground.

Is the inspection result normal?

YES

>> GO TO 5

NO

>> Replace BCM. Refer to

BCS-79, "Removal and Installation"

.

5.

CHECK TRUNK ROOM LAMP SWITCH

Refer to

DLK-90, "Component Inspection"

.

Is the inspection result normal?

YES

>> GO TO 6

NO

>> Replace trunk lamp switch and trunk release solenoid.

6.

CHECK INTERMITTENT INCIDENT

Refer to

GI-41, "Intermittent Incident"

.

BCM connector

Terminal

Trunk lamp switch and

trunk release solenoid

connector

Terminal

Continuity

A: M21

130

B: T7

2

Yes

BCM connector

Terminal

Ground

Continuity

A: M21

130

No

ALKIA1673ZZ

Trunk lamp switch and trunk release so-

lenoid connector

Terminal

Ground

Continuity

T7

1

Yes

Terminals

Voltage (V)

(Approx.)

(+)

(–)

BCM connector

Terminal

M21

130

Ground

ALKIA0370ZZ

JPMIA0011GB

DLK-90

< DTC/CIRCUIT DIAGNOSIS >

TRUNK LAMP SWITCH

>> Inspection End.

Component Inspection

INFOID:0000000009471672

1.

CHECK TRUNK LAMP SWITCH

1. Turn ignition switch OFF.

2. Disconnect trunk lamp switch and trunk release solenoid connector.

3. Check trunk lamp switch.

Is the inspection result normal?

YES

>> Inspection End.

NO

>> Replace trunk lamp switch and trunk release solenoid.

Terminal

Trunk condition

Continuity

Trunk lamp switch and trunk release solenoid

2

1

OPEN

Yes

CLOSE

No
