TRUNK LID OPENER SWITCH

DLK-83

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

TRUNK LID OPENER SWITCH

Description

INFOID:0000000009471661

Transmits trunk lid open signal to BCM.

Component Function Check

INFOID:0000000009471662

1.

CHECK TRUNK LID OPENER CANCEL SWITCH

Check trunk lid opener cancel switch position.
Does trunk lid opener cancel switch turn ON (CANCEL)?

Yes

>> Turn off trunk lid opener cancel switch.

No

>> GO TO 2

2.

CHECK FUNCTION

 With CONSULT

Check trunk lid opener switch TR/BD OPEN SW in Data Monitor mode with CONSULT.

• When trunk lid opener switch is turned to “ON”.

Is the inspection result normal?

YES

>> Trunk lid opener switch is OK.

NO

>> Refer to

DLK-83, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000009471663

Regarding Wiring Diagram information, refer to

DLK-177, "Wiring Diagram"

.

1.

CHECK TRUNK LID OPEN INPUT SIGNAL

1. Remove Intelligent Key from key slot.

2. Turn on trunk lid opener cancel switch.

3. Check voltage between BCM connector and ground.

Is the inspection result normal?

YES

>> GO TO 5

NO

>> GO TO 2

2.

CHECK TRUNK LID OPENER SWITCH CIRCUIT

1. Disconnect BCM connector.

Monitor item

Condition

TR/BD OPEN SW

Trunk lid opener switch is pressed: ON

Trunk lid opener switch is released: OFF

Terminals

Condition of trunk lid opener switch

Voltage (V)

(Approx.)

(+)

(–)

BCM

connector

Terminal

M21

147

Ground

ON (press and hold)

0

OFF (release)

Battery voltage

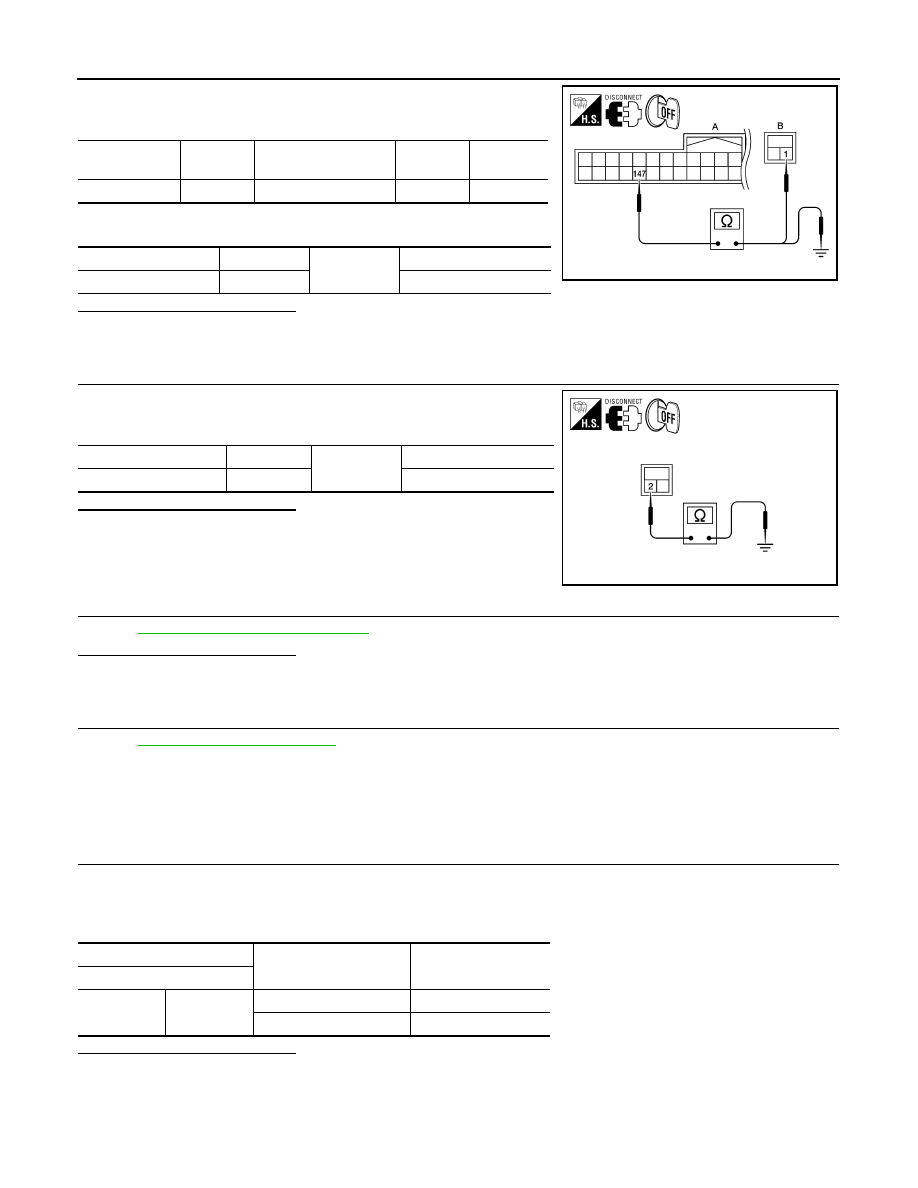

DLK-84

< DTC/CIRCUIT DIAGNOSIS >

TRUNK LID OPENER SWITCH

2. Check continuity between BCM connector and trunk lid opener

switch connector.

3. Check continuity between BCM connector and ground.

Is the inspection result normal?

YES

>> GO TO 3

NO

>> Repair harness or connector.

3.

CHECK TRUNK LID OPENER SWITCH GROUND CIRCUIT

Check continuity between trunk lid opener switch connector and

ground.

Is the inspection result normal?

YES

>> GO TO 4

NO

>> Repair or replace harness.

4.

CHECK TRUNK LID OPENER SWITCH

Refer to

DLK-84, "Component Inspection"

.

Is the inspection result normal?

YES

>> GO TO 5

NO

>> Replace trunk lid opener switch.

5.

CHECK INTERMITTENT INCIDENT

Refer to

GI-41, "Intermittent Incident"

.

>> Inspection End.

Component Inspection

INFOID:0000000009471664

1.

CHECK TRUNK LID OPENER SWITCH

1. Turn ignition switch OFF.

2. Disconnect trunk lid opener switch connector.

3. Check continuity between trunk lid opener switch connector.

Is the inspection result normal?

YES

>> Inspection End.

NO

>> Replace trunk lid opener switch.

BCM connector

Terminal

Trunk lid opener switch

connector

Terminal

Continuity

A: M21

147

B: M75

1

Yes

BCM connector

Terminal

Ground

Continuity

A: M21

147

No

ALKIA0357ZZ

Trunk lid opener switch

Terminal

Ground

Continuity

M75

2

Yes

ALKIA0358ZZ

Terminal

Condition

Continuity

Trunk lid opener switch

1

2

ON (press and hold)

Yes

OFF (release)

No

TRUNK LID OPENER CANCEL SWITCH

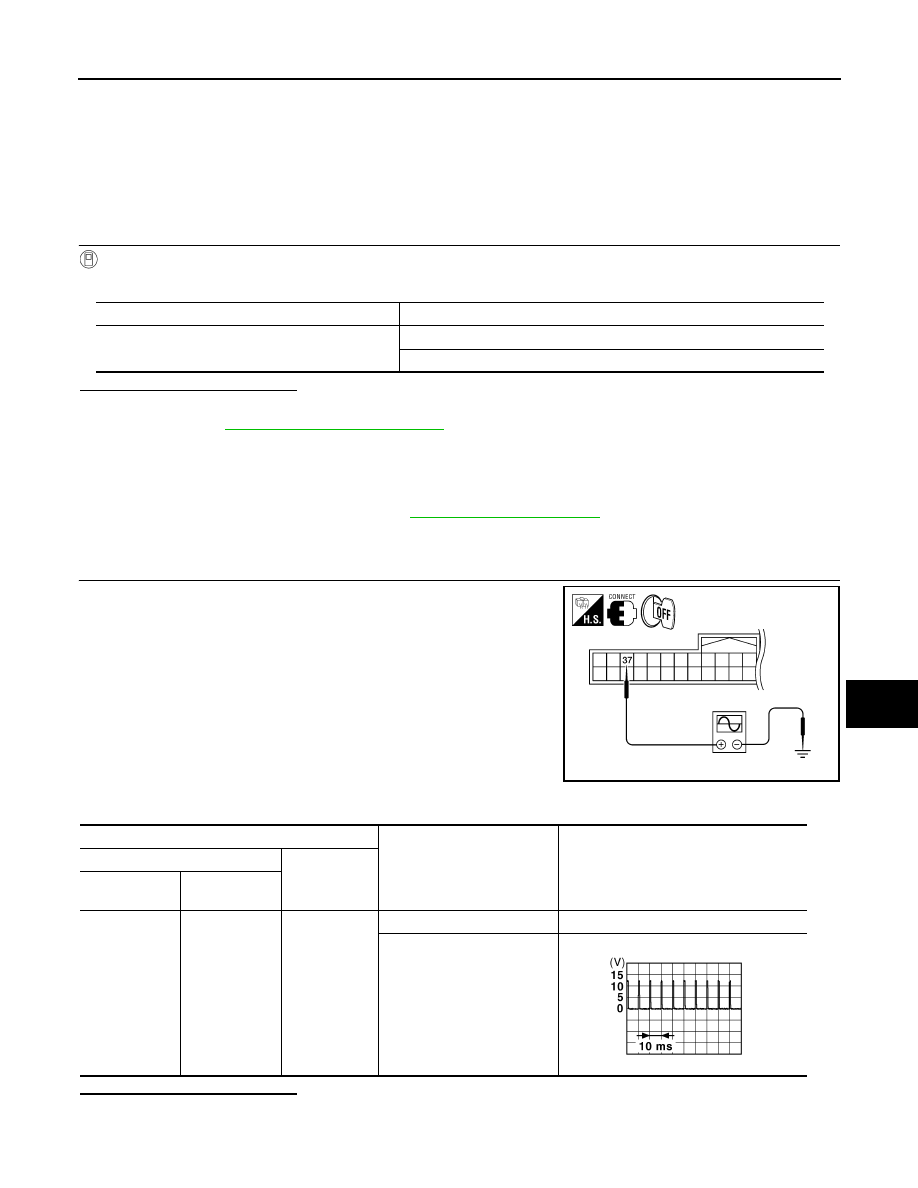

DLK-85

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

TRUNK LID OPENER CANCEL SWITCH

Description

INFOID:0000000009471665

Cancels trunk lid open operation.

Component Function Check

INFOID:0000000009471666

1.

CHECK FUNCTION

 With CONSULT

Check trunk lid opener cancel switch TR CANCEL SW in Data Monitor mode with CONSULT.

Is the inspection result normal?

YES

>> Trunk lid opener cancel switch is OK.

NO

>> Refer to

DLK-85, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000009471667

Regarding Wiring Diagram information, refer to

DLK-177, "Wiring Diagram"

.

1.

CHECK TRUNK LID OPENER CANCEL SIGNAL

Check voltage between BCM connector and ground.

Is the inspection result normal?

YES

>> GO TO 5

NO

>> GO TO 2

Monitor item

Condition

TR CANCEL SW

Trunk lid opener cancel switch is turned to “ON”: ON

Trunk lid opener cancel switch is  turned to “OFF”: OFF

ALKIA0360ZZ

Terminals

Condition of trunk lid opener

cancel switch

Voltage (V)

(Approx.)

(+)

(–)

BCM

connector

Terminal

M18

37

Ground

ON 0

OFF (cancel)

JPMIA0012GB

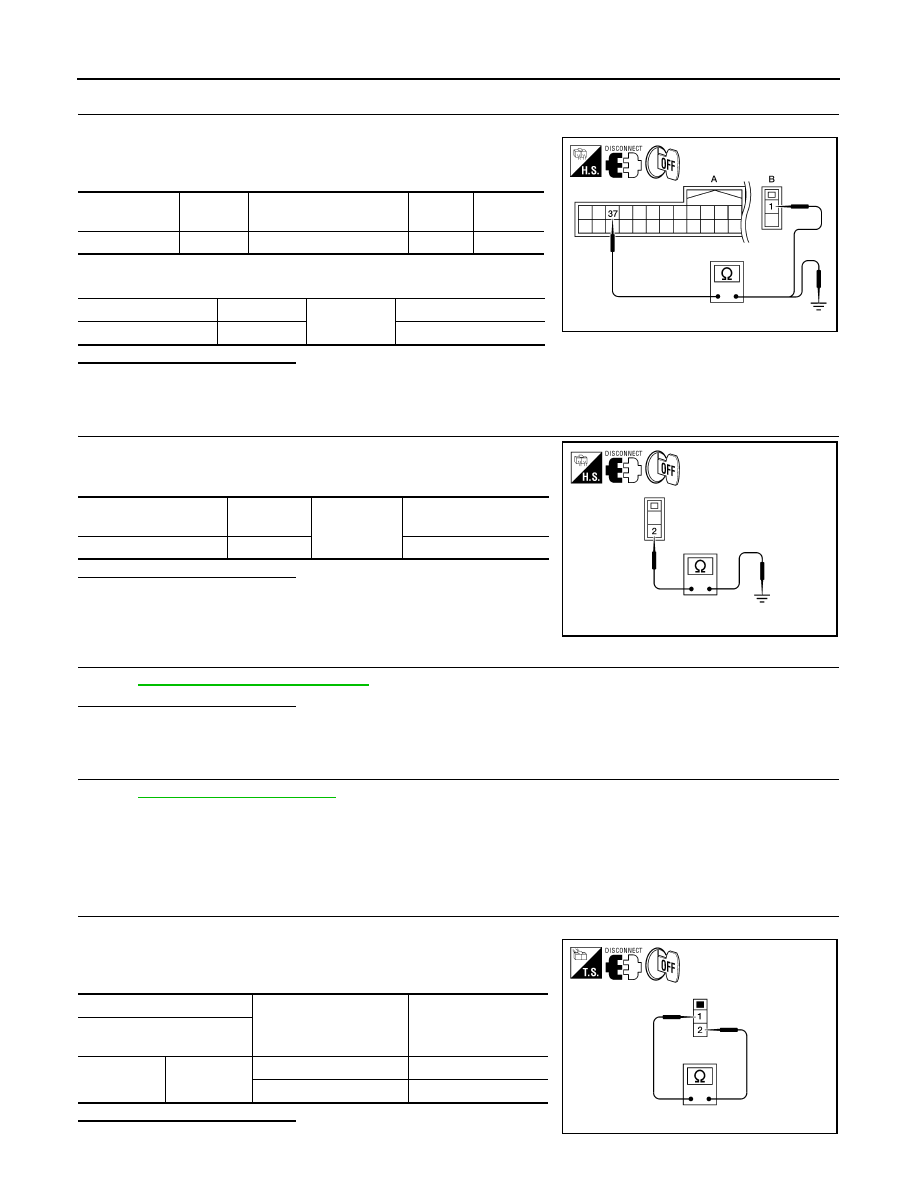

DLK-86

< DTC/CIRCUIT DIAGNOSIS >

TRUNK LID OPENER CANCEL SWITCH

2.

CHECK TRUNK LID OPENER CANCEL SWITCH CIRCUIT

1. Disconnect BCM connector.

2. Check continuity between BCM connector and trunk lid opener

cancel switch connector.

3. Check continuity between BCM connector and ground.

Is the inspection result normal?

YES

>> GO TO 3

NO

>> Repair harness or connector.

3.

CHECK TRUNK LID OPENER CANCEL SWITCH GROUND CIRCUIT

Check continuity between trunk lid opener switch connector and

ground.

Is the inspection result normal?

YES

>> GO TO 4

NO

>> Repair or replace harness.

4.

CHECK TRUNK LID OPENER CANCEL SWITCH

Refer to

DLK-86, "Component Inspection"

.

Is the inspection result normal?

YES

>> GO TO 5

NO

>> Replace trunk lid opener cancel switch.

5.

CHECK INTERMITTENT INCIDENT

Refer to

GI-41, "Intermittent Incident"

.

>> Inspection End.

Component Inspection

INFOID:0000000009471668

1.

CHECK TRUNK LID OPENER CANCEL SWITCH

1. Disconnect trunk lid opener cancel switch connector.

2. Check continuity between trunk lid opener cancel switch termi-

nals.

Is the inspection result normal?

YES

>> Inspection End.

BCM connector

Terminal

Trunk lid opener cancel

switch connector

Terminal

Continuity

A: M18

37

B: M74

1

Yes

BCM connector

Terminal

Ground

Continuity

A: M18

37

No

ALKIA0361ZZ

Trunk lid opener cancel

switch

Terminal

Ground

Continuity

M74

2

Yes

ALKIA0362ZZ

Terminal

Condition

Continuity

Trunk lid opener cancel

switch

1

2

ON Yes

OFF (cancel)

No

ALKIA0363ZZ
