KEY SLOT

Description

INFOID:0000000009471648

Detects whether Intelligent Key is inserted.

Immobilizer antenna amp checks Intelligent Key transponder.

Component Function Check

INFOID:0000000009471649

1.

CHECK FUNCTION

 With CONSULT

Check KEY SW -SLOT in Data Monitor mode with CONSULT.

Is the inspection result normal?

YES

>> Key slot is OK.

NO

>> Refer to

DLK-75, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000009471650

Regarding Wiring Diagram information, refer to

DLK-161, "Wiring Diagram"

.

1.

CHECK KEY SLOT POWER SUPPLY CIRCUIT

1. Turn ignition switch OFF.

2. Disconnect key slot connector.

3. Check voltage between key slot connector and ground.

Is the inspection result normal?

YES

>> GO TO 2

NO

>> Repair or replace key slot power supply circuit.

2.

CHECK KEY SLOT GROUND CIRCUIT

Check continuity between key slot connector and ground.

Is the inspection result normal?

YES

>> GO TO 3

NO

>> Repair or replace key slot ground circuit.

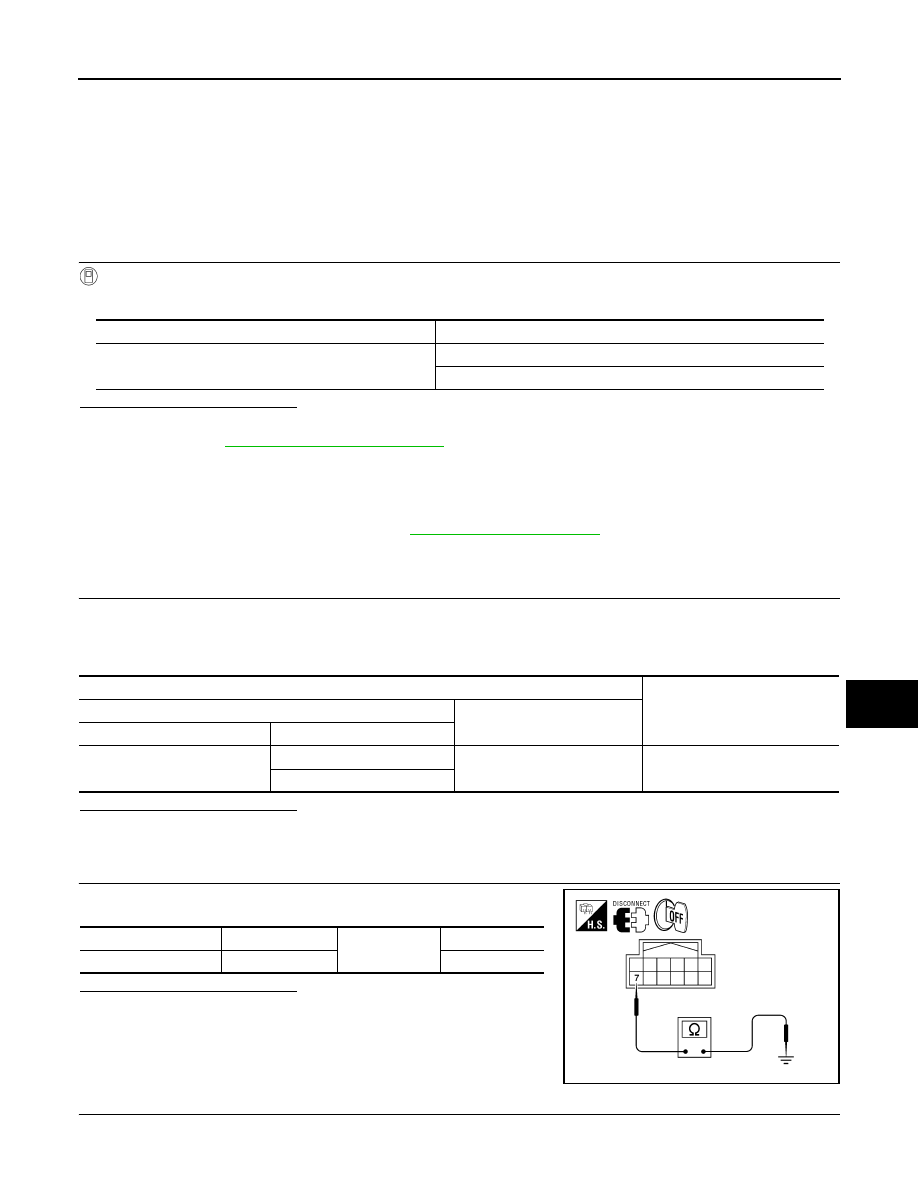

3.

CHECK KEY SLOT CIRCUIT

1. Disconnect BCM connector.

Monitor item

Condition

KEY SW-SLOT

Key is inserted in key slot: ON

Key is removed from key slot: OFF

Terminals

Voltage (V)

(Approx.)

(+)

(–)

Key slot connector

Terminal

M40

1

Ground

Battery voltage

5

Key slot connector

Terminal

Ground

Continuity

M40

7

Yes

ALKIA0344ZZ

DLK-76

< DTC/CIRCUIT DIAGNOSIS >

KEY SLOT

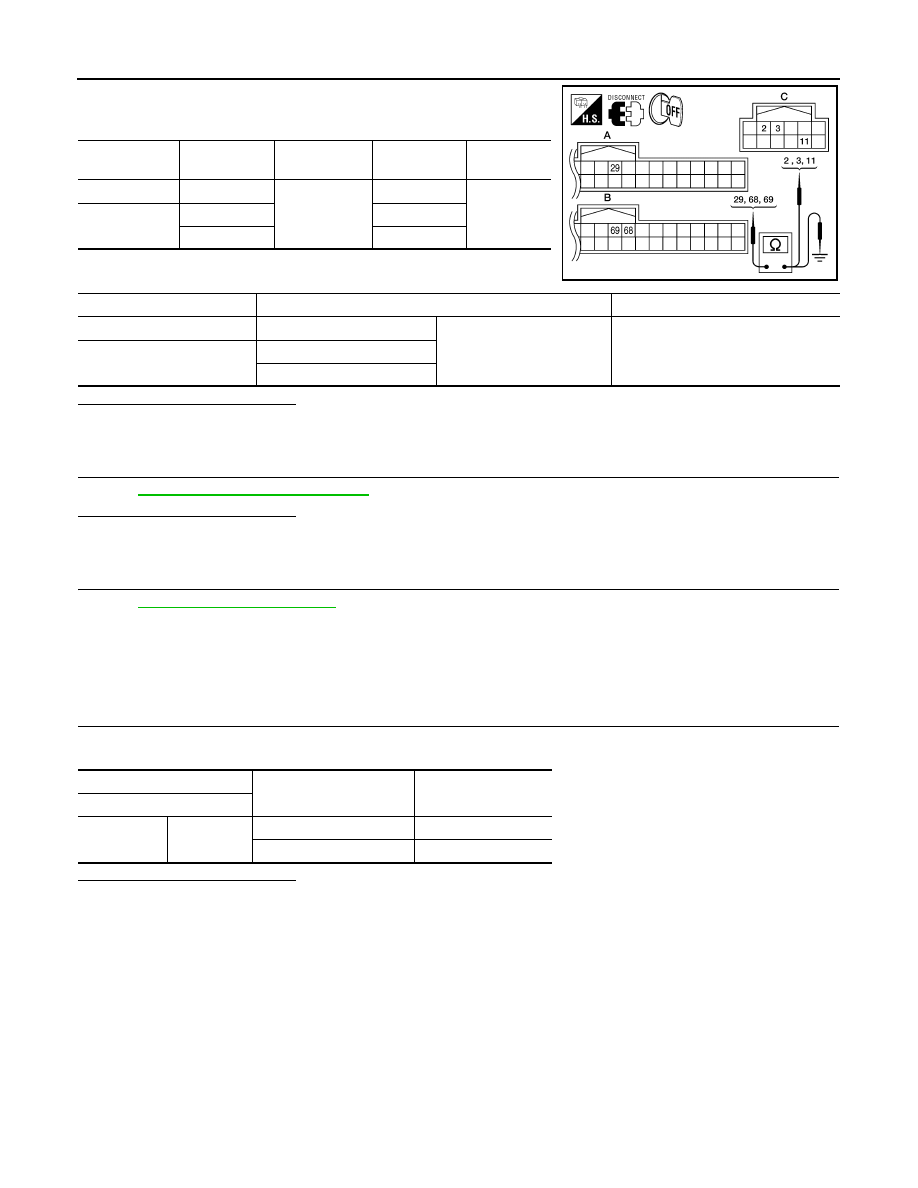

2. Check continuity between BCM connector and key slot connec-

tor.

3. Check continuity between BCM connector and ground.

Is the inspection result normal?

YES

>> GO TO 4

NO

>> Repair or replace harness between BCM and key slot.

4.

CHECK KEY SLOT

Refer to

DLK-76, "Component Inspection"

.

Is the inspection result normal?

YES

>> GO TO 5

NO

>> Replace key slot.

5.

CHECK INTERMITTENT INCIDENT

Refer to

GI-41, "Intermittent Incident"

.

>> Inspection End.

Component Inspection

INFOID:0000000009471651

1.

CHECK KEY SLOT

Check key slot.

Is the inspection result normal?

YES

>> Inspection End.

NO

>> Replace key slot.

BCM connector

Terminal

Key slot con-

nector

Terminal

Continuity

A: M18

29

C: M40

11

Yes

B: M19

68

2

69

3

ALKIA0345ZZ

BCM connector

Terminal

Continuity

A: M18

29

Ground

No

B: M19

68

69

Terminal

Condition

Continuity

Key slot

1

11

Intelligent Key inserted

Yes

Intelligent Key removed

No
