DOOR SWITCH

Description

INFOID:0000000009471636

Detects door open/close condition.

Component Function Check

INFOID:0000000009471637

1.

CHECK FUNCTION

 With CONSULT

Check door switches DOOR SW-DR, DOOR SW-AS, DOOR SW-RL, DOOR SW-RR in Data Monitor mode

with CONSULT.

Is the inspection result normal?

YES

>> Door switch is OK.

NO

>> Refer to

DLK-67, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000009471638

Regarding Wiring Diagram information, refer to

DLK-150, "Wiring Diagram"

.

1.

CHECK DOOR SWITCH INPUT SIGNAL

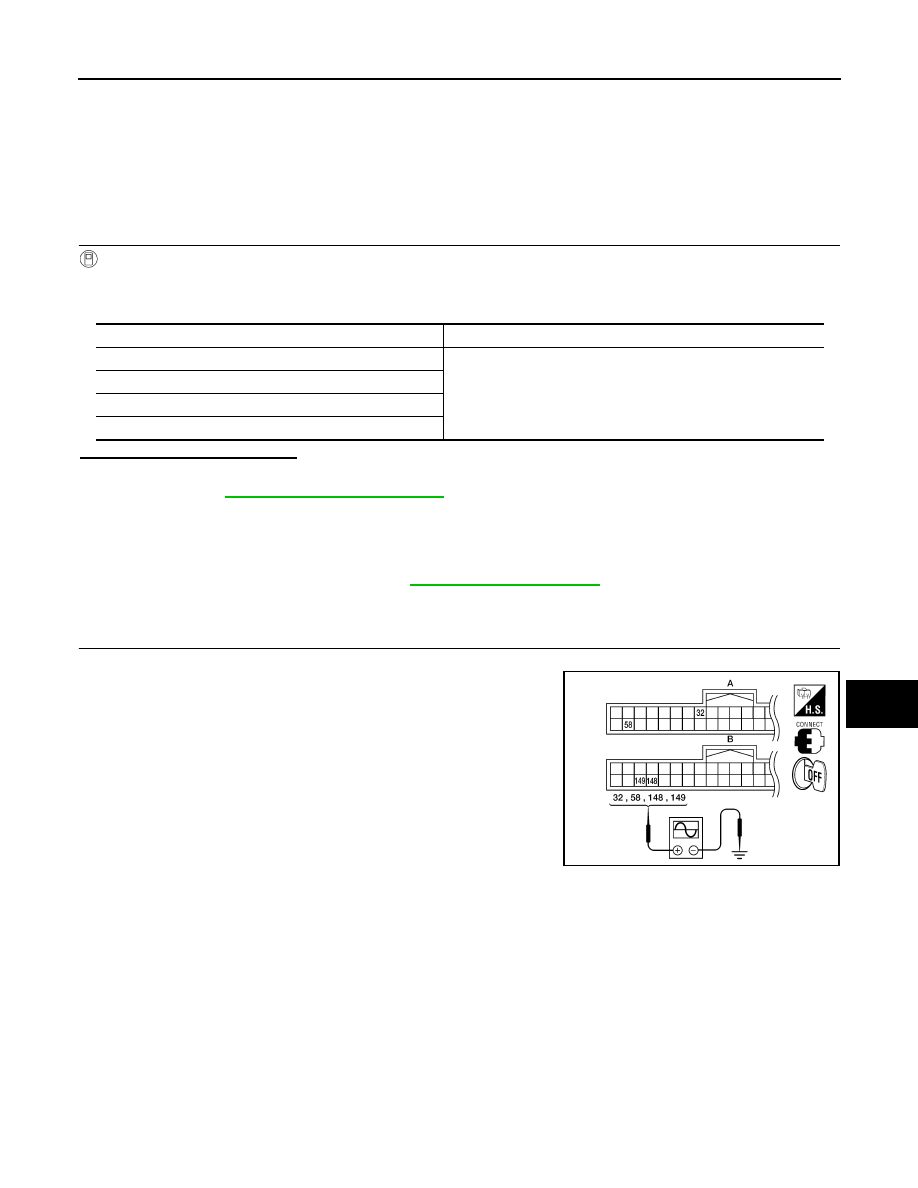

1. Turn ignition switch OFF.

2. Check signal between BCM connector and ground with oscillo-

scope.

Monitor item

Condition

DOOR SW-DR

CLOSE

→ OPEN: OFF → ON

DOOR SW-AS

DOOR SW-RL

DOOR SW-RR

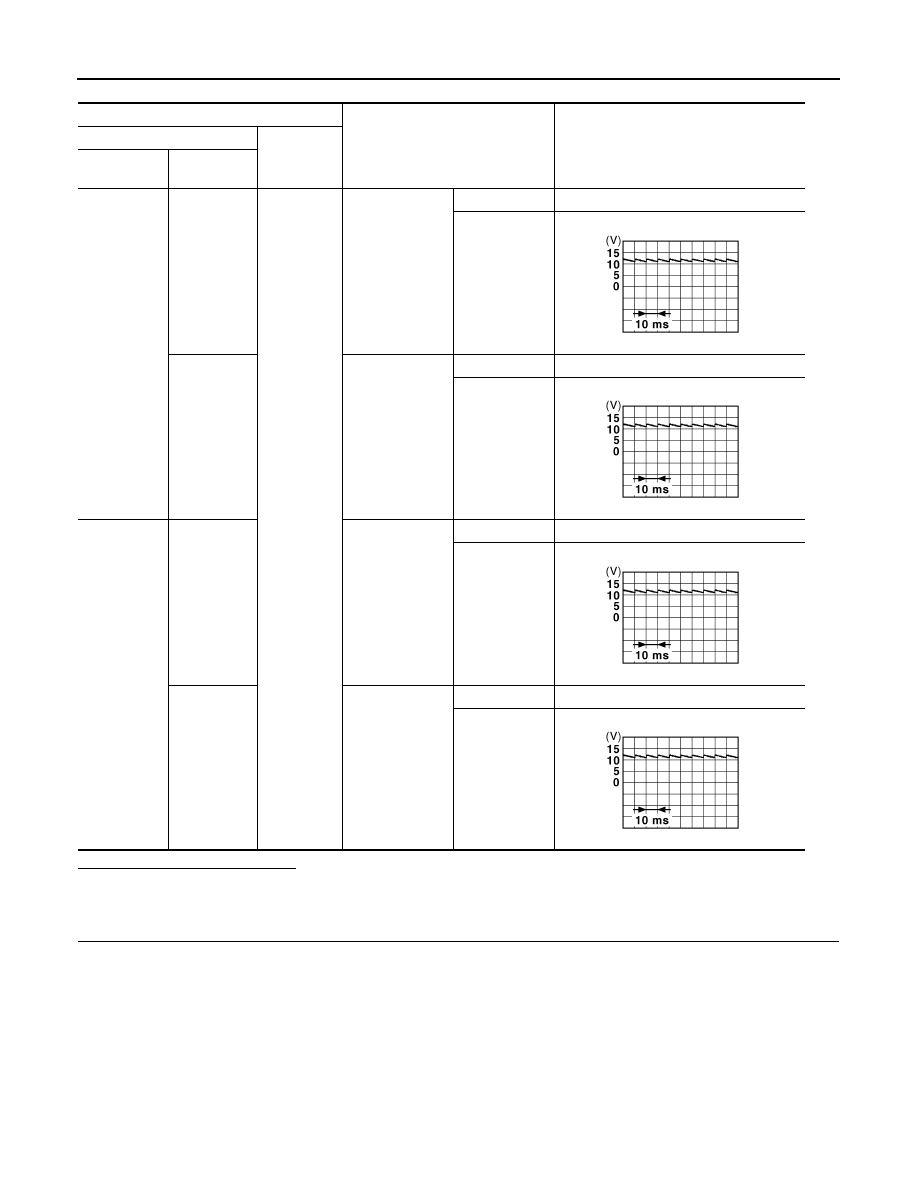

ALKIA1696ZZ

DLK-68

< DTC/CIRCUIT DIAGNOSIS >

DOOR SWITCH

Is the inspection result normal?

YES

>> GO TO 4

NO

>> GO TO 2

2.

CHECK DOOR SWITCH CIRCUIT

1. Disconnect BCM connector.

Terminals

Door condition

Voltage (V)

(Approx.)

(+)

(–)

BCM

connector

Terminal

A: M18

58

Ground

Driver side

OPEN

0

CLOSE

32

Passenger side

OPEN

0

CLOSE

B: M21

148

Rear RH

OPEN

0

CLOSE

149

Rear LH

OPEN

0

CLOSE

JPMIA0011GB

JPMIA0011GB

JPMIA0011GB

JPMIA0011GB

DOOR SWITCH

DLK-69

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

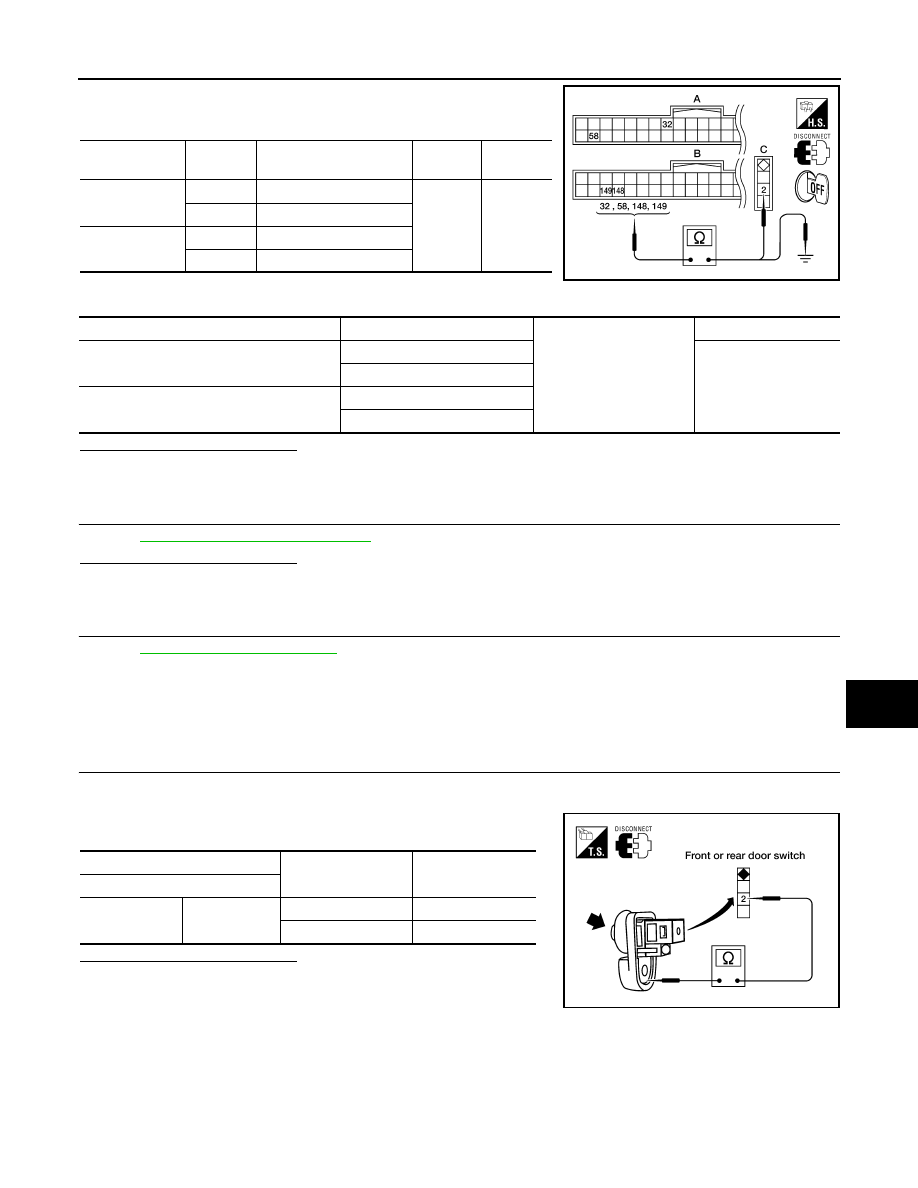

2. Check continuity between BCM connector and door switch con-

nector.

3. Check continuity between BCM connector and ground.

Is the inspection result normal?

YES

>> GO TO 3

NO

>> Repair or replace harness between BCM and door switch.

3.

CHECK DOOR SWITCH

Refer to

DLK-69, "Component Inspection"

.

Is the inspection result normal?

YES

>> GO TO 4

NO

>> Replace malfunctioning door switch.

4.

CHECK INTERMITTENT INCIDENT

Refer to

GI-41, "Intermittent Incident"

.

>> Inspection End.

Component Inspection

INFOID:0000000009471639

1.

CHECK DOOR SWITCH

1. Turn ignition switch OFF.

2. Disconnect door switch connector.

3. Check door switch.

Is the inspection result normal?

YES

>> Inspection End.

NO

>> Replace malfunctioning door switch.

BCM connector

Terminal

Door switch

connector

Terminal

Continuity

A: M18

58

C: B8 (Driver side)

2

Yes

32

C: B108 (Passenger side)

B: M21

148

C: B116 (Rear RH)

149

C: B18 (Rear LH)

ALKIA0332ZZ

BCM connector

Terminal

Ground

Continuity

A: M18

58

No

32

B: M21

148

149

Terminal

Door switch condition

Continuity

Door switch

2

Ground part of

door switch

Pressed

No

Released

Yes

WIIA0644E

DLK-70

< DTC/CIRCUIT DIAGNOSIS >

DOOR LOCK AND UNLOCK SWITCH

DOOR LOCK AND UNLOCK SWITCH

DRIVER SIDE
DRIVER SIDE : Description

INFOID:0000000009471640

Transmits door lock/unlock operation to BCM.

DRIVER SIDE : Component Function Check

INFOID:0000000009471641

1.

CHECK FUNCTION

With CONSULT

Check CDL LOCK SW, CDL UNLOCK SW in Data Monitor mode with CONSULT.

Is the inspection result normal?

YES

>> Door lock and unlock switch is OK.

NO

>> Refer to

DLK-70, "DRIVER SIDE : Diagnosis Procedure"

.

DRIVER SIDE : Diagnosis Procedure

INFOID:0000000009471642

Regarding Wiring Diagram, refer to

DLK-150, "Wiring Diagram"

.

1.

CHECK POWER WINDOW SWITCH OUTPUT SIGNAL

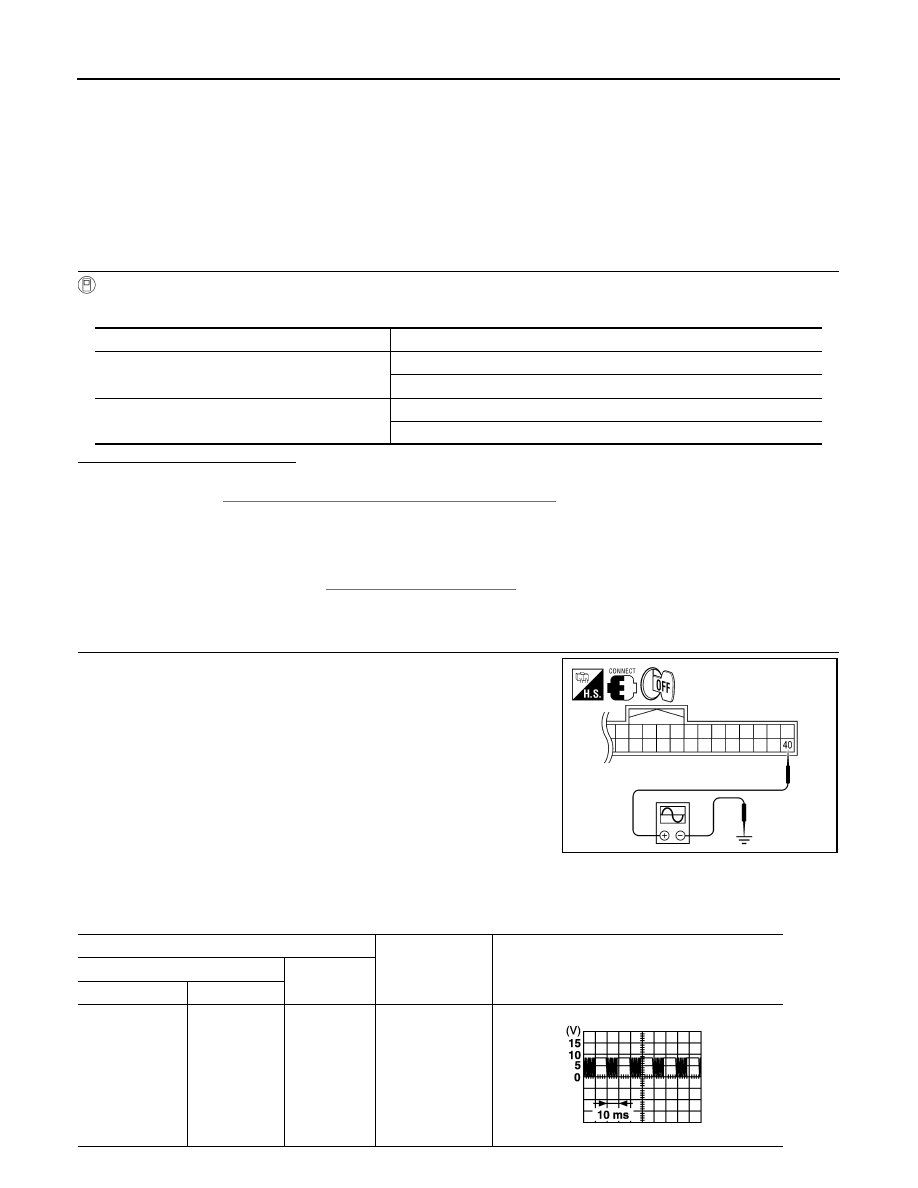

1. Read voltage signal between BCM connector and ground with

oscilloscope when door lock and unlock switch (driver side) is

turned “LOCK” or “UNLOCK”.

2. Check that signals which are shown in the figure below can be detected during 10 second just after door

lock and unlock switch (driver side) is turned to “LOCK” or “UNLOCK”.

Monitor item

Condition

CDL LOCK SW

LOCK

: ON

UNLOCK

: OFF

CDL UNLOCK SW

LOCK

: OFF

UNLOCK

: ON

ALKIA0333ZZ

Terminal

Condition

Signal

(Reference value)

(+)

(–)

BCM connector

Terminal

M18

40

Ground

Door is closed

PIIA1297E
