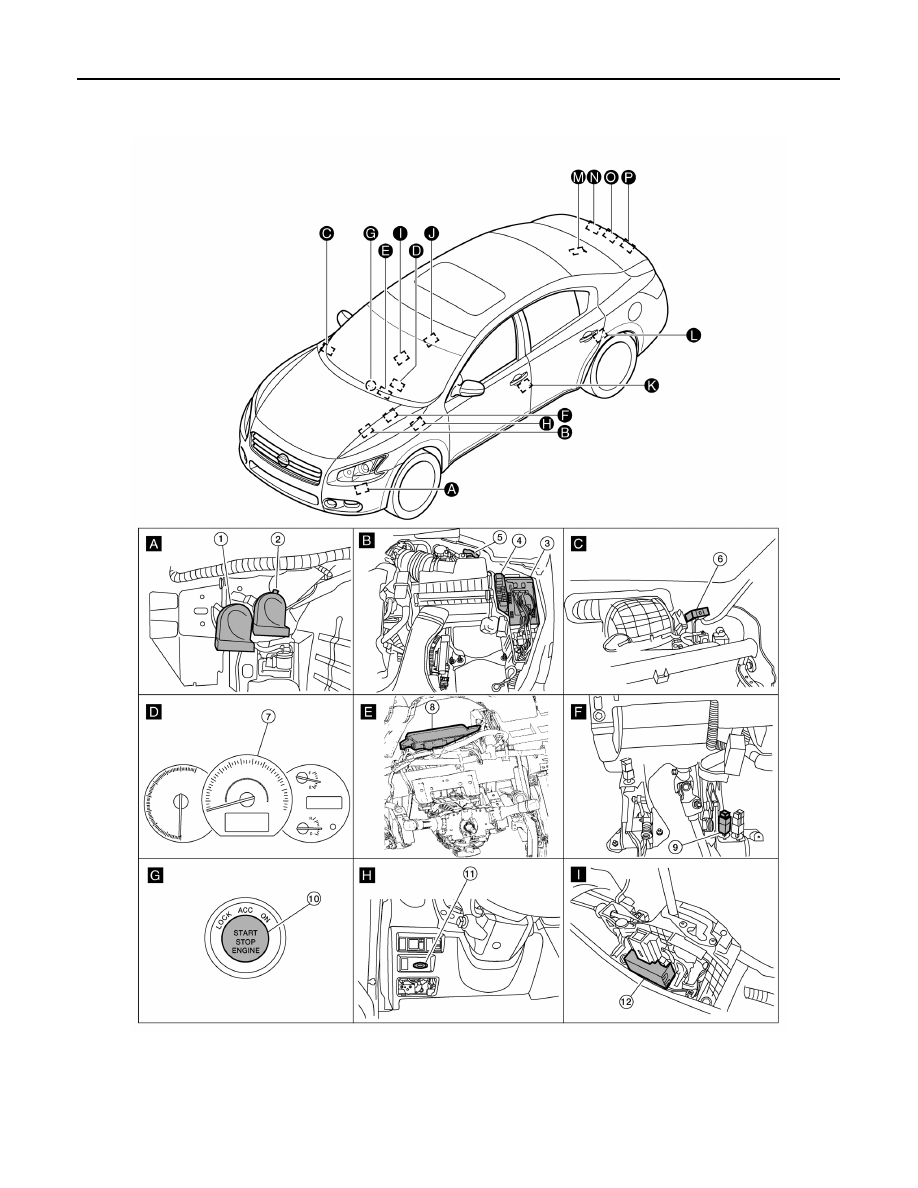

Component Parts Location

INFOID:0000000009471615

AWKIA1693ZZ

DLK-48

< SYSTEM DESCRIPTION >

WARNING FUNCTION

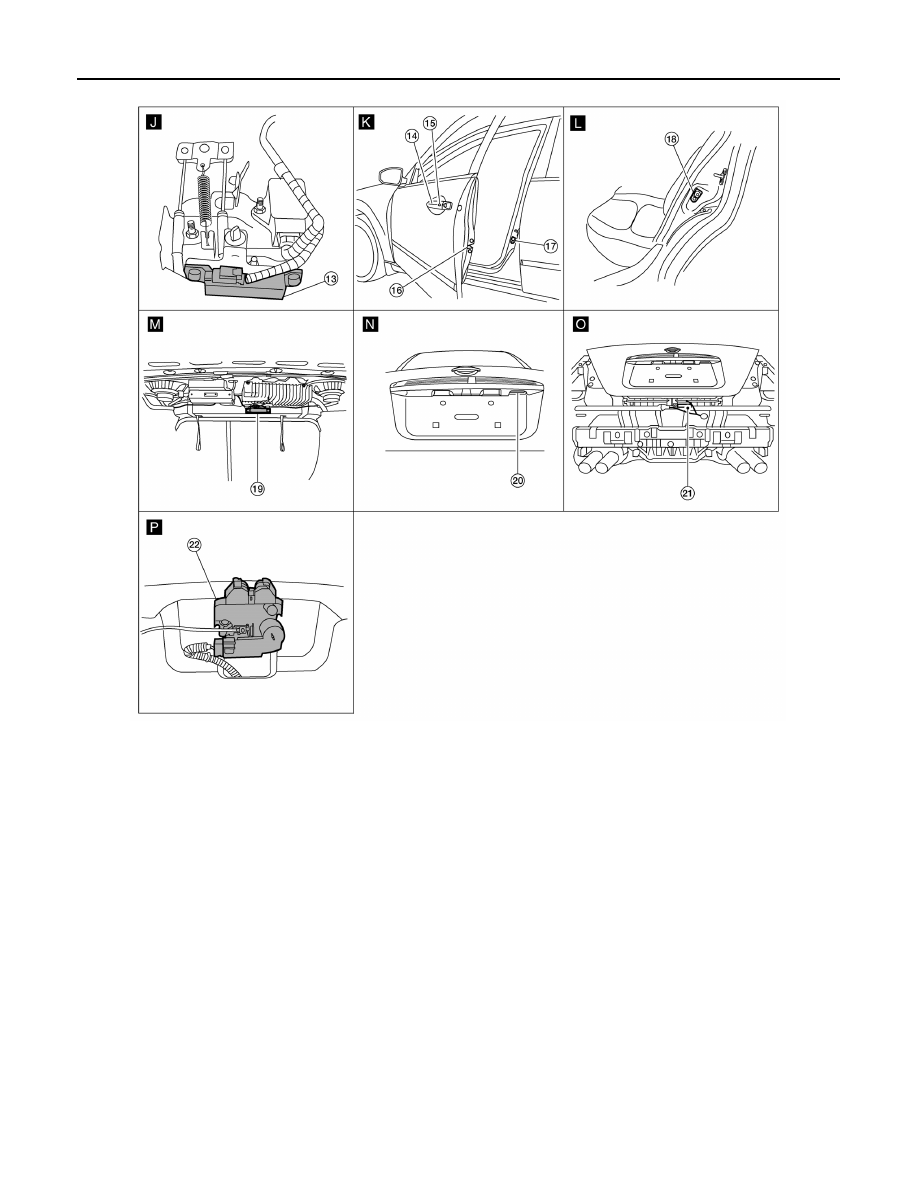

1.

Horn (low) E215
(view with front fender protector LH
removed)

2.

Horn (high) E216

3.

IPDM E/R E17, E18

4.

Horn relay H-1

5.

Intelligent Key warning buzzer E28

6.

Remote keyless entry receiver M27
(view with instrument panel removed)

7.

Combination meter M24

8.

BCM M16, M17, M18, M19, M20, M21
(view with instrument panel removed)

9.

Stop lamp switch E38

10. Push button ignition switch M38

11.  Key slot M40

12. CVT shift selector (park position switch

(Intelligent Key system)) M78

13. Front console antenna M41

(view with center console assembly
removed)

14. Front outside handle LH (outside key

antenna) D6
Front outside handle RH (outside key
antenna) D106

15. Front outside handle LH (request

switch) D15
Front outside handle RH (request
switch) D115

16. Front door lock assembly LH (door

unlock sensor) D10

17. Front door switch LH B8

RH B108

18. Rear door switch LH B18

RH B116

19. Rear parcel shelf antenna B29

20.  Trunk opener request switch T5

21. Rear bumper antenna B46

22. Trunk lamp switch and trunk release

solenoid T7

AWKIA1694ZZ

KEY REMINDER FUNCTION

DLK-49

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

KEY REMINDER FUNCTION

System Description

INFOID:0000000009471616

Key reminder is the function that prevents the key from being left in the vehicle.

Key reminder has the following 3 functions.

*:If the door closing impact shocks the door lock knob, or contacts against baggage with the door lock knob, it might activate the door
locks accidentally but unlock operation will be performed in these cases.

CAUTION:

• The above function operates when the Intelligent Key is inside the vehicle. However, there may be

times when the Intelligent Key cannot be detected, and this function will not operate when the Intelli-

gent Key is on the instrument panel, rear parcel shelf, or in the glove box. Also, this system some-

times does not operate if the Intelligent Key is in the door pocket for the open door.

• The key reminder function is operated when the trunk is open/closed and the buzzers sound. If the

following operations are performed, the key reminder function is cleared and buzzer sounds are

stopped.

- Remote controller door lock button operation of Intelligent Key

- Remote controller door unlock button operation of Intelligent Key

- When the trunk is closed, and the Intelligent Key is not inside the vehicle

- When any door is open

Key reminder function

Operation condition

Operation

Driver door closed*

Right after driver side door is closed under the following conditions
• Door lock operation is performed
• Driver side door is opened
• Driver side door is in unlock state

All doors unlock

Door is open or closed

Right after all doors are closed under the following conditions
• Intelligent Key is inside the vehicle
• Any door is opened
• All doors are locked by door lock and unlock switch or door lock knob

• All doors unlock
• Sounds Intelligent Key warning

buzzer

Trunk is closed

Right after trunk is closed under the following conditions
• Intelligent Key is inside trunk room
• All doors are closed
• All doors are locked

• Trunk open
• Sounds Intelligent Key warning

buzzer

DLK-50

< SYSTEM DESCRIPTION >

KEY REMINDER FUNCTION

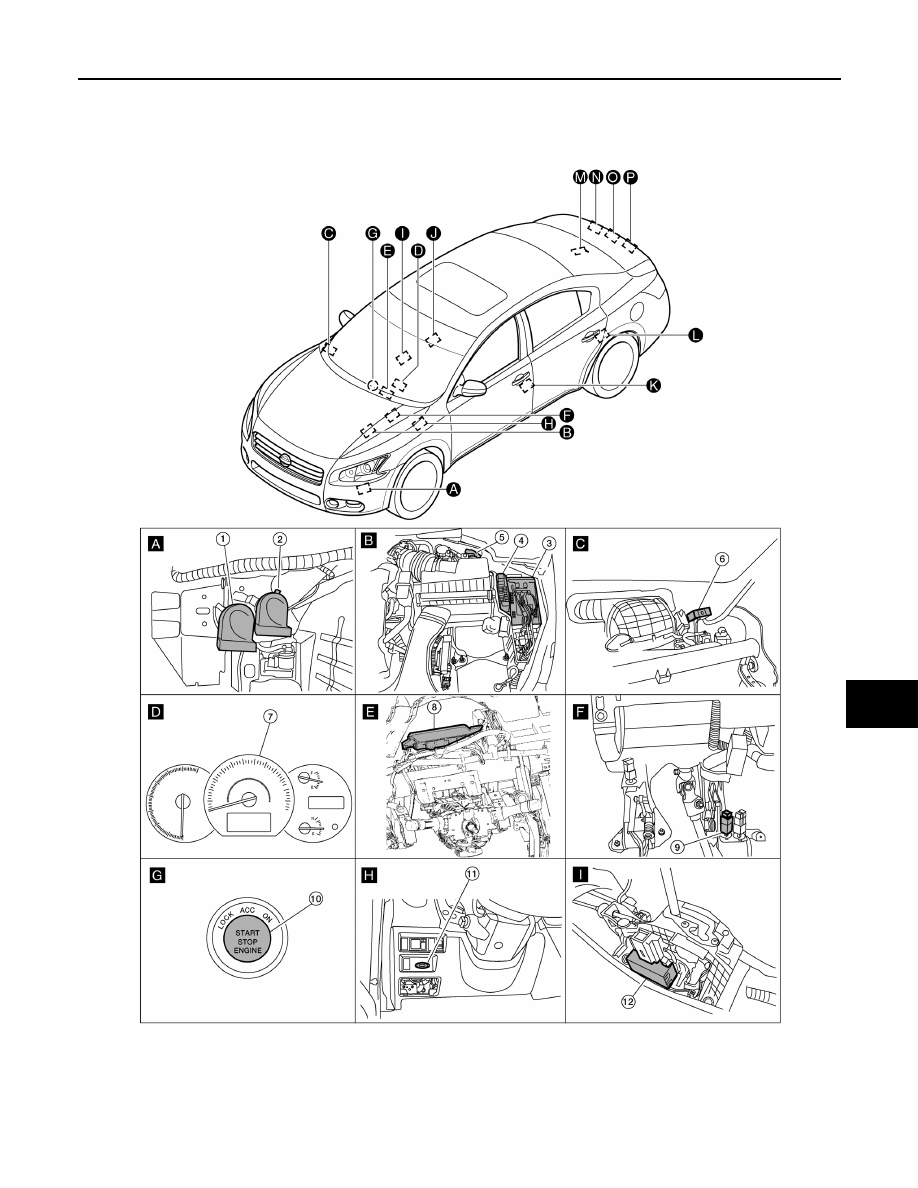

Component Parts Location

INFOID:0000000009471617

AWKIA1693ZZ
