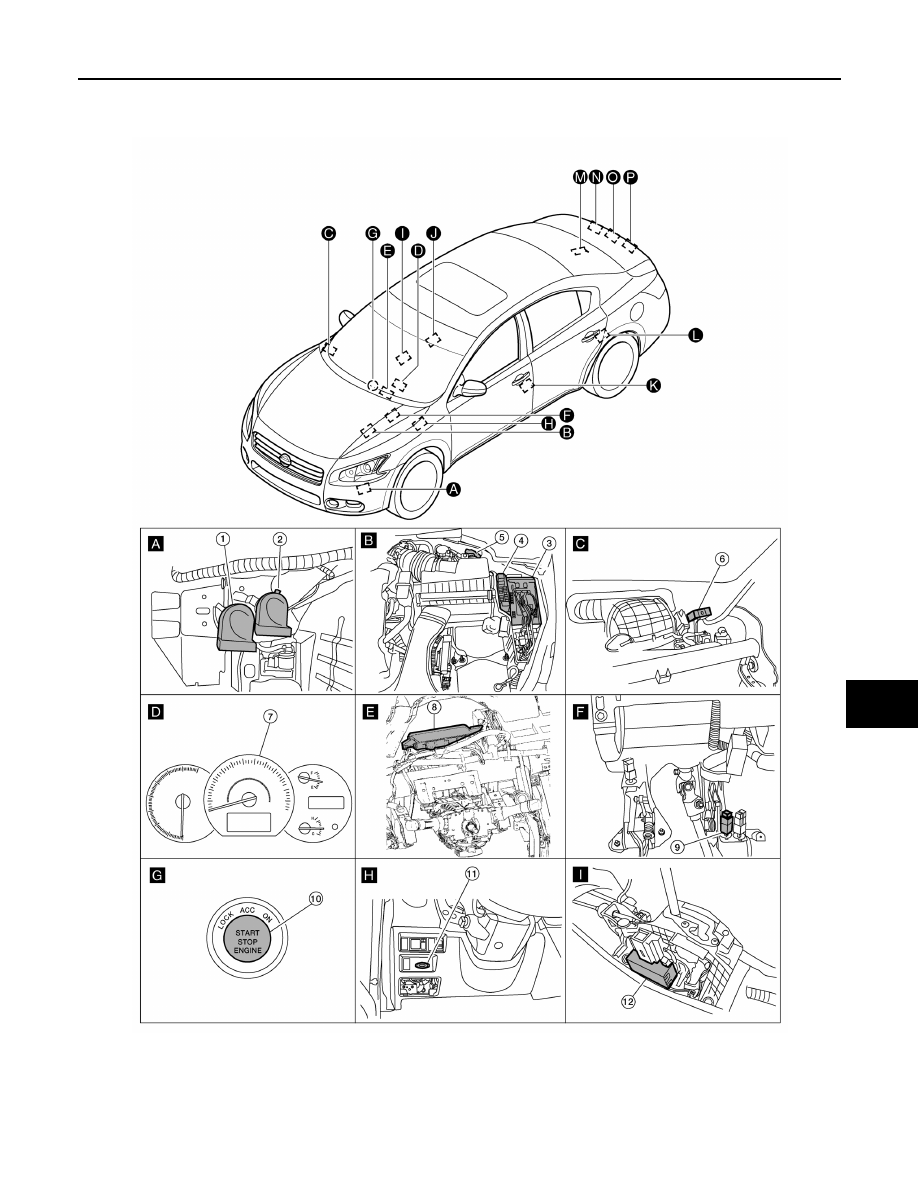

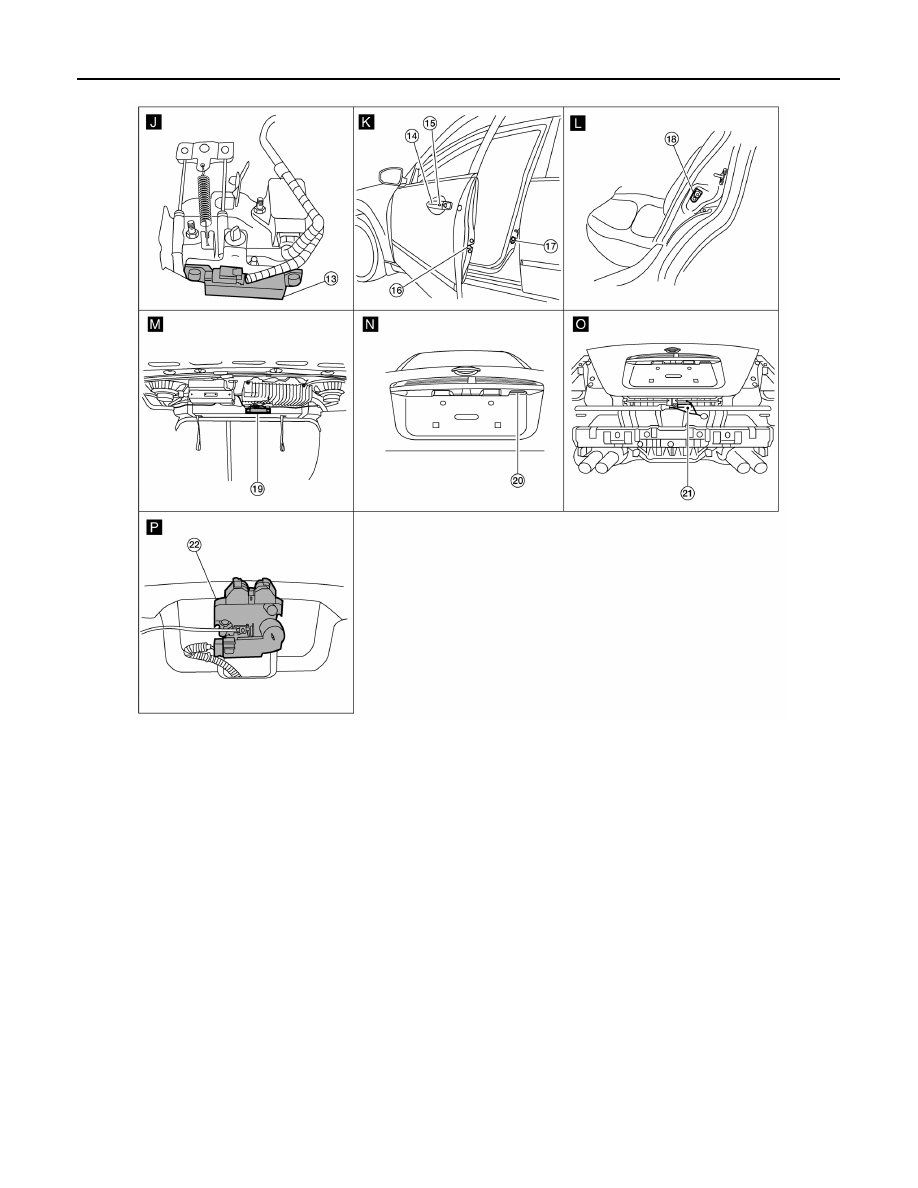

INTELLIGENT KEY : Component Parts Location

INFOID:0000000009471612

AWKIA1693ZZ

DLK-40

< SYSTEM DESCRIPTION >

TRUNK OPEN FUNCTION

1.

Horn (low) E215
(view with front fender protector LH
removed)

2.

Horn (high) E216

3.

IPDM E/R E17, E18

4.

Horn relay H-1

5.

Intelligent Key warning buzzer E28

6.

Remote keyless entry receiver M27
(view with instrument panel removed)

7.

Combination meter M24

8.

BCM M16, M17, M18, M19, M20, M21
(view with instrument panel removed)

9.

Stop lamp switch E38

10. Push button ignition switch M38

11.  Key slot M40

12. CVT shift selector (park position switch

(Intelligent Key system)) M78

13. Front console antenna M41

(view with center console assembly
removed)

14. Front outside handle LH (outside key

antenna) D6
Front outside handle RH (outside key
antenna) D106

15. Front outside handle LH (request

switch) D15
Front outside handle RH (request
switch) D115

16. Front door lock assembly LH (door

unlock sensor) D10

17. Front door switch LH B8

RH B108

18. Rear door switch LH B18

RH B116

19. Rear parcel shelf antenna B29

20.  Trunk opener request switch T5

21. Rear bumper antenna B46

22. Trunk lamp switch and trunk release

solenoid T7

AWKIA1694ZZ

TRUNK OPEN FUNCTION

DLK-41

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

INTELLIGENT KEY : Component Description

INFOID:0000000009471613

Item

Function

BCM

Controls trunk open function.

Trunk release solenoid

Opens the trunk with the open signal from BCM.

Remote keyless entry receiver

Receives trunk open signal from the Intelligent Key, and then transmits to BCM.

Intelligent Key

Transmits button operation to remote keyless entry receiver.

Intelligent Key warning buzzer

Warns the user of the lock/unlock condition and inappropriate operations with a buzzer sound.

DLK-42

< SYSTEM DESCRIPTION >

WARNING FUNCTION

WARNING FUNCTION

System Description

INFOID:0000000009471614

OPERATION DESCRIPTION

The warning functions are as follows and are given to the user as warning information and warnings using

combinations of Intelligent Key warning buzzer, KEY warning lamp, key slot illumination and combination

meter display in combination meter.

• Intelligent Key system malfunction

• OFF position warning

• P position warning

• ACC warning

• Take away warning

• Door lock operation warning

• Key warning

• Intelligent Key insert information

• Engine start information

• Intelligent Key low battery warning

• Key ID warning

OPERATION CONDITION

Once the following condition from below is established, alert or warning will be executed.

Warning/Information functions

Operation procedure

Intelligent Key system malfunction

When a malfunction is detected on BCM, “KEY” warning lamp will illuminate.

OFF position warning

For internal

When condition A, B or condition C is satisfied
• Condition A
- Ignition switch: ACC position
- Door switch (driver side): ON (Door is open)
• Condition B
- Turn ignition switch from ON to OFF while door is open
• Condition C
- Intelligent Key is inserted in key slot
- Door switch (driver side): ON (Door is open)

For external

OFF position warning (For internal) is in active mode, driver side door has
been closed.
NOTE:
OFF position (for external) active only when each of the sequence has oc-
curred as below: P position warning

→ ACC warning → OFF position warning

(for internal)

→ OFF position warning (for internal)

P position warning

• Shift position: Except P position
• Engine is running to stopped (Ignition switch is ON to OFF)

ACC warning

• During P position warning is in active mode, shift position has changed P po-

sition.

• Ignition switch: Except OFF position.
