DOOR LOCK FUNCTION

DLK-23

< SYSTEM DESCRIPTION >

DLK

Horn (low) E215
(view with front fender protector LH
removed)

Horn (high) E216

IPDM E/R E17, E18

Horn relay H-1

Intelligent Key warning buzzer E28

Remote keyless entry receiver M27
(view with instrument panel removed)

Combination meter M24

BCM M16, M17, M18, M19, M20, M21
(view with instrument panel removed)

Stop lamp switch E38

10. Push button ignition switch M38

11. Key slot M40

12. CVT shift selector (park position switch

(Intelligent Key system)) M78

13. Front console antenna M41

(view with center console assembly
removed)

14. Front outside handle LH (outside key

antenna) D6
Front outside handle RH (outside key
antenna) D106

15. Front outside handle LH (request

switch) D15
Front outside handle RH (request
switch) D115

16. Front door lock assembly LH (door

unlock sensor) D10

17. Front door switch LH B8

RH B108

18. Rear door switch LH B18

RH B116

19. Rear parcel shelf antenna B29

20. Trunk opener request switch T5

21. Rear bumper antenna B46

22. Trunk lamp switch and trunk release

solenoid T7

AWKIA1694ZZ

DLK-24

< SYSTEM DESCRIPTION >

DOOR LOCK FUNCTION

DOOR REQUEST SWITCH : Component Description

INFOID:0000000009471597

INTELLIGENT KEY

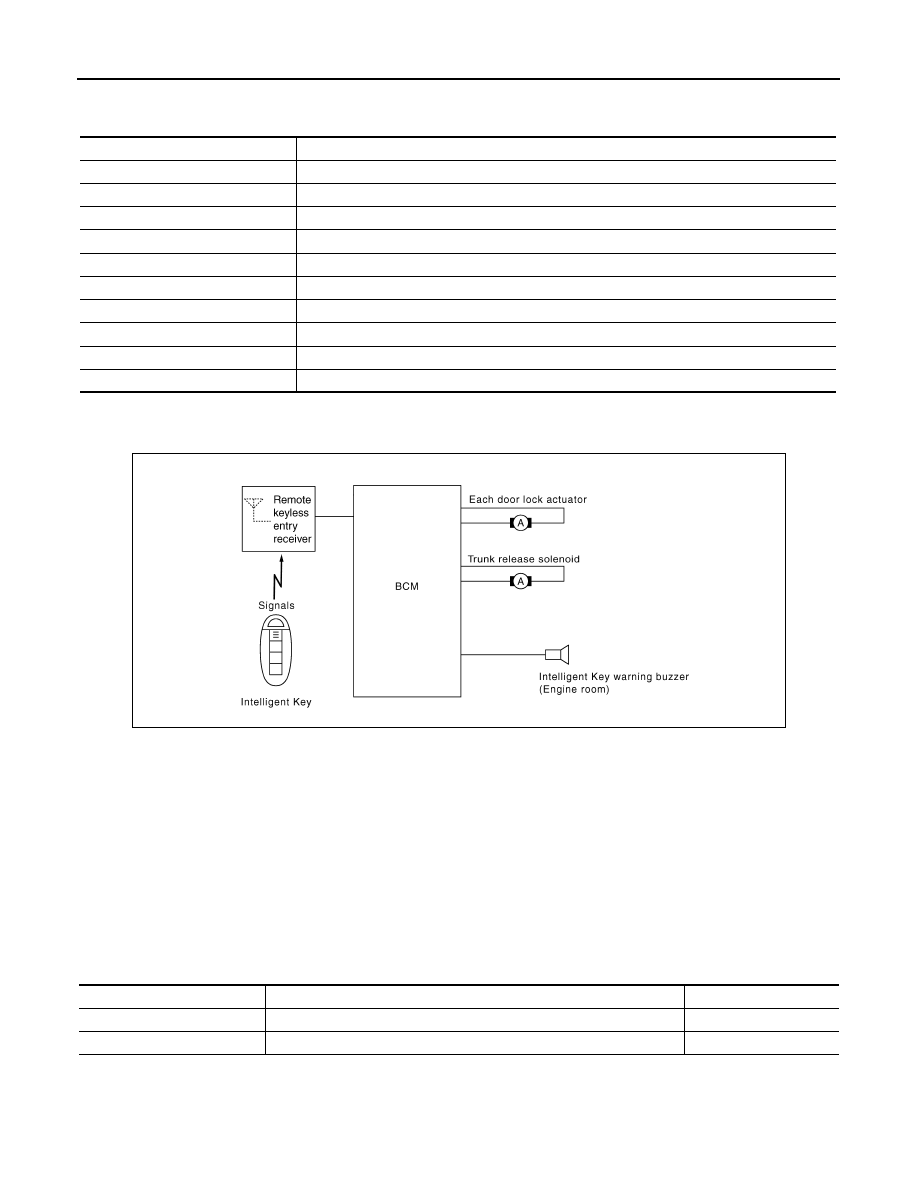

INTELLIGENT KEY : System Diagram

INFOID:0000000009471598

INTELLIGENT KEY : System Description

INFOID:0000000009471599

The Intelligent Key has the same functions as the remote control entry system. Therefore, it can be used in the

same manner as the remote controller by operating the door lock/unlock button.

OPERATION DESCRIPTION/DOOR LOCK/UNLOCK FUNCTION

• When door lock/unlock button of the Intelligent Key is pressed, lock signal or unlock signal is transmitted

from Intelligent Key to BCM via remote keyless entry receiver.

• When BCM receives the door lock/unlock signal, it operates door lock actuator, flashes the hazard lamp

(lock: 2 times, unlock: 1 time) and horn chirp signal to IPDM E/R at the same time as a reminder.

• IPDM E/R honks horn (lock: 1 time) as a reminder.

OPERATION CONDITION

OPERATION AREA

• Operating Range

Item

Function

BCM

Controls the door lock function and room lamp function.

Door lock and unlock switch

Transmits lock or unlock signal to BCM.

Door lock actuator

Receives lock/unlock signal from BCM and locks/unlocks each door.

Door switch

Transmits door open/close condition to BCM.

Remote keyless entry receiver

Receives lock/unlock signal from the Intelligent Key, and then transmits to BCM.

Request switch

Transmits lock/unlock operation to BCM.

Intelligent Key

Transmits button operation to remote keyless entry receiver.

Outside key antenna

Detects if Intelligent Key is outside the vehicle.

Inside key antenna

Detects if Intelligent Key is inside the vehicle.

Intelligent Key warning buzzer

Warns the user of the lock/unlock condition and inappropriate operations with the buzzer sound.

ALKIA1657GB

Remote controller operation

Operation condition

Operation

Lock

• All doors closed

All doors lock

Unlock

• Intelligent Key is out of key slot

All doors unlock

DOOR LOCK FUNCTION

DLK-25

< SYSTEM DESCRIPTION >

DLK

• To ensure the Intelligent Key works effectively, use within 80 cm (31.50 inch) range of each doors, however

the operable range may differ according to surroundings. The remote control operation range is greater than

that of the Intelligent Key. Refer to Owner's Manual for more details.

SELECTIVE UNLOCK FUNCTION

When a LOCK signal is transmitted from Intelligent Key, all doors will be locked.

When an UNLOCK signal is transmitted from Intelligent Key once, driver's door will be unlocked.

Then, if an UNLOCK signal is transmitted from Intelligent Key again within 5 seconds, all other doors will be

unlocked.

HAZARD AND HORN REMINDER FUNCTION

When doors are locked or unlocked by Intelligent Key, BCM flashes hazard warning lamps as a reminder and

sends horn chirp signal to IPDM E/R. IPDM E/R sounds horn as a reminder.

The hazard and horn reminder has a horn chirp mode (C mode) and a non-horn chirp mode (S mode).

Operating function of hazard and horn reminder

Hazard and horn reminder does not operate if any door switch is ON (any door is OPEN).

How to change hazard and horn reminder mode

With CONSULT

Refer to

DLK-53, "INTELLIGENT KEY : CONSULT Function (BCM - INTELLIGENT KEY)"

Without CONSULT

Refer to Owner's Manual for instructions.

AUTO DOOR LOCK FUNCTION

Auto Door Lock Function

When all doors are locked, ignition switch is OFF (ignition switch is not pressed) and key switch is OFF (Intel-

ligent Key is not inserted in key slot), doors are unlocked with Intelligent Key button. When BCM does not

receive the following signals within 60 seconds, all doors are locked.

• Door switch is ON (door is opened)

• Door is locked

• Ignition switch is ON

• Key switch is ON (Intelligent Key is inserted in key slot)

Auto door lock mode can be changed by DOOR LOCK-UNLOCK SET mode in “WORK SUPPORT”. Refer to

DLK-53, "INTELLIGENT KEY : CONSULT Function (BCM - INTELLIGENT KEY)"

PANIC ALARM FUNCTION

When ignition switch is OFF (ignition switch is not pressed) and key switch is OFF (Intelligent Key is not

inserted in key slot), BCM receives PANIC ALARM signal from Intelligent Key.

BCM turns on and off headlamp intermittently and transmits theft warning horn signal to IPDM E/R. Then,

IPDM E/R turns on and off horn intermittently.

The headlamp flashes and the horn sounds intermittently.

The alarm automatically turns off:

• After 25 seconds

• When BCM receives any signal from Intelligent Key

• When BCM receives any signal from driver or passenger request switch with Intelligent Key in range

Panic alarm function mode can be changed by PANIC ALARM SET mode in “WORK SUPPORT”. Refer to

DLK-53, "INTELLIGENT KEY : CONSULT Function (BCM - INTELLIGENT KEY)"

KEYLESS POWER WINDOW DOWN (OPEN) FUNCTION

Front power windows (with left and right front power window anti-pinch system) open when the unlock button

on Intelligent Key is activated and kept pressed for more than 3 seconds with the ignition switch OFF. The win-

dows keep opening if the unlock button is continuously pressed.

The power window opening stops when the following operations are performed:

• When the unlock button is kept pressed more than 15 seconds.

• When the ignition switch is turned ON while the power window opening is operated.

• When the unlock button is released.

While retained power operation activates, keyless power window down (open) function cannot be operated.

C mode

S mode

Intelligent Key operation

Lock

Unlock

Trunk open

Lock

Unlock

Trunk open

Hazard warning lamp flash

Twice

Once

—

Twice

—

Horns sound

Once

—

DLK-26

< SYSTEM DESCRIPTION >

DOOR LOCK FUNCTION

Keyless power window down operation mode can be changed by PW DOWN SET mode in “WORK SUP-

PORT”. Refer to

DLK-53, "INTELLIGENT KEY : CONSULT Function (BCM - INTELLIGENT KEY)"

ROOM LAMP ILLUMINATION OPERATION

When the following conditions are met:

• Condition of interior lamp switch is in DOOR position

• Door switch OFF (all the doors are closed)

Intelligent Key system turns on interior lamp (for 15 seconds) by receiving UNLOCK signal from Intelligent

Key. For detailed description, refer to

DLK-24, "INTELLIGENT KEY : System Description"

LIST OF OPERATION RELATED PARTS

Parts marked with

× are the parts related to operation.

Remote keyless entry functions

lli

nt Key

Key sl

Doo

r req

t swi

tch (Dri

sse

)

Doo

r swi

tch

or l

tua

lli

nt Key

warn

g buz

CAN co

ati

BCM

ati

Hazard warning lamp

Horn

Head lamp

Door lock/unlock function by remote control button

Hazard and horn reminder function

Selective unlock function

Keyless power window down (open) function

Auto door lock function

Panic alarm function
