Nissan Maxima. Manual - part 327

DOOR LOCK FUNCTION

DLK-27

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

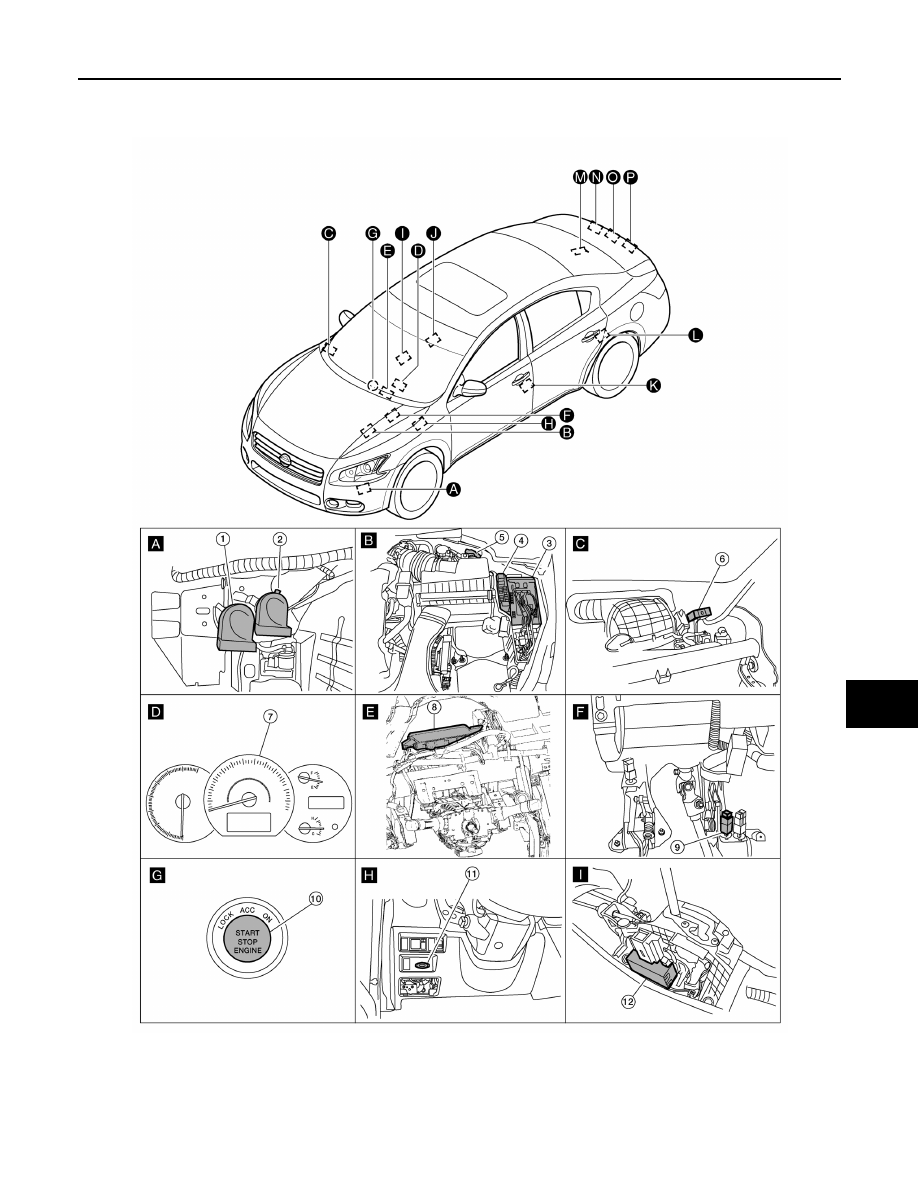

INTELLIGENT KEY : Component Parts Location

INFOID:0000000009471600

AWKIA1693ZZ

DLK-28

< SYSTEM DESCRIPTION >

DOOR LOCK FUNCTION

INTELLIGENT KEY : Component Description

INFOID:0000000009471601

1.

Horn (low) E215
(view with front fender protector LH
removed)

2.

Horn (high) E216

3.

IPDM E/R E17, E18

4.

Horn relay H-1

5.

Intelligent Key warning buzzer E28

6.

Remote keyless entry receiver M27
(view with instrument panel removed)

7.

Combination meter M24

8.

BCM M16, M17, M18, M19, M20, M21
(view with instrument panel removed)

9.

Stop lamp switch E38

10. Push button ignition switch M38

11.  Key slot M40

12. CVT shift selector (park position switch

(Intelligent Key system)) M78

13. Front console antenna M41

(view with center console assembly
removed)

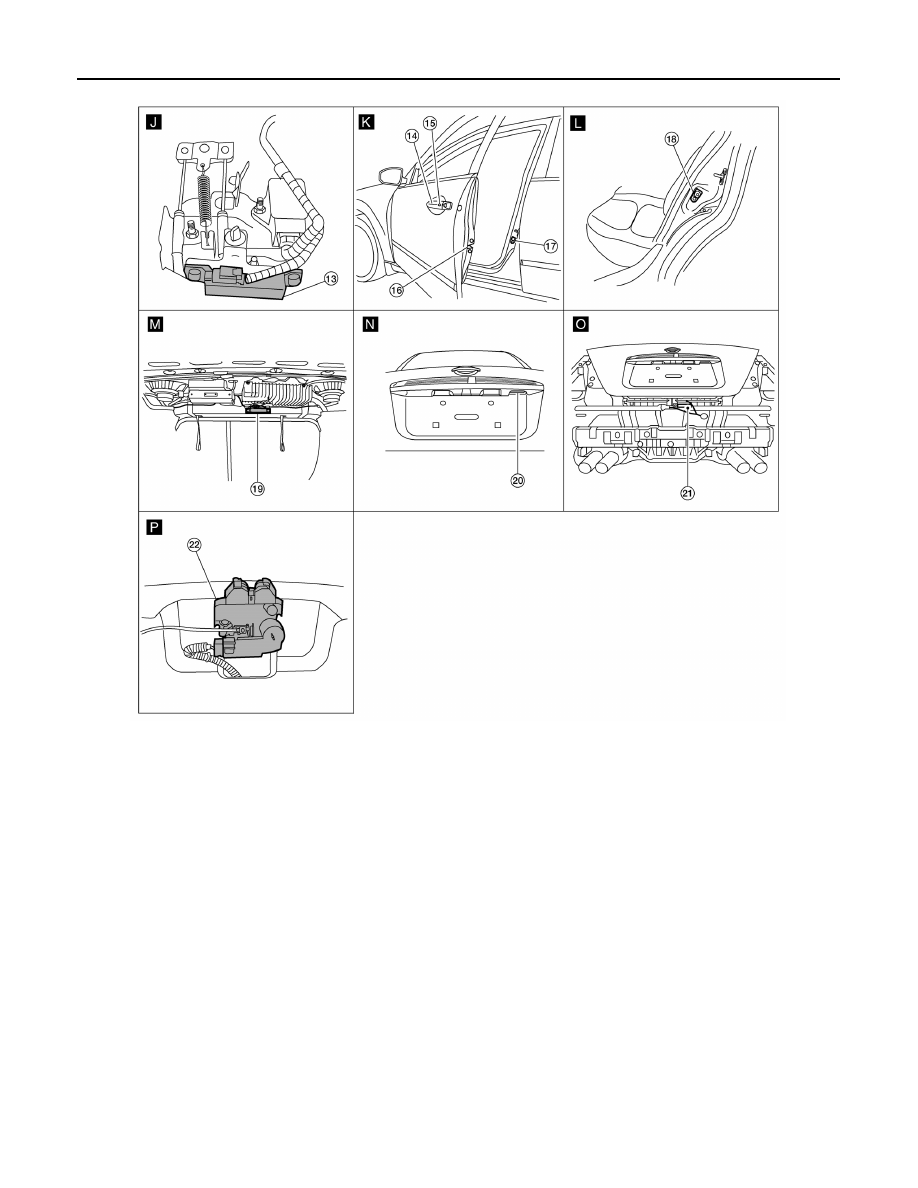

14. Front outside handle LH (outside key

antenna) D6
Front outside handle RH (outside key
antenna) D106

15. Front outside handle LH (request

switch) D15
Front outside handle RH (request
switch) D115

16. Front door lock assembly LH (door

unlock sensor) D10

17. Front door switch LH B8

RH B108

18. Rear door switch LH B18

RH B116

19. Rear parcel shelf antenna B29

20.  Trunk opener request switch T5

21. Rear bumper antenna B46

22. Trunk lamp switch and trunk release

solenoid T7

AWKIA1694ZZ

DOOR LOCK FUNCTION

DLK-29

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

Item

Function

BCM

Controls the door lock function and room lamp function.

Door lock actuator

Receives lock/unlock signal from BCM and locks/unlocks each door.

Remote keyless entry receiver

Receives lock/unlock signal from the Intelligent Key, and then transmits to BCM.

Intelligent Key

Transmits button operation to remote keyless entry receiver.

Fuel lid door lock actuator

Performs lock/unlock of the fuel lid.

Intelligent Key warning buzzer

Warns the user of the lock/unlock condition and inappropriate operations with the buzzer sound.

DLK-30

< SYSTEM DESCRIPTION >

TRUNK OPEN FUNCTION

TRUNK OPEN FUNCTION

TRUNK LID OPENER SWITCH
TRUNK LID OPENER SWITCH : System Diagram

INFOID:0000000009471602

TRUNK LID OPENER SWITCH : System Description

INFOID:0000000009471603

TRUNK LID OPENER OPERATION

When trunk lid opener switch is ON, BCM opens trunk release solenoid.

BCM can open trunk lid opener actuator when

• vehicle speed is less than 5 km/h (3 MPH)

• vehicle security system is disarmed or in pre-armed phase

BCM does not open trunk lid opener actuator when

• trunk lid opener cancel switch is OFF (CANCEL)

• vehicle speed is more than 5 km/h (3 MPH)

• vehicle security system is armed or in alarm phase

• Within 3 seconds of removing the Intelligent Key from the key slot

ALKIA0180GB

Switch

Input/output signal to BCM

BCM function

Actuator

Trunk lid opener switch

Trunk open signal

Trunk open control

Trunk release solenoid

Trunk lid opener cancel switch
