AUTOMATIC DOOR LOCKS

DLK-15

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

4. The switching is completed when the hazard lamp blinks.

5. The ignition switch must be turned OFF and ON again between each setting change.
*1: This function is set to ON before delivery.

Component Parts Location

INFOID:0000000009471588

OFF

→ ON

: 2 blinks

ON

→ OFF

: 1 blink

ALKIA1606ZZ

DLK-16

< SYSTEM DESCRIPTION >

AUTOMATIC DOOR LOCKS

Component Description

INFOID:0000000009471589

1.

BCM M16, M17, M18, M19, M21
(view with instrument panel removed)

2.

Main power window and door lock/un-
lock switch D7, D8

3.

Power window and door lock/un-
lock switch RH D105

4.

Front door lock assembly LH (key cylin-
der switch) D10
Front door lock actuator RH D108

5.

Front door switch
LH B8
RH B108

6.

Rear door switch
LH B18
RH B116

7.

Rear door lock actuator
LH D205
RH D305

8.

Trunk lamp switch and trunk release
solenoid T7

9.

Fuel lid door lock actuator B27

10. Combination meter M24

11. TCM F15

Item

Function

BCM

Controls the door lock function and fuel lid door lock actuator function.

Door lock and unlock switch

Input lock or unlock signal to BCM.

Door lock actuator

Output lock/unlock signal from BCM and locks/unlocks each door.

Fuel lid door lock actuator

Output lock/unlock signal from BCM and locks/unlocks fuel lid door lock actuator.

Door switch

Input door open/close condition to BCM.

Door key cylinder switch

• Input lock or unlock signal to power window main switch.
• Power window main switch transmits door lock/unlock signal to BCM.

Key slot

Input key insert/remove signal to BCM.

Combination meter

• Receive buzzer signal from BCM via CAN communication line, and sounds the buzzer.
• Transmits vehicle speed signal to BCM via CAN communication line.

TCM

Transmit shift position signal to BCM via CAN communication line.

Push-button ignition switch

Input push-button ignition switch ON/OFF condition to BCM.

DOOR LOCK FUNCTION

DLK-17

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

DOOR LOCK FUNCTION

DOOR LOCK AND UNLOCK SWITCH

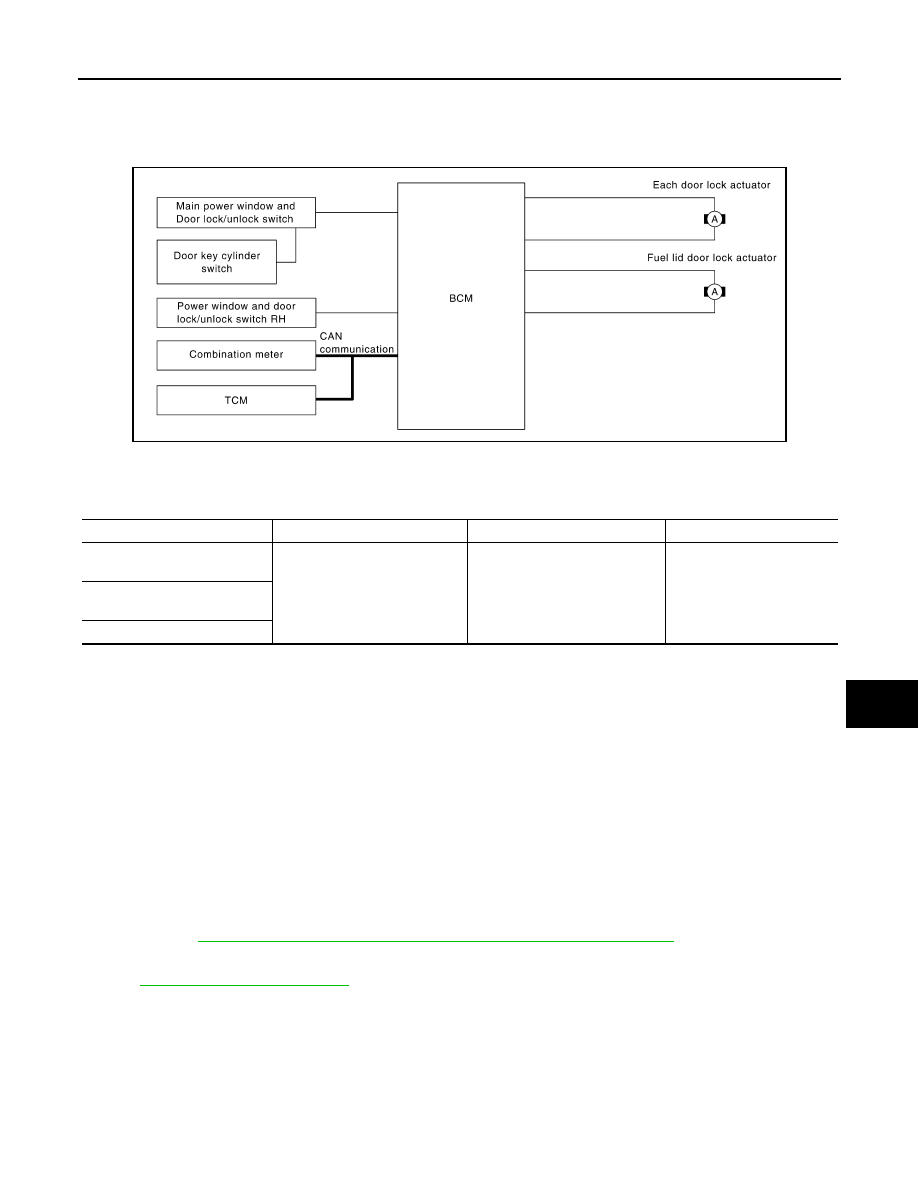

DOOR LOCK AND UNLOCK SWITCH : System Diagram

INFOID:0000000009471590

DOOR LOCK AND UNLOCK SWITCH : System Description

INFOID:0000000009471591

DOOR LOCK FUNCTION

Functions Available by Operating the Door Lock and Unlock Switches on Driver Door and Passenger Door

• Interlocked with the locking operation of door lock and unlock switch, door lock actuators of all door lock

actuators are locked.

• Interlocked with the unlocking operation of door lock and unlock switch, door lock actuators of all door lock

actuators are unlocked.

Functions Available by Operating the Key Cylinder Switch on Driver Door

• Interlocked with the locking operation of door key cylinder, door lock actuators of all door lock actuators are

locked.

Selective Unlock Operation

• When door key cylinder is unlocked, door lock actuator driver side is unlocked.

• When door key cylinder is unlocked for the second time within 60 seconds after the first operation, door lock

actuators on all doors are unlocked.

Select unlock operation mode can be changed using DOOR LOCK-UNLOCK SET mode in “WORK SUP-

PORT”. Refer to

DLK-53, "DOOR LOCK : CONSULT Function (BCM - DOOR LOCK)"

.

Key Reminder System

Refer to

DLK-49, "System Description"

.

ALKIA1613GB

Switch

Input/output signal to BCM

BCM function

Actuator

Main power window and door
lock/unlock switch

Door lock/unlock signal

Door lock/unlock control

• Door lock actuator
• Fuel lid door lock actuator

Power window and door lock/
unlock switch

Door key cylinder switch

DLK-18

< SYSTEM DESCRIPTION >

DOOR LOCK FUNCTION

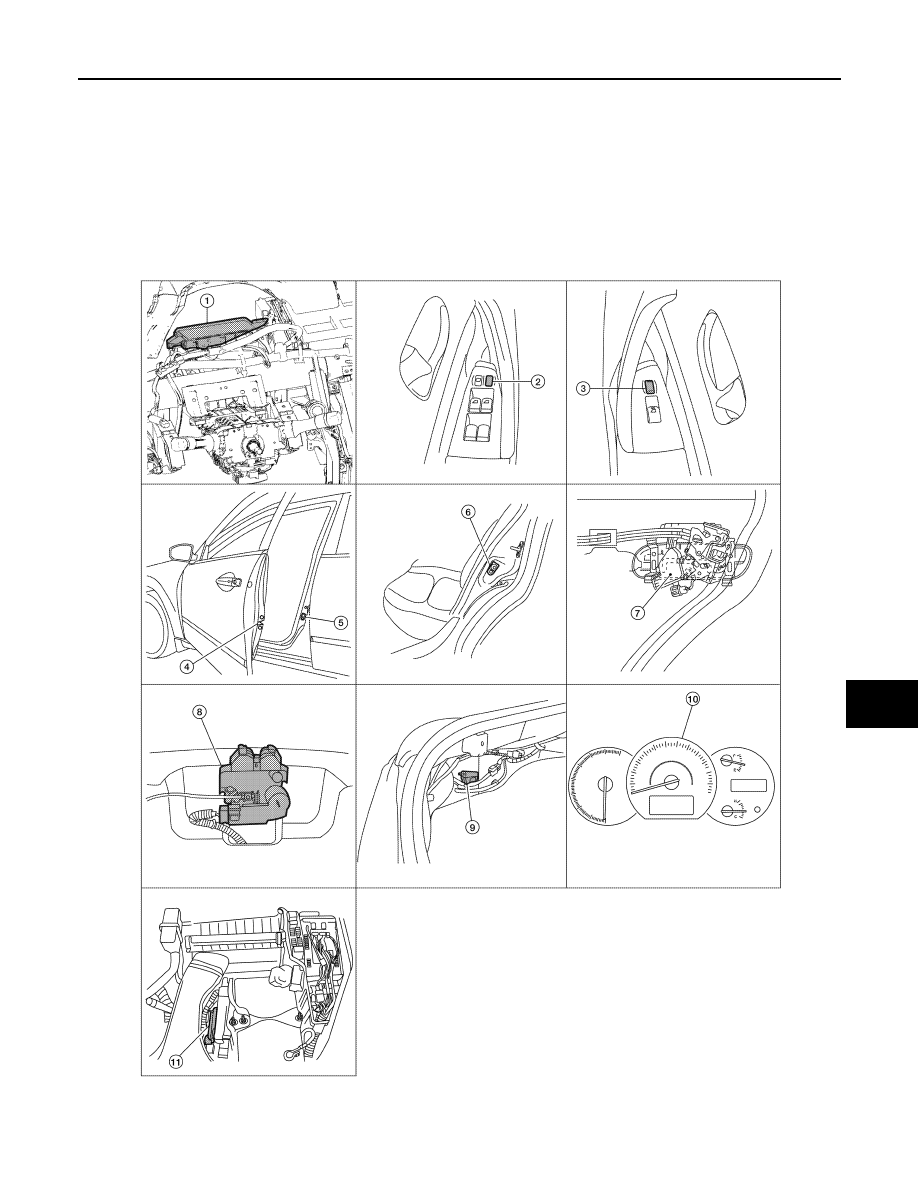

DOOR LOCK AND UNLOCK SWITCH : Component Parts Location

INFOID:0000000009471592

1.

BCM M16, M17, M18, M19, M21
(view with instrument panel removed)

2.

Main power window and door lock/un-
lock switch D7, D8

3.

Power window and door lock/un-
lock switch RH D105

4.

Front door lock assembly LH (key cylin-
der switch) D10
Front door lock actuator RH D108

5.

Front door switch
LH B8
RH B108

6.

Rear door switch
LH B18
RH B116

7.

Rear door lock actuator
LH D205
RH D305

8.

Trunk lamp switch and trunk release
solenoid T7

9.

Fuel lid door lock actuator B27

10. Combination meter M24

11. TCM F15
