BRM-60

< REMOVAL AND INSTALLATION >

REPLACEMENT OPERATIONS

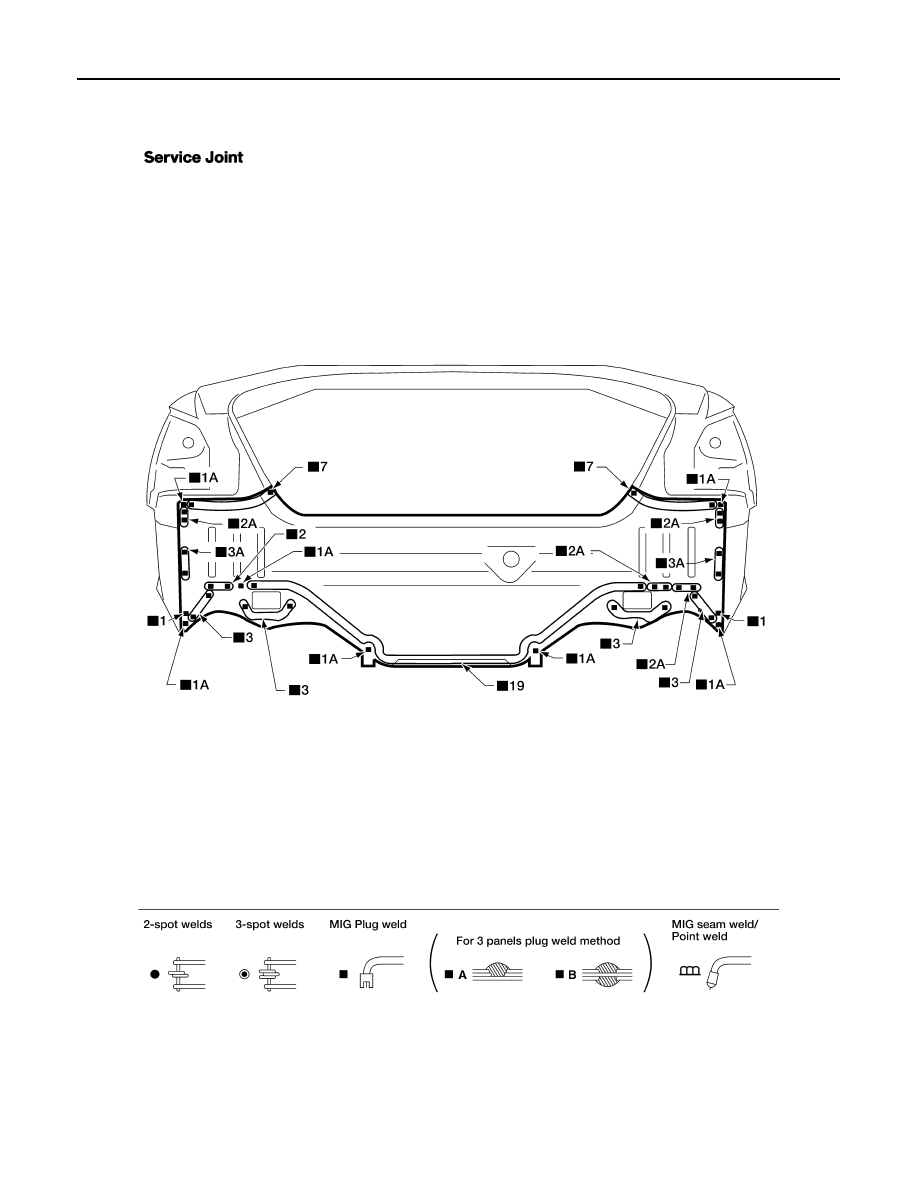

Rear Panel Assembly

INFOID:0000000009465862

Replacement parts

z

Rear panel assembly

AWKIA1384GB

REPLACEMENT OPERATIONS

BRM-61

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

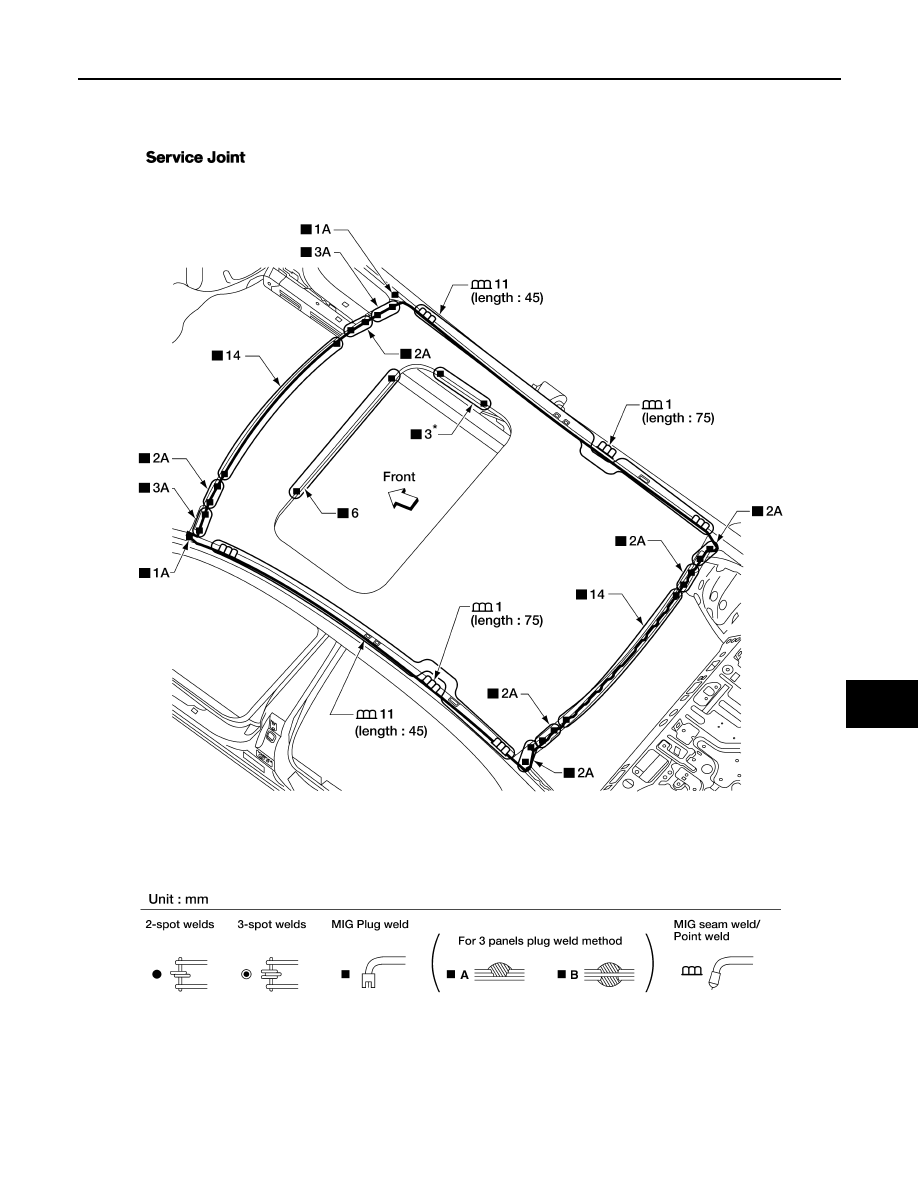

Roof

INFOID:0000000009465863

Replacement parts

z

Roof panel, single panel sunroof

AWKIA1385GB

BRM-62

< REMOVAL AND INSTALLATION >

REPLACEMENT OPERATIONS

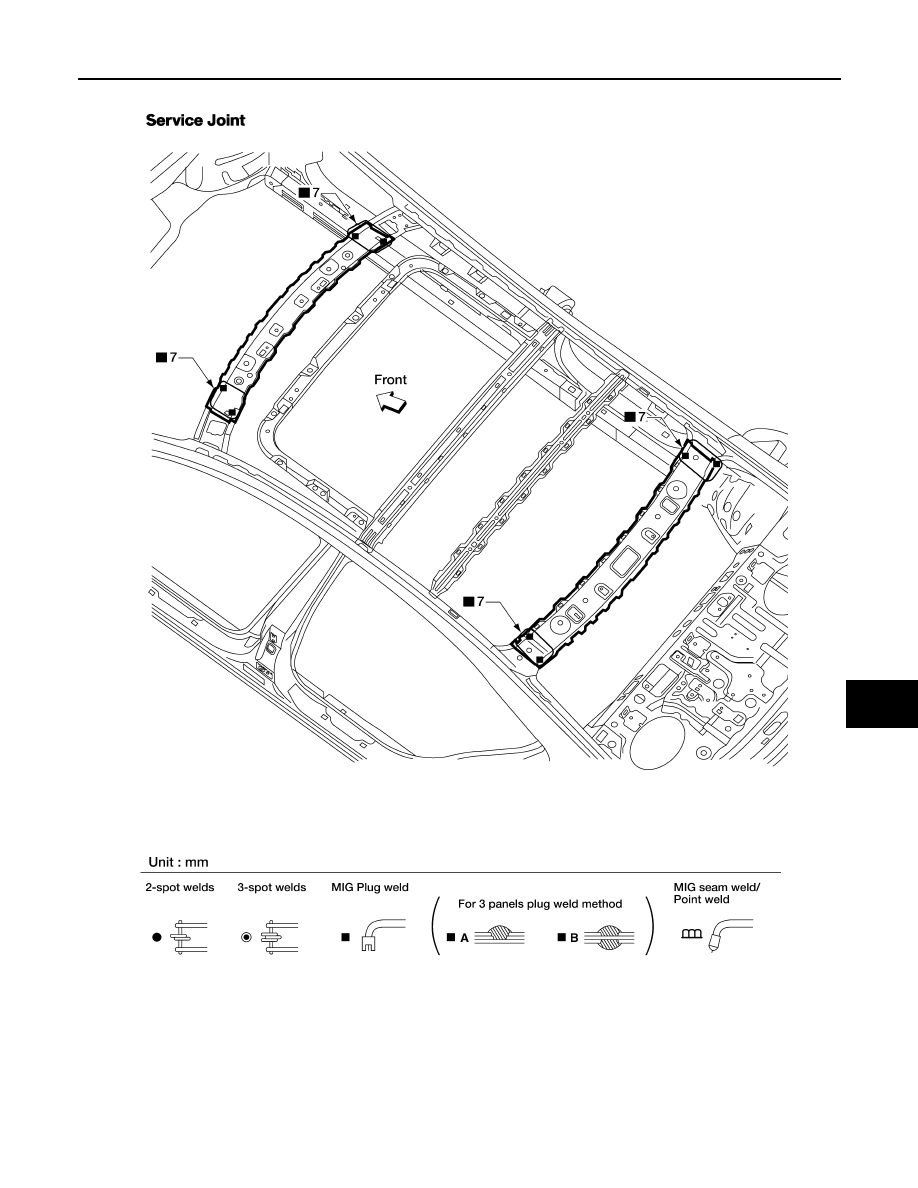

Roof Rails, Dual Panel Sunroof

INFOID:0000000009465864

Roof Rails, Single Panel Sunroof

INFOID:0000000009465865

• Work after the roof has been removed.

Replacement parts

z

Front roof rail

z

Rear roof rail

AWKIA1386GB

REPLACEMENT OPERATIONS

BRM-63

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

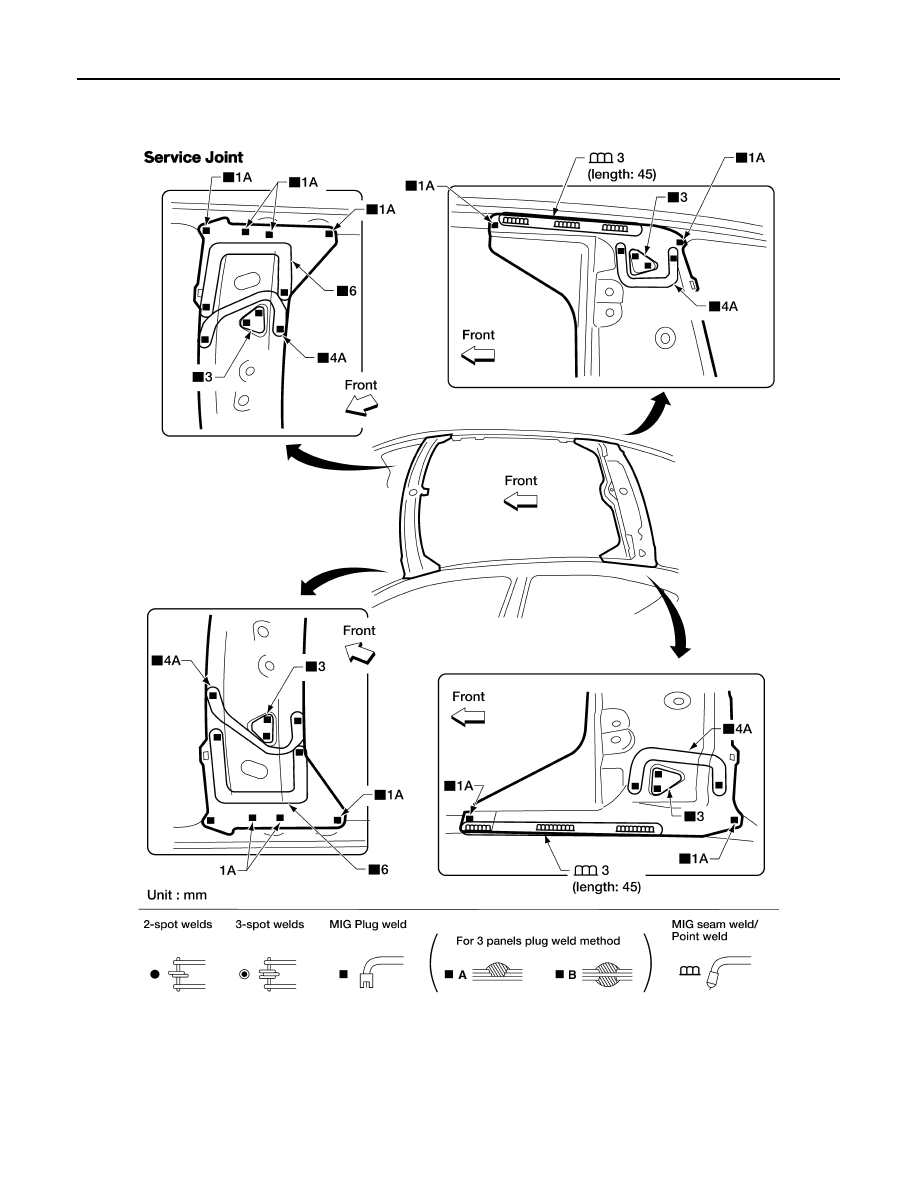

Roof Side Rail

INFOID:0000000009465866

• Work after the front and rear body side outer have been removed.

Replacement parts

z

Front roof rail (sunroof)

z

Rear roof rail (sunroof)

AWKIA1387GB
