BRM-52

< REMOVAL AND INSTALLATION >

REPLACEMENT OPERATIONS

Outer Sill Reinforcement

INFOID:0000000009465855

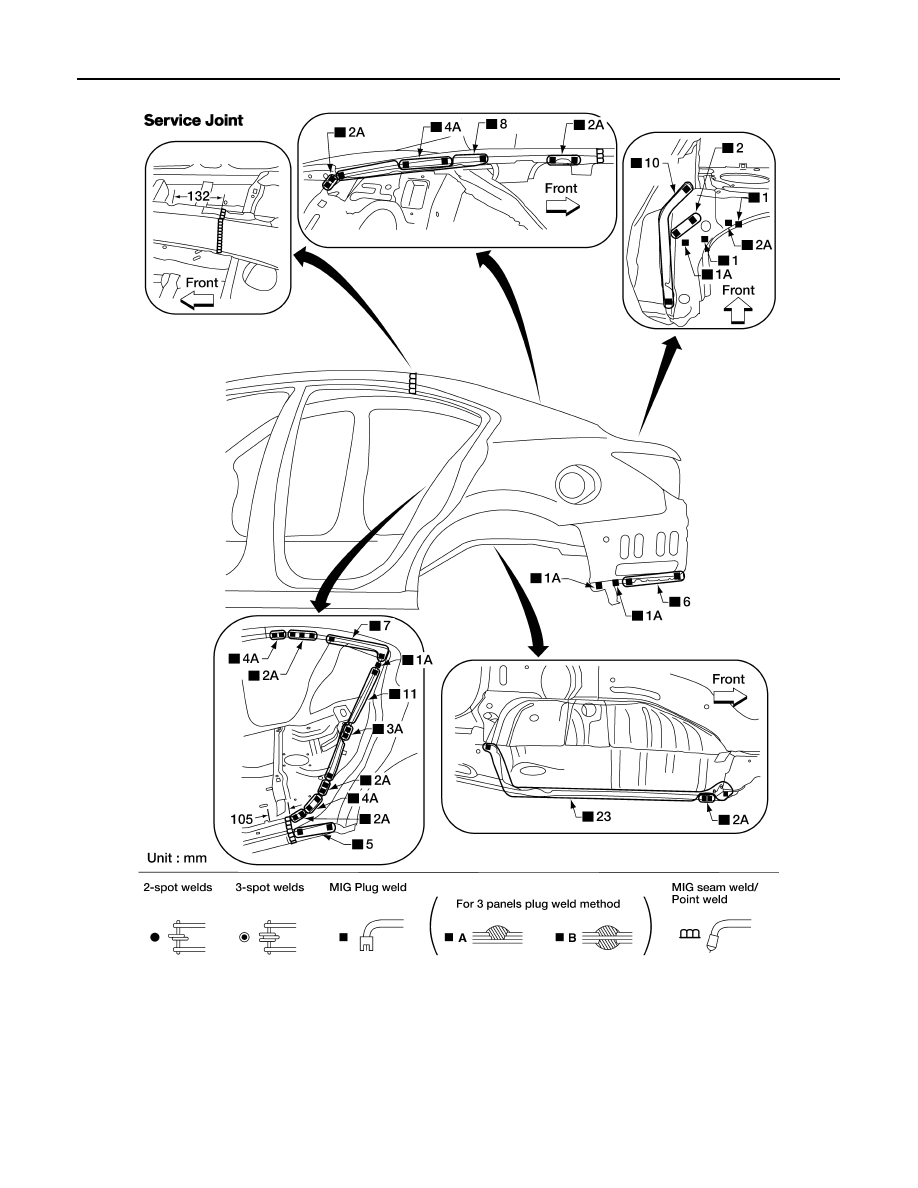

Work after the front pillar lower hinge brace and the center pillar reinforcement have been removed.

Replacement parts

z

Rear body side outer

AWKIA1376GB

REPLACEMENT OPERATIONS

BRM-53

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

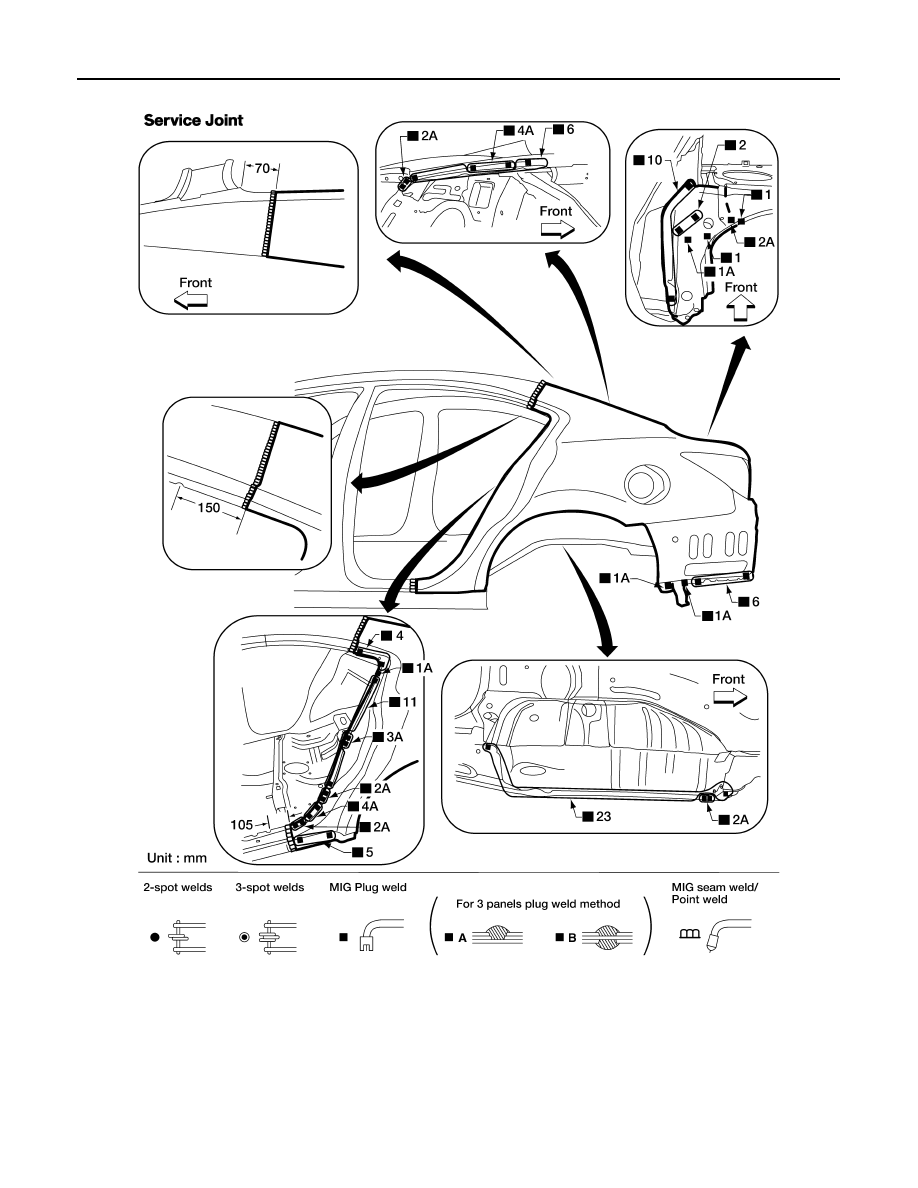

Rear Fender

INFOID:0000000009465856

• Work with tail lamp housing base removed.

Replacement parts

z

Outer sill reinforcement

AWKIA1377GB

BRM-54

< REMOVAL AND INSTALLATION >

REPLACEMENT OPERATIONS

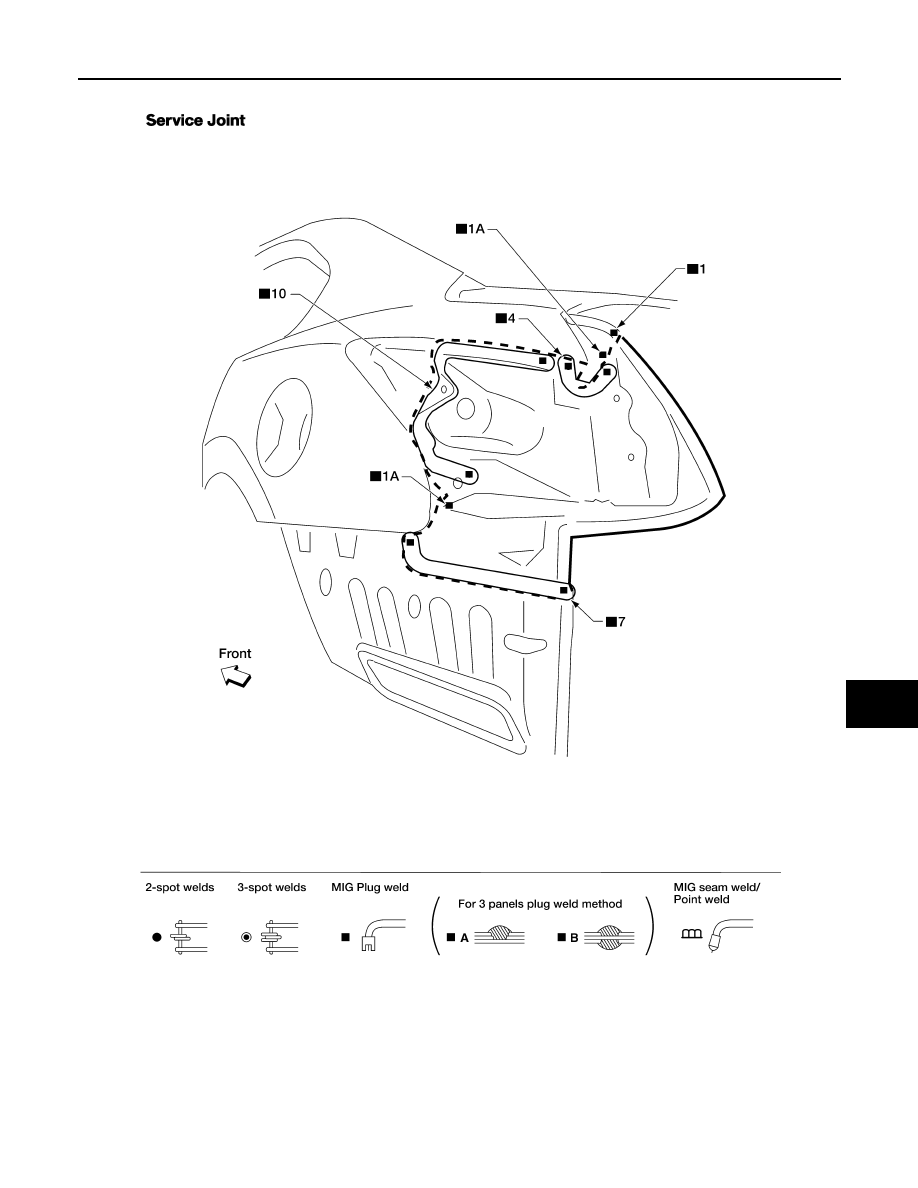

Tail Lamp Housing Base

INFOID:0000000009465857

• Work after rear panel assembly has been removed.

Replacement parts

z

Rear fender

AWKIA1378GB

REPLACEMENT OPERATIONS

BRM-55

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

Replacement parts

z

Tail lamp housing base

AWKIA1379GB
