Nissan Maxima. Manual - part 286

BRM-56

< REMOVAL AND INSTALLATION >

REPLACEMENT OPERATIONS

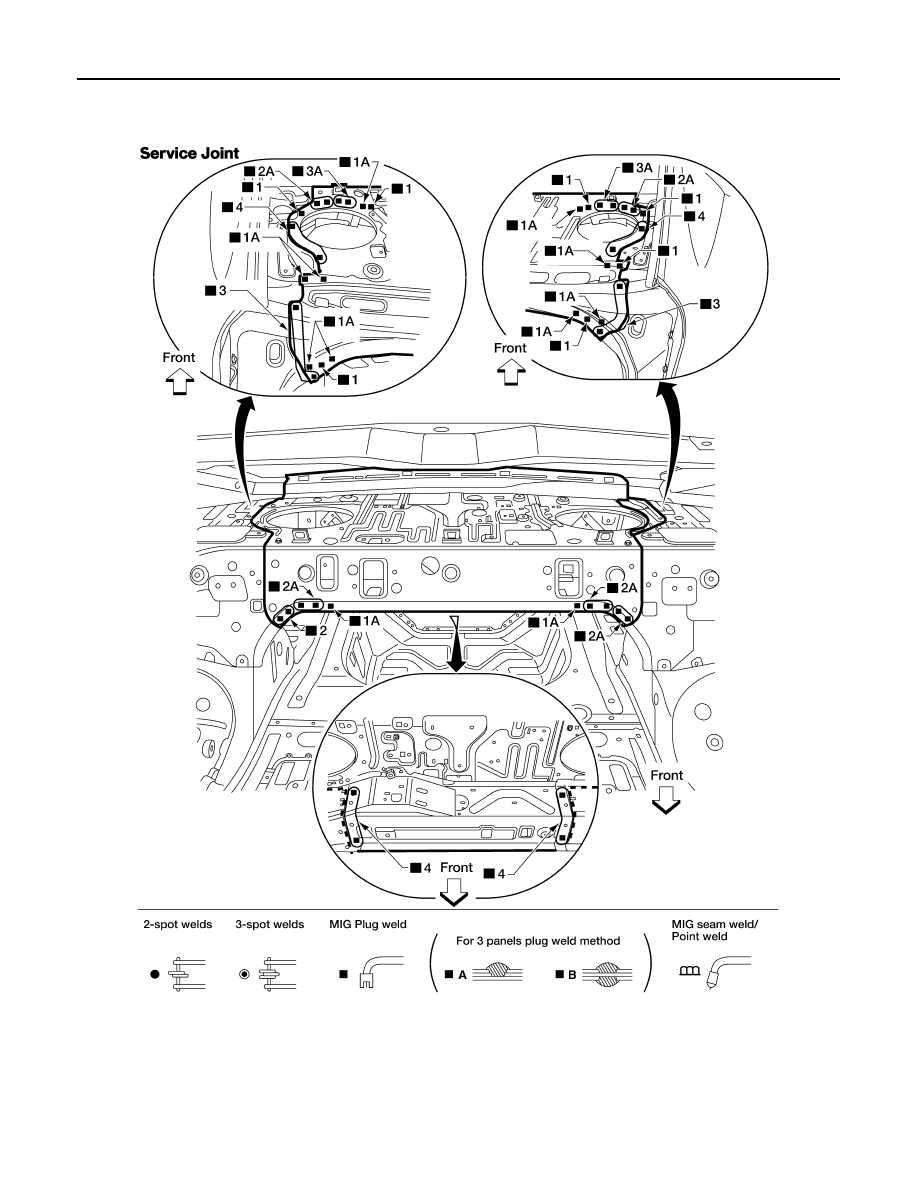

Parcel Shelf

INFOID:0000000009465858

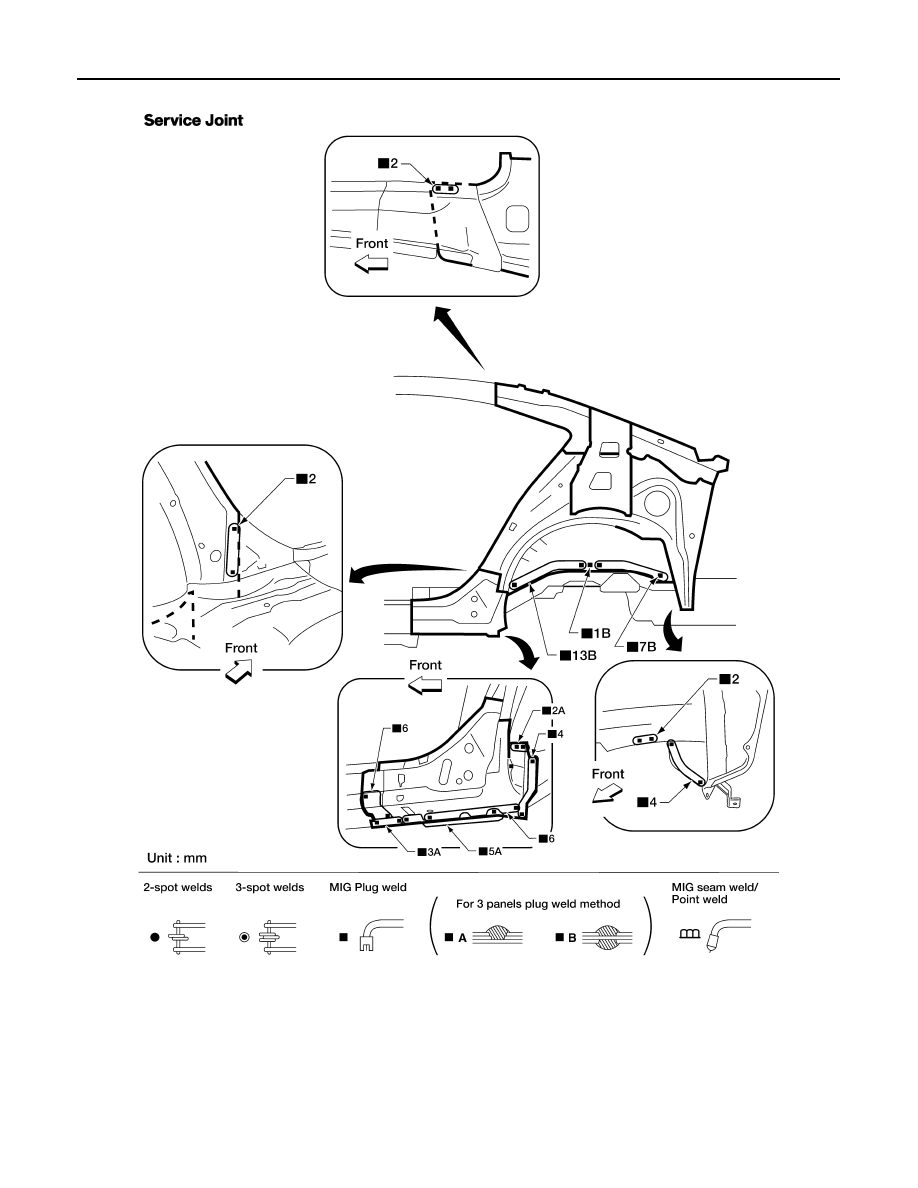

Rear Wheel Housing

INFOID:0000000009465859

• Work after the rear body side outer and the parcel shelf have been removed.

Replacement part

z

Parcel shelf assembly

AWKIA1380GB

REPLACEMENT OPERATIONS

BRM-57

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

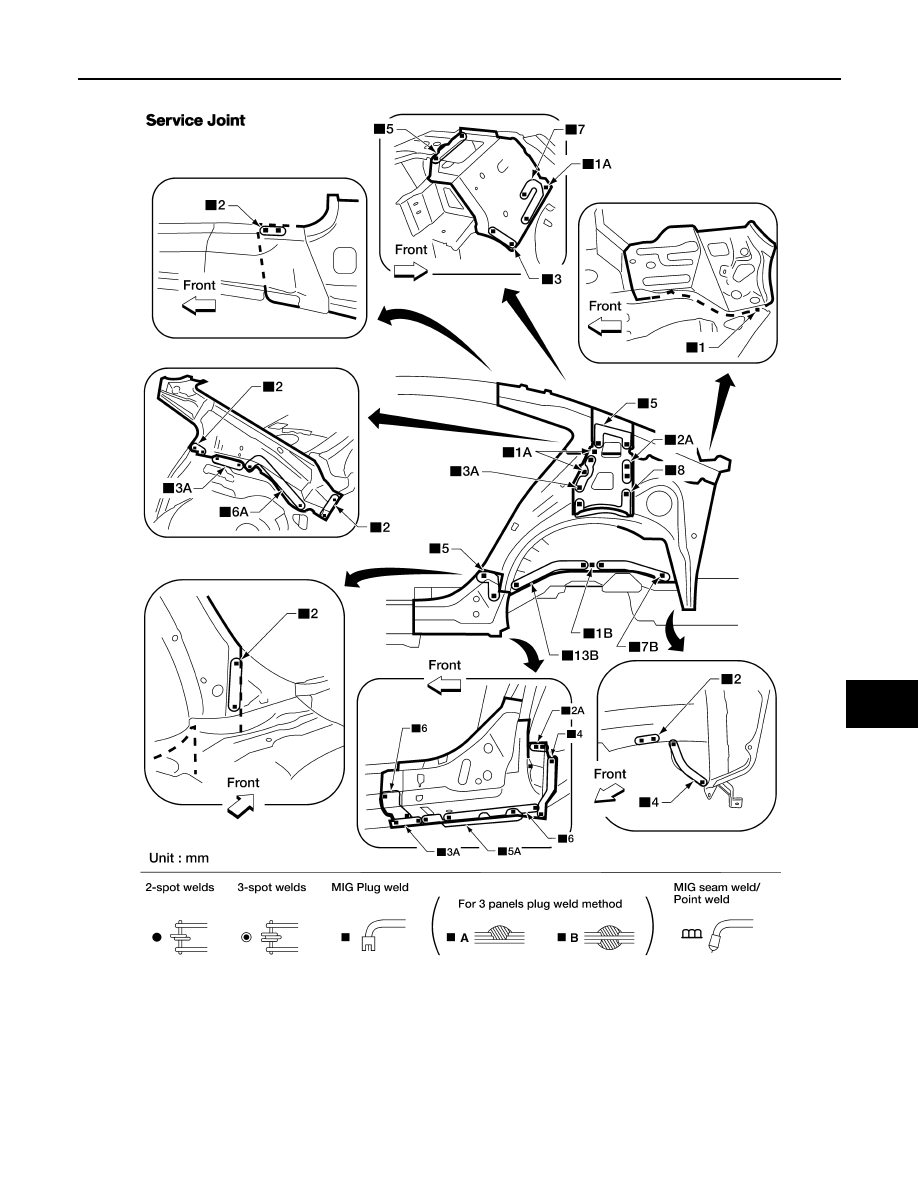

Rear Body Side Inner Assembly

INFOID:0000000009465860

• Work after rear body side outer and parcel shelf have been removed.

Replacement parts

z

Rear wheel housing assembly

z

Rear pillar inner reinforcement

z

Parcel shelf side

z

Rear seatback side support

z

Sill outer reinforcement rear

z

Rear pillar inner

AWKIA1381GB

BRM-58

< REMOVAL AND INSTALLATION >

REPLACEMENT OPERATIONS

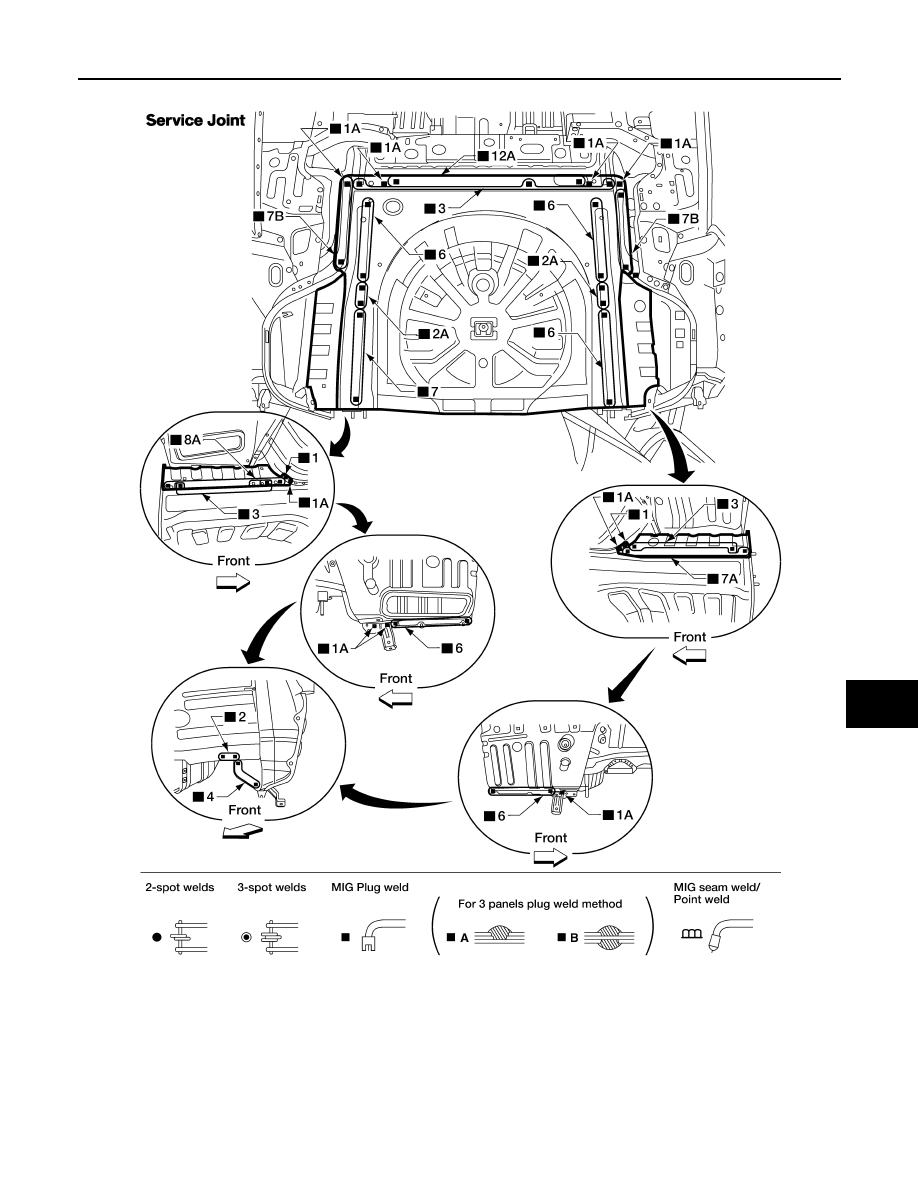

Rear Floor Rear

INFOID:0000000009465861

• Work after rear panel assembly has been removed.

Replacement parts

z

Rear body side inner assembly

AWKIA1382GB

REPLACEMENT OPERATIONS

BRM-59

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

Replacement parts

z

Rear floor rear

z

Rear floor rear (RH)

z

Rear floor rear (LH)

AWKIA1383GB
