BRM-28

< REMOVAL AND INSTALLATION >

BODY ALIGNMENT

Rear Body

INFOID:0000000009465843

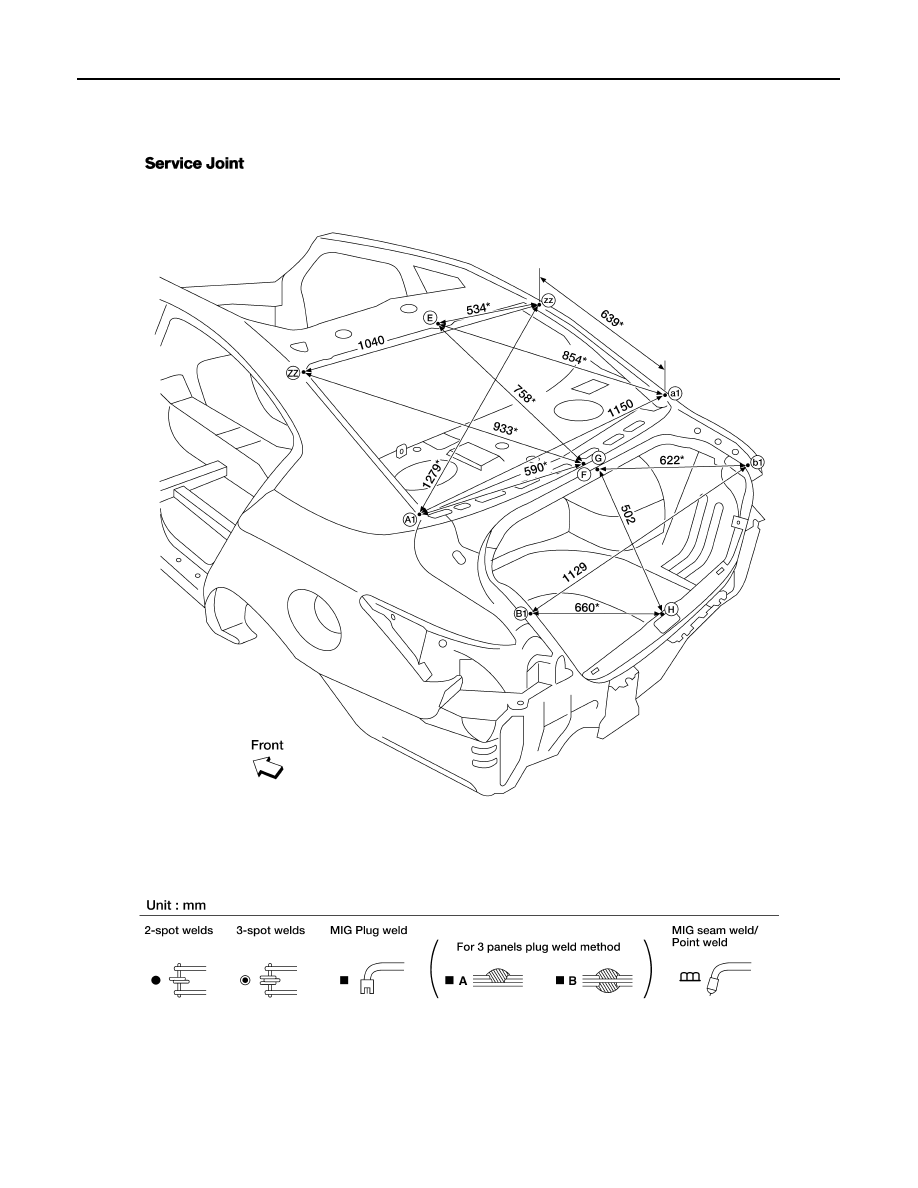

Measurements

AWKIA1358GB

BODY ALIGNMENT

BRM-29

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

Roof

INFOID:0000000009465844

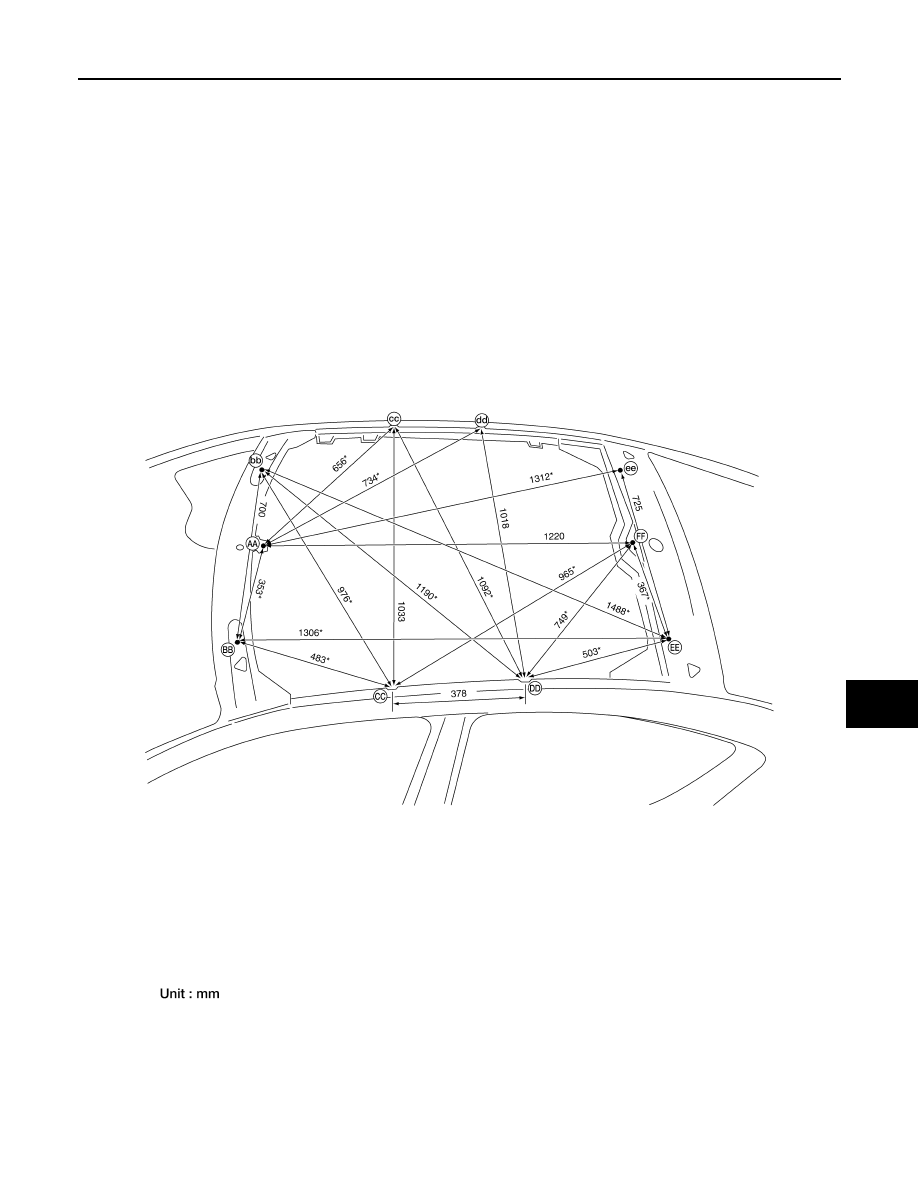

MEASUREMENTS (DUAL PANEL SUNROOF)

AWKIA1359GB

BRM-30

< REMOVAL AND INSTALLATION >

BODY ALIGNMENT

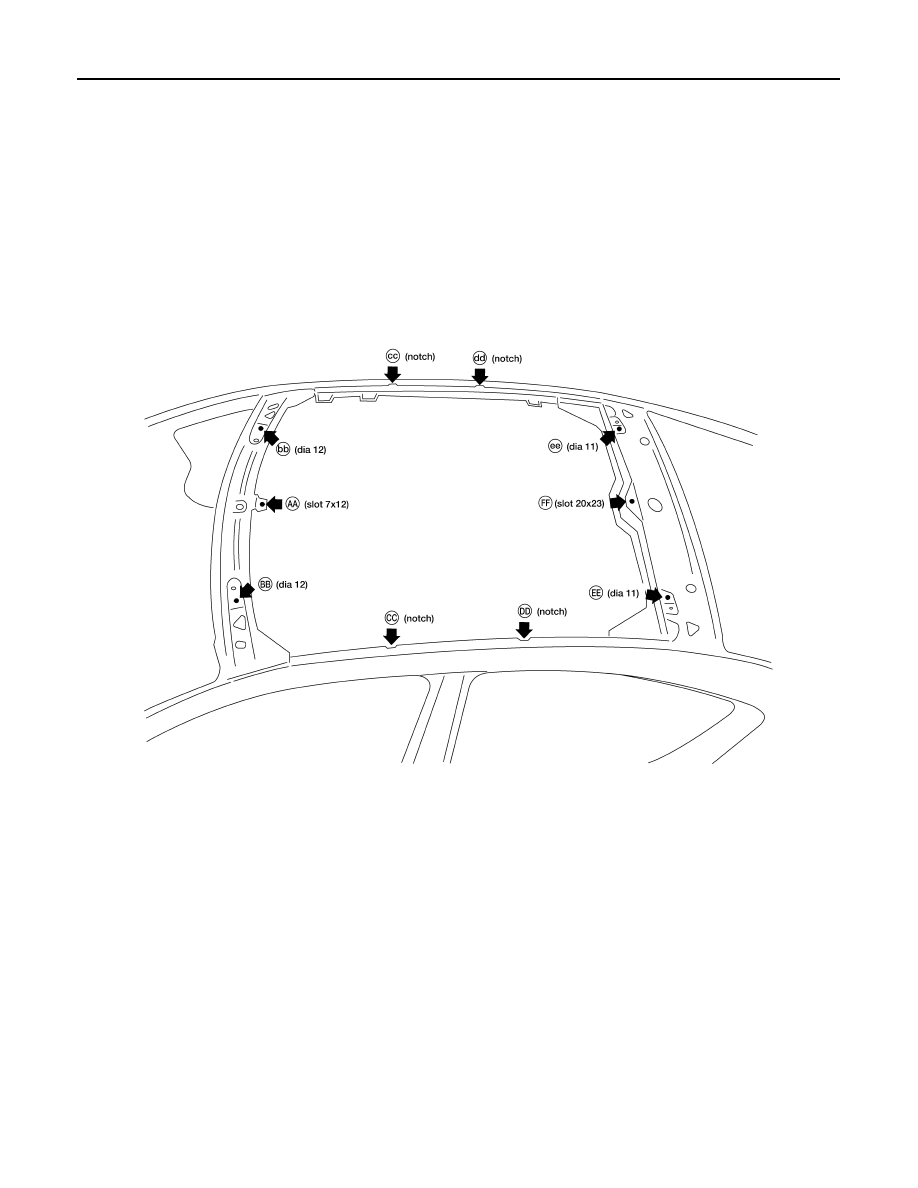

MEASUREMENT POINTS (DUAL PANEL SUNROOF)

AWKIA1360GB

PRECAUTIONS IN REPAIRING HIGH STRENGTH STEEL

BRM-31

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

PRECAUTIONS IN REPAIRING HIGH STRENGTH STEEL

High Strength Steel (HSS)

INFOID:0000000009465845

High strength steel is used for body panels in order to reduce vehicle weight.

Accordingly, precautions in repairing automotive bodies made of high strength steel are described below:

Read the following precautions when repairing HSS:
1. Additional points to consider

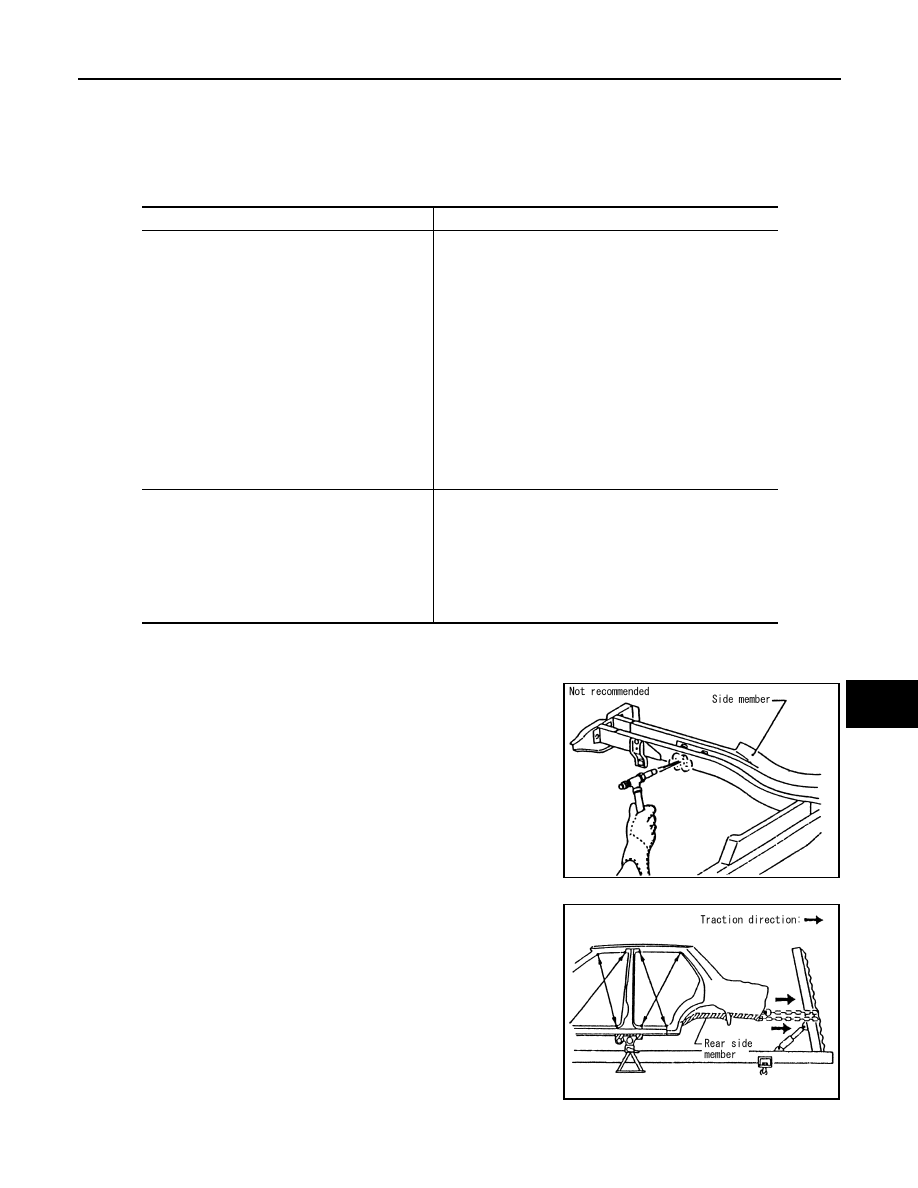

• The repair of reinforcements (such as side members) by heat-

ing is not recommended since it may weaken the component.

When heating is unavoidable, do not heat HSS parts above

550

°C (1,022°F).

Verify heating temperature with a thermometer.

(Crayon-type and other similar type thermometer are appropri-

ate.)

• When straightening body panels, use caution in pulling any

HSS panel. Because HSS is very strong, pulling may cause

deformation in adjacent portions of the body. In this case,

increase the number of measuring points, and carefully pull

the HSS panel.

Tensile strength

Major applicable parts

370 - 590 MPa

• Lower front and rear hoodledge
• Upper hoodledge
• Side dash
• Roof bow No. 2 and No.4
• 3rd crossmember

(Front floor component part)

• Inner sill
• Rear side member assembly
• Rear seat crossmember
• Center rear crossmember assembly
• Inner side roof rail
• Inner center pillar
• Inner center front bumper reinforcement
• Front bumper stay
• Rear side bumper bracket
• Other reinforcements

780 - 1350 MPa

• Front side member assembly
• Front side member closing plate assembly
• Front side member extension
• Front side member center extension
• Outer roof rail reinforcement

(Side body assembly component part)

• 2nd crossmember

(Front floor component part)

PIIA0115E

PIIA0116E
