BRM-24

< REMOVAL AND INSTALLATION >

BODY ALIGNMENT

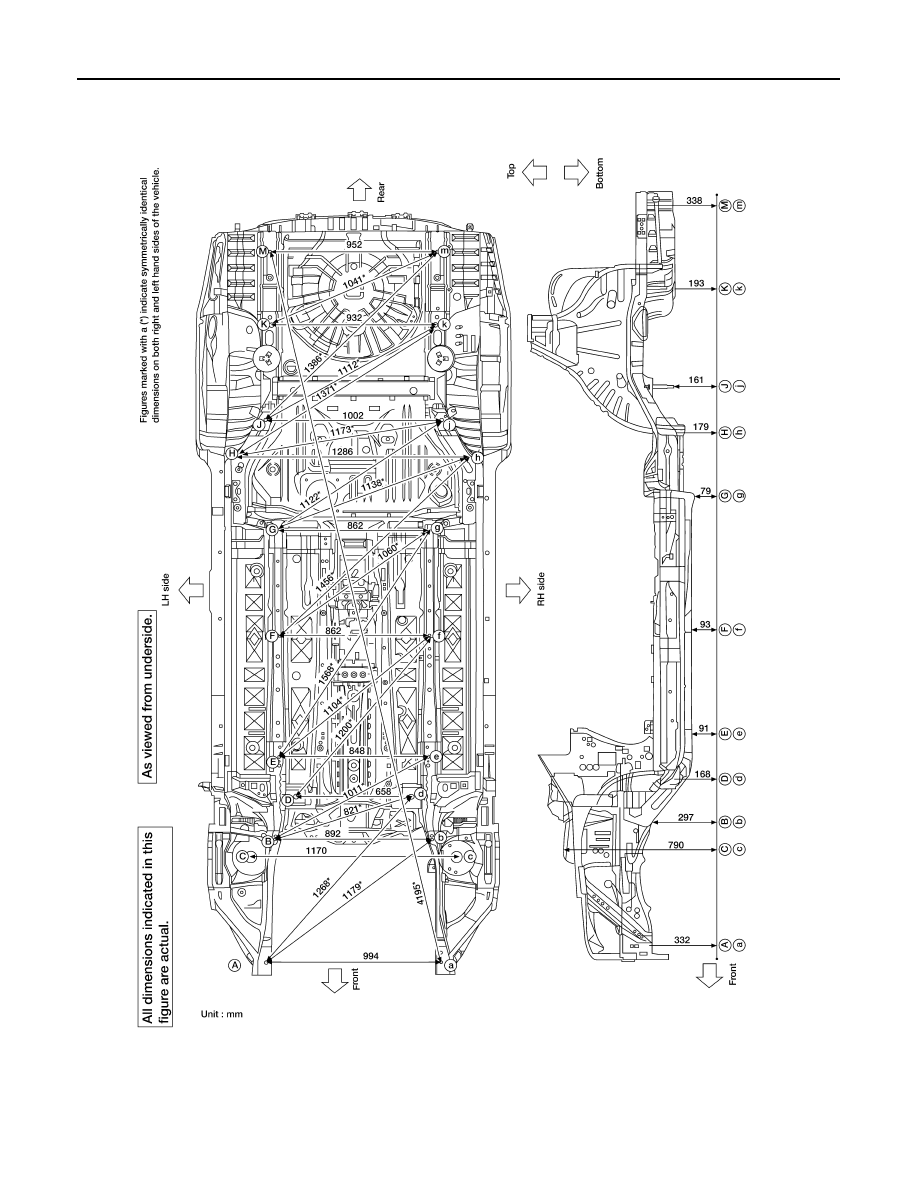

Underbody

INFOID:0000000009465841

Measurement

AWKIA1354GB

BODY ALIGNMENT

BRM-25

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

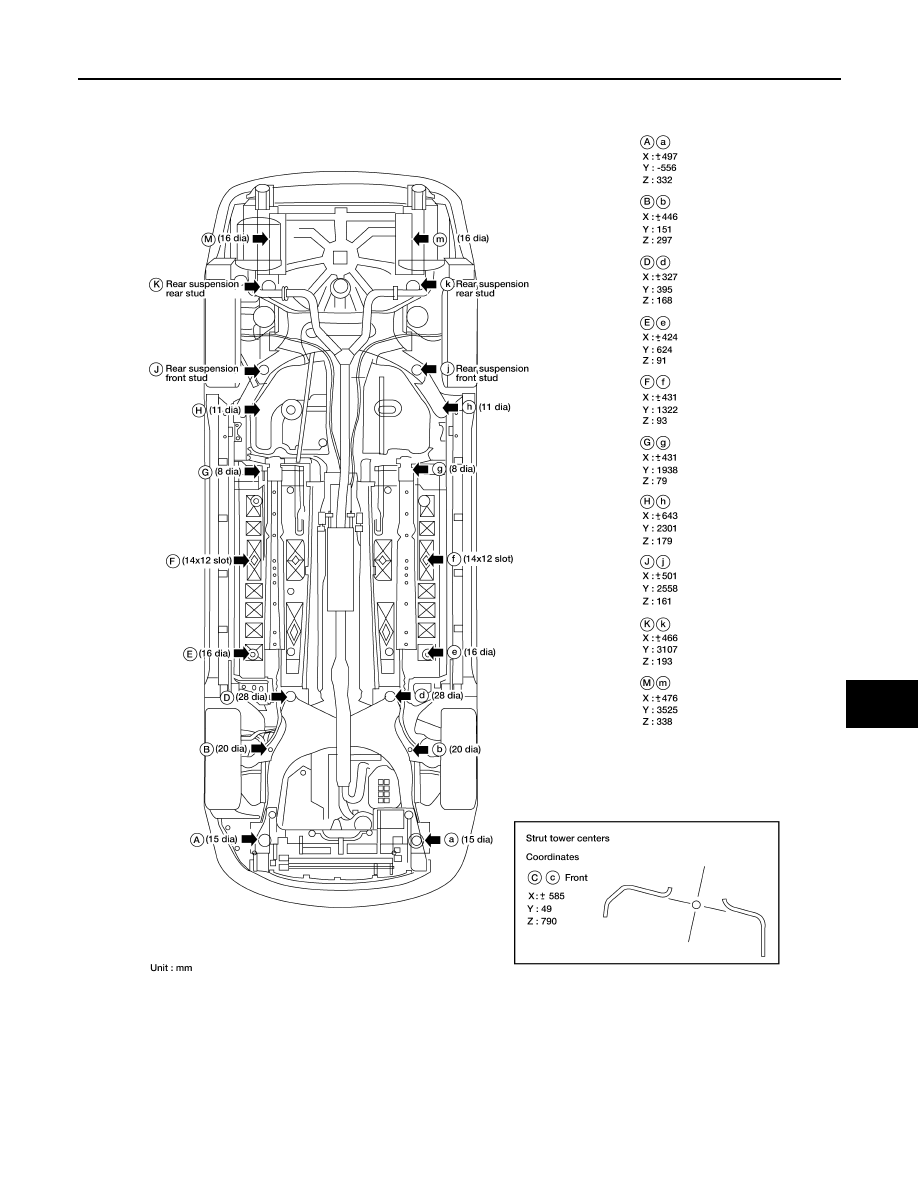

Measurement Points

AWKIA1355GB

BRM-26

< REMOVAL AND INSTALLATION >

BODY ALIGNMENT

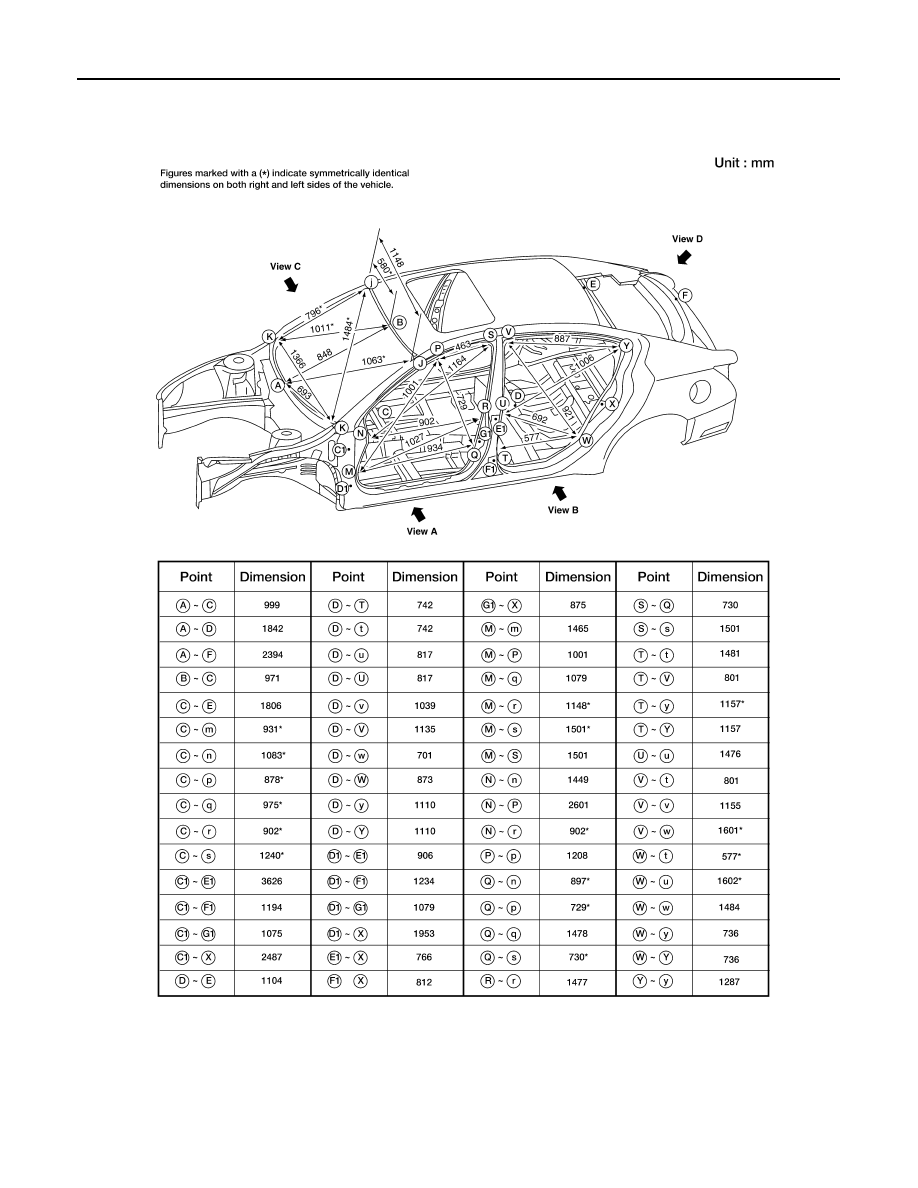

Passenger Compartment

INFOID:0000000009465842

Measurement

AWKIA1356GB

BODY ALIGNMENT

BRM-27

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

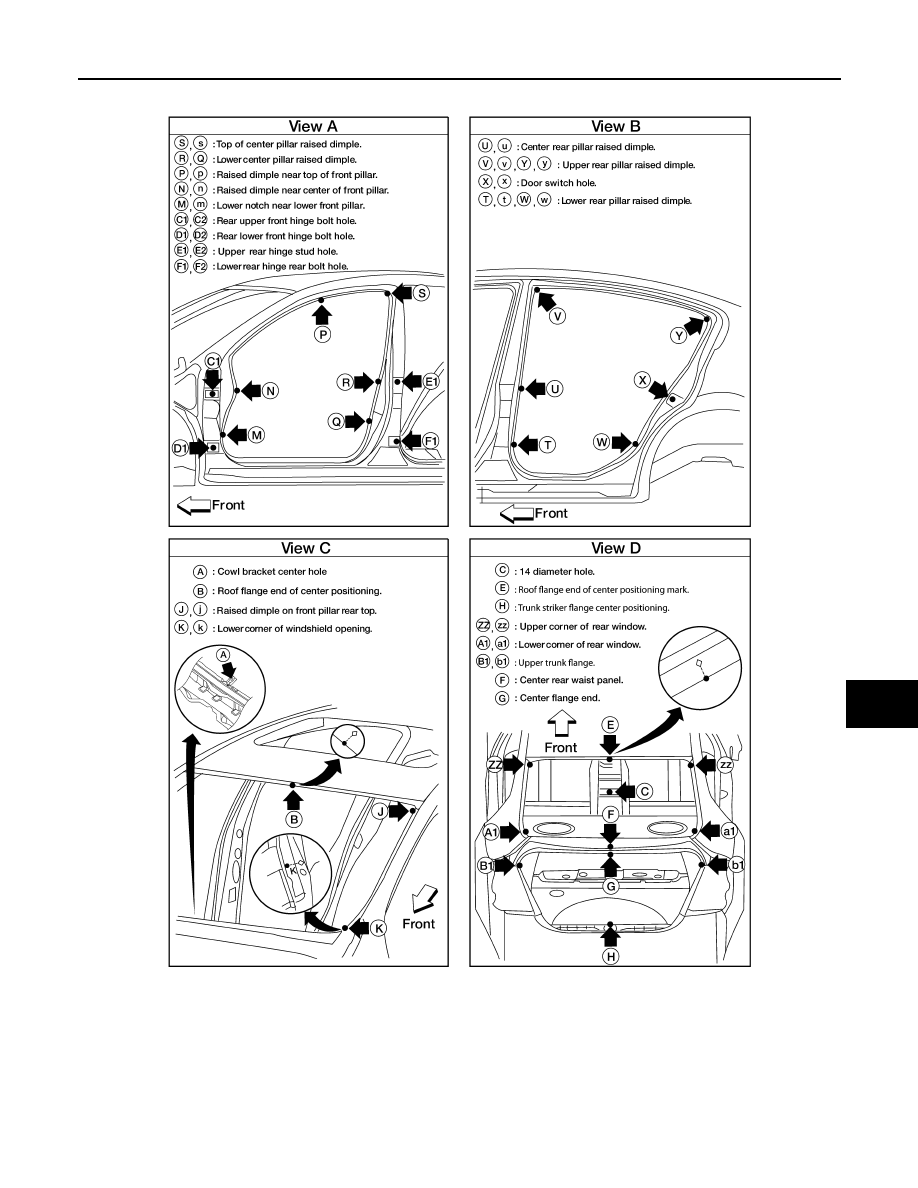

Measurement Points

AWKIA1357GB
