BODY ALIGNMENT
Panel Parts Matching Marks
INFOID:0000000009465838

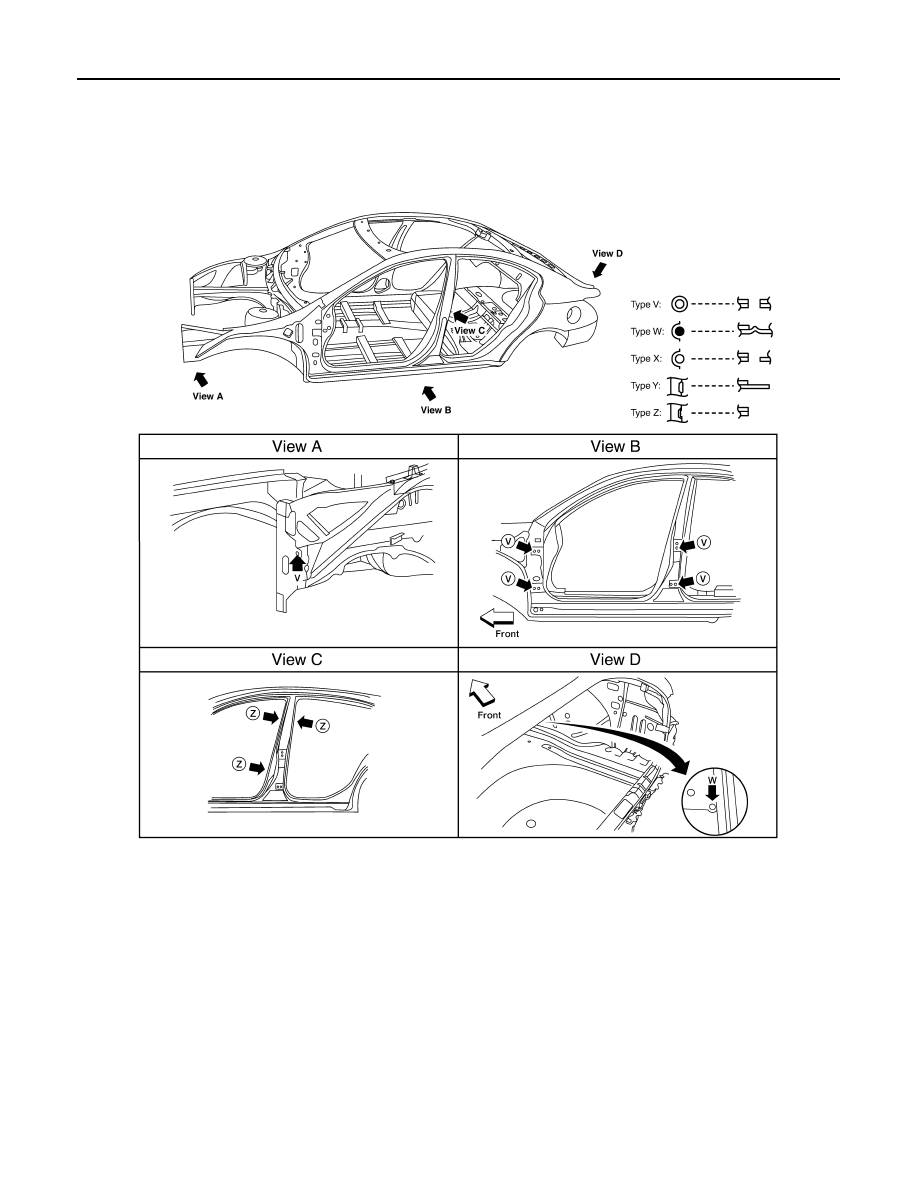

A mark has been placed on each body panel to indicate the parts matching positions. When repairing parts
damaged by an accident which might affect the vehicle structure (members, pillars, etc.), more accurate and
effective repair will be possible by using these marks together with body alignment specifications.
Description
INFOID:0000000009465839

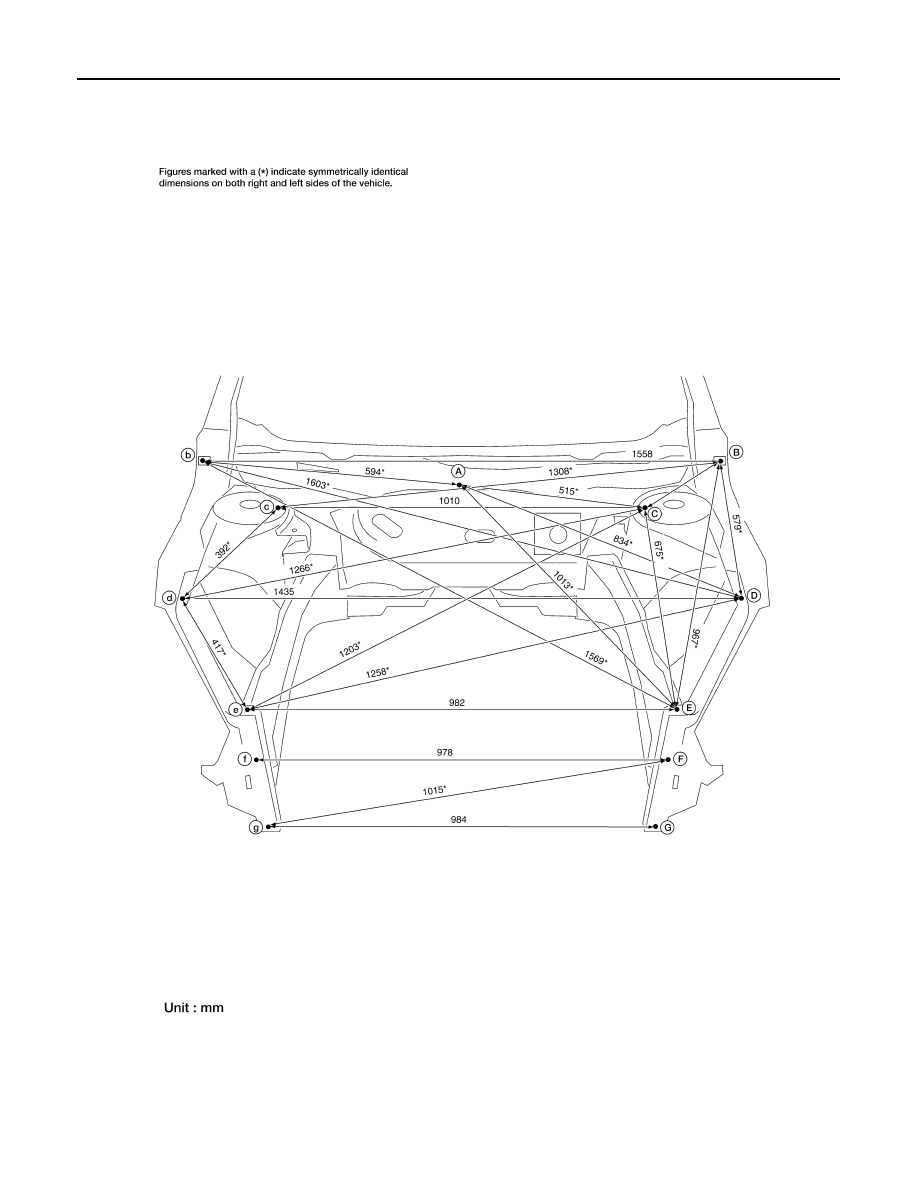

• All dimensions indicated in the figures are actual.
• When using a tracking gauge, adjust both pointers to equal length. Then check the pointers and gauge itself
to make sure there is no free play.
• When a measuring tape is used, check to be sure there is no elongation, twisting or bending.

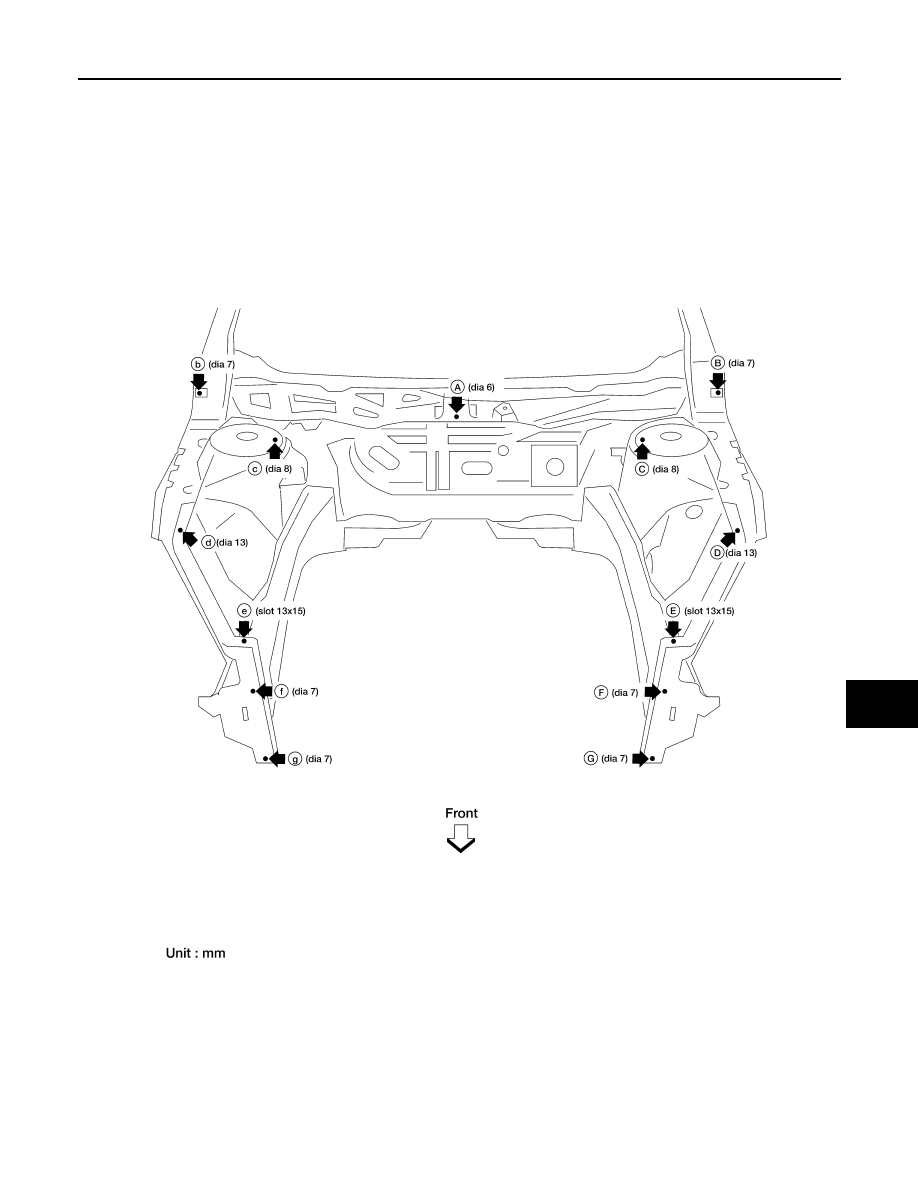

• Measurements should be taken at the center of the mounting holes.
• An asterisk (*) following the value at the measuring point indicates that the measuring point on the other side
is symmetrically the same value.

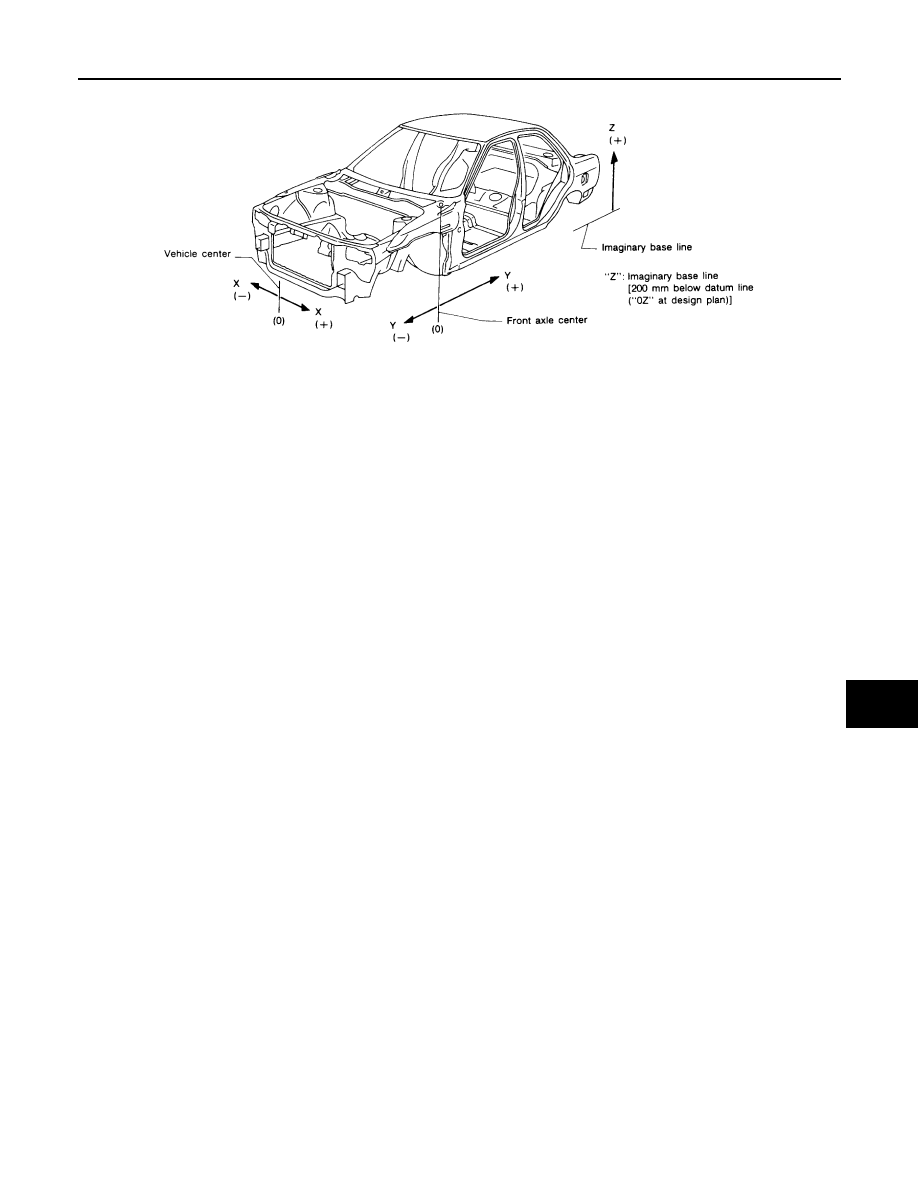

• The coordinates of the measurement points are the distances measured from the standard line of
″X″, ″Y″
and
″Z″.
AWKIA1351GB
