BRM-12

< REMOVAL AND INSTALLATION >

CORROSION PROTECTION

CORROSION PROTECTION

Description

INFOID:0000000009465832

To provide improved corrosion prevention, the following anti-corrosive measures have been implemented in

NISSAN production plants. When repairing or replacing body panels, it is necessary to use the same anti-cor-

rosive measures.

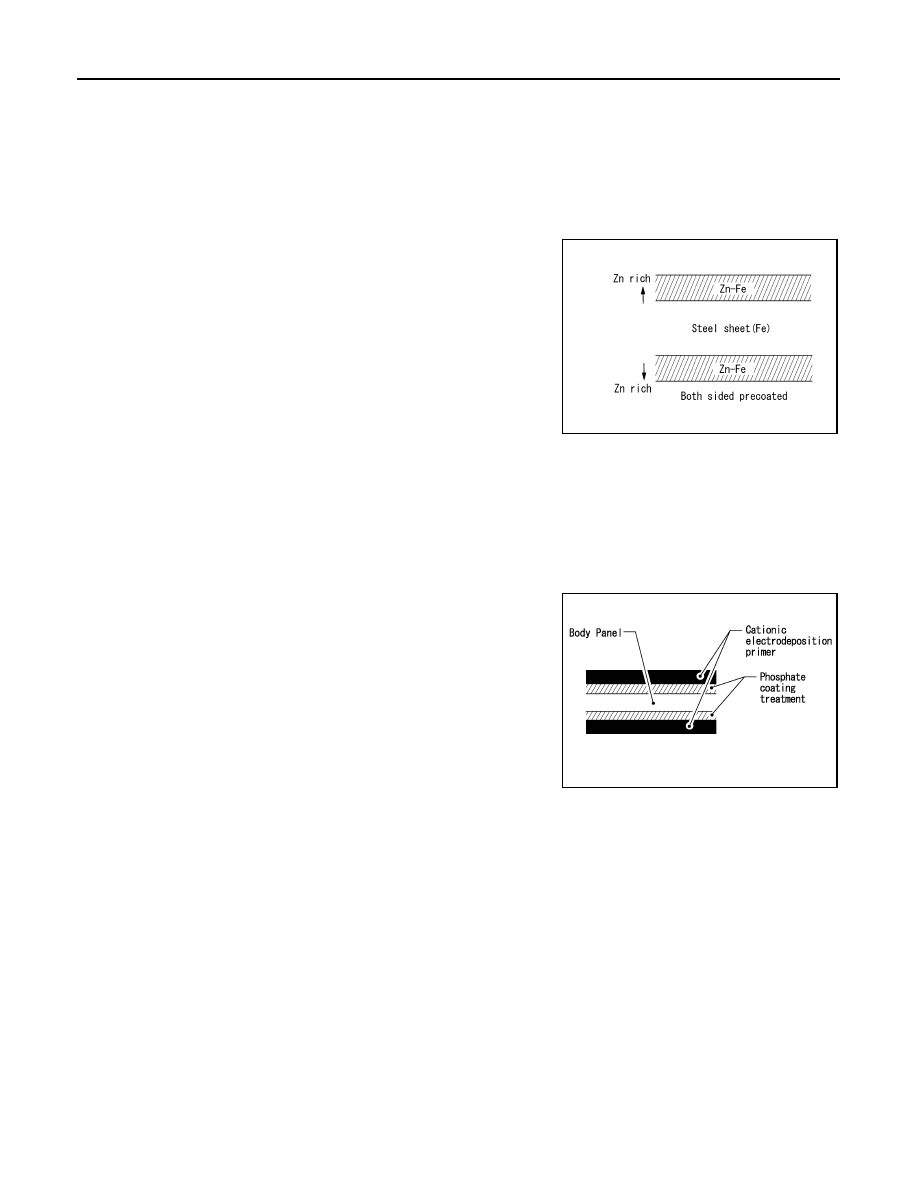

Anti-Corrosive Precoated Steel (Galvannealed Steel)

To improve repairability and corrosion resistance, a new type of anti-

corrosive precoated steel sheet has been adopted replacing conven-

tional zinc-coated steel sheet.

Galvannealed steel is electroplated and heated to form Zinc-iron

alloy, which provides excellent and long term corrosion resistance

with cationic electrodeposition primer.

Nissan Genuine Service Parts are fabricated from galvannealed steel. Therefore, it is recommended that

GENUINE NISSAN PARTS or equivalent be used for panel replacement to maintain the anti-corrosive perfor-

mance built into the vehicle at the factory.

Phosphate Coating Treatment and Cationic Electrodeposition Primer

A phosphate coating treatment and a cationic electrodeposition primer, which provide excellent corrosion pro-

tection, are employed on all body components.

CAUTION:

Confine paint removal during welding operations to an absolute

minimum.

Nissan Genuine Service Parts are also treated in the same manner. Therefore, it is recommended that GENU-

INE NISSAN PARTS or equivalent be used for panel replacement to maintain anti-corrosive performance built

into the vehicle at the factory.

Anti-Corrosive Wax

INFOID:0000000009465833

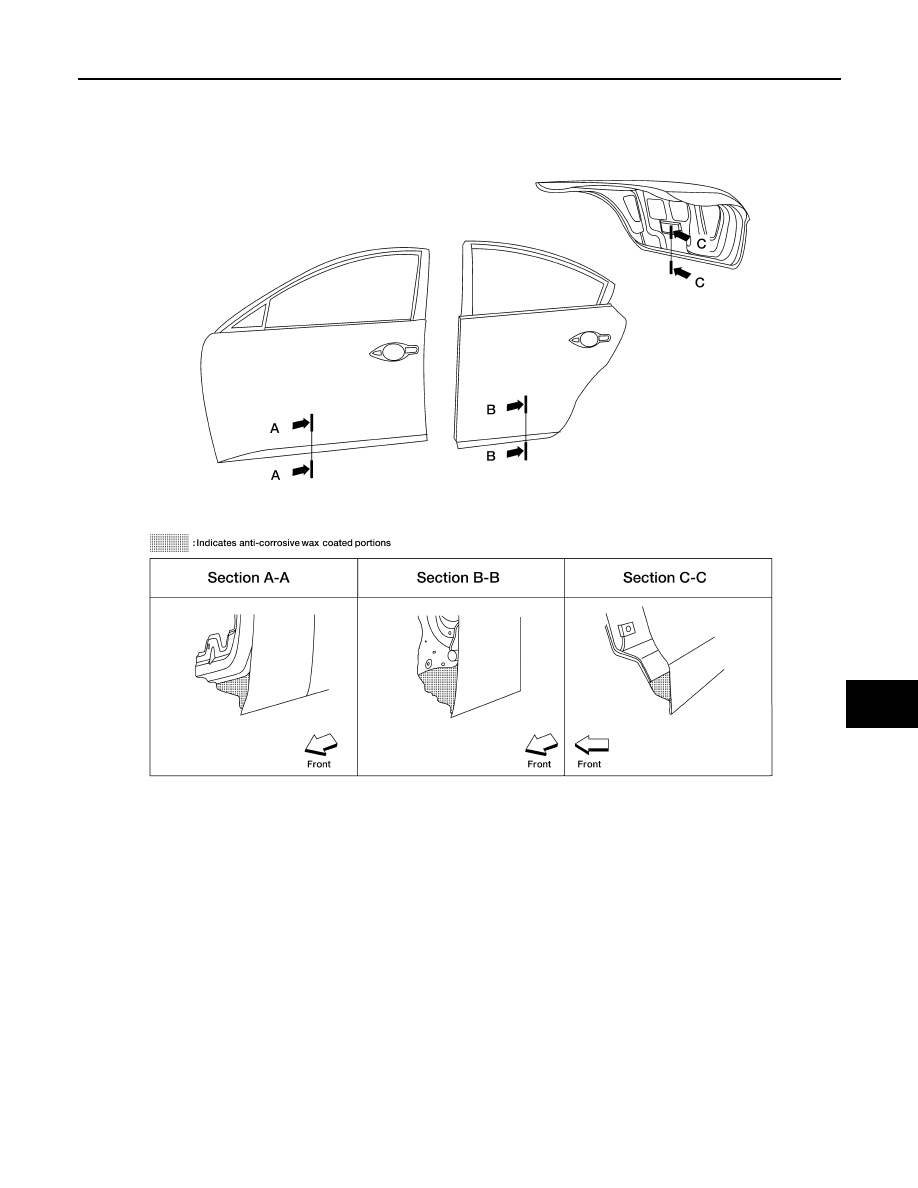

To improve corrosion resistance, anti-corrosive wax is applied inside the body sill and inside other closed sec-

tions. Accordingly, when replacing these parts, be sure to apply anti-corrosive wax to the appropriate areas of

SIIA2294E

PIIA0095E

CORROSION PROTECTION

BRM-13

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

the new parts. Select an excellent anti-corrosive wax which will penetrate after application and has a long shelf

life.

Undercoating

INFOID:0000000009465834

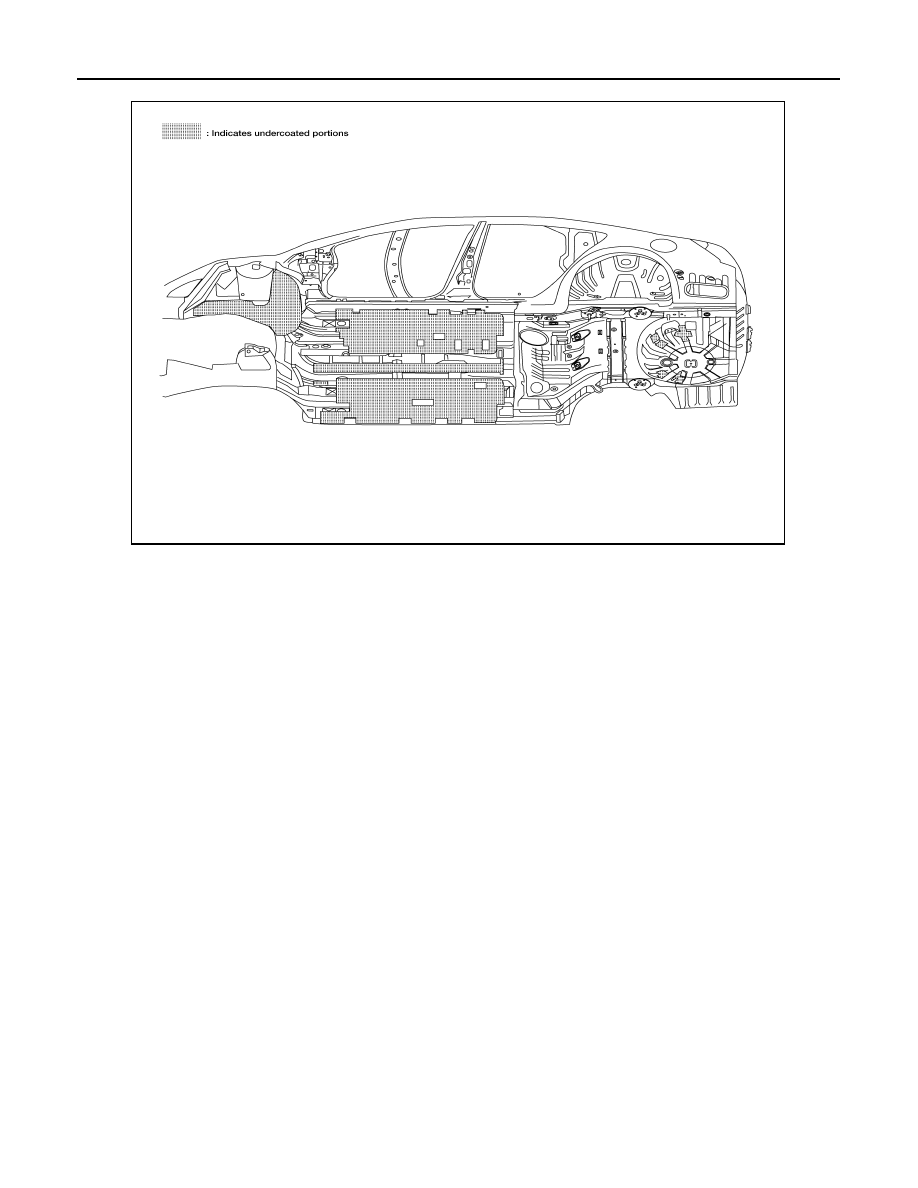

The underside of the floor and wheelhouse are undercoated to prevent rust, vibration, noise and stone chip-

ping. Therefore, when such a panel is replaced or repaired, apply undercoating to that part. Use an undercoat-

ing which is rust preventive, soundproof, vibration-proof, shock-resistant, adhesive, and durable.

Precautions in Undercoating

1. Do not apply undercoating to any place unless specified (such as the areas above the muffler and three

way catalyst which are subjected to heat).

2. Do not undercoat the exhaust pipe or other parts which become hot.
3. Do not undercoat rotating parts.
4. Apply bitumen wax after applying undercoating.

AWKIA1344GB

BRM-14

< REMOVAL AND INSTALLATION >

CORROSION PROTECTION

5. After putting seal on the vehicle, put undercoating on it.

AWKIA1345GB

BODY SEALING

BRM-15

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

BODY SEALING

Description

INFOID:0000000009465835

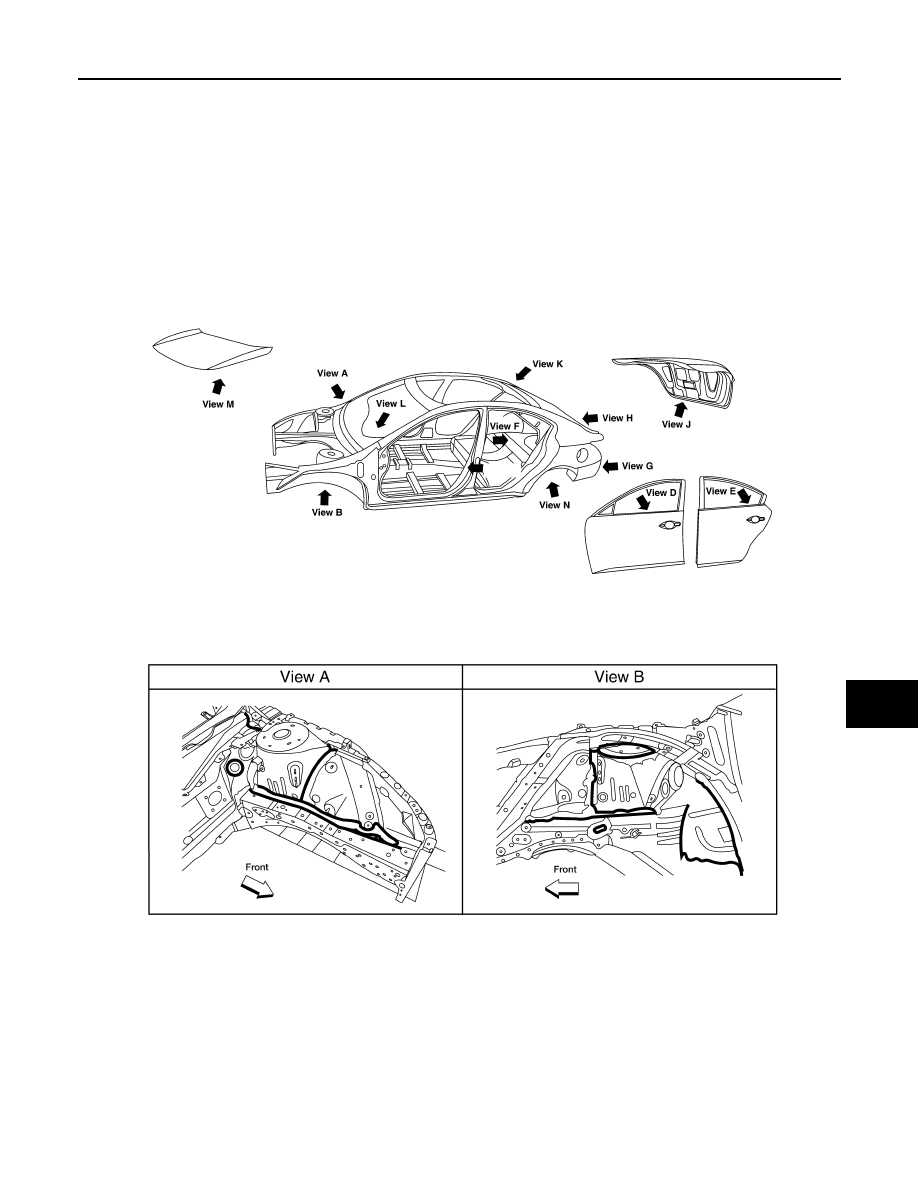

The following figure shows the areas which are sealed at the factory. Sealant which has been applied to these

areas should be smooth and free from cuts or gaps. Care should be taken not to apply an excess amount of

sealant and not to allow other unaffected parts to come into contact with the sealant.

AWKIA1346GB
