STEERING ANGLE SENSOR

BRC-109

< REMOVAL AND INSTALLATION >

[VDC/TCS/ABS]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

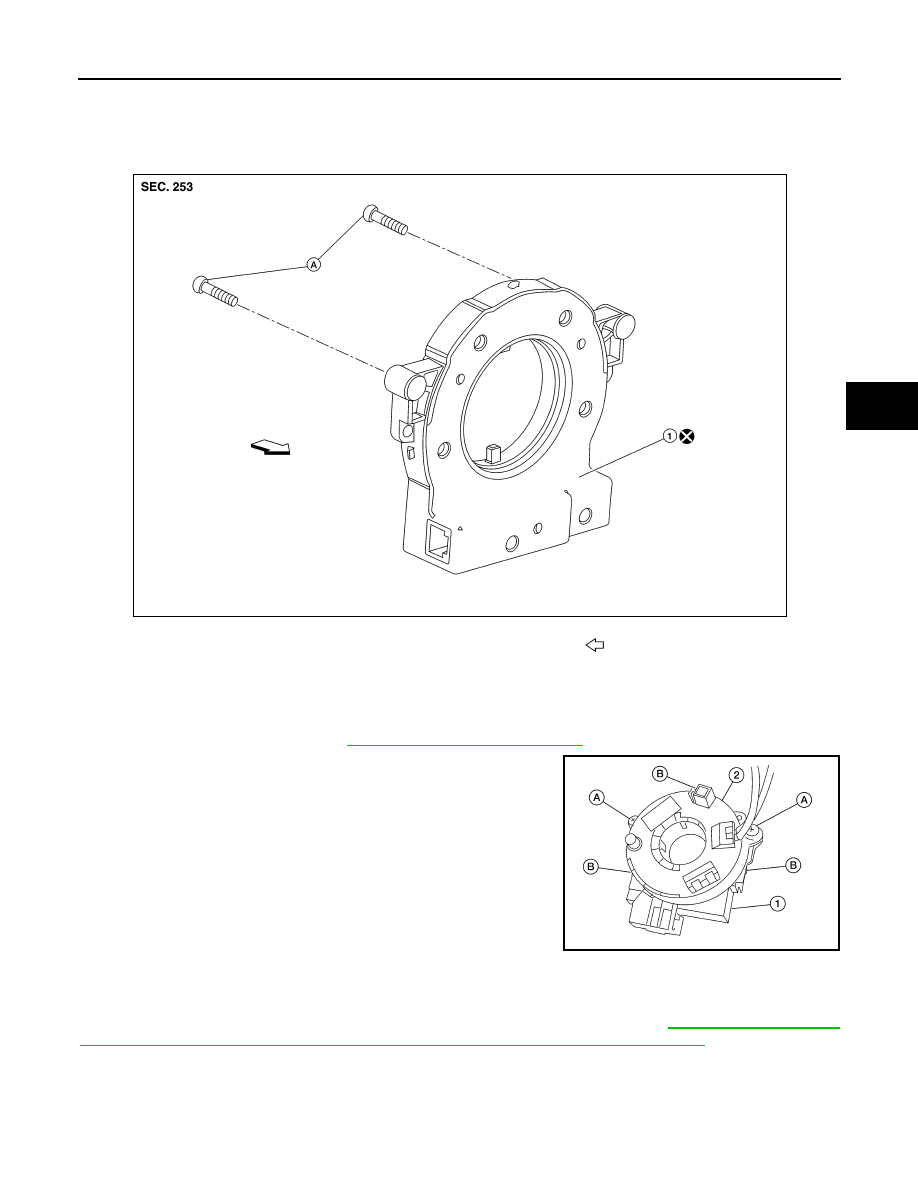

STEERING ANGLE SENSOR

Exploded View

INFOID:0000000009466786

Removal and Installation

INFOID:0000000009466787

REMOVAL

1. Remove the spiral cable. Refer to

SR-15, "Removal and Installation"

.

2. Remove the screws (A) and release the clips (B) to remove the

steering angle sensor (1) from the spiral cable (2).

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

Perform the neutral position adjustment for the steering angle sensor. Refer to

BRC-6, "ADJUSTMENT

OF STEERING ANGLE SENSOR NEUTRAL POSITION : Special Repair Requirement"

1.

Steering angle sensor

A.

Screw

Front

ALFIA0235ZZ

ALFIA0123ZZ

BRM-1

BODY EXTERIOR, DOORS, ROOF & VEHICLE SECURITY

C

D

E

F

G

H

I

J

L

M

SECTION

BRM

A

B

BRM

N

O

P

CONTENTS

BODY REPAIR

FEATURES OF NEW MODEL ......................

BODY EXTERIOR PAINT COLOR .....................

Body Exterior Paint Color .......................................

PRECAUTION ...............................................

PRECAUTIONS ...................................................

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" ...................................................................

HANDLING PRECAUTIONS FOR PLASTICS .....

Precautions For Plastics ..........................................

REMOVAL AND INSTALLATION ................

BODY COMPONENT PARTS .............................

Underbody Component Parts ..................................

Body Component Parts ...........................................

CORROSION PROTECTION .............................

Description ..............................................................

Anti-Corrosive Wax ................................................

Undercoating ...........................................................

BODY SEALING .................................................

Description ..............................................................

BODY CONSTRUCTION ....................................

Body Construction ...................................................

BODY ALIGNMENT ...........................................

Body Center Marks ................................................

Panel Parts Matching Marks .................................

Description ..............................................................

Engine Compartment .............................................

Underbody ...............................................................

Passenger Compartment ........................................

Rear Body ...............................................................

Roof .........................................................................

PRECAUTIONS IN REPAIRING HIGH
STRENGTH STEEL ..........................................

High Strength Steel (HSS) ....................................

REPLACEMENT OPERATIONS .......................

Description ...............................................................

Hoodledge ...............................................................

Front Side Member (Partial Replacement) ..............

Front Side Member Assembly .................................

Front Pillar ..............................................................

Dash Side ................................................................

Center Pillar .............................................................

Front Body Side Outer .............................................

Rear Body Side Outer .............................................

Outer Sill Reinforcement .........................................

Rear Fender ............................................................

Tail Lamp Housing Base .........................................

Parcel Shelf .............................................................

Rear Wheel Housing ...............................................

Rear Body Side Inner Assembly ..............................

Rear Floor Rear .....................................................

Rear Panel Assembly ..............................................

Roof .........................................................................

Roof Rails, Dual Panel Sunroof ...............................

Roof Rails, Single Panel Sunroof ............................

Roof Side Rail ..........................................................

Body Side Inner .......................................................

Rear Center Crossmember .....................................

Rear Side Member ..................................................

BRM-2

< FEATURES OF NEW MODEL >

BODY EXTERIOR PAINT COLOR

FEATURES OF NEW MODEL

BODY EXTERIOR PAINT COLOR

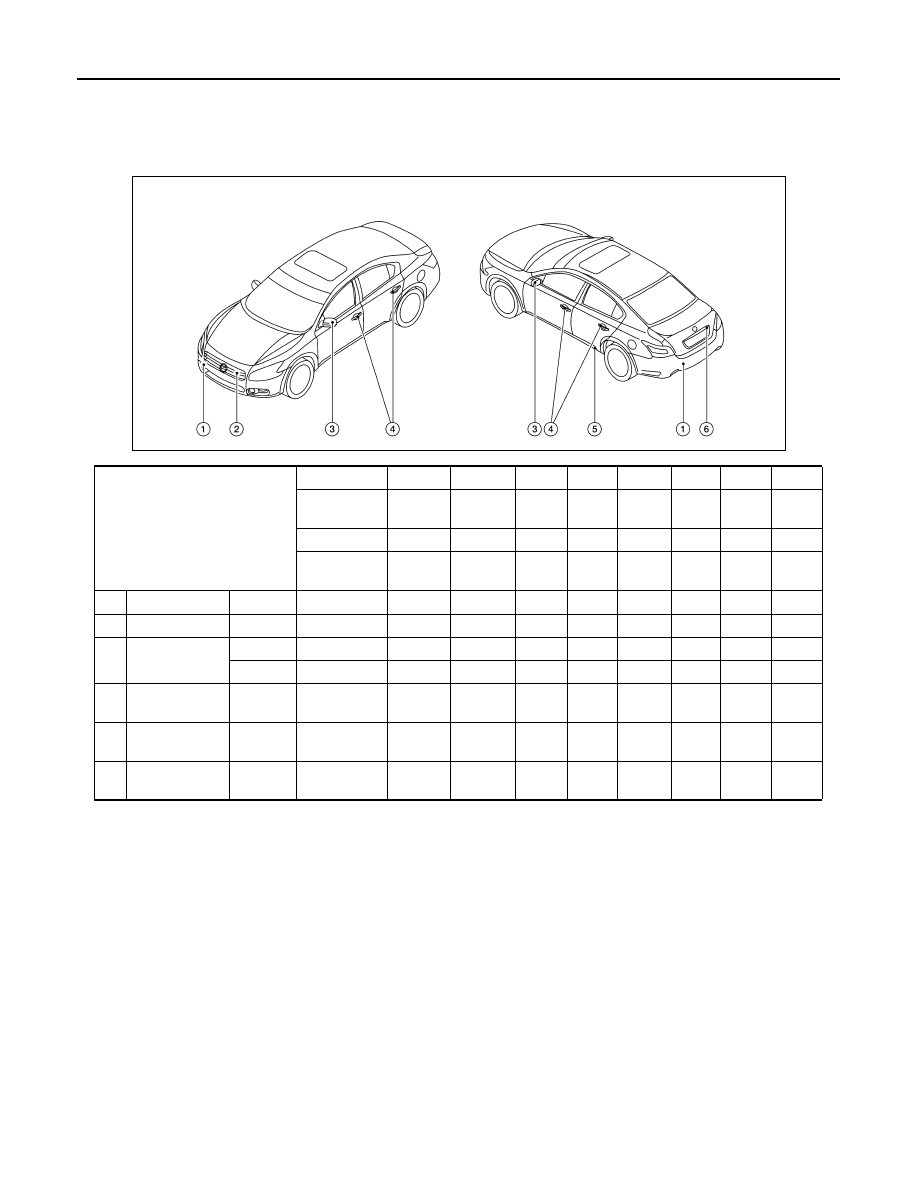

Body Exterior Paint Color

INFOID:0000000009465827

M= Metallic, S= Solid, 2S= Solid and Clear, 2P= 2-coat Pearl, 3P= 3-coat pearl, PM= Pearl metallic. Black is solvent based, all others
are water based, † = Primerless diamond clear coat.

ALKIA1531GB

Component

Color code

CAJ

GAD

KH3

K23

KAD

NAB

QAB

RAB

Description

Grayish

Brown

Reddish

Black

Black

Silver

Gray

Dark

Red

White

Dark

Blue

Paint type

M

M

2S

M

M

M

3P

M

Hard clear
coat

†

†

†

†

†

†

†

†

1

Bumper fascia

Body color

CAJ

GAD

KH3

K23

KAD

NAB

QAB

RAB

2

Front grille

Chrome

Cr2P

Cr2P

Cr2P

Cr2P

Cr2P

Cr2P

Cr2P

Cr2P

3

Door outside
mirror

Base

Black

KH3

KH3

KH3

KH3

KH3

KH3

KH3

KH3

Housing

Body color

CAJ

GAD

KH3

K23

KAD

NAB

QAB

RAB

4

Door outside
handle

Chrome

Cr2P

Cr2P

Cr2P

Cr2P

Cr2P

Cr2P

Cr2P

Cr2P

5

Center mud-
guard

Body color

CAJ

GAD

KH3

K23

KAD

NAB

QAB

RAB

6

License lamp
finisher

Chrome

Cr2P

Cr2P

Cr2P

Cr2P

Cr2P

Cr2P

Cr2P

Cr2P

PRECAUTIONS

BRM-3

< PRECAUTION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000009465828

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along

with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain

types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS

system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front

air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.

Information necessary to service the system safely is included in the SR and SB section of this Service Man-

ual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by

an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag

Module, see the SR section.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-

ness connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

• When working near the Airbag Diagnosis Sensor Unit or other Airbag System sensors with the Igni-

tion ON or engine running, DO NOT use air or electric power tools or strike near the sensor(s) with a

hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing

serious injury.

• When using air or electric power tools or hammers, always switch the Ignition OFF, disconnect the

battery and wait at least 3 minutes before performing any service.
