SENSOR ROTOR

Removal and Installation - Front Sensor Rotor

INFOID:0000000009466780

The front wheel sensor rotor is an integral part of the wheel hub and bearing assembly and cannot be disas-

sembled. Refer to

FAX-7, "Removal and Installation"

.

Removal and Installation - Rear Sensor Rotor

INFOID:0000000009466781

The rear wheel sensor rotor is an integral part of the wheel hub and bearing assembly and cannot be disas-

sembled. Refer to

RAX-6, "Removal and Installation"

.

BRC-106

< REMOVAL AND INSTALLATION >

[VDC/TCS/ABS]

ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT)

ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT)

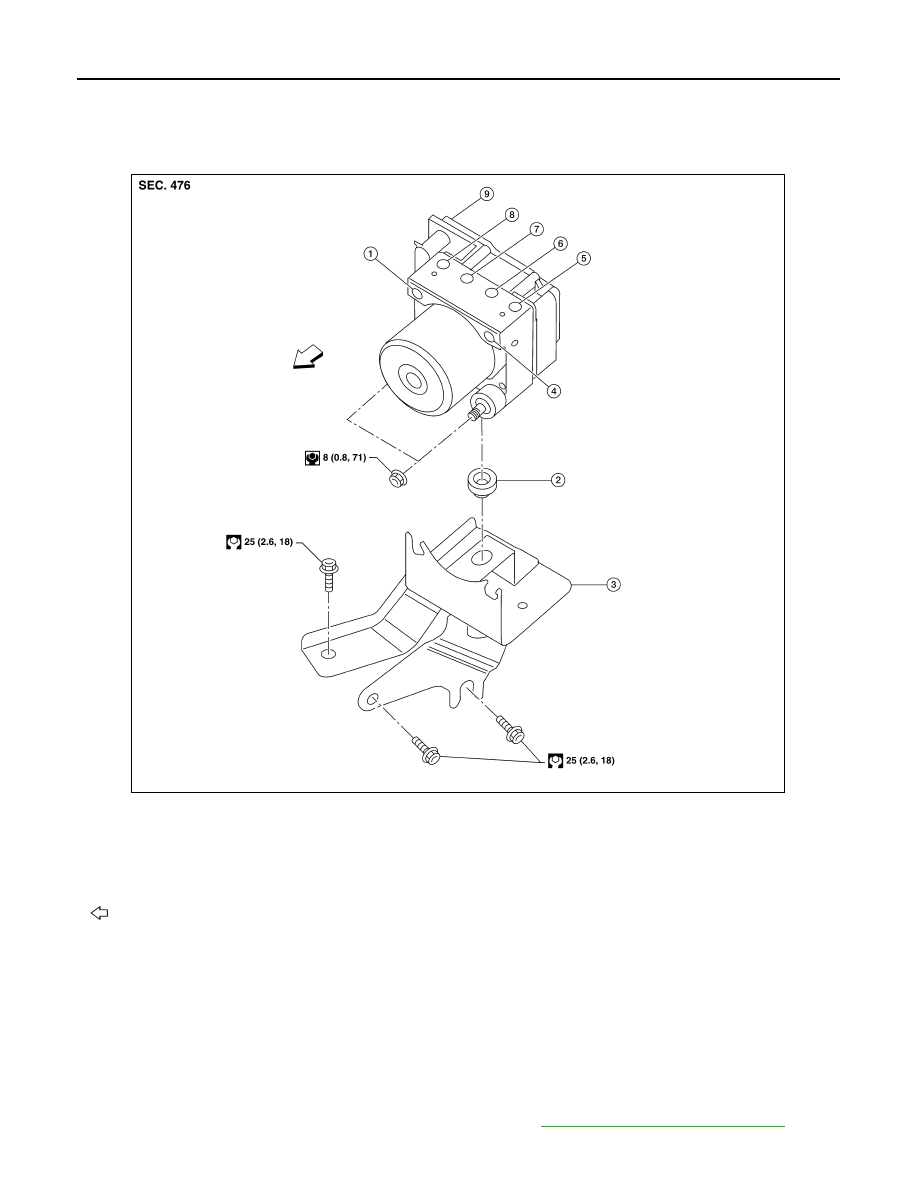

Exploded View

INFOID:0000000009466782

Removal and Installation

INFOID:0000000009466783

CAUTION:

• Before removal, disconnect the battery negative terminal.

• To disconnect the brake tubes, use a flare nut wrench to prevent the flare nuts and brake tubes from

being damaged. To connect the brake tubes, use a flare nut torque wrench to tighten to the specified

torque.

• Do not drop the ABS actuator and electric unit (control unit).

• Do not remove and install the ABS actuator and electric unit (control unit) by holding it by the har-

ness.

• After installation, bleed the air from the brake lines. Refer to

BR-16, "Bleeding Brake System"

.

NOTE:

1.

From master cylinder secondary side 2.

Grommet

3.

ABS actuator and electric unit (control
unit) bracket

4.

From master cylinder primary side

5.

To front LH brake caliper

6.

To rear RH brake caliper

7.

To rear LH brake caliper

8.

To front RH brake caliper

9.

ABS actuator and electric unit (control
unit)

Front

ALFIA0048GB

ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT)

BRC-107

< REMOVAL AND INSTALLATION >

[VDC/TCS/ABS]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

When removing components such as hoses, tubes/lines, etc., cap or plug openings to prevent fluid from spill-

ing.

REMOVAL

1. Disconnect the battery negative terminal. Refer to

PG-67, "Removal and Installation (Battery)"

.

2. Remove the front wiper arms. Refer to

WW-78, "FRONT WIPER ARMS : Removal and Installation"

.

3. Remove the cowl top and RH cowl top extension. Refer to

EXT-21, "Removal and Installation"

.

4. Disconnect the wiper washer hose.
5. Remove the strut tower bar. Refer to

FSU-13, "Exploded View"

.

6. Disconnect the ABS actuator and electric unit (control unit) connector.
7. Loosen the brake tube flare nuts, then disconnect the brake tubes from the ABS actuator and electric unit

(control unit).

8. Remove the ABS actuator and electric unit (control unit) nuts.
9. Remove the ABS actuator and electric unit (control unit).
10. Remove the ABS actuator and electric unit (control unit) bracket as necessary.

INSTALLATION

Installation is in the reverse order of removal.

• Bleed brake system, check and adjust brake fluid level as necessary. Refer to

BR-16, "Bleeding Brake Sys-

tem"

.

CAUTION:

Do not reuse brake fluid.

CAUTION:

Perform the neutral position adjustment for the steering angle sensor. Refer to

BRC-6, "ADJUSTMENT

OF STEERING ANGLE SENSOR NEUTRAL POSITION : Special Repair Requirement"

.

BRC-108

< REMOVAL AND INSTALLATION >

[VDC/TCS/ABS]

YAW RATE/SIDE/DECEL G SENSOR

YAW RATE/SIDE/DECEL G SENSOR

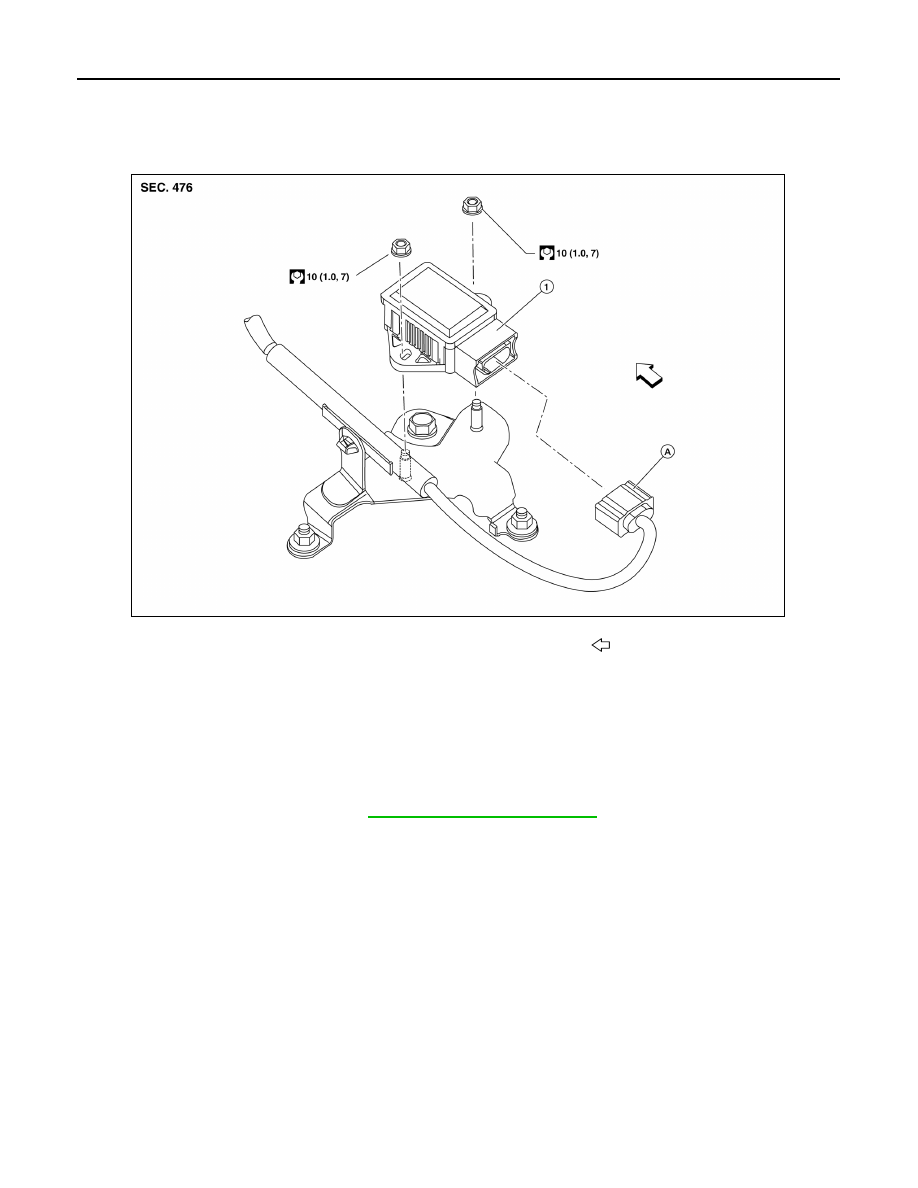

Exploded View

INFOID:0000000009466784

Removal and Installation

INFOID:0000000009466785

CAUTION:

• Do not drop or strike the yaw rate/side/decel G sensor to prevent damage.

• Do not use power tool to remove the yaw rate/side/decel G sensor to prevent damage.

REMOVAL

1. Remove the center console. Refer to

IP-14, "Removal and Installation"

.

2. Disconnect the harness connector from the yaw rate/side/decel G sensor.
3. Remove the yaw rate/side/decel G sensor nuts.
4. Remove the yaw rate/side/decel G sensor.

INSTALLATION

Installation is in the reverse order of removal.

1.

Yaw rate/side/decel G sensor

A.

Yaw rate/side/decel G sensor har-
ness connector

Front

ALFIA0324ZZ
