PREPARATION

BRC-101

< PREPARATION >

[VDC/TCS/ABS]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

PREPARATION

PREPARATION

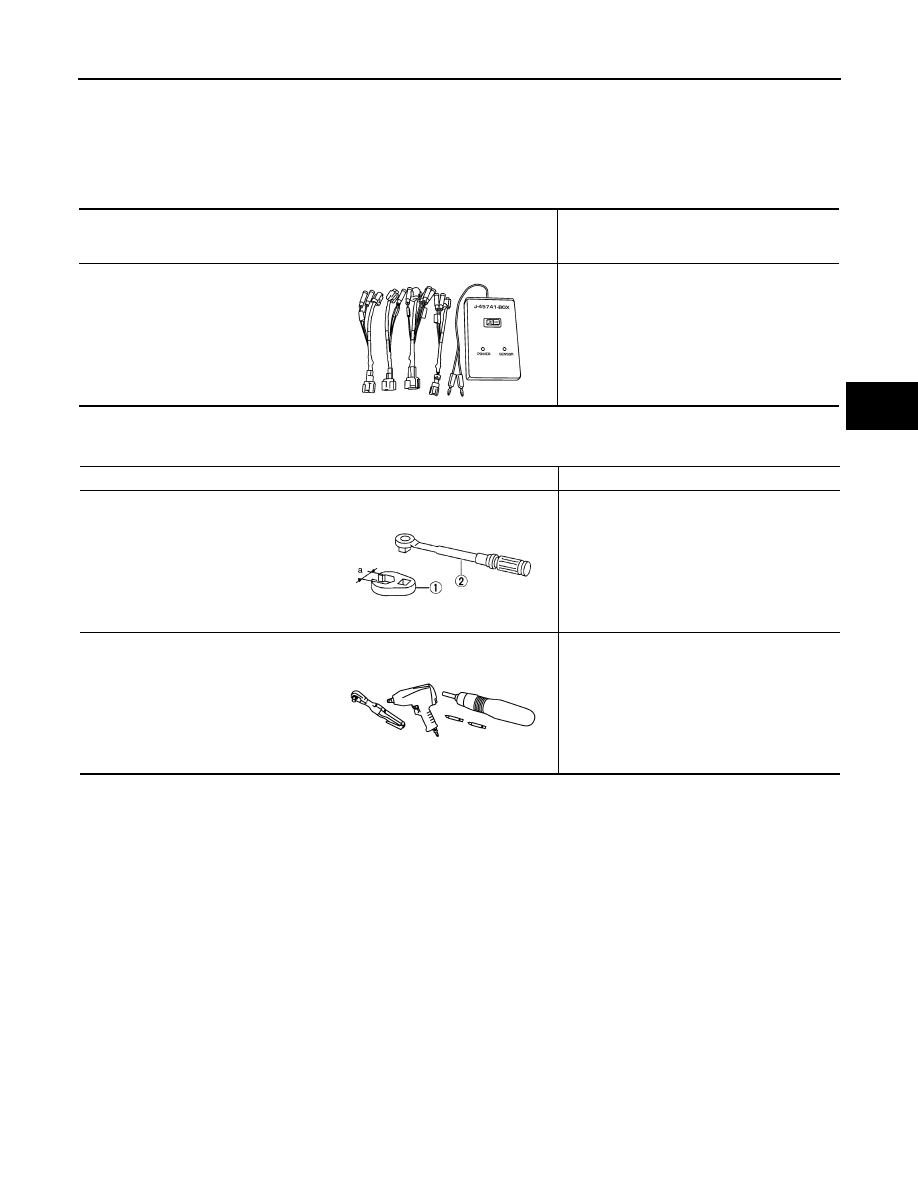

Special Service Tool

INFOID:0000000009466774

The actual shapes of the tools may differ from those illustrated here.

Commercial Service Tool

INFOID:0000000009466775

Tool number
(TechMate No.)
Tool name

Description

(J-45741)
ABS active wheel sensor tester

Checking operation of ABS active wheel sen-
sor

WFIA0101E

Tool name

Description

1. Flare nut crowfoot
2. Torque wrench

Removing and installing brake piping
 a: 10mm (0.39 in)/12mm (0.47 in)

Power tool

Loosening nuts, screws and bolts

S-NT360

PIIB1407E

BRC-102

< REMOVAL AND INSTALLATION >

[VDC/TCS/ABS]

WHEEL SENSORS

REMOVAL AND INSTALLATION

WHEEL SENSORS

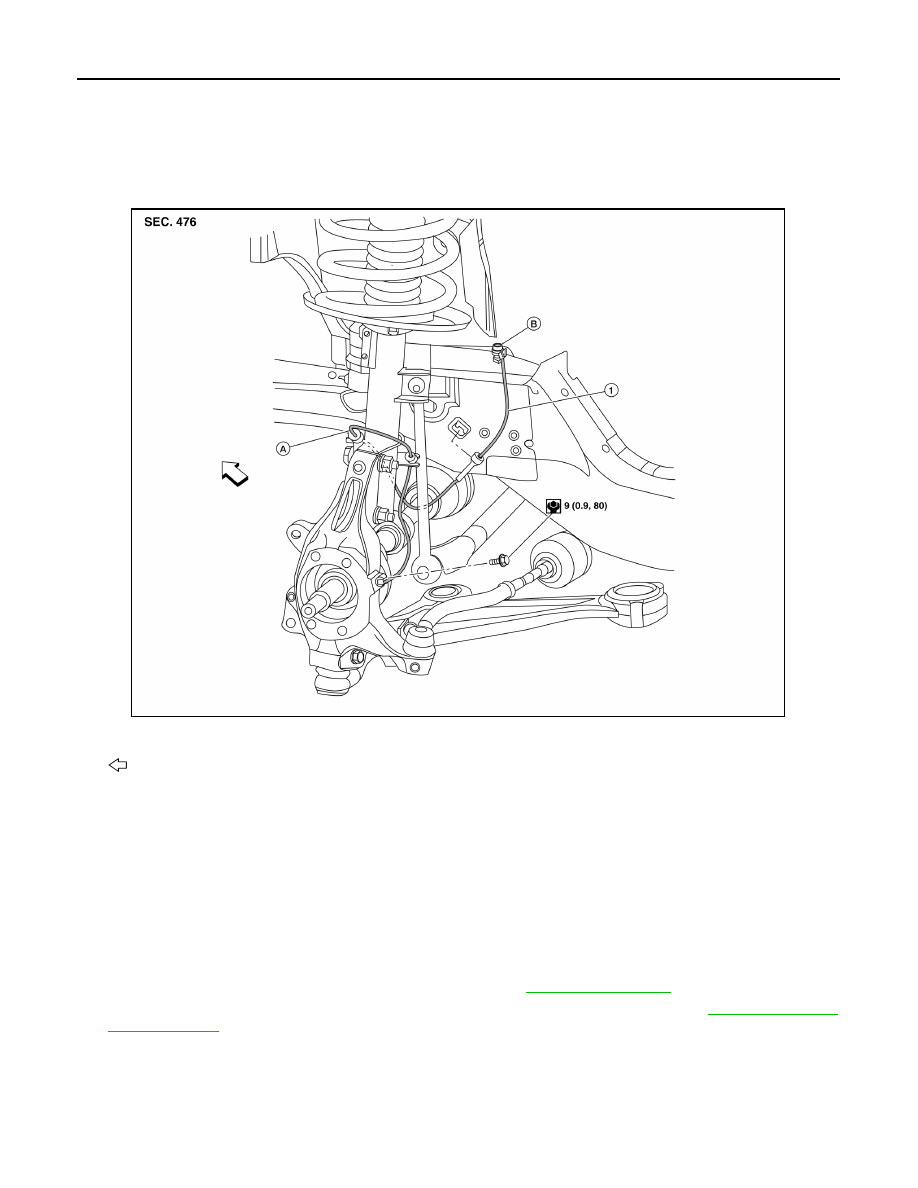

Exploded View - Front Wheel Sensor

INFOID:0000000009466776

Removal and Installation - Front Wheel Sensor

INFOID:0000000009466777

CAUTION:

• Be careful not to damage wheel sensor edge and sensor rotor teeth.

• When pulling out the wheel sensor, be careful to turn it as little as possible. Do not pull on the wheel

sensor harness.

• Check if foreign objects such as iron fragments are adhered to the pick-up part of the sensor or to

the inside of the hole for the wheel sensor, or if a foreign object is caught in the surface of the mating

surface for the wheel sensor. Repair as necessary and then install the wheel sensor.

REMOVAL

1. Remove the front wheel and tire using power tools. Refer to

WT-60, "Adjustment"

.

2. Partially remove front wheel fender protector and reposition out of the way. Refer to

EXT-24, "Removal

and Installation"

.

3. Disconnect the harness connector from the front wheel sensor.
4. Remove the front wheel sensor harness from the brackets.
5. Remove the front wheel sensor bolt and front wheel sensor from the front wheel hub and bearing assem-

bly.

INSTALLATION

1.

Front wheel sensor

A. Color line (slant line)

B. Front wheel sensor harness connector

Front

ALFIA0320ZZ

WHEEL SENSORS

BRC-103

< REMOVAL AND INSTALLATION >

[VDC/TCS/ABS]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

Installation is in the reverse order of removal.

CAUTION:

Do not twist rear wheel sensor harness when installing rear

wheel sensor. Check that grommet (2) is fully inserted to

bracket (1). Check that rear wheel sensor harness is not twisted

after installation.

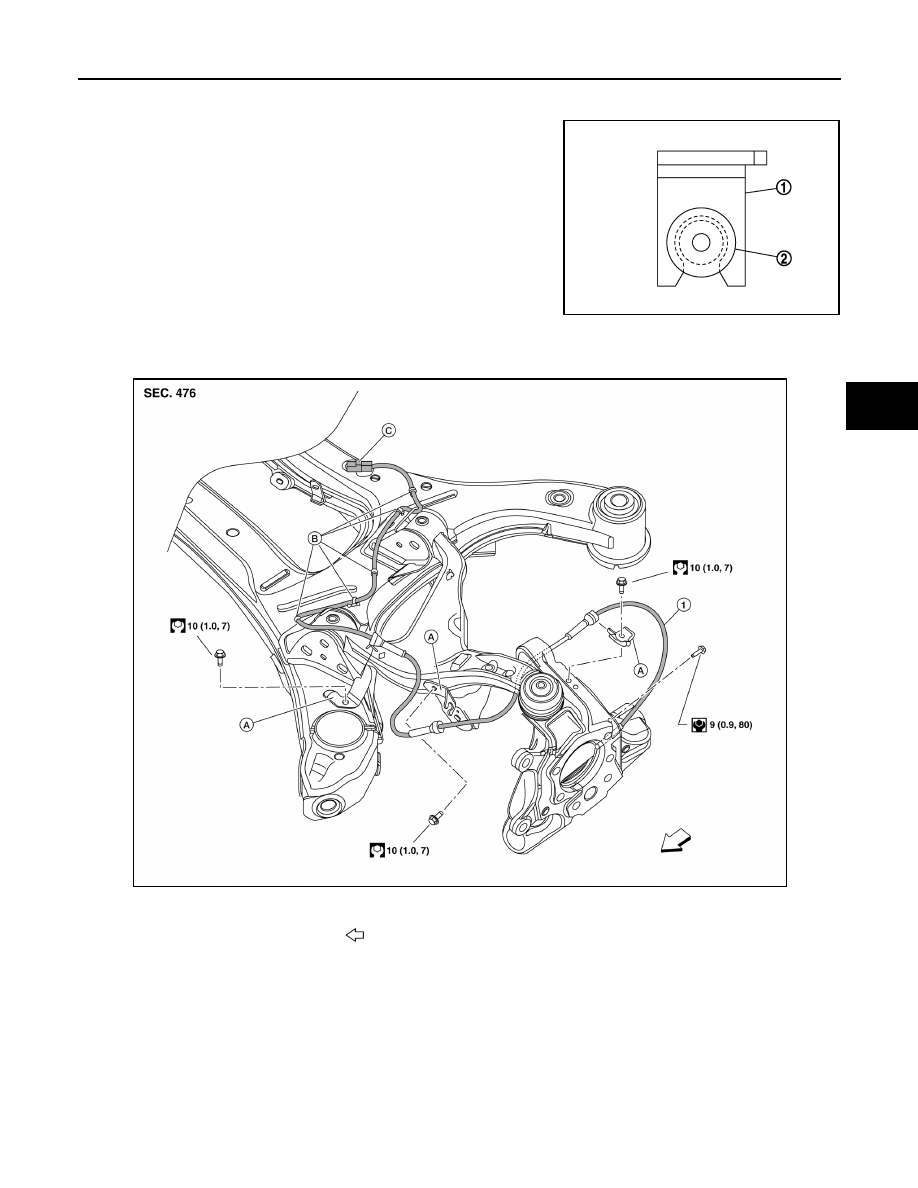

Exploded View - Rear Wheel Sensor

INFOID:0000000009466778

Removal and Installation - Rear Wheel Sensor

INFOID:0000000009466779

CAUTION:

• Be careful not to damage wheel sensor edge and sensor rotor teeth.

• When removing the front or rear wheel hub, first remove the wheel sensor from the wheel hub. Fail-

ure to do so may result in damage to the wheel sensor wires making the sensor inoperative.

• Pull out the wheel sensor, being careful to turn it as little as possible. Do not pull on the wheel sen-

sor harness.

• Before installation, check if foreign objects such as iron fragments are adhered to the pick-up part of

the sensor or to the inside of the hole in the wheel hub for the wheel sensor, or if a foreign object is

JPFIC0209ZZ

1.

Rear wheel sensor

A. Rear wheel sensor bracket

B. Clip

C. Rear wheel sensor harness connector

Front

ALFIA0323ZZ

BRC-104

< REMOVAL AND INSTALLATION >

[VDC/TCS/ABS]

WHEEL SENSORS

caught in the surface of the mating surface for the sensor rotor. Clean as necessary and then install

the wheel sensor.

REMOVAL

1. Remove the rear wheel and tire using power tools. Refer to

WT-60, "Adjustment"

.

2. Remove the rear stabilizer bar clamps and bushings. Position the stabilizer bar out of the way. Refer to

RSU-15, "Exploded View"

.

3. Disconnect the harness connector from the rear wheel sensor.
4. Remove the rear wheel sensor harness from the brackets.
5. Remove the rear wheel sensor bolt and rear wheel sensor from the rear wheel hub and bearing assembly.

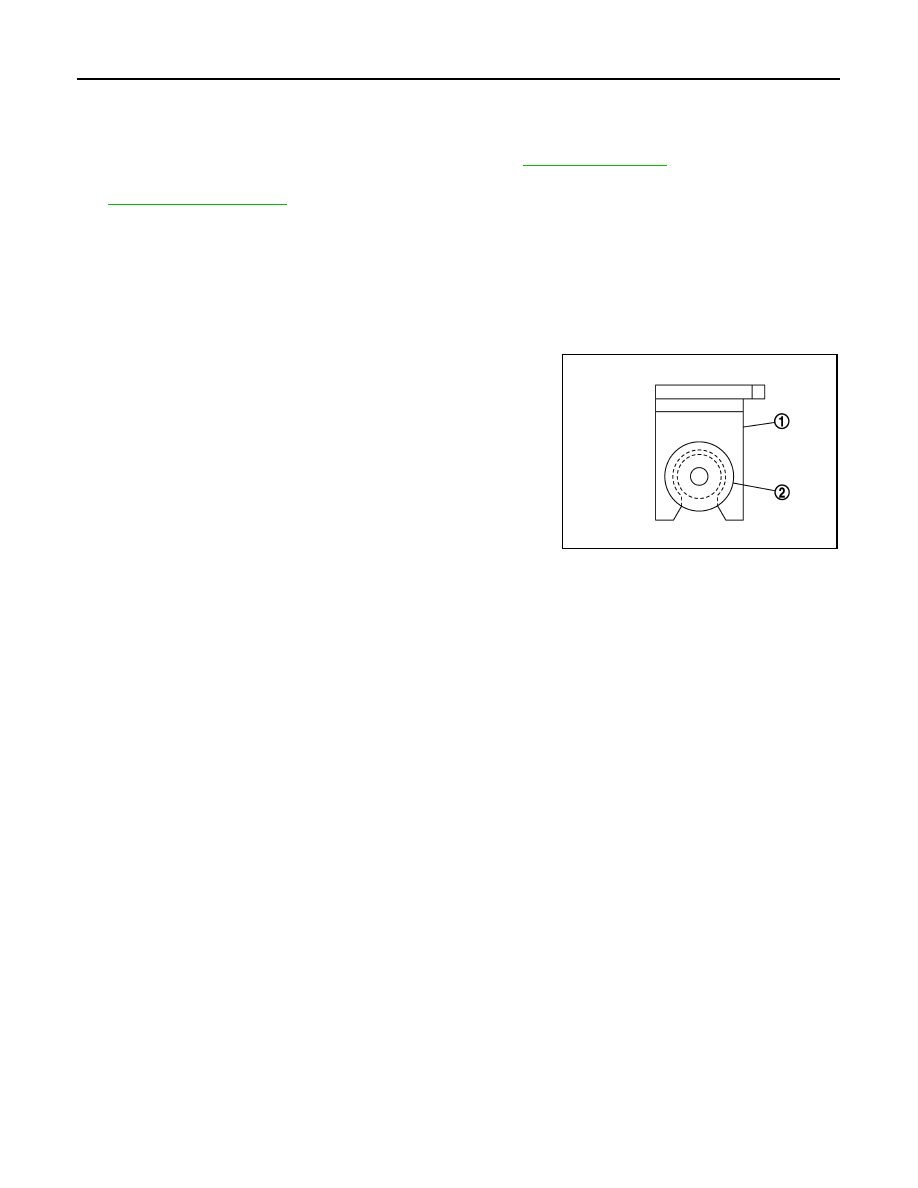

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

Do not twist rear wheel sensor harness when installing rear

wheel sensor. Check that grommet (2) is fully inserted to

bracket (1). Check that rear wheel sensor harness is not twisted

after installation.

JPFIC0209ZZ
