AV-608

< ECU DIAGNOSIS INFORMATION >

[COLOR DISPLAY - W/BOSE & NAVI]

AV CONTROL UNIT

U1310

CONTROL UNIT (AV) [U1310]

AV-570, "DTC Logic"

U1300
U1240

• AV COMM CIRCUIT [U1300]
• SWITCH CONN [U1240]

AV-569, "Description"

DTC

Display item

Refer to

AV

DISPLAY UNIT

AV-609

< ECU DIAGNOSIS INFORMATION >

[COLOR DISPLAY - W/BOSE & NAVI]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

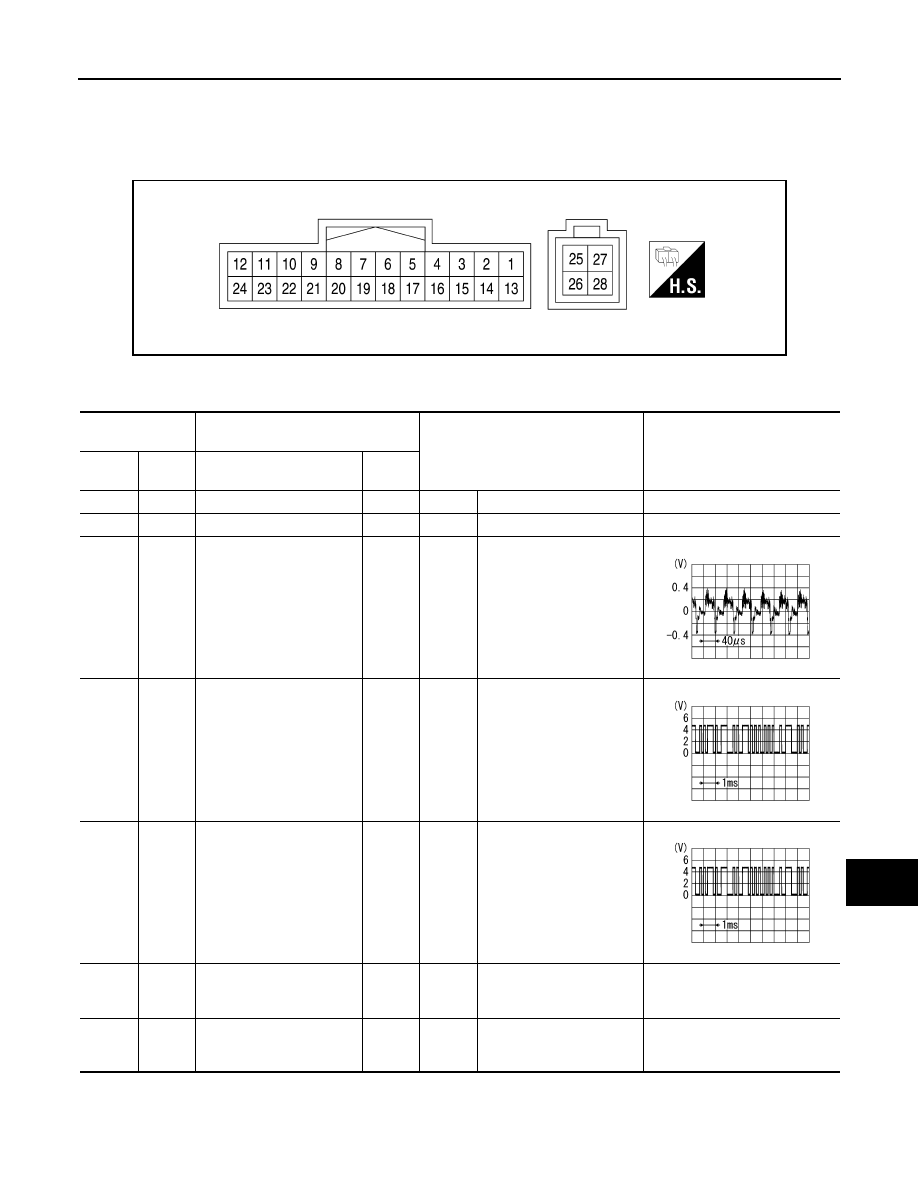

DISPLAY UNIT

Reference Value

INFOID:0000000009471520

TERMINAL LAYOUT

PHYSICAL VALUES

AWNIA1927ZZ

Terminal

(Wire color)

Description

Condition

Reference value

(Approx.)

+

–

Signal name

Input/

Output

6

—

Shield

—

—

—

—

7

—

Shield

—

—

—

—

8

(B)

Ground

Rear view camera image
signal

Input

Ignition

switch

ON

At rear view camera image

is displayed.

9

(BR)

Ground

Communication signal
(DISP

→CONT)

Output

Ignition

switch

ON

When adjusting display-
brightness.

10

(Y)

Ground

Communication signal
(CONT

→DISP)

Input

Ignition

switch

ON

When adjusting display-
brightness.

11

(Y/R)

Ground Battery power supply

Input

Ignition

switch

OFF

—

Battery Voltage

12

(B)

Ground Ground

—

Ignition

switch

ON

—

0V

SKIB2251J

PKIB5039J

PKIB5039J

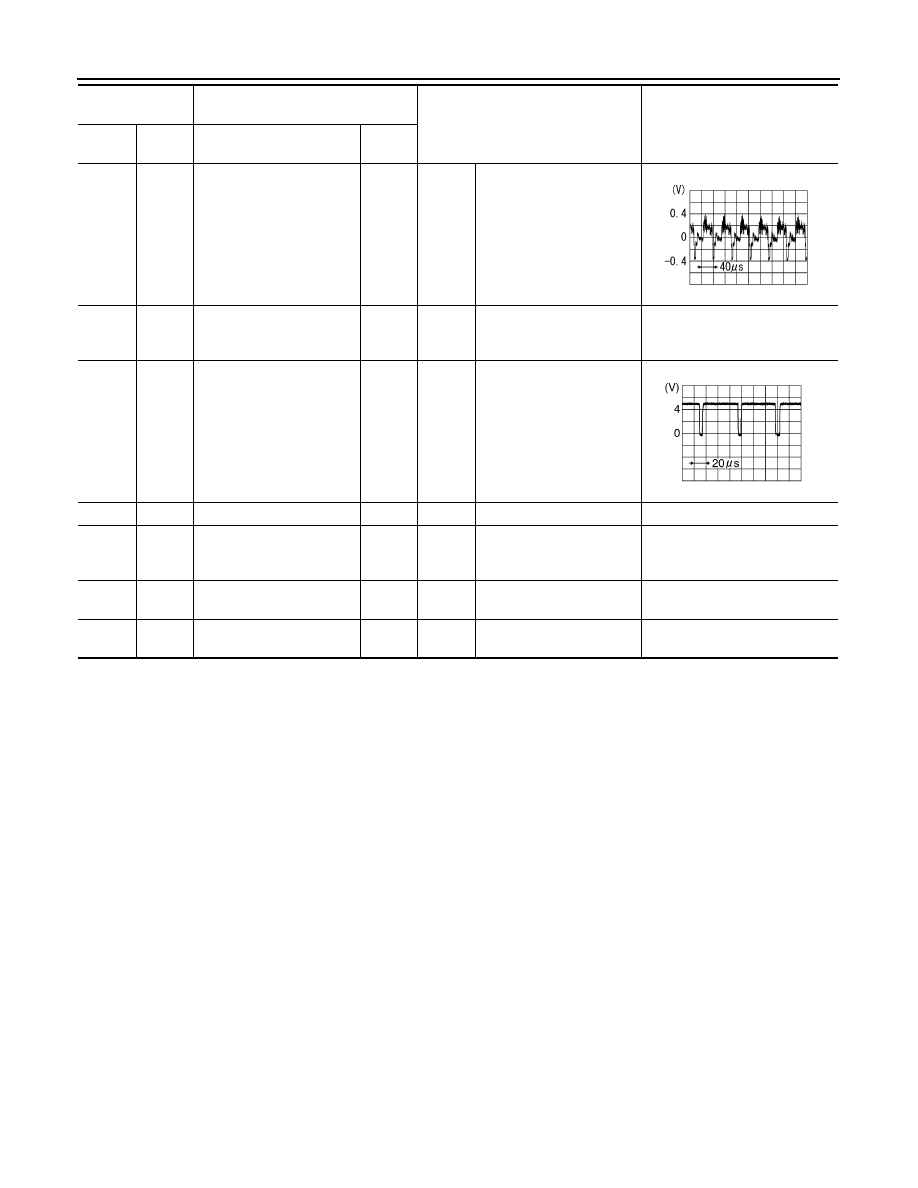

AV-610

< ECU DIAGNOSIS INFORMATION >

[COLOR DISPLAY - W/BOSE & NAVI]

DISPLAY UNIT

18

(R)

Ground Composite image signal

Input

Ignition

switch

ON

At DVD image is displayed.

19

(W)

Ground Composite image ground

—

Ignition

switch

ON

—

0V

20

(B)

Ground

Composite synchronizing
signal

Input

Ignition

switch

ON

—

22

—

Shield

—

—

—

—

23

(V/Y)

Ground ACC power supply

Input

Ignition

switch

ACC

—

—

27

(R)

—

RGB digital image signal
(+)

Input

—

—

—

28

(W)

—

RGB digital image signal
(-)

Input

—

—

—

Terminal

(Wire color)

Description

Condition

Reference value

(Approx.)

+

–

Signal name

Input/

Output

SKIB2251J

SKIB3603E

AV

BOSE SPEAKER AMP

AV-611

< ECU DIAGNOSIS INFORMATION >

[COLOR DISPLAY - W/BOSE & NAVI]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

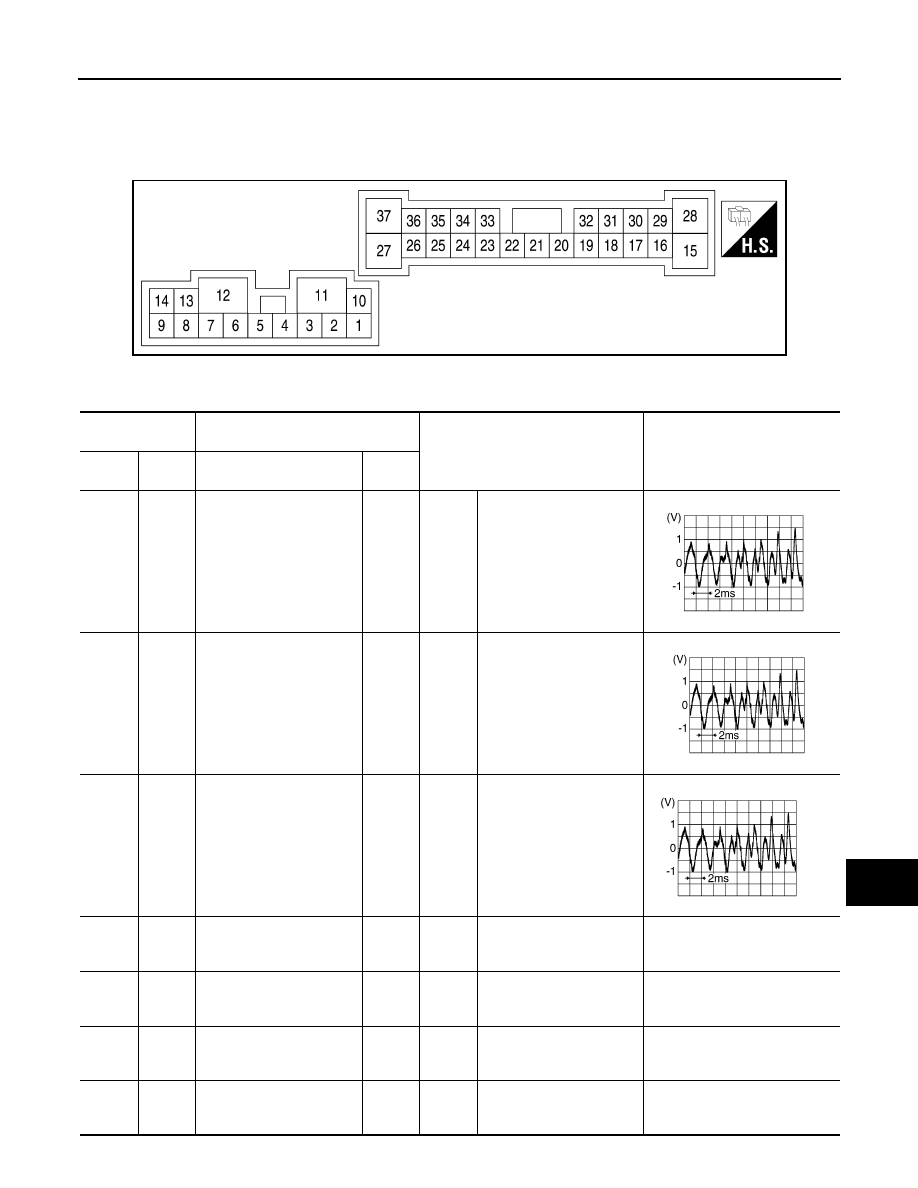

BOSE SPEAKER AMP

Reference Value

INFOID:0000000009471521

TERMINAL LAYOUT

PHYSICAL VALUES

ALNIA1165ZZ

Terminal

(Wire color)

Description

Condition

Reference value

(Approx.)

+

–

Signal name

Input/

Output

1

(LG)

2

(V)

Audio signal  tweeter LH

Output

Ignition

switch

ON

Audio output

4

(G)

3

(W)

Audio signal tweeter RH

Output

Ignition

switch

ON

Audio output

5

(R)

6

(BR)

Audio signal subwoofer LH

Output

Ignition

switch

ON

Audio output

7

(B)

Ground Ground

—

Ignition

switch

ON

—

0V

10

(SB)

Ground Battery power supply

Input

Ignition

switch

OFF

—

Battery voltage

11

(GR)

Ground Battery power supply

Input

Ignition

switch

OFF

—

Battery voltage

12

(B)

Ground Ground

—

Ignition

switch

ON

—

0V

SKIB3609E

SKIB3609E

SKIB3609E
