Nissan Maxima. Manual - part 198

AV-612

< ECU DIAGNOSIS INFORMATION >

[COLOR DISPLAY - W/BOSE & NAVI]

BOSE SPEAKER AMP

13

(L)

8

(P)

Audio signal subwoofer LH

Output

Ignition

switch

ON

Audio output

14

(LG)

9

(O)

Audio signal rear door
speaker RH

Output

Ignition

switch

ON

Audio output

18

(W)

19

(B)

Audio signal front door
speaker LH

Output

Ignition

switch

ON

Audio output

20

(SB)

Ground Amp. ON signal

Input

Ignition

switch

ACC

—

Battery voltage

24

(GR)

23

(L)

Audio signal rear LH

Input

Ignition

switch

ON

Audio input

26

(BR)

25

(Y)

Audio signal rear RH

Input

Ignition

switch

ON

Audio input

28

(G)

15

(L)

Audio signal rear door
speaker LH

Output

Ignition

switch

ON

Audio output

Terminal

(Wire color)

Description

Condition

Reference value

(Approx.)

+

–

Signal name

Input/

Output

SKIB3609E

SKIB3609E

SKIB3609E

SKIB3609E

SKIB3609E

SKIB3609E

AV

BOSE SPEAKER AMP

AV-613

< ECU DIAGNOSIS INFORMATION >

[COLOR DISPLAY - W/BOSE & NAVI]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

29

(V)

30

(P)

Audio signal center speak-
er

Output

Ignition

switch

ON

Audio output

31

(R)

32

(BR)

Audio signal front door
speaker RH

Output

Ignition

switch

ON

Audio output

33

(LG)

34

(V)

Audio signal front RH

Input

Ignition

switch

ON

Audio input

35

(W)

36

(B)

Audio signal rear LH

Input

Ignition

switch

ON

Audio input

Terminal

(Wire color)

Description

Condition

Reference value

(Approx.)

+

–

Signal name

Input/

Output

SKIB3609E

SKIB3609E

SKIB3609E

SKIB3609E

AV-614

< WIRING DIAGRAM >

[COLOR DISPLAY - W/BOSE & NAVI]

COLOR DISPLAY

WIRING DIAGRAM

COLOR DISPLAY

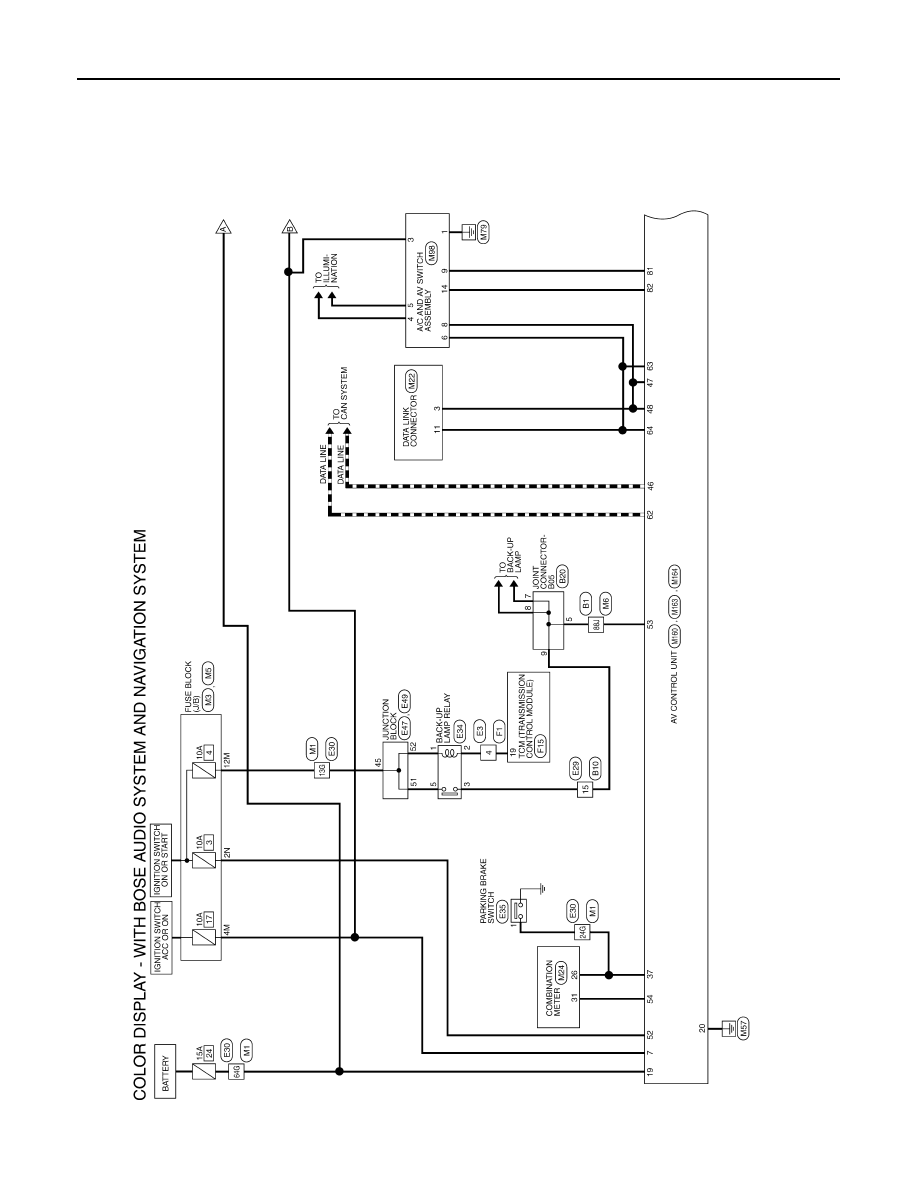

Wiring Diagram - With BOSE audio system With Navigation System

INFOID:0000000009471522

ABNWA1938GB

AV

COLOR DISPLAY

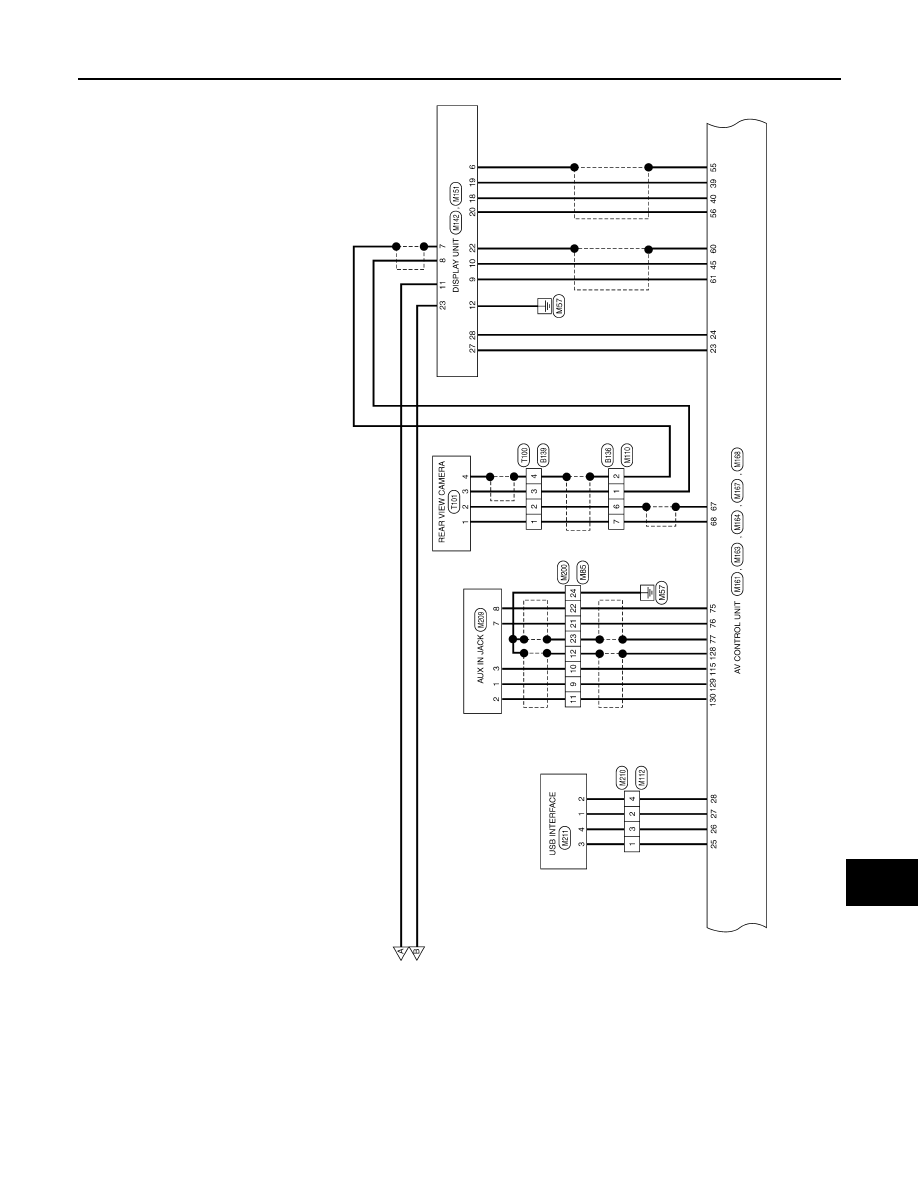

AV-615

< WIRING DIAGRAM >

[COLOR DISPLAY - W/BOSE & NAVI]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

ABNWA1516GB
