Nissan Maxima. Manual - part 176

AV-524

< SYSTEM DESCRIPTION >

[COLOR DISPLAY - W/BOSE & NAVI]

HANDS-FREE PHONE SYSTEM

Component Description

INFOID:0000000009471440

Steering angle sensor M53 [located
in steering column behind combina-
tion switch (spiral cable)]

Steering wheel audio control switch-
es

USB interface M211(view in center
console)

10. Aux in jack M209

11. Microphone R7

12. Rear view camera T101

13. Front door speaker

LH D3
RH D103

14. Rear door speaker

LH D202
RH D302

15. Rear subwoofers (view under rear

parcel shelf)
LH B106
RH B107

16. BOSE speaker amp B109, B110

Part name

Description

AV control unit

• Receives telephone voice signal from antenna and microphone
• Sends telephone voice and voice guidance signals to the speakers

BOSE speaker amp.

• Receives audio signals from the AV control unit
• Outputs amplified audio signals to the speakers.

Front door speaker

Receives telephone voice and voice guidance signals from the AV control unit
through the BOSE speaker amp.

Front tweeter

Center speaker

Steering wheel audio control switches

• Start a voice recognition session
• Answer and end telephone calls
• Adjust the volume level

Microphone

Sends voice signals to AV control unit

Bluetooth

antenna

Sends telephone voice signal to AV control unit

DIAGNOSIS SYSTEM (AV CONTROL UNIT)

AV-525

< SYSTEM DESCRIPTION >

[COLOR DISPLAY - W/BOSE & NAVI]

DIAGNOSIS SYSTEM (AV CONTROL UNIT)

Description

INFOID:0000000009471441

• The AV control unit diagnosis function starts up with multifunction switch operation and the AV control unit

performs a diagnosis for each unit in the system during the on board diagnosis.

• Perform a CONSULT diagnosis if the on board diagnosis does not start, e.g., the screen does not display

anything, the multifunction switch does not function, etc.

On Board Diagnosis Function

INFOID:0000000009471442

MULTIFUNCTION SWITCH AND PRESET SWITCH SELF-DIAGNOSIS FUNCTION

The ON/OFF operation (continuity) of each switch in the multifunction switch and preset switch can be

checked.

Self-diagnosis Mode

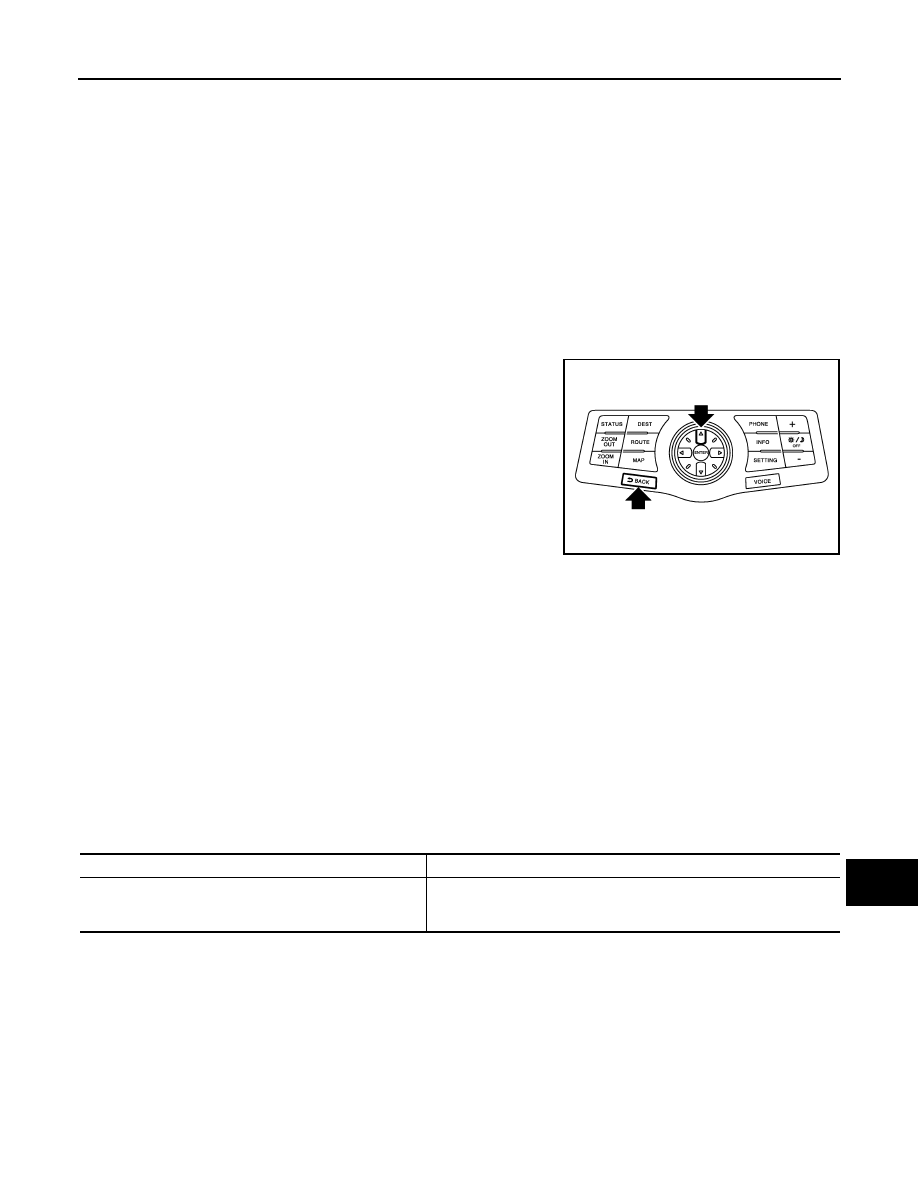

• Press the “BACK” switch and the “UP” switch of the 8-direction

switches within 10 seconds after turning the ignition switch from

OFF to ACC and hold them for 3 seconds or more. Then the

buzzer sounds, all indicators of the preset switch illuminate, and

the self-diagnosis mode starts.

• The continuity of each switch at the ON position can be checked

by pressing the switch. The buzzer sounds if the switch is normal.

NOTE:

The disk eject switch cannot be checked.

Finishing Self-diagnosis Mode

Self-diagnosis mode is canceled when turning the ignition switch OFF.

ON BOARD DIAGNOSIS

Description

• The trouble diagnosis function has a self-diagnosis mode for conducting trouble diagnosis automatically and

a confirmation/adjustment mode for operating manually.

• The self-diagnosis mode performs diagnoses on the AV control unit, connections between system compo-

nents as well as connections between AV control unit and GPS antenna. Then it displays the diagnosis

results on the display.

• The confirmation/adjustment mode allows the technician to check, modify or adjust the vehicle signals and

set values, as well as to monitor the system error records and system communication status. The checking,

modifying or adjusting generally require human intervention and judgment (the system cannot make judg-

ment automatically).

On Board Diagnosis Item

JSNIA1953ZZ

Mode

Description

Self Diagnosis

• AV control unit diagnosis.
• Diagnoses the connections across system components, between AV

control unit and GPS antenna.

AV-526

< SYSTEM DESCRIPTION >

[COLOR DISPLAY - W/BOSE & NAVI]

DIAGNOSIS SYSTEM (AV CONTROL UNIT)

STARTING PROCEDURE

1. Start the engine.
2. Turn the audio system OFF.

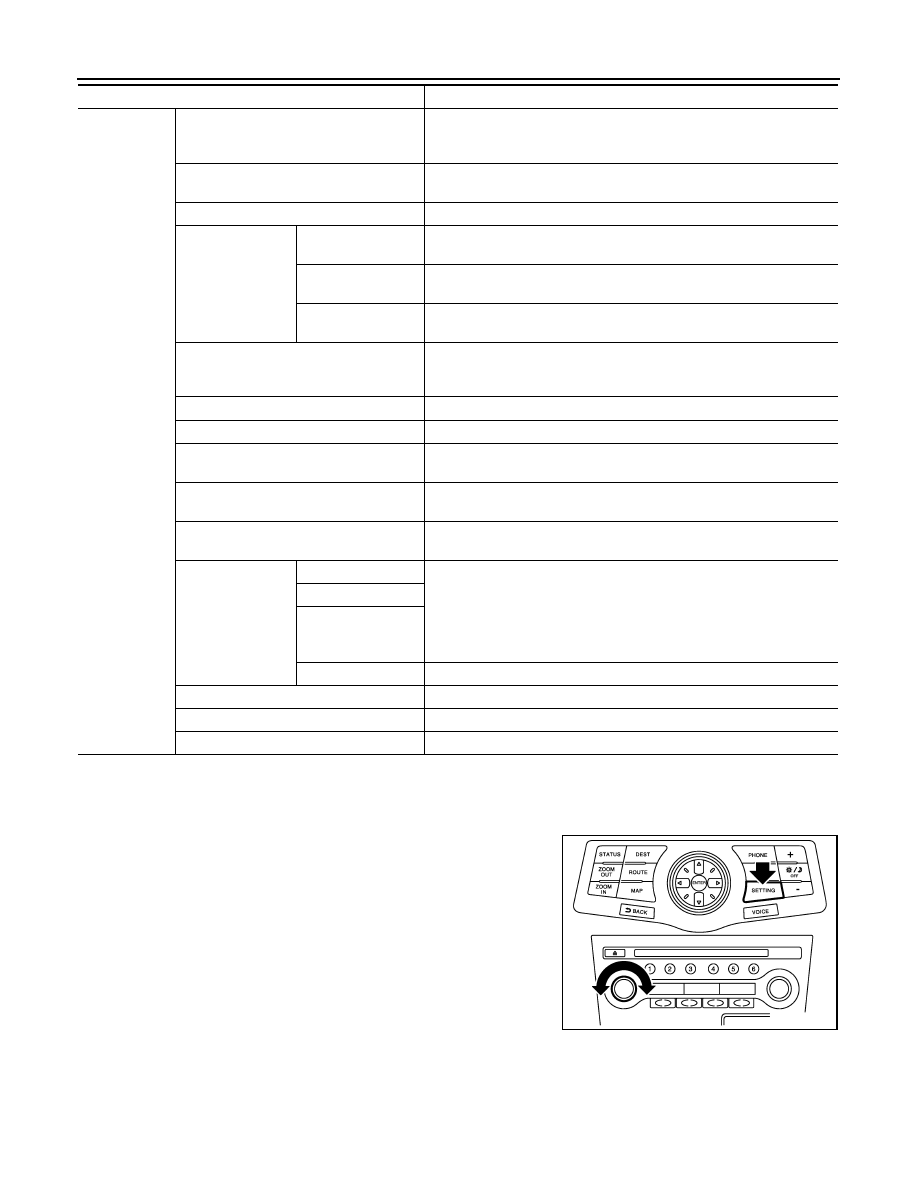

3. While pressing the “SETTING” button, turn the volume control

dial clockwise or counterclockwise for 40 clicks or more. (When

the self-diagnosis mode is started, a short beep will be heard.)

• Shifting from current screen to previous screen is performed

by pressing “BACK” button.

Confirmation/

Adjustment

Display Diagnosis

The following check functions are available: color tone check by color
bar display, light and shade check by gray scale display, touch panel cal-
ibration and response check, and color tone check by white display.

Vehicle Signals

Diagnosis of signals can be performed for vehicle speed, parking brake,
lights, ignition, reverse, side view switch and room lamp.

Speaker Test

The connection of a speaker can be confirmed by test tone.

Navigation

Steering Angle Ad-
justment

When there is a difference between the actual turning angle and the ve-
hicle mark turning angle, it can be adjusted.

Speed Calibration

When there is a difference between the current location mark and the ac-
tual location, it can be adjusted.

XM Subscription
Status

The XM NavTraffic subscription status can be checked.

Error History

The system malfunction and the frequency when occurring in the past
are displayed. When the malfunctioning item is selected, the time and
place that the selected malfunction last occurred are displayed.

Synchronize FES Clock

–

Vehicle CAN Diagnosis

The transmitting/receiving of CAN communication can be monitored.

AV COMM Diagnosis

The communication condition of each unit of Multi AV system can be
monitored.

Hands-free Phone

The received volume adjustment of hands-free phone, microphone
speaker check, and erase memory can be performed.

Camera

The four functions of “Correct Draw Line”“Alter/Confirm Configuration”,
“Reset Configuration” and “Camera Syst Type” are available.

XM NavTraffic

Change Channel

• Any necessary channels required to receive traffic information from

the satellite radio system can be set.
Change Application ID

• Any application ID'-s required to receive traffic information from the

satellite radio system can be set.

XM NavWeather

XM CGS

Diag

Not used.

Delete Unit Connection Log

Erase the connection history of unit and error history.

Initialize Settings

Initializes the AV control unit memory.

Version Information

Version information of the AV control unit is displayed.

Mode

Description

JSNIA1954ZZ

DIAGNOSIS SYSTEM (AV CONTROL UNIT)

AV-527

< SYSTEM DESCRIPTION >

[COLOR DISPLAY - W/BOSE & NAVI]

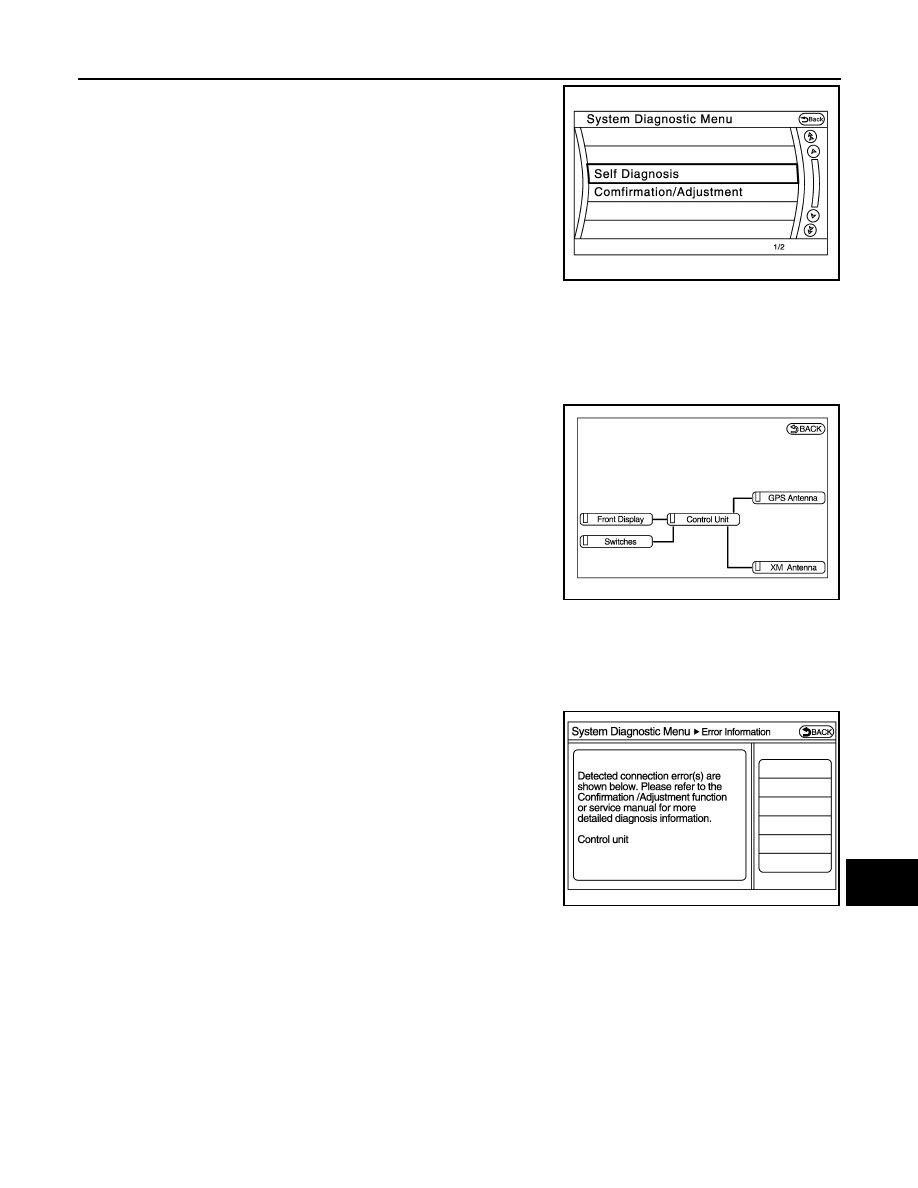

4. The trouble diagnosis initial screen is displayed, and then the

items of “Self Diagnosis” and “Confirmation/Adjustment” can be

selected.

SELF-DIAGNOSIS MODE

1. Start the self-diagnosis function and select “Self Diagnosis”.

Self-diagnosis subdivision screen is displayed, and the self-diagnosis mode starts.

The bar graph visible on the center of the self-diagnosis subdivision screen indicates progress of the trou-

ble diagnosis.

2. Diagnosis results are displayed after the self-diagnosis is com-

pleted. The unit names and the connection lines are color-coded

according to the diagnostic results.

NOTE:
Control unit (AV control unit) and amplifier (BOSE amp.) are displayed in red.
• Replace AV control unit if “Self-Diagnosis did not run because of a control unit malfunction” is indicated. The symptom is AV con-

trol unit internal error.

• If multiple errors occur at the same time for a single unit, the screen switch colors are determined according to the following order

of priority: red > gray.

The comments of the self-diagnosis results can be viewed with a

component in the diagnosis result screen.

Detection Range of Self-diagnosis Mode

• The self-diagnosis mode allows the technician to diagnose the connection in the communication line

between AV control unit and each unit and the internal operation of the AV control unit.

• Because the start condition of diagnosis function is a switch operation, the on board diagnosis function can-

not be started up if any malfunction is detected in the communication circuit between AV control unit and

multifunction switch.

SELF-DIAGNOSIS RESULTS

Check the applicable display at the following table, and then repair the malfunctioning parts.

Only Unit Part Is Displayed In Red.

JSNIA2173ZZ

Diagnosis results

Unit

Connec-

tion line

Normal

Green

Connection malfunction

Gray

Yellow

Unit malfunction

Note

Red

Green

AWNIA1940GB

JPNIA1787ZZ
