Accuracy of the GPS will deteriorate under the following conditions.

• In two-dimensional positioning, the GPS accuracy will deteriorate when the altitude of the vehicle position

changes.

• There may be an error of approximately 10 m (30 ft.) in position detected by three-dimensional positioning,

which is more accurate than two-dimensional positioning. The accuracy can be even lower depending on the

arrangement of the GPS satellites utilized for the positioning.

• Position detection is not possible when the vehicle is in an area where radio waves from the GPS satellite do

not reach, such as in a tunnel, parking lot in a building, and under an elevated highway. Radio waves from

the GPS satellites may not be received when some object is located over the GPS antenna.

• Position correction by GPS is not available while the vehicle is stopped.

AV

NAVIGATION SYSTEM

AV-517

< SYSTEM DESCRIPTION >

[COLOR DISPLAY - W/BOSE & NAVI]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

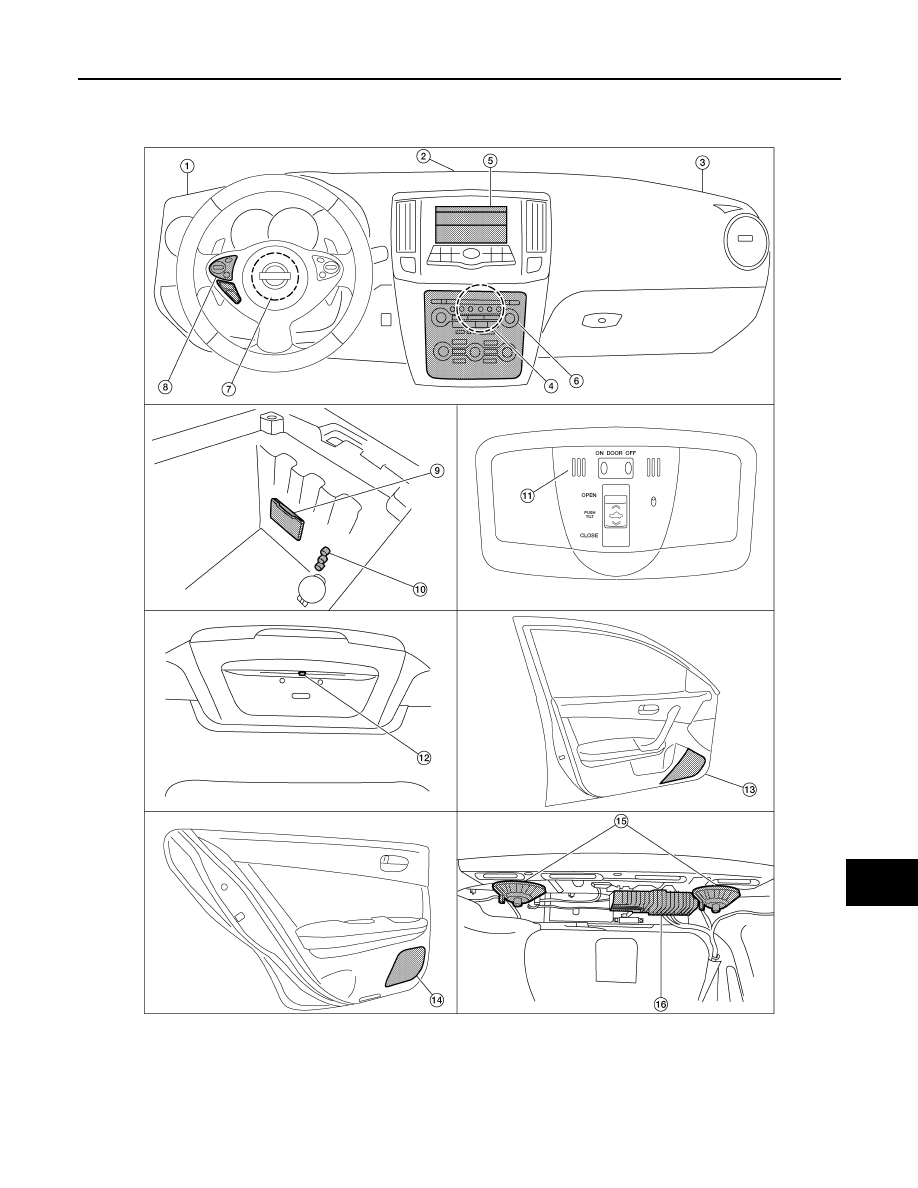

Component Parts Location

INFOID:0000000009471431

1.

Tweeter LH M51

2.

Center speaker M130

3.

Tweeter RH M52

4.

AV control unit M160, M161, M162,
M163, M164, M165, M166, M167,
M168 (located behind A/C and AV
switch assembly)

5.

Display unit M142, M151

6.

A/C and AV switch assembly M98

AWNIA3228ZZ

AV-518

< SYSTEM DESCRIPTION >

[COLOR DISPLAY - W/BOSE & NAVI]

NAVIGATION SYSTEM

Component Description

INFOID:0000000009471432

7.

Steering angle sensor M53 [located
in steering column behind combina-
tion switch (spiral cable)]

8.

Steering wheel audio control switch-
es

9.

USB interface M211(view in center
console)

10. Aux in jack M209

11. Microphone R7

12. Rear view camera T101

13. Front door speaker

LH D3
RH D103

14. Rear door speaker

LH D202
RH D302

15. Rear subwoofers (view under rear

parcel shelf)
LH B106
RH B107

16. BOSE speaker amp B109, B110

Part name

Description

AV control unit

• Controls each operation of the navigation system
• HDD is built in
• Voice guidance signal is output to BOSE speaker amp.

BOSE speaker amp.

Voice guidance signal is input from AV control unit, and it is output to speakers.

Tweeter

Voice guidance signal from BOSE speaker amp. is output.

Steering wheel audio control switches

• Each operation of navigation system can be performed
• Switch operating signal is output to AV control unit

Microphone

Sends voice signals to AV control unit

GPS antenna

GPS signal is received and is output to AV control unit.

AV

REAR VIEW MONITOR SYSTEM

AV-519

< SYSTEM DESCRIPTION >

[COLOR DISPLAY - W/BOSE & NAVI]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

REAR VIEW MONITOR SYSTEM

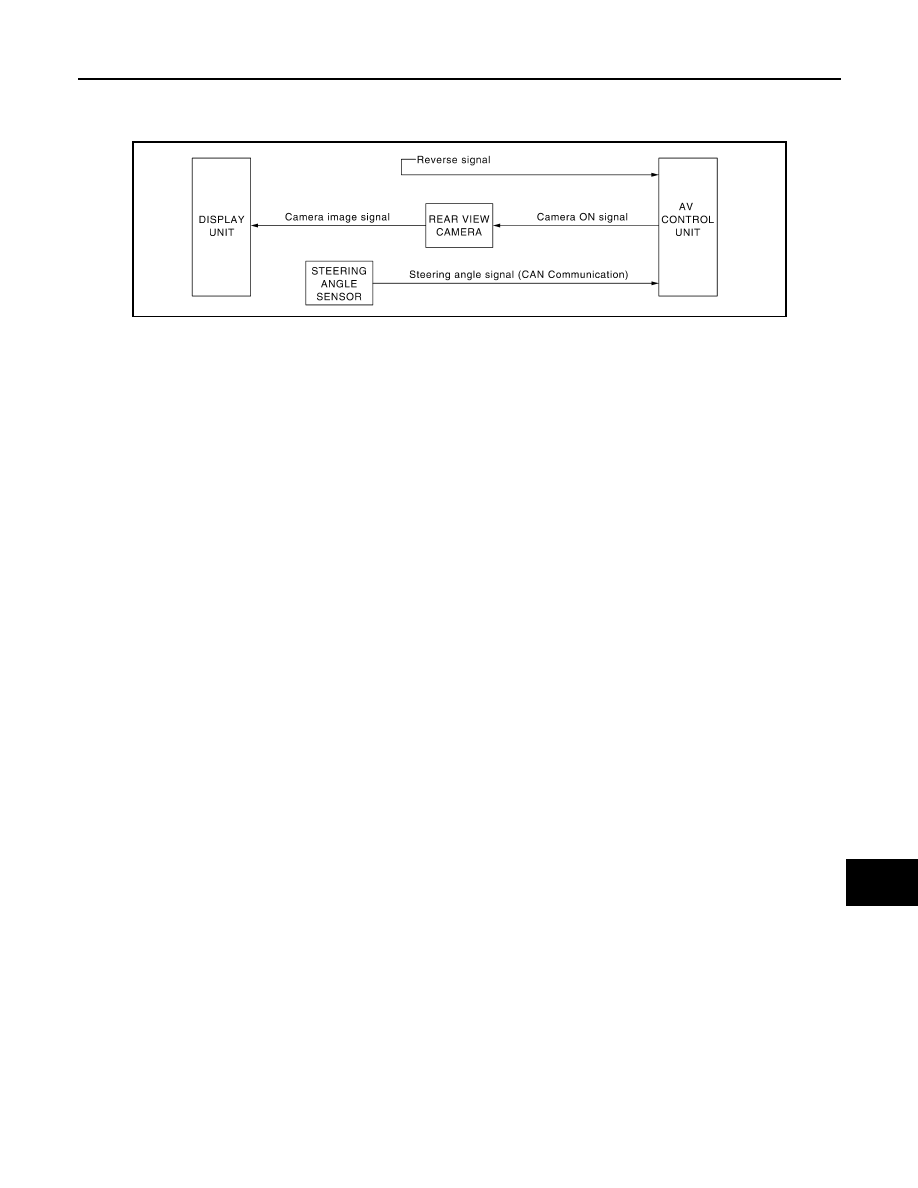

System Diagram

INFOID:0000000009471433

System Description

INFOID:0000000009471434

When the shift selector is in the R position, the display unit shows a view to the rear of the vehicle. Lines which

indicate the vehicle clearance and distances are also displayed.

AWNIA1921GB
