AV-520

< SYSTEM DESCRIPTION >

[COLOR DISPLAY - W/BOSE & NAVI]

REAR VIEW MONITOR SYSTEM

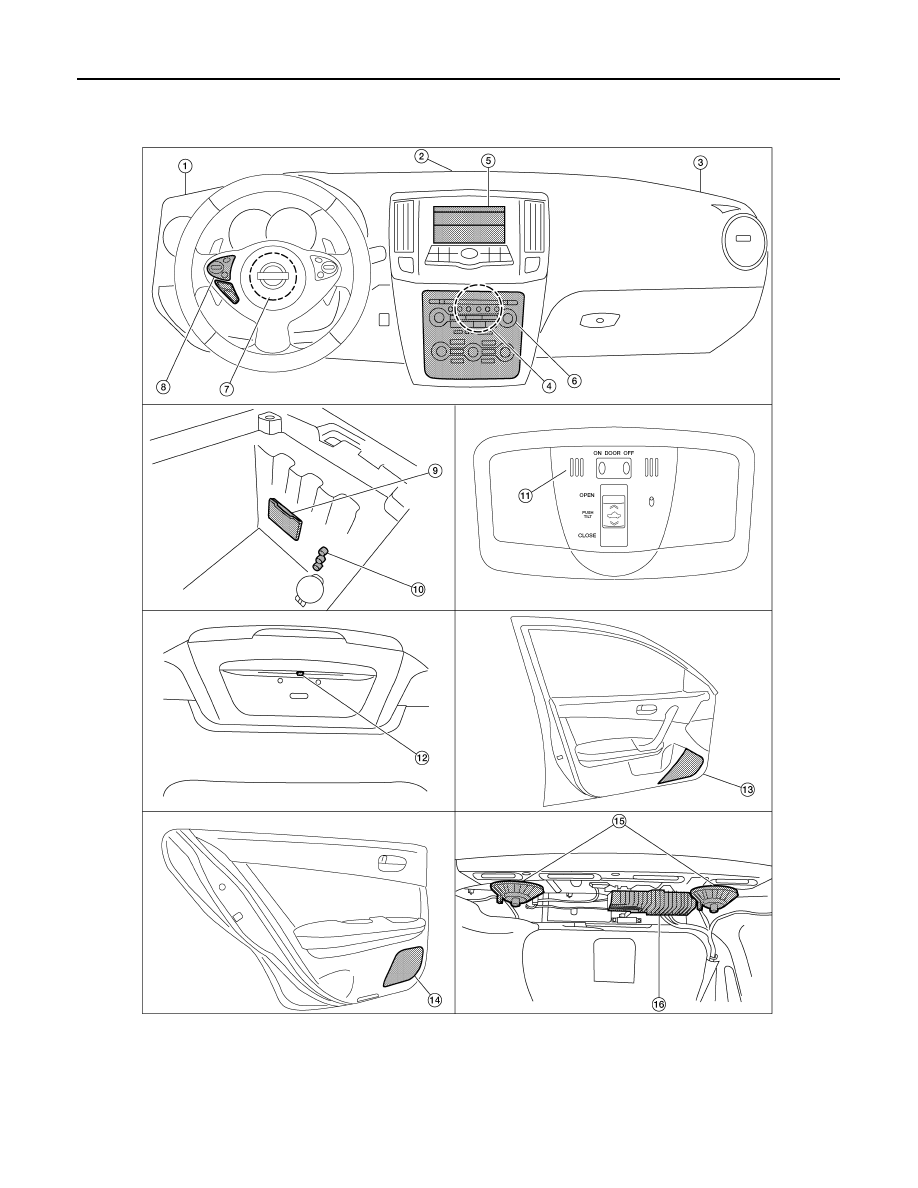

Component Parts Location

INFOID:0000000009471435

1.

Tweeter LH M51

2.

Center speaker M130

3.

Tweeter RH M52

4.

AV control unit M160, M161, M162,
M163, M164, M165, M166, M167,
M168 (located behind A/C and AV
switch assembly)

5.

Display unit M142, M151

6.

A/C and AV switch assembly M98

AWNIA3228ZZ

AV

REAR VIEW MONITOR SYSTEM

AV-521

< SYSTEM DESCRIPTION >

[COLOR DISPLAY - W/BOSE & NAVI]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

Component Description

INFOID:0000000009471436

7.

Steering angle sensor M53 [located
in steering column behind combina-
tion switch (spiral cable)]

8.

Steering wheel audio control switch-
es

9.

USB interface M211(view in center
console)

10. Aux in jack M209

11. Microphone R7

12. Rear view camera T101

13. Front door speaker

LH D3
RH D103

14. Rear door speaker

LH D202
RH D302

15. Rear subwoofers (view under rear

parcel shelf)
LH B106
RH B107

16. BOSE speaker amp B109, B110

Part name

Description

AV control unit

• Receives reverse signal from back-up lamp relay
• Receives steering angle sensor signal
• Sends camera ON signal to rear view camera

Rear view camera

• Receives camera ON signal from the AV control unit
• Sends image signal to the display unit

Steering angle sensor

Sends steering angle information to the AV control unit via CAN communication

AV-522

< SYSTEM DESCRIPTION >

[COLOR DISPLAY - W/BOSE & NAVI]

HANDS-FREE PHONE SYSTEM

HANDS-FREE PHONE SYSTEM

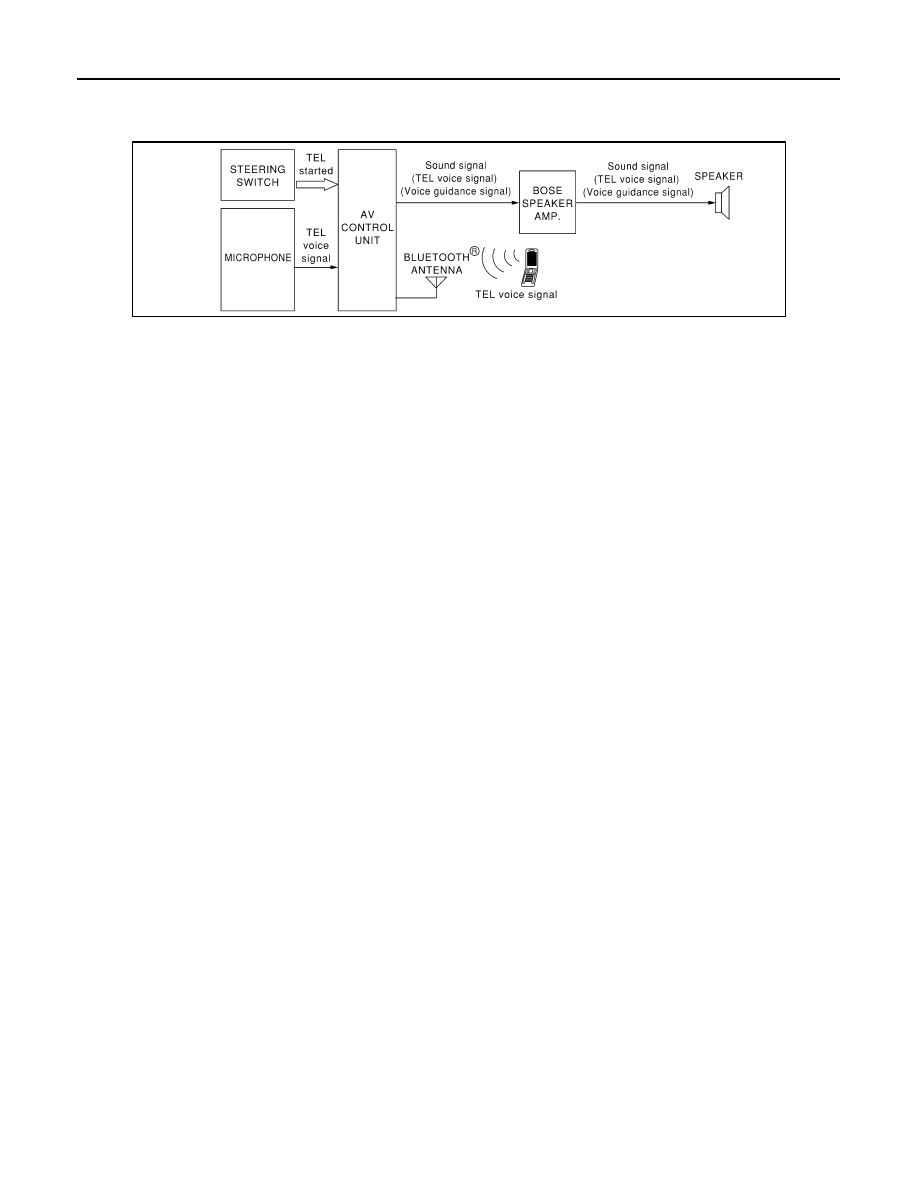

System Diagram

INFOID:0000000009471437

System Description

INFOID:0000000009471438

Refer to the Owner's Manual for Bluetooth

®

 telephone system operating instructions.

NOTE:
Cellular telephones must have their wireless connection set up (paired) before using the Bluetooth

®

 telephone

system.
Bluetooth

®

 telephone system allows users who have a Bluetooth

®

 equipped cellular telephone to make a

wireless connection between their cellular telephone and the AV control unit. Hands-free cellular telephone

calls can be sent and received. Personal memos can be created using the Nissan Voice Recognition system.
Some Bluetooth

®

 cellular telephones may not be recognized by the AV control unit. When a cellular telephone

or the AV control unit is replaced, the telephone must be paired with the AV control unit. Different cellular tele-

phones may have different pairing procedures. Refer to the cellular telephone operating manual and the vehi-

cle Owner’s Manual for more information.

AV CONTROL UNIT

When the ignition switch is turned to ACC or ON, the AV control unit will power up. During power up, the Blue-
tooth

®

 feature is initialized and performs various self-checks.   Initialization may take up to 10 seconds.  If a

phone is present in the vehicle and paired with the AV control unit, Nissan Voice Recognition will then become
active. Bluetooth

®

 telephone functions can be turned off using the Nissan Voice Recognition system.

STEERING WHEEL AUDIO CONTROL SWITCHES

When buttons on the steering wheel audio control switch are pushed, the resistance in steering wheel audio

control switch circuit changes depending on which button is pushed. The AV control unit uses this signal to

perform various functions while navigating through the voice recognition system.

The following functions can be performed using the steering wheel audio control switch:
• Initiate self-diagnosis of the Bluetooth

®

 telephone system

• Start a voice recognition session

• Answer and end telephone calls

• Adjust the volume of calls

• Record memos

MICROPHONE

The microphone is located in the roof console assembly. The microphone sends a signal to the AV control unit.

The microphone can be actively tested during self-diagnosis.

AWNIA2705GB

AV

HANDS-FREE PHONE SYSTEM

AV-523

< SYSTEM DESCRIPTION >

[COLOR DISPLAY - W/BOSE & NAVI]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

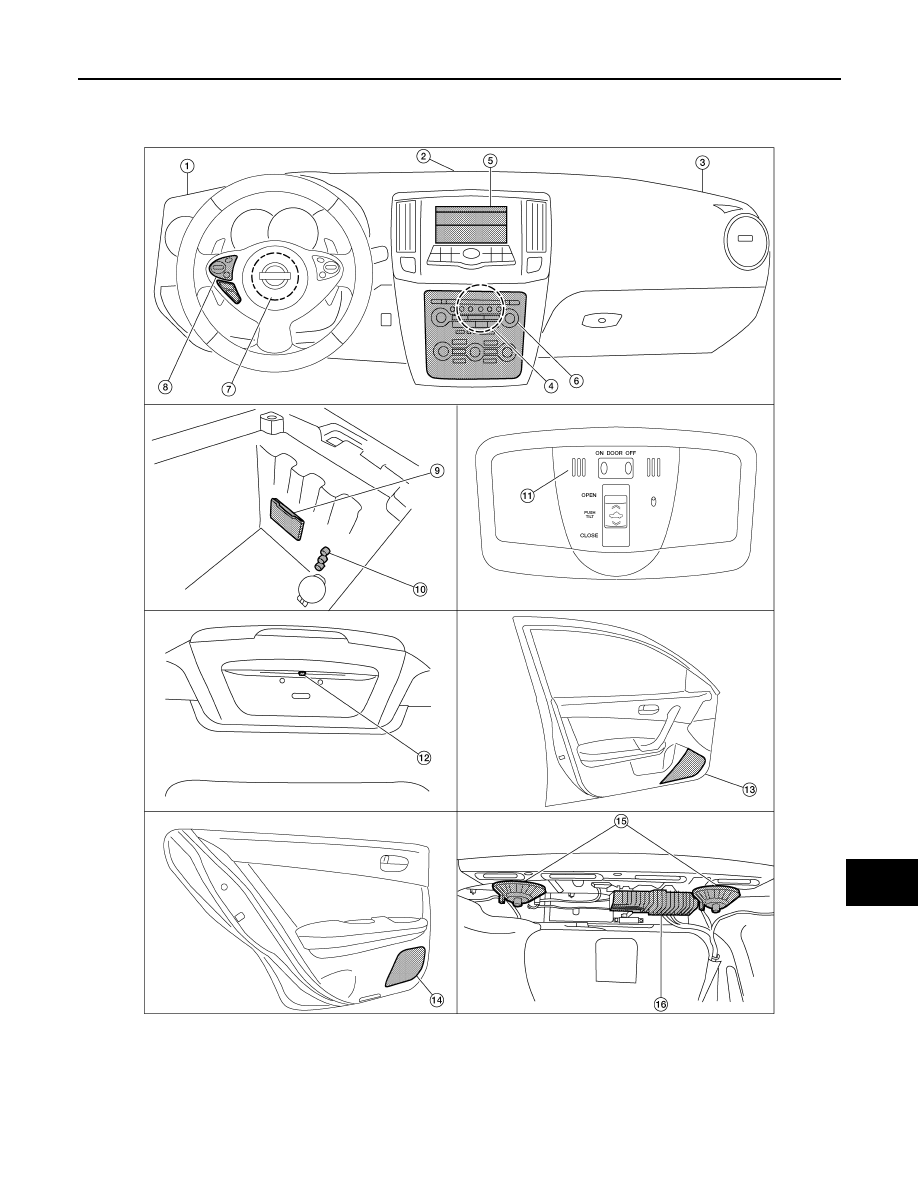

Component Parts Location

INFOID:0000000009471439

1.

Tweeter LH M51

2.

Center speaker M130

3.

Tweeter RH M52

4.

AV control unit M160, M161, M162,
M163, M164, M165, M166, M167,
M168 (located behind A/C and AV
switch assembly)

5.

Display unit M142, M151

6.

A/C and AV switch assembly M98

AWNIA3228ZZ
