Nissan Maxima. Manual - part 156





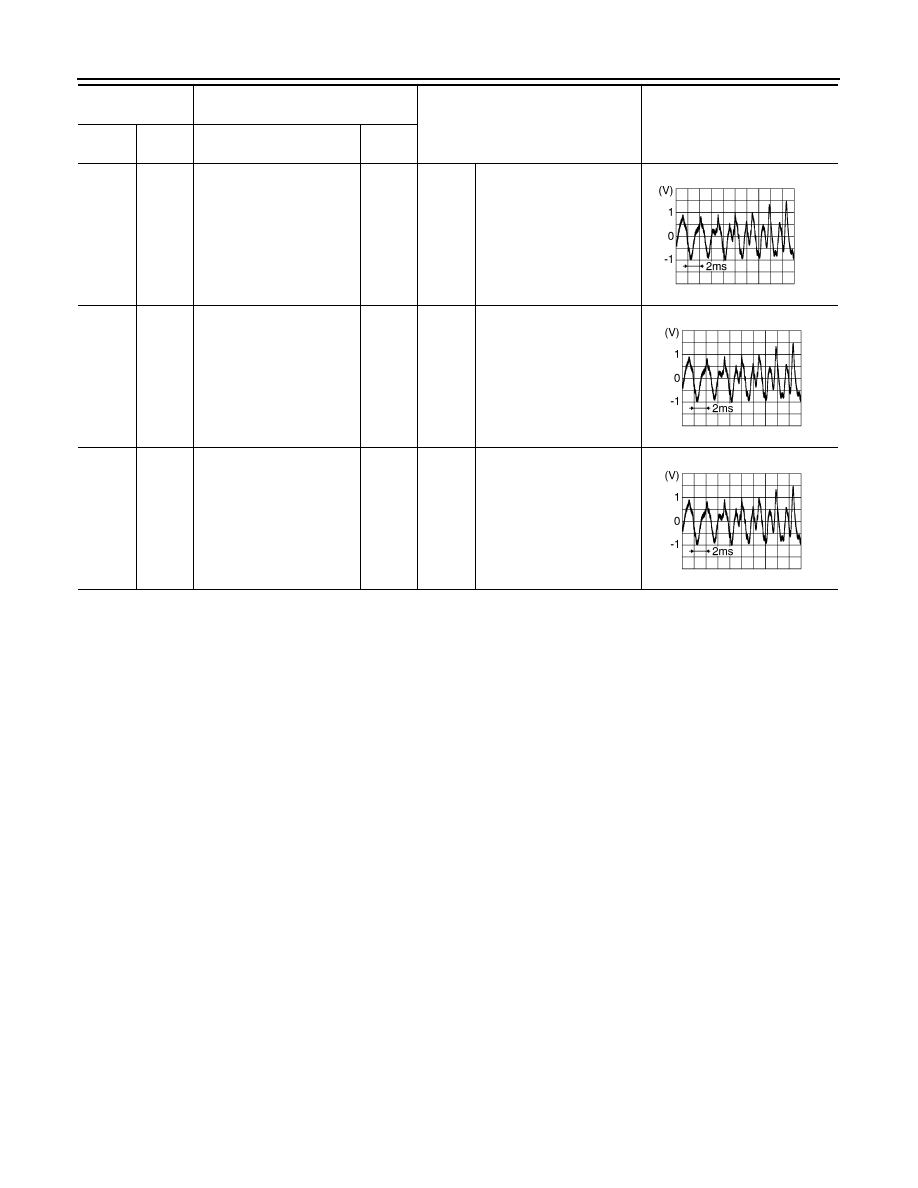

AV-444

< ECU DIAGNOSIS INFORMATION >

[COLOR DISPLAY - W/ BOSE]

BOSE SPEAKER AMP

29

(V)

30

(P)

Audio signal center speak-
er

Output

Ignition

switch

ON

Audio output

33

(LG)

34

(V)

Audio signal front RH

Input

Ignition

switch

ON

Audio input

35

(W)

36

(B)

Audio signal front LH

Input

Ignition

switch

ON

Audio input

Terminal

(Wire color)

Description

Condition

Reference value

(Approx.)

+

Signal name

Input/

Output

SKIB3609E

SKIB3609E

SKIB3609E

AV

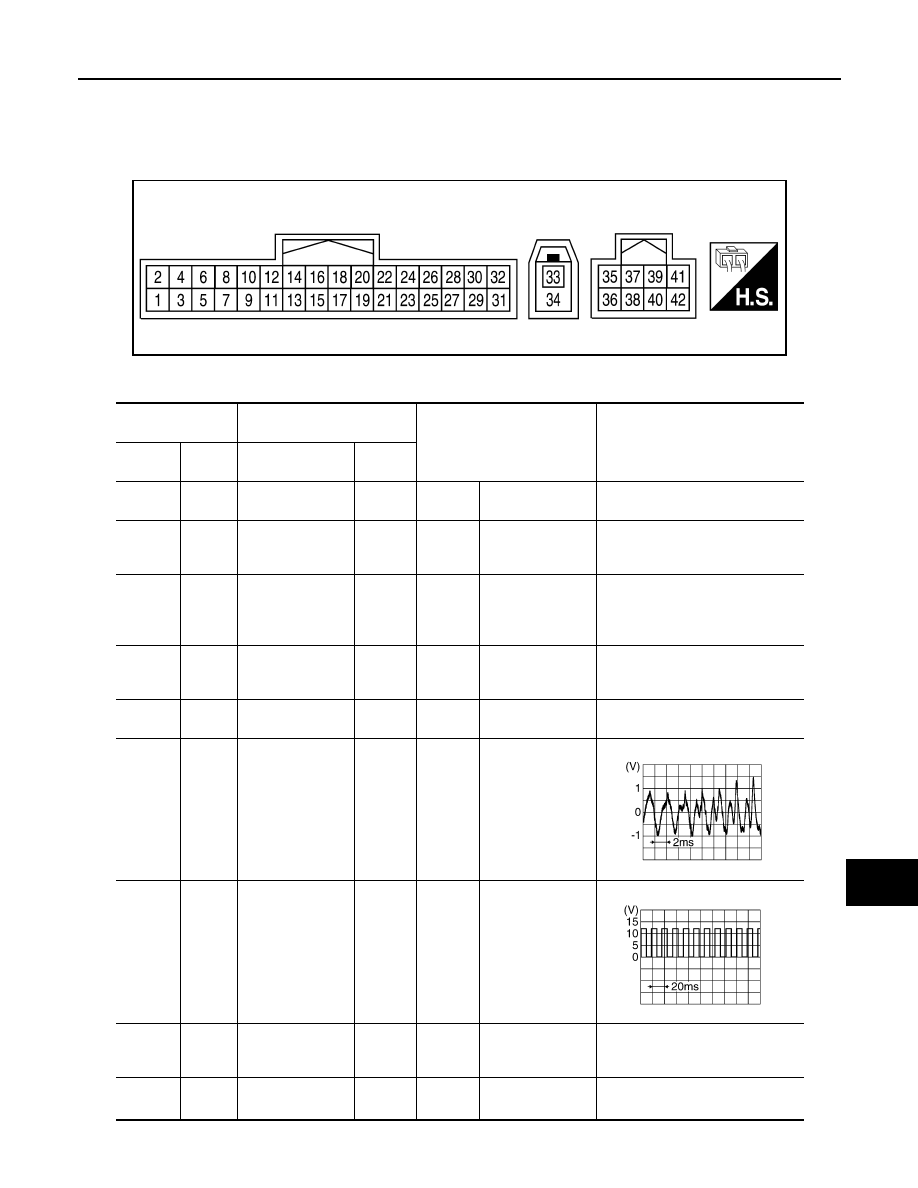

SATELLITE RADIO TUNER

AV-445

< ECU DIAGNOSIS INFORMATION >

[COLOR DISPLAY - W/ BOSE]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

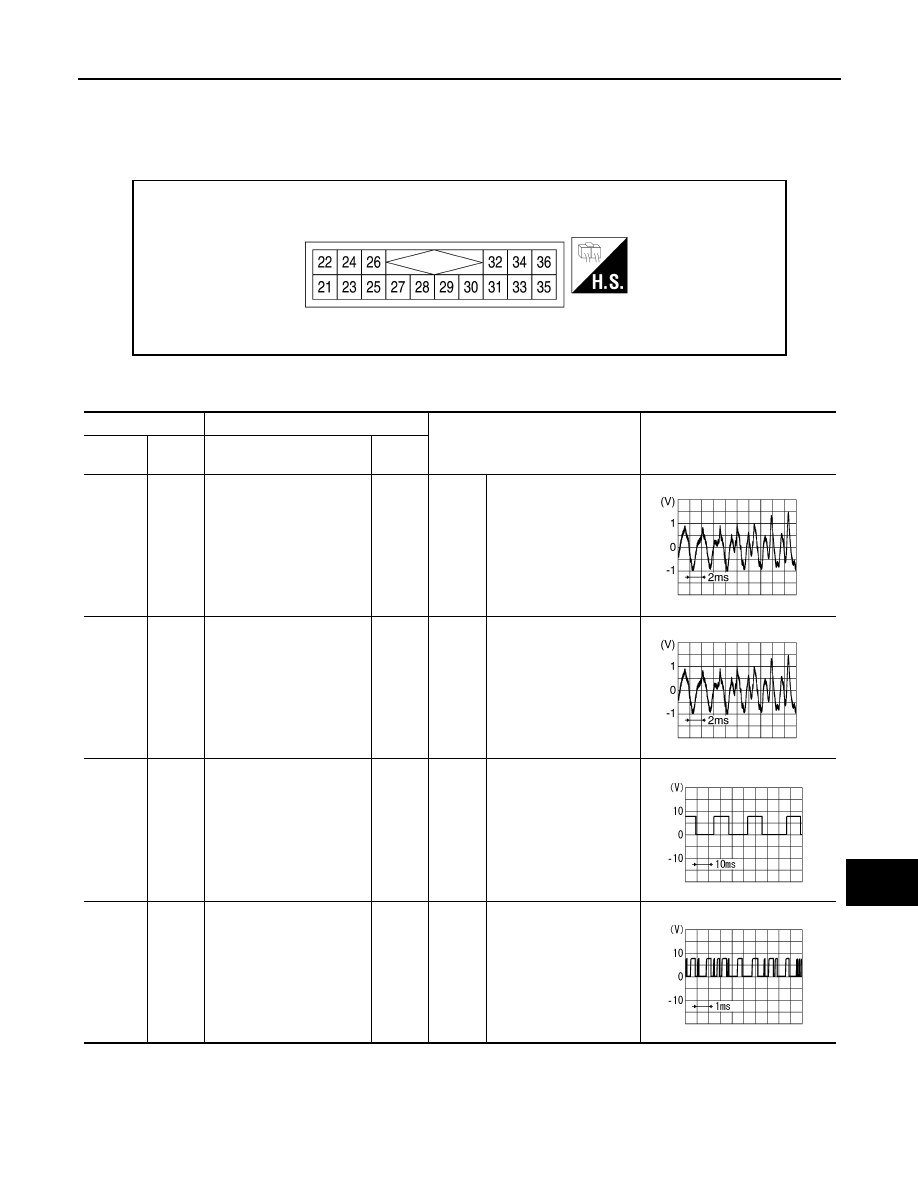

SATELLITE RADIO TUNER

Reference Value

INFOID:0000000009471388

PHYSICAL VALUES

ALNIA1166ZZ

Terminal

Description

Condition

Reference value

(Approx.)

+

Signal name

Input/

Output

22

(W)

21

(BR)

Satellite radio sound signal
LH

Output

Ignition

switch

ON

When satellite radio
mode is selected

24

(B)

23

(Y)

Satellite radio sound signal
RH

Output

Ignition

switch

ON

When satellite radio
mode is selected

28

(R)

Ground

Request signal
(SAT

→CONT)

Output

Ignition

switch

ON

When satellite radio
mode is selected

29

(V)

Ground

Communication signal
(SAT

→CONT)

Output

Ignition

switch

ON

When satellite radio
mode is selected

SKIB3609E

SKIB3609E

SKIA9299J

SKIA9300J

AV-446

< ECU DIAGNOSIS INFORMATION >

[COLOR DISPLAY - W/ BOSE]

SATELLITE RADIO TUNER

30

(L)

Ground

Communication signal
(CONT

→SAT)

Input

Ignition

switch

ON

When satellite radio
mode is selected

32

(P)

Ground Battery power supply

Input

Ignition

switch

OFF

Battery voltage

35

(B)

Shield

36

(GR)

Ground ACC power supply

Input

Ignition

switch

ACC

Battery voltage

Terminal

Description

Condition

Reference value

(Approx.)

+

Signal name

Input/

Output

SKIA9301J

AV

BLUETOOTH® CONTROL UNIT

AV-447

< ECU DIAGNOSIS INFORMATION >

[COLOR DISPLAY - W/ BOSE]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

BLUETOOTH® CONTROL UNIT

Reference Value

INFOID:0000000009471389

TERMINAL LAYOUT

PHYSICAL VALUES

ALNIA0662ZZ

Terminal

(wire color)

Description

Condition

Reference value

(Approx.)

+

Signal name

Input/

output

1

 (V)

Ground

Battery power

Input

Battery voltage

(GR)

Ground

ACC power

Input

Ignition

switch

ACC/ON

Battery voltage

(O)

Ground

 IGN power

Input

Ignition

switch

ON/

START

Battery voltage

(B)

Ground

Ground

Ignition

switch

ON

0V

7

 (L)

MIC in signal

Input

(BR)

10

(Y)

Audio out

Output

Ignition

switch

ACC/ON

Bluetooth

®

 control

unit sends audio

signal

28

 (BR)

Ground

Vehicle speed sig-

nal (8-pulse)

Input

Ignition

switch

ON

When vehicle

speed is approx.

40 km/h (25 MPH)

29

(R)

Ground Microphone power

Output

Ignition

switch

ON

5V

33

(B)

Bluetooth

®

 anten-

na

SKIB3609E

PKIA1935E
