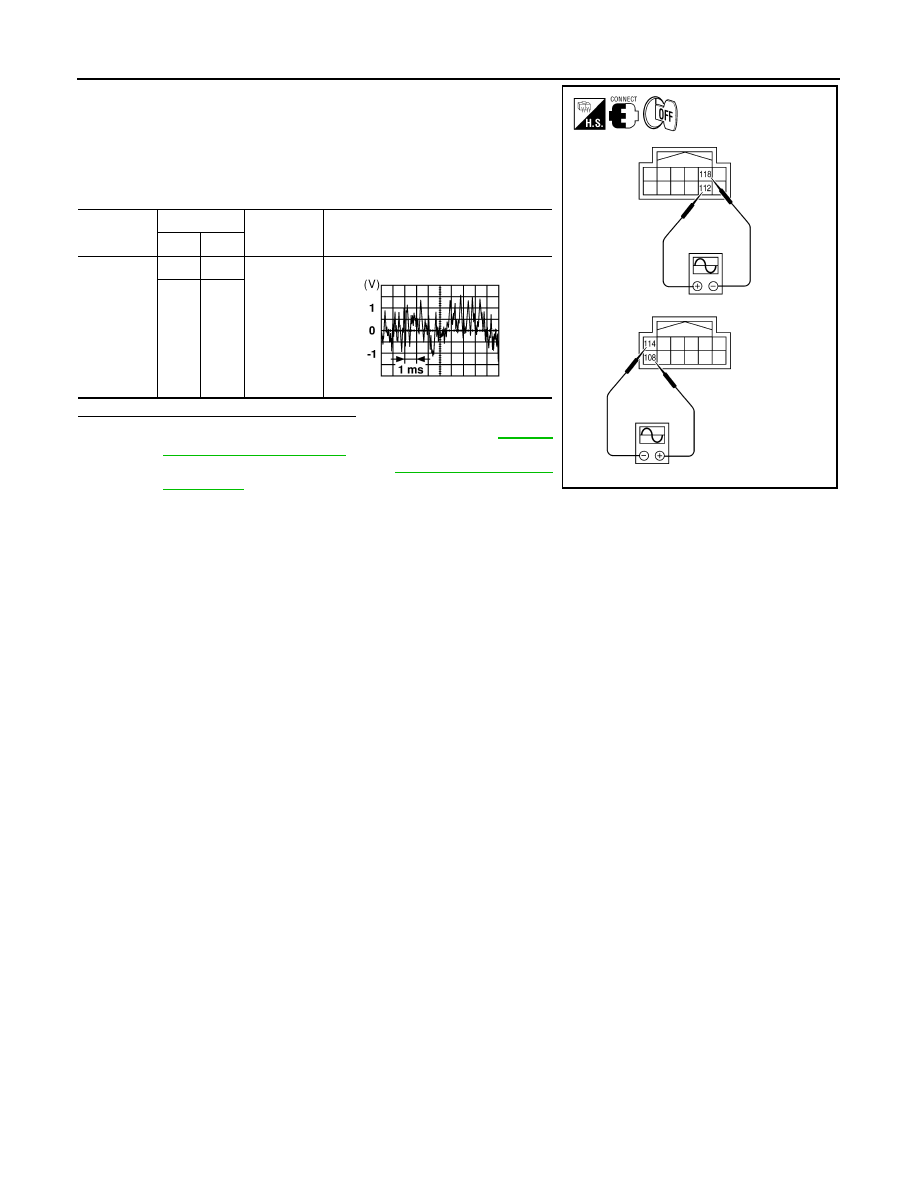

SUBWOOFER

1. Connect AV control unit connector M157 and BOSE speaker

amp. connector B109.

2. Turn ignition switch to ACC.

3. Push POWER switch.

4. Check the signal between AV control unit harness connector ter-

minals with CONSULT or oscilloscope.

Is the audio signal voltage as specified?

YES

>> Replace BOSE speaker amp. Refer to

AV-493,

"Removal and Installation"

.

NO

>> Replace AV control unit. Refer to

AV-481, "Removal and

Installation"

.

Connector

Terminals

Condition

Reference

signal

(+)

(-)

M157

112

118

Receive
audio sig-
nal

108

114

ALNIA1176ZZ

SKIA0177E

AV

AMP ON SIGNAL CIRCUIT

AV-421

< DTC/CIRCUIT DIAGNOSIS >

[COLOR DISPLAY - W/ BOSE]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

AMP ON SIGNAL CIRCUIT

Description

INFOID:0000000009471374

When the audio system is turned on, a voltage signal is supplied from the AV control unit to the BOSE speaker

amp. When this signal is received, the BOSE speaker amp. will turn on.

Diagnosis Procedure

INFOID:0000000009471375

Regarding Wiring Diagram information, refer to

AV-449, "Wiring Diagram - With BOSE Audio system Without

Navigation System"

.

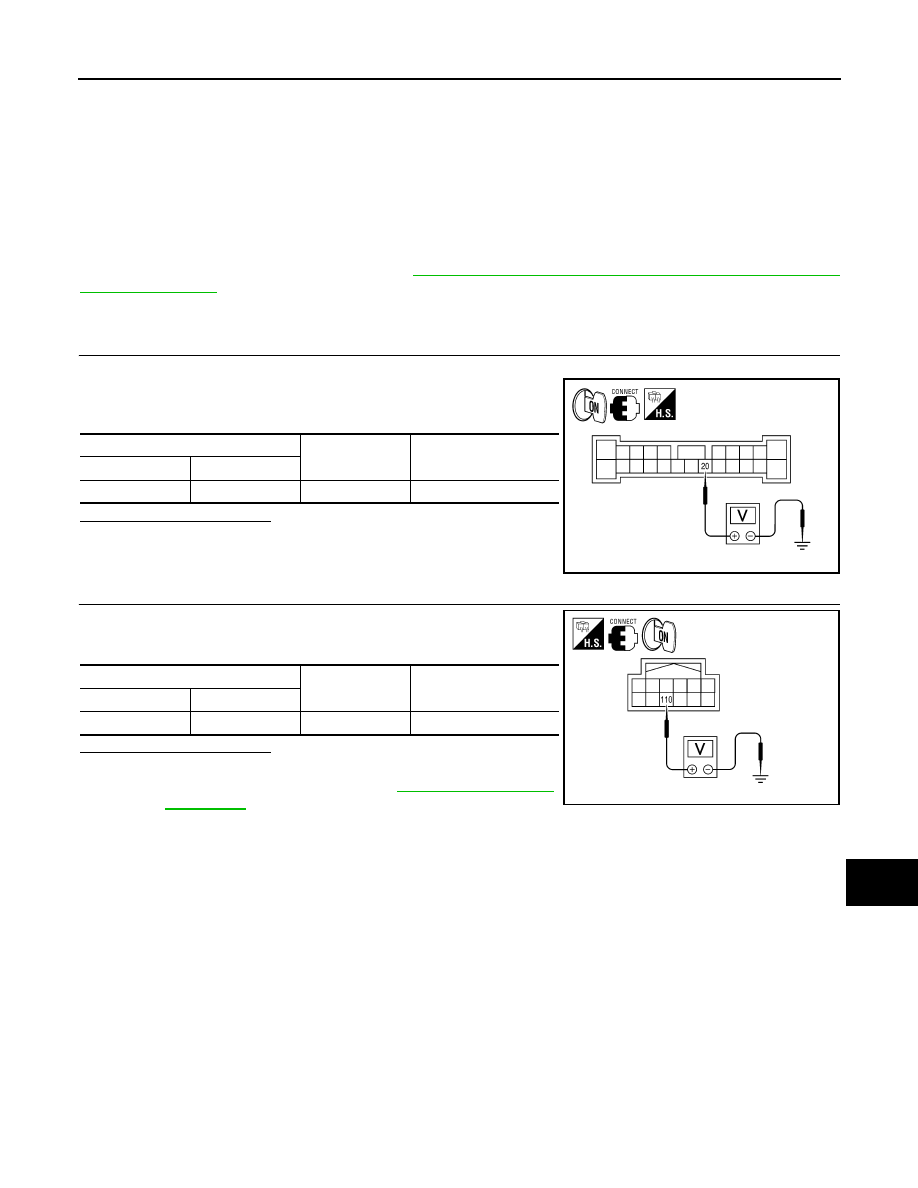

1.

CHECK AMP ON SIGNAL (BOSE SPEAKER AMP)

1. Turn audio system ON.

2. Check voltage between BOSE speaker amp. harness connector

B109 terminal 20 and ground.

Is inspection result normal?

YES

>> Inspection End.

NO

>> GO TO 2.

2.

CHECK AMP ON SIGNAL (AV CONTROL UNIT)

Check voltage between AV control unit harness connector M157 ter-

minal 110 and ground.

Is inspection result normal?

YES

>> Repair harness or connector.

NO

>> Replace AV control unit. Refer to

AV-481, "Removal and

Installation"

.

(+)

(-) Voltage

(Approx.)

Connector

Terminal

B109

20

Ground

Battery voltage

AWNIA1707ZZ

(+)

(-) Voltage

(Approx.)

Connector

Terminal

M157

110

Ground

Battery voltage

ALNIA1177ZZ

AV-422

< DTC/CIRCUIT DIAGNOSIS >

[COLOR DISPLAY - W/ BOSE]

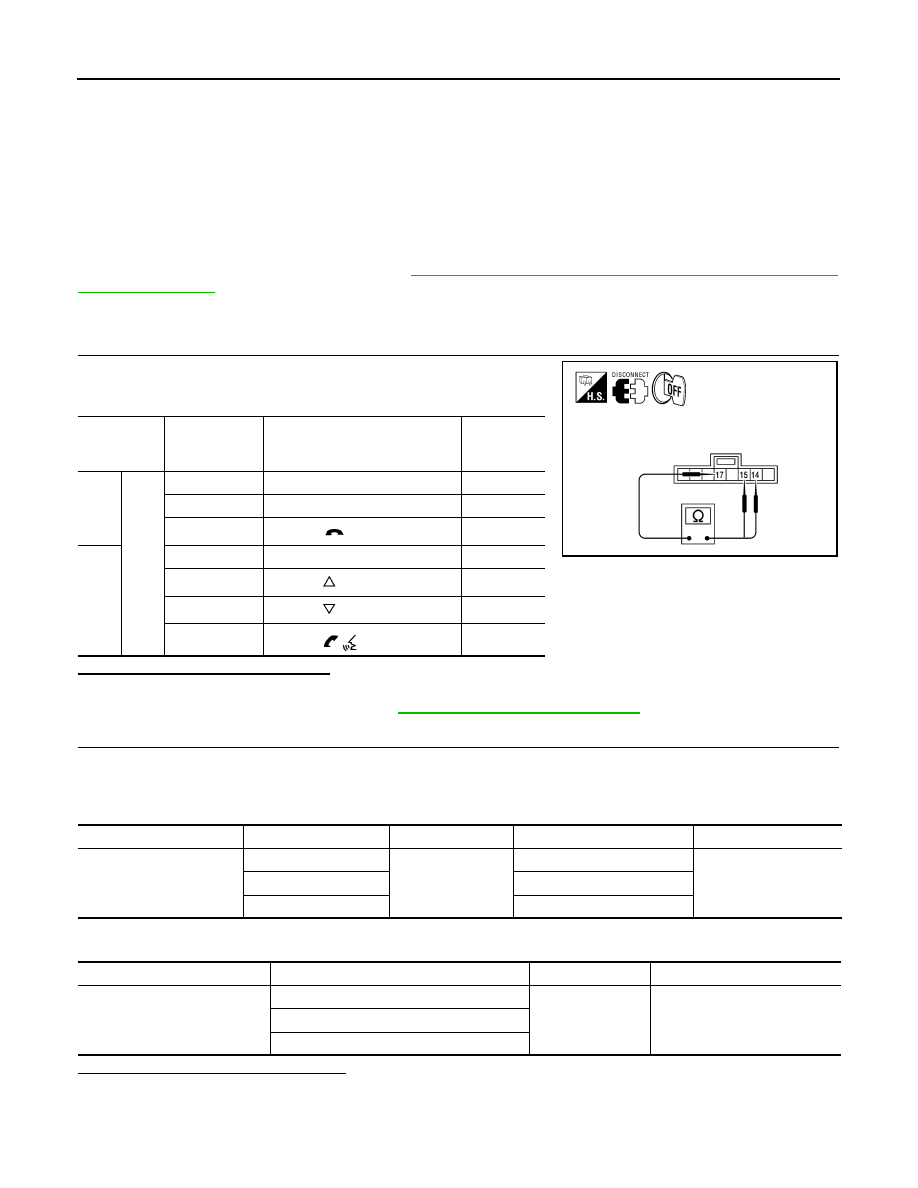

STEERING SWITCH

STEERING SWITCH

Description

INFOID:0000000009471376

When one of the steering wheel audio control switches is pushed, the resistance in the steering wheel audio

control switch circuit changes, depending on which button is pushed.

Diagnosis Procedure

INFOID:0000000009471377

Regarding Wiring Diagram information, refer to

AV-449, "Wiring Diagram - With BOSE Audio system Without

Navigation System"

.

1.

CHECK STEERING SWITCH RESISTANCE

1. Disconnect steering switch connector M88.

2. Check resistance between steering switch connector terminals.

Do the steering switches check OK?

YES

>> GO TO 2.

NO

>> Replace steering switch. Refer to

AV-496, "Removal and Installation"

.

2.

CHECK HARNESS BETWEEN COMBINATION SWITCH(SPIRAL CABLE) AND AV CONTROL UNIT

1. Disconnect AV control unit connector M152.

2. Check continuity between AV control unit harness connector M152 and combination switch(spiral cable)

harness connector M30.

3. Check continuity between AV control unit connector M152 and ground.

Are the continuity results as specified?

YES

>> GO TO 3.

NO

>> Repair harness.

Terminal

Signal name

Condition

Resistance

(

Ω)

(Approx.)

14

17

Volume (down)

Depress volume DOWN switch.

0

Volume (up)

Depress volume UP switch.

121

Phone/End

Depress

  switch.

321

15

Source

Depress SOURCE switch.

0

Seek (up)

Depress

switch.

121

Seek (down)

Depress

switch.

321

Phone/Send

Depress



switch.

723

AWNIA0035ZZ

Connector

Terminal

Connector

Terminal

Continuity

M152

6

M30

24

Yes

16

31

15

33

Connector

Terminal

—

Continuity

M152

6

Ground

No

16

15

AV

STEERING SWITCH

AV-423

< DTC/CIRCUIT DIAGNOSIS >

[COLOR DISPLAY - W/ BOSE]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

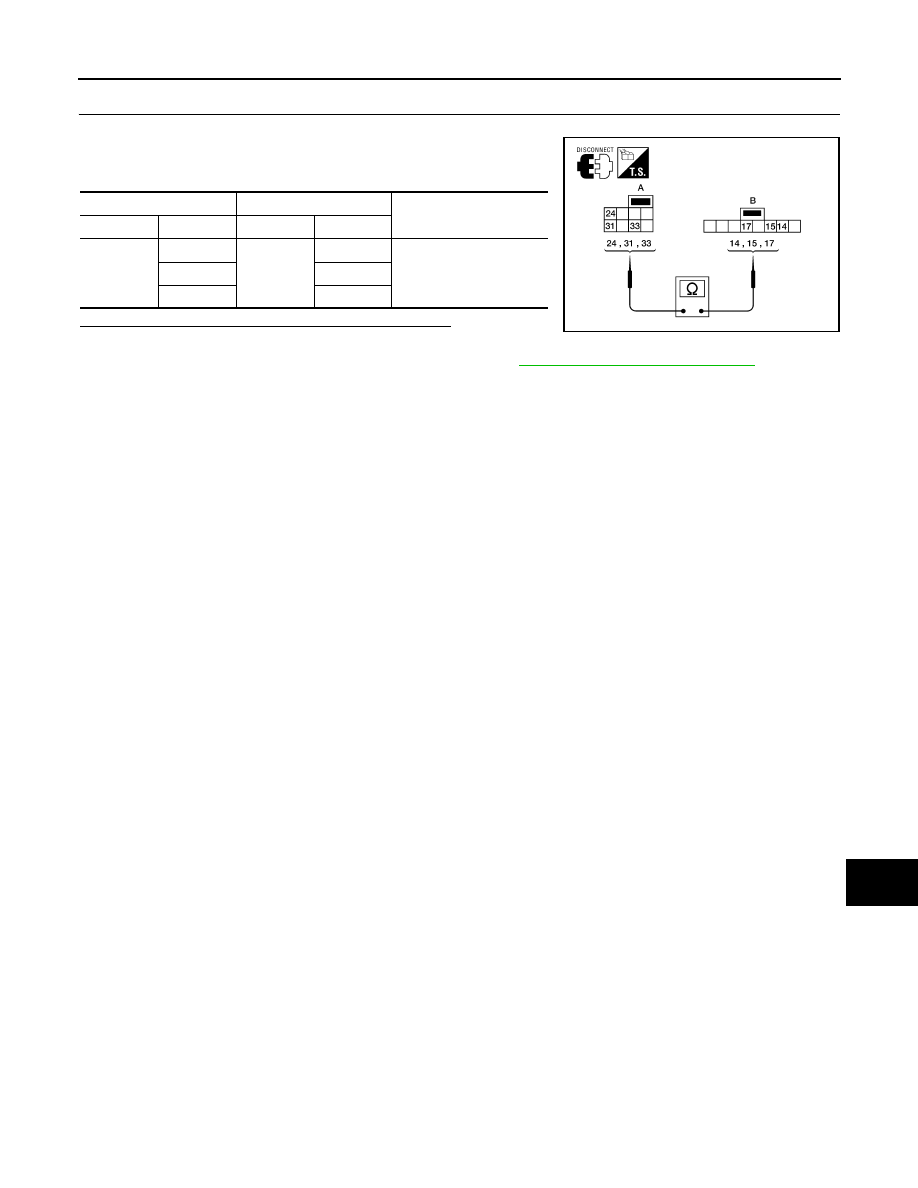

3.

COMBINATION SWITCH(SPIRAL CABLE) CHECK

1. Disconnect combination switch(spiral cable) connector M88.

2. Check continuity between combination switch(spiral cable) har-

ness connector M30 (A) and M88 (B).

Does the combination switch(spiral cable) check OK?

YES

>> Inspection End.

NO

>> Replace combination switch(spiral cable). Refer to

SR-15, "Removal and Installation"

.

A

B

Continuity

Connector

Terminal

Connector

Terminal

M30

24

M88

14

Yes

31

15

33

17

ALNIA0931GB
