AV-348

< SYSTEM DESCRIPTION >

[COLOR DISPLAY - W/ BOSE]

HANDS-FREE PHONE SYSTEM

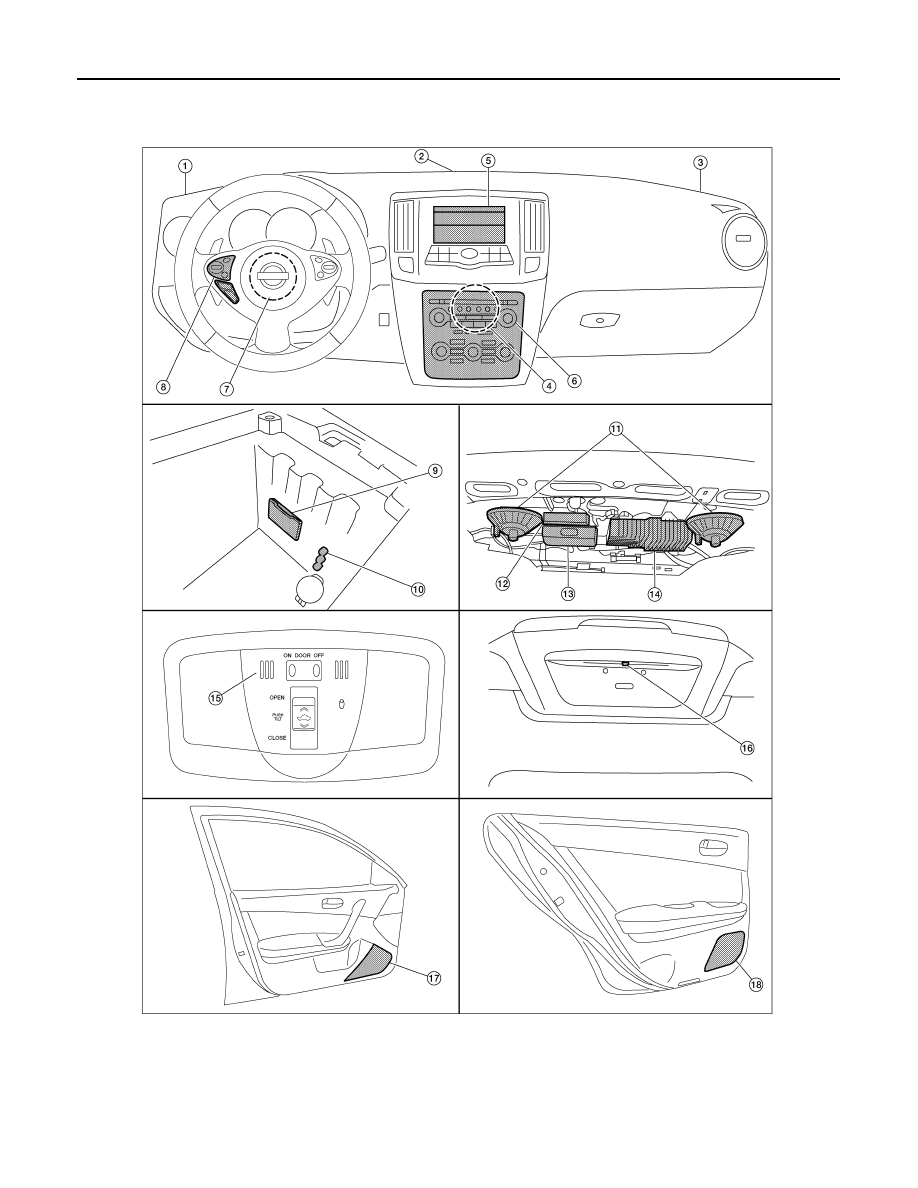

Component Parts Location

INFOID:0000000009471296

1.

Tweeter LH M51

2.

Center speaker M130

3.

Tweeter RH M52

4.

AV control unit  M152, M153, M154,
M155, M156, M157, M158, M159 (lo-
cated behind A/C and AV switch as-
sembly)

5.

Display unit M141

6.

A/C and AV switch assembly M98

AWNIA3231ZZ

AV

HANDS-FREE PHONE SYSTEM

AV-349

< SYSTEM DESCRIPTION >

[COLOR DISPLAY - W/ BOSE]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

Component Description

INFOID:0000000009471297

7.

Steering angle sensor M53 [located
in steering column behind combina-
tion switch(spiral cable)]

8.

Steering wheel audio control switch-
es

9.

USB interface M211 (view in center
console)

10. Aux jack M209

11. Rear subwoofers (view under rear

parcel shelf)
LH B106
RH B107

12. Satellite radio tuner (if equipped)

B111

13. Bluetooth

®

 control unit B128, B130,

B131

14. BOSE speaker amp B109, B110

15. Microphone R7

16. Rear view camera T101

17. Front door speaker

LH D3
RH D103

18. Rear door speaker

LH D202
RH D302

Part name

Description

AV control unit

• Receives telephone voice signal from Bluetooth

®

 control unit

• Sends telephone voice and voice guidance signals to the speakers

BOSE speaker amp.

• Receives audio signals from the AV control unit
• Outputs amplified audio signals to the speakers.

Front door speaker

Receives telephone voice and voice guidance signals from the AV control unit
through the BOSE speaker amp.

Front tweeter

Center speaker

Steering wheel audio control switches

• Start a voice recognition session
• Answer and end telephone calls
• Adjust the volume level

Microphone

Sends voice signals to Bluetooth

®

 control unit

Bluetooth

®

 control unit

Controls hands-free phone functions

Bluetooth

®

 antenna

Sends telephone voice signal to Bluetooth

®

 control unit

AV-350

< SYSTEM DESCRIPTION >

[COLOR DISPLAY - W/ BOSE]

DIAGNOSIS SYSTEM (AV CONTROL UNIT)

DIAGNOSIS SYSTEM (AV CONTROL UNIT)

Diagnosis Description

INFOID:0000000009471298

MULTIFUNCTION SWITCH AND PRESET SWITCH SELF-DIAGNOSIS FUNCTION

The ON/OFF operation (continuity) of each switch in the multifunction switch and preset switch can be

checked.

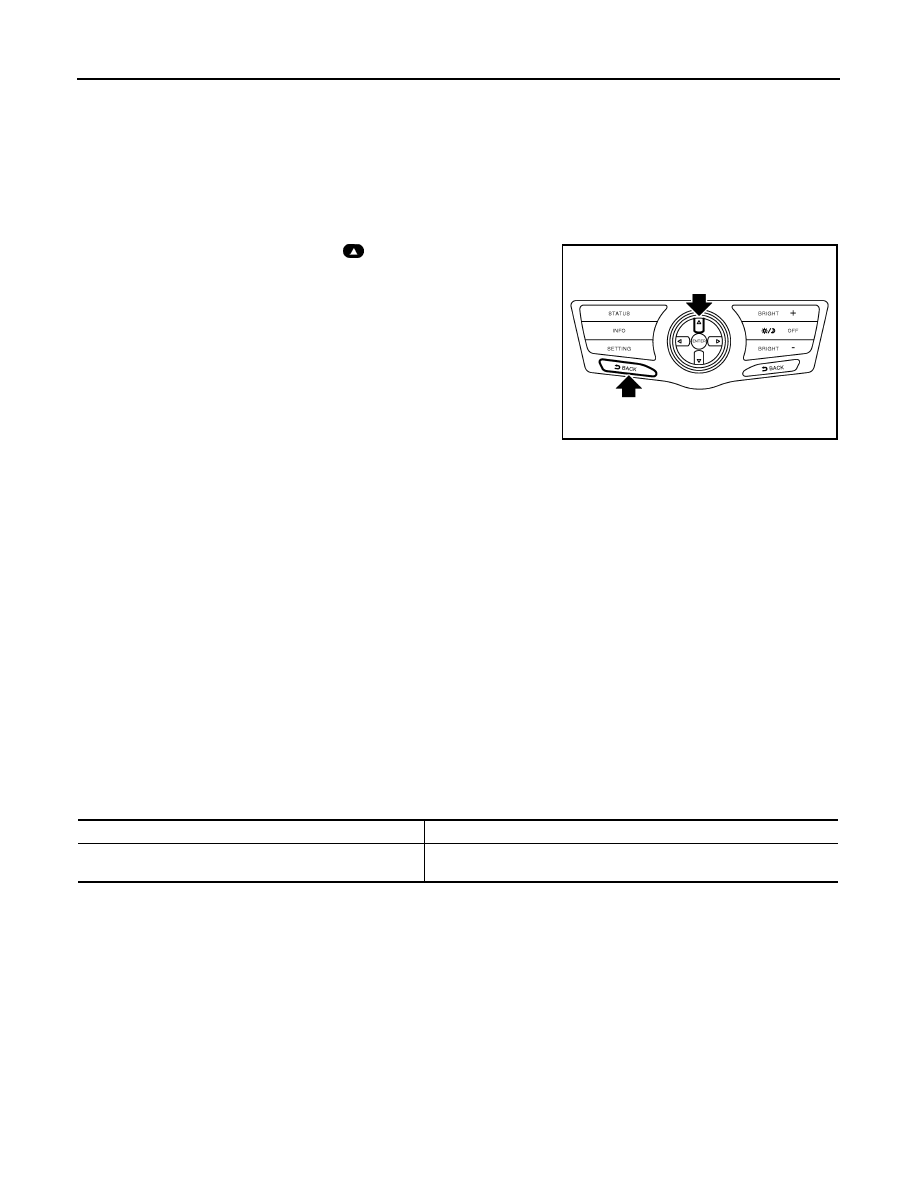

Self-Diagnosis Mode

• Press the BACK switch and the

 switch of the 8-direction

switches within 10 seconds after turning the ignition switch from

OFF to ACC and hold them for 3 seconds or more. Then the

buzzer sounds, all indicators of the preset switch illuminate, and

the self-diagnosis mode starts.

• The continuity of each switch at the ON position can be checked

by pressing the switch. The buzzer sounds if the switch is normal.

NOTE:

The disk eject switch cannot be checked.

Finishing Self-diagnosis Mode

Self-diagnosis mode is canceled when the ignition switch is turned OFF.

MULTI AV SYSTEM ON BOARD DIAGNOSIS FUNCTION

• The AV control unit diagnosis function starts up with multifunction switch operation and the AV control unit

performs a diagnosis for each unit in the system during the on board diagnosis.

• Perform a CONSULT diagnosis if the on board diagnosis does not start, e.g., if the screen does not display

anything, the multifunction switch does not function, etc.

ON BOARD DIAGNOSIS

Description

• The trouble diagnosis function has a self-diagnosis mode for conducting trouble diagnosis automatically and

a confirmation/adjustment mode for operating manually.

• Self-diagnosis mode performs the AV control unit diagnosis and the connection diagnosis between each of

the units that make up the system, and it indicates the results to the display.

• The confirmation/adjustment mode allows the technician to check, modify or adjust the vehicle signals and

set values, as well as to monitor the system error records and system communication status. The checking,

modifying or adjusting generally requires human intervention and judgment (the system cannot make judg-

ment automatically).

On Board Diagnosis Item

JSNIA1072GB

Mode

Description

Self-Diagnosis

• AV control unit diagnosis
• Perform the connection diagnosis between each of the units.

AV

DIAGNOSIS SYSTEM (AV CONTROL UNIT)

AV-351

< SYSTEM DESCRIPTION >

[COLOR DISPLAY - W/ BOSE]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

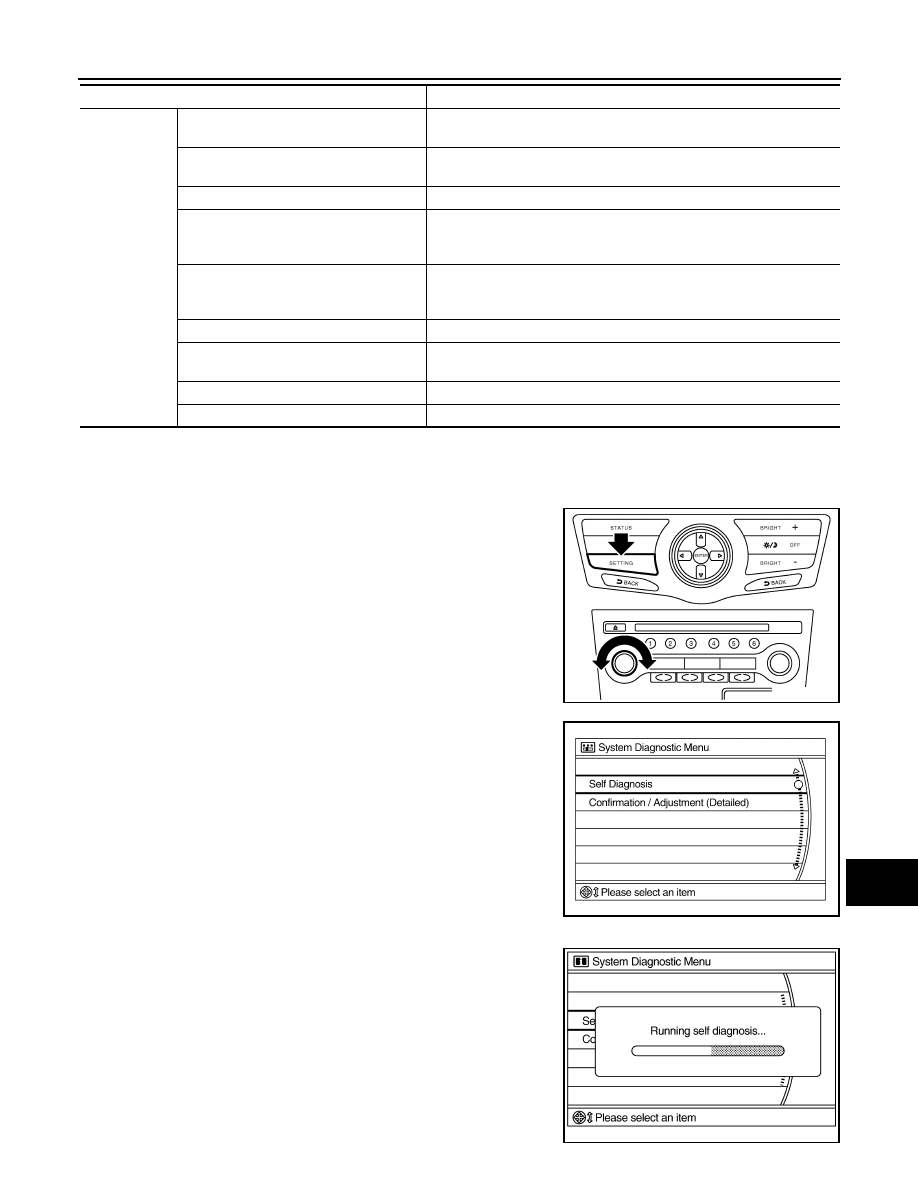

STARTING PROCEDURE

1. Start the engine.
2. Turn the audio system OFF.
3. While pressing the SETTING button, turn the volume control dial

clockwise or counterclockwise for 40 clicks or more. (When the

self-diagnosis mode is started, a short beep will be heard.)

• Shifting from current screen to previous screen is performed

by pressing the BACK button.

4. The trouble diagnosis initial screen is displayed, and then the

items of “Self Diagnosis” and “Confirmation/Adjustment” can be

selected.

SELF-DIAGNOSIS MODE

1. Start the self-diagnosis function and select “Self-diagnosis”.

NOTE:

Because the start condition of diagnosis function is a switch

operation, the on board diagnosis function cannot start up if any

malfunction is detected in the AV communication circuit between

AV control unit and multifunction switch.

-

Self-diagnosis subdivision screen is displayed, and the self-

diagnosis mode starts.

-

The bar graph visible on the center of the self-diagnosis subdivi-

sion screen indicates progress of the trouble diagnosis.

Confirmation/

Adjustment

Display Diagnosis

The confirmation of the tint with the color spectrum bar display and shad-
ing of color with the gradation bar display can be performed.

Vehicle Signals

Diagnosis of signals can be performed for vehicle speed, parking brake,
lights, ignition switch, and reverse.

Speaker Test

The connection of a speaker can be confirmed by test tone.

Error History (Detailed)

System malfunctions and the frequency when occurring in the past are
displayed. When the malfunctioning item is selected, the time and place
that the selected malfunction last occurred are displayed.

Camera Cont.

The signal connected to camera control unit can be checked and the
guiding line position that overlaps rear view camera image can be adjust-
ed.

Vehicle CAN Diagnosis

The transmitting/receiving of CAN communication can be monitored.

AV COMM Diagnosis

The communication condition of each unit of MULTI AV system can be
monitored.

Delete Unit Connection Log

Erase the connection history of unit and error history

Initialize Settings

Initializes the AV control unit memory.

Mode

Description

JSNIA1073GB

AWNIA1735GB

JSNIA0139GB
