AV-344

< SYSTEM DESCRIPTION >

[COLOR DISPLAY - W/ BOSE]

REAR VIEW MONITOR SYSTEM

REAR VIEW MONITOR SYSTEM

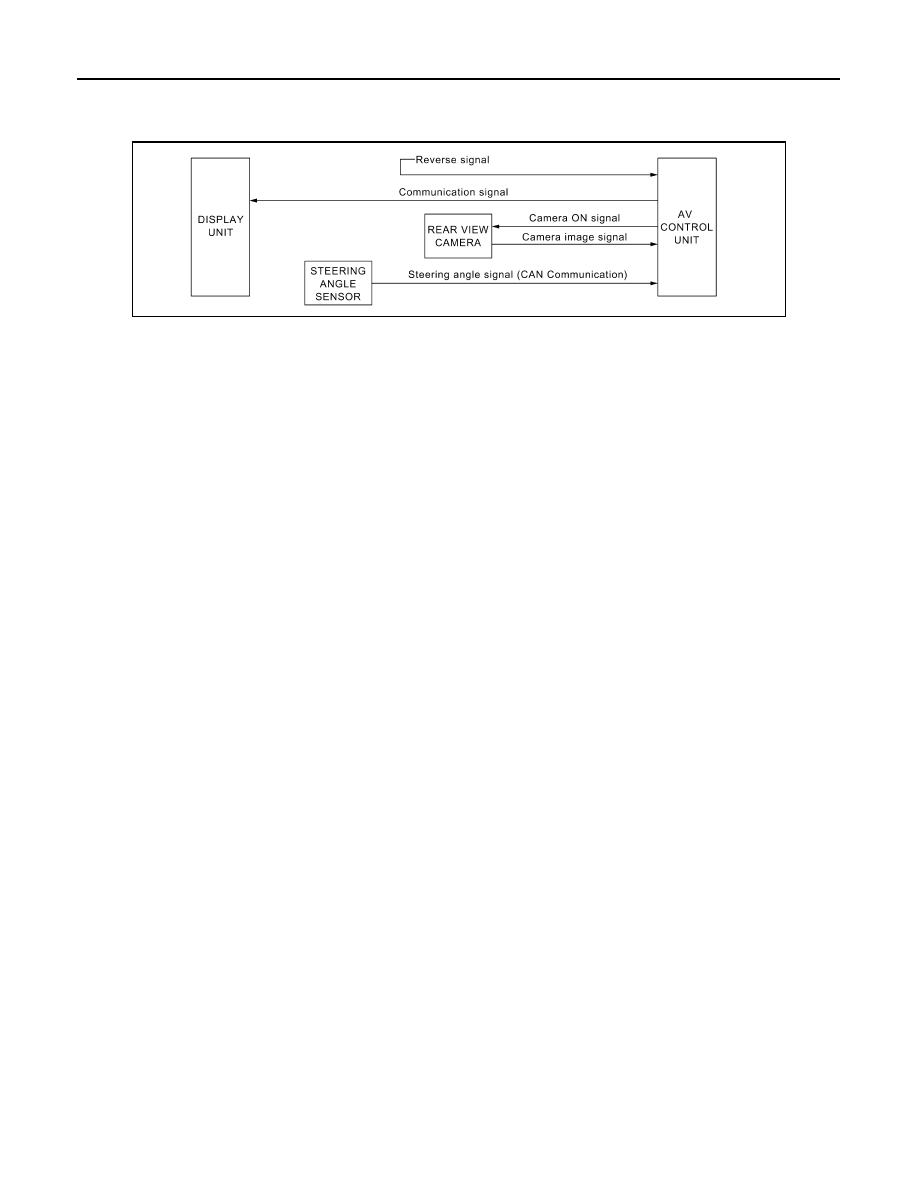

System Diagram

INFOID:0000000009471290

System Description

INFOID:0000000009471291

When the shift selector is in the R position, the display shows a view to the rear of the vehicle. Lines which

indicate the vehicle clearance and distances are also displayed.

AWNIA1957GB

AV

REAR VIEW MONITOR SYSTEM

AV-345

< SYSTEM DESCRIPTION >

[COLOR DISPLAY - W/ BOSE]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

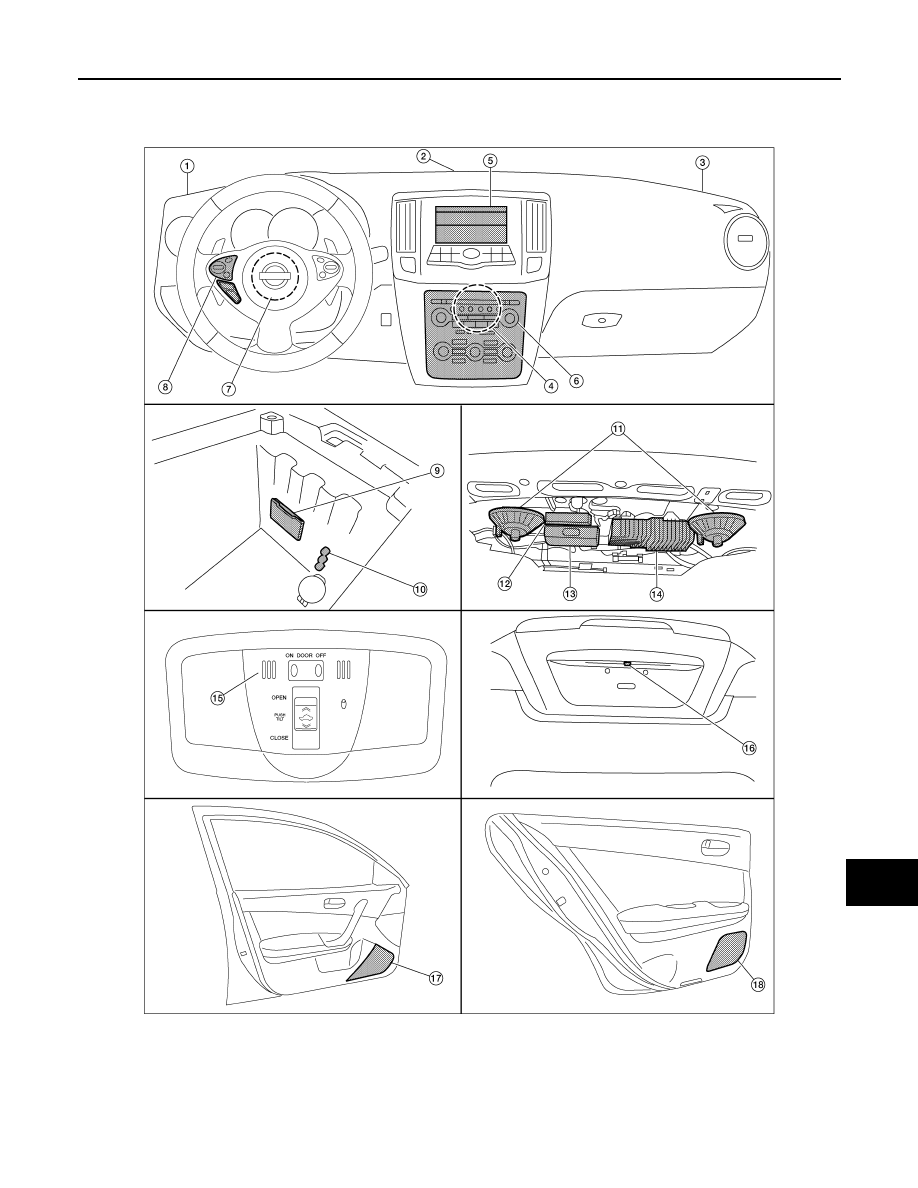

Component Parts Location

INFOID:0000000009471292

1.

Tweeter LH M51

2.

Center speaker M130

3.

Tweeter RH M52

4.

AV control unit  M152, M153, M154,
M155, M156, M157, M158, M159 (lo-
cated behind A/C and AV switch as-
sembly)

5.

Display unit M141

6.

A/C and AV switch assembly M98

AWNIA3231ZZ

AV-346

< SYSTEM DESCRIPTION >

[COLOR DISPLAY - W/ BOSE]

REAR VIEW MONITOR SYSTEM

Component Description

INFOID:0000000009471293

7.

Steering angle sensor M53 [located
in steering column behind combina-
tion switch(spiral cable)]

8.

Steering wheel audio control switch-
es

9.

USB interface M211 (view in center
console)

10. Aux jack M209

11. Rear subwoofers (view under rear

parcel shelf)
LH B106
RH B107

12. Satellite radio tuner (if equipped)

B111

13. Bluetooth

®

 control unit B128, B130,

B131

14. BOSE speaker amp B109, B110

15. Microphone R7

16. Rear view camera T101

17. Front door speaker

LH D3
RH D103

18. Rear door speaker

LH D202
RH D302

Part name

Description

AV control unit

• Sends camera ON signal to the rear view camera
• Receives camera image signal from the rear view camera
• Sends image signal to the display unit

Rear view camera

• Receives camera ON signal from the AV control unit
• Sends image signal to the AV control unit

Steering angle sensor

Sends steering angle information to the AV control unit via CAN communication

AV

HANDS-FREE PHONE SYSTEM

AV-347

< SYSTEM DESCRIPTION >

[COLOR DISPLAY - W/ BOSE]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

HANDS-FREE PHONE SYSTEM

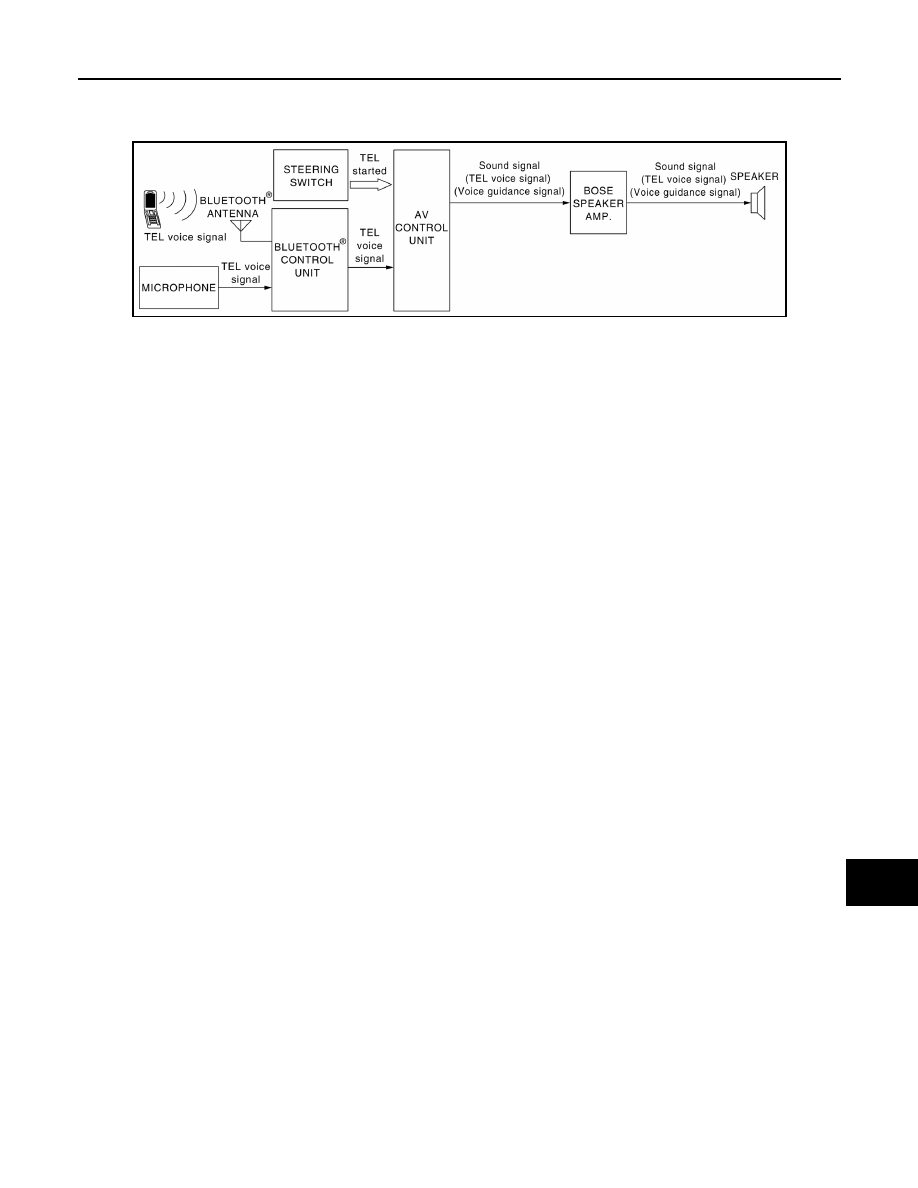

System Diagram

INFOID:0000000009471294

System Description

INFOID:0000000009471295

Refer to the Owner's Manual for Bluetooth

®

 telephone system operating instructions.

NOTE:
Cellular telephones must have their wireless connection set up (paired) before using the Bluetooth

®

 telephone

system.
Bluetooth

®

 telephone system allows users who have a Bluetooth

®

 cellular telephone to make a wireless con-

nection between their cellular telephone and the Bluetooth

®

 control unit. Hands-free cellular telephone calls

can be sent and received. Some Bluetooth

®

 cellular telephones may not be recognized by the Bluetooth

®

 con-

trol unit. When a cellular telephone or the Bluetooth

®

 control unit is replaced, the telephone must be paired

with the Bluetooth

®

 control unit. Different cellular telephones may have different pairing procedures. Refer to

the cellular telephone operating manual.

BLUETOOTH

®

 CONTROL UNIT

When the ignition switch is turned to ACC or ON, the Bluetooth

®

 control unit will power up. During power up,

the Bluetooth

®

 control unit is initialized and performs various self-checks.   Initialization may take up to 20 sec-

onds.  If a phone is present in the vehicle and paired with the Bluetooth

®

 control unit, Nissan Voice Recogni-

tion will then become active. Bluetooth

®

 telephone functions can be turned off using the Nissan Voice

Recognition system.

STEERING WHEEL AUDIO CONTROL SWITCHES

When buttons on the steering wheel audio control switch are pushed, the resistance in steering wheel audio
control switch circuit changes, depending on which button is pushed. The Bluetooth

®

 control unit uses this sig-

nal to perform various functions while navigating through the voice recognition system.

The following functions can be performed using the steering wheel audio control switch:
• Initiate self-diagnosis of the Bluetooth

®

 telephone system

• Start a voice recognition session

• Answer and end telephone calls

• Adjust the volume of calls

MICROPHONE

The microphone is located in the roof console assembly. The microphone sends a signal to the Bluetooth

®

control unit. The microphone can be actively tested during self-diagnosis.

AV CONTROL UNIT

The AV control unit receives signals from the Bluetooth

®

 control unit and sends audio signals to the BOSE

speaker amp. then on to the speakers.

AWNIA2698GB
