Nissan Maxima. Manual - part 130





AV-340

< SYSTEM DESCRIPTION >

[COLOR DISPLAY - W/ BOSE]

AUDIO SYSTEM

SYSTEM DESCRIPTION

AUDIO SYSTEM

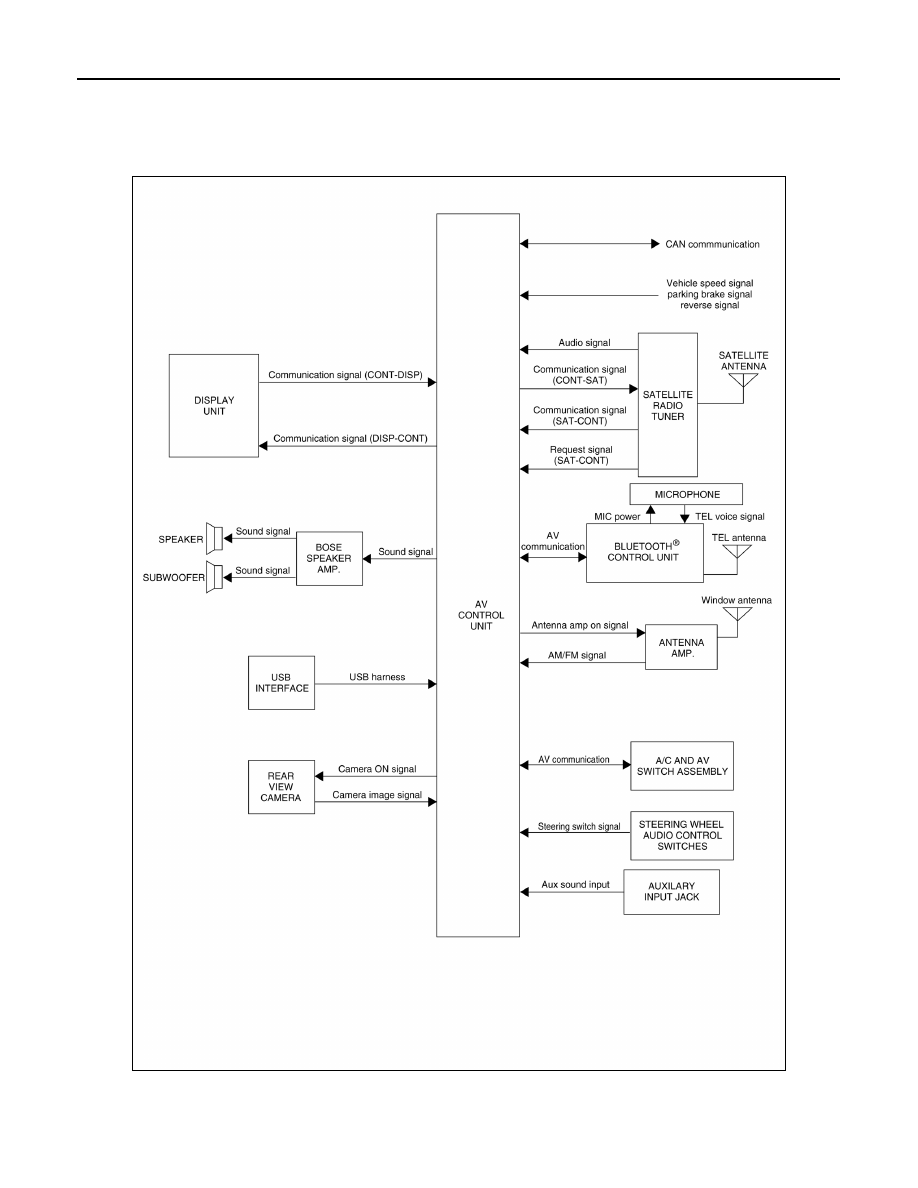

System Diagram

INFOID:0000000009471286

AWNIA2697GB

AV

AUDIO SYSTEM

AV-341

< SYSTEM DESCRIPTION >

[COLOR DISPLAY - W/ BOSE]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

System Description

INFOID:0000000009471287

AUDIO SYSTEM

The audio system consists of the following components

• AV control unit

• Display unit

• BOSE speaker amp.

• Window antenna

• Steering wheel audio control switches

• A/C and AV switch assembly

• Front door speakers

• Tweeters

• Center speaker

• Rear  door speakers

• Rear subwoofer

When the audio system is on, radio signals are received by the window antenna. The AV control unit then

sends audio signals to the BOSE speaker amp. The BOSE speaker amp. amplifies the audio signals before

sending them to the front door speakers, tweeters, center speaker, rear door speakers  and rear subwoofers.

Refer to Owner's Manual for audio system operating instructions.

SATELLITE RADIO SYSTEM (IF EQUIPPED)

The satellite radio system consists of the following components

• Satellite antenna

• Satellite radio tuner

When the satellite radio system is on, radio signals are supplied to the satellite radio tuner from the satellite

antenna. The satellite radio tuner then sends audio signals to the AV control unit.

Refer to Owner's Manual for satellite radio system operating instructions.

SPEED SENSITIVE VOLUME SYSTEM

Volume level of this system goes up and down automatically in proportion to the vehicle speed. The control

level can be selected by the customer. Refer to Owner's Manual for operating instructions.

AV-342

< SYSTEM DESCRIPTION >

[COLOR DISPLAY - W/ BOSE]

AUDIO SYSTEM

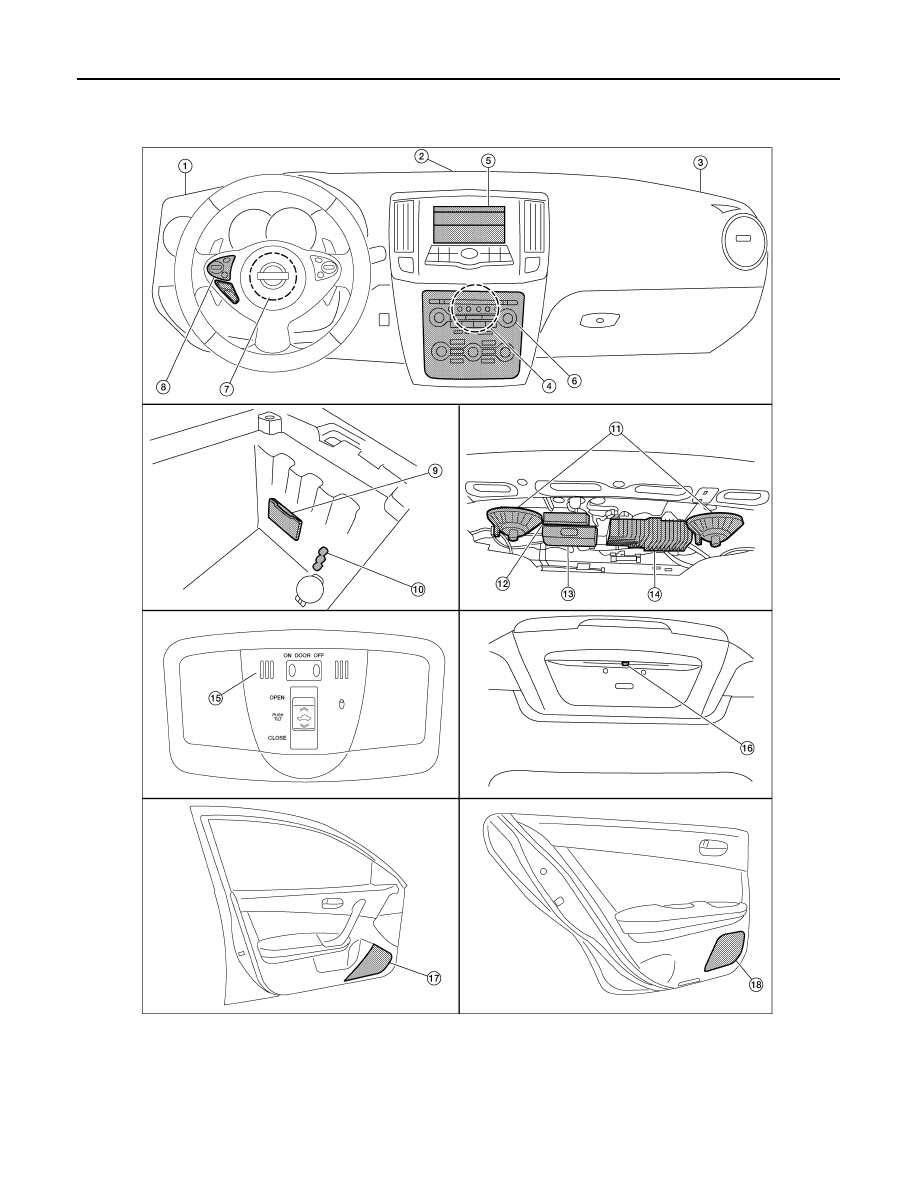

Component Parts Location

INFOID:0000000009471288

1.

Tweeter LH M51

2.

Center speaker M130

3.

Tweeter RH M52

4.

AV control unit  M152, M153, M154,
M155, M156, M157, M158, M159 (lo-
cated behind A/C and AV switch as-
sembly)

5.

Display unit M141

6.

A/C and AV switch assembly M98

AWNIA3231ZZ

AV

AUDIO SYSTEM

AV-343

< SYSTEM DESCRIPTION >

[COLOR DISPLAY - W/ BOSE]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

Component Description

INFOID:0000000009471289

7.

Steering angle sensor M53 [located
in steering column behind combina-
tion switch(spiral cable)]

8.

Steering wheel audio control switch-
es

9.

USB interface M211 (view in center
console)

10. Aux jack M209

11. Rear subwoofers (view under rear

parcel shelf)
LH B106
RH B107

12. Satellite radio tuner (if equipped)

B111

13. Bluetooth

®

 control unit B128, B130,

B131

14. BOSE speaker amp B109, B110

15. Microphone R7

16. Rear view camera T101

17. Front door speaker

LH D3
RH D103

18. Rear door speaker

LH D202
RH D302

Part name

Description

AV control unit

Controls audio system, USB connection,AUX IN connection and satellite ra-
dio system functions

Display unit

Displays all audio and climate control related information

BOSE speaker amp.

Receives power (amp ON) and audio signals from AV control unit and out-
puts audio signals to each speaker.

Steering wheel audio control switches

• Audio operation can be operated
• Steering switch signal is output to AV control unit

Front door speakers

• Outputs audio signal from BOSE speaker amp.
• Outputs high, mid and low range sounds

Tweeters

• Outputs audio signal from BOSE speaker amp.
• Outputs high range sounds

Center speaker

• Outputs audio signal from BOSE speaker amp.
• Outputs high range sounds

Rear door speakers

• Outputs audio signal from BOSE speaker amp.
• Outputs high, mid and low range sounds

Rear subwoofer

• Outputs audio signal from BOSE speaker amp.
• Outputs low range sounds

Satellite radio tuner (if equipped)

• Receives radio signals from satellite antenna
• Sends audio signals to AV control unit

Satellite antenna (if equipped)

Audio signal (satellite radio) is received and output to AV control unit.
