TEL ANTENNA

TEL ANTENNA

Removal and Installation

INFOID:0000000010064946

REMOVAL

1. Disconnect the battery negative terminal. Refer to

PG-68, "Removal and Installation (Battery Tray)"

.

2. Remove the rear parcel shelf finisher. Refer to

INT-28, "Removal and Installation"

.

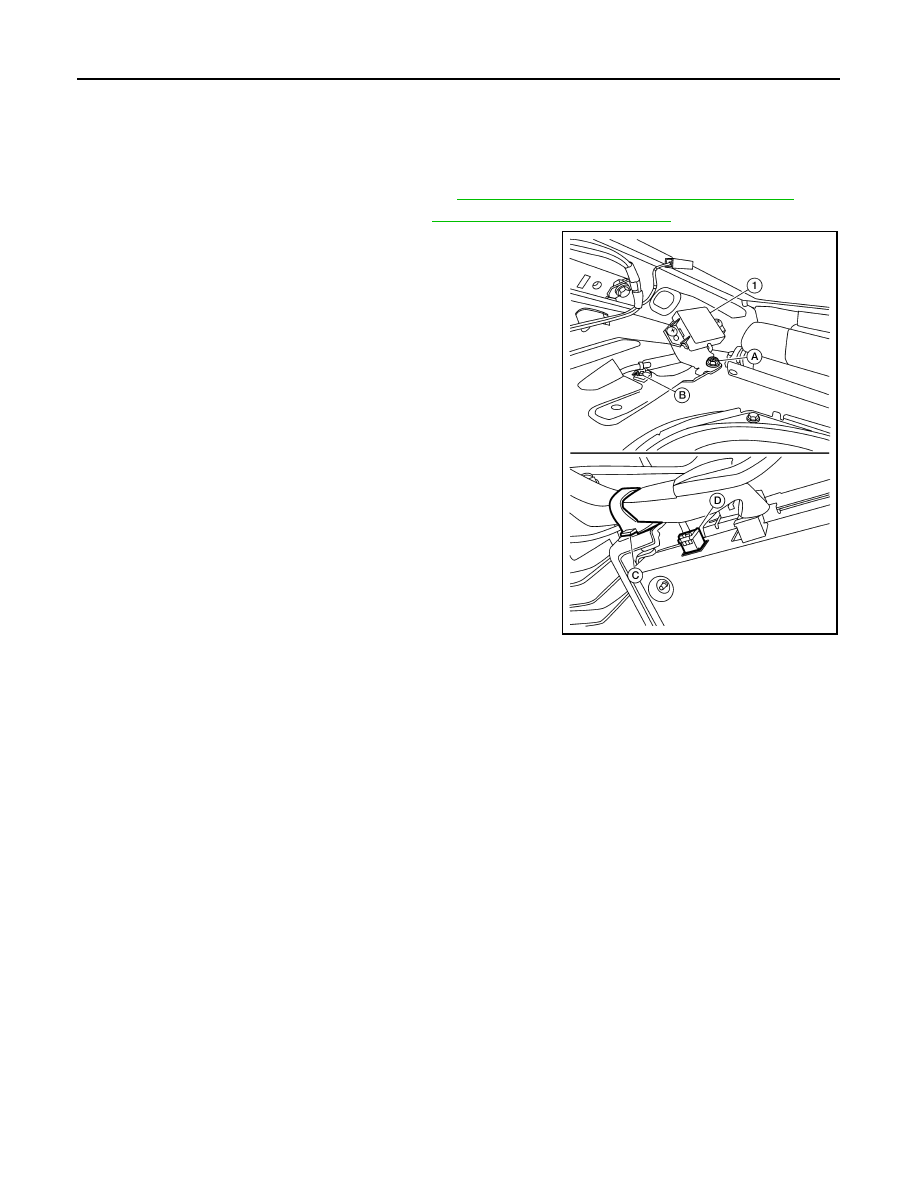

3. Remove the Bluetooth antenna screw (A).
4. Detach the Bluetooth antenna harness clip (B).
5. Fold down the rear seat (if equipped) or open the trunk lid, then

detach the Bluetooth antenna harness clip (C).

6. Disconnect the harness connector (D) from the Bluetooth

antenna (1) and remove.

INSTALLATION

Installation is in the reverse order of removal.

ALNIA1144ZZ

AV

BLUETOOTH CONTROL UNIT

AV-333

< REMOVAL AND INSTALLATION >

[COLOR DISPLAY - W/O BOSE]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

BLUETOOTH CONTROL UNIT

Removal and Installation

INFOID:0000000010064947

REMOVAL

1. Disconnect the battery negative terminal.
2. Remove the trunk upper finisher. Refer to

INT-36, "Exploded View"

.

3. Remove the parcel shelf finisher. Refer to

INT-28, "Removal and Installation"

.

4. From inside the passenger compartment, remove the bracket screws and lower the assembly for access.

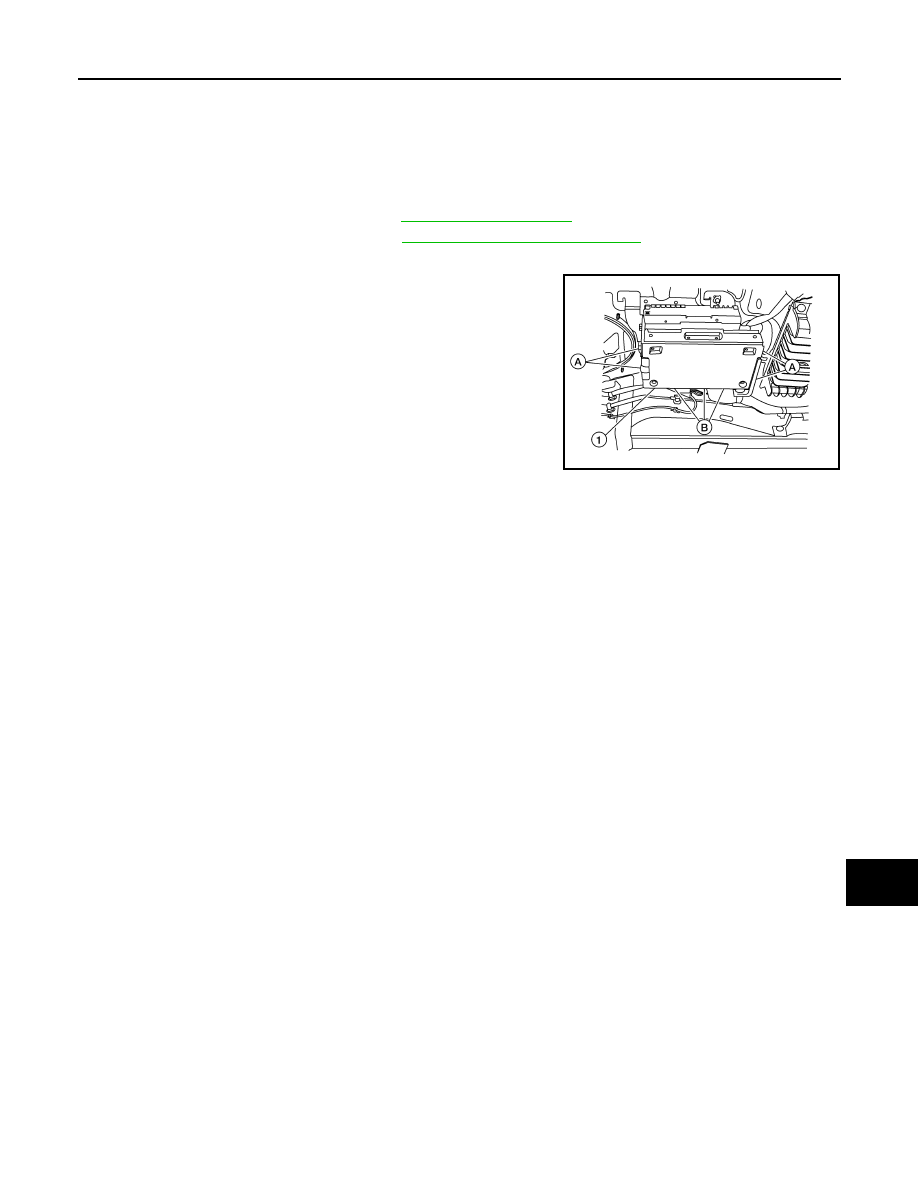

5. Remove the Bluetooth control unit screws (A).
6. Disconnect the Bluetooth control unit connectors (B) and

remove the Bluetooth control unit (1).

INSTALLATION

Installation is in the reverse order of removal.

ALNIA1154ZZ

AV-334

< REMOVAL AND INSTALLATION >

[COLOR DISPLAY - W/O BOSE]

REAR VIEW CAMERA

REAR VIEW CAMERA

Removal and Installation

INFOID:0000000010064948

REMOVAL

1. Remove the license plate finisher. Refer to

EXL-166, "Removal and Installation"

.

2. Remove trunk lid finisher. Refer to

INT-36, "Exploded View"

.

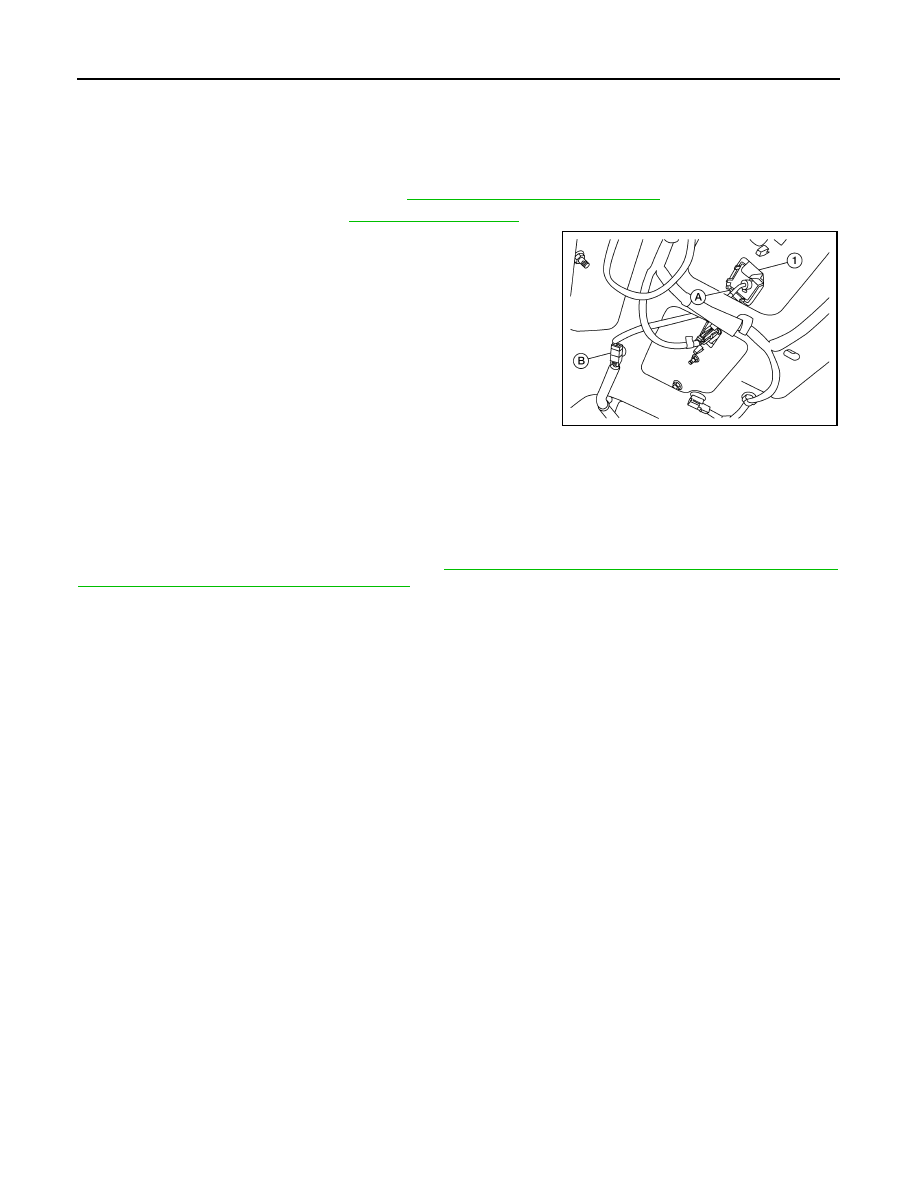

3. Disconnect the rear view camera connector (B), press the rear

view camera tab (A) and remove the rear view camera (1).

INSTALLATION

Installation is in the reverse order of removal.

Adjustment

INFOID:0000000010064949

REAR VIEW CAMERA

For adjustment on the rear view camera, refer to

DLK-12, "ADDITIONAL SERVICE WHEN REPLACING

CONTROL UNIT : Special Repair Requirement"

.

ALNIA1156ZZ

AV

DIAGNOSIS AND REPAIR WORKFLOW

AV-335

< BASIC INSPECTION >

[COLOR DISPLAY - W/ BOSE]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORKFLOW

Work Flow

INFOID:0000000009471278

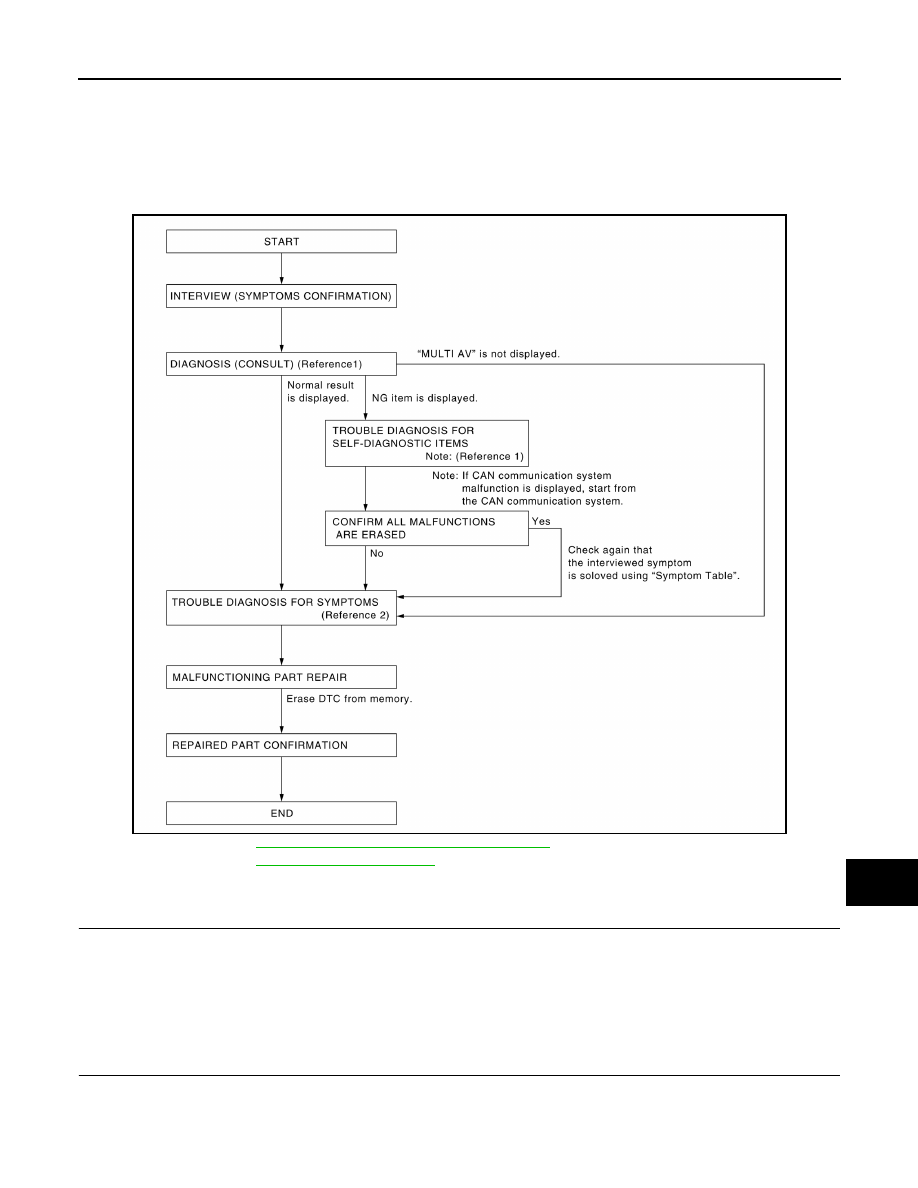

OVERALL SEQUENCE

• Reference 1··· Refer to

AV-359, "CONSULT Function (MULTI AV)"

.

• Reference 2··· Refer to

AV-472, "Symptom Table"

.

DETAILED FLOW

1.

CHECK SYMPTOM

Check the malfunction symptoms by performing the following items.

• Interview the customer to obtain the malfunction information (conditions and environment when the malfunc-

tion occurred).

• Check the symptom.

>> GO TO 2

2.

SELF-DIAGNOSIS (CONSULT)

1. Connect CONSULT and perform “SELF-DIAGNOSIS” for “MULTI AV”.

NOTE:

Skip to step 4 of the diagnosis procedure if “MULTI AV” is not displayed.

2. Check if any DTC No. is displayed in the self-diagnosis results.

AWNIA2486GB
