WW-80

< REMOVAL AND INSTALLATION >

FRONT WASHER

FRONT WASHER

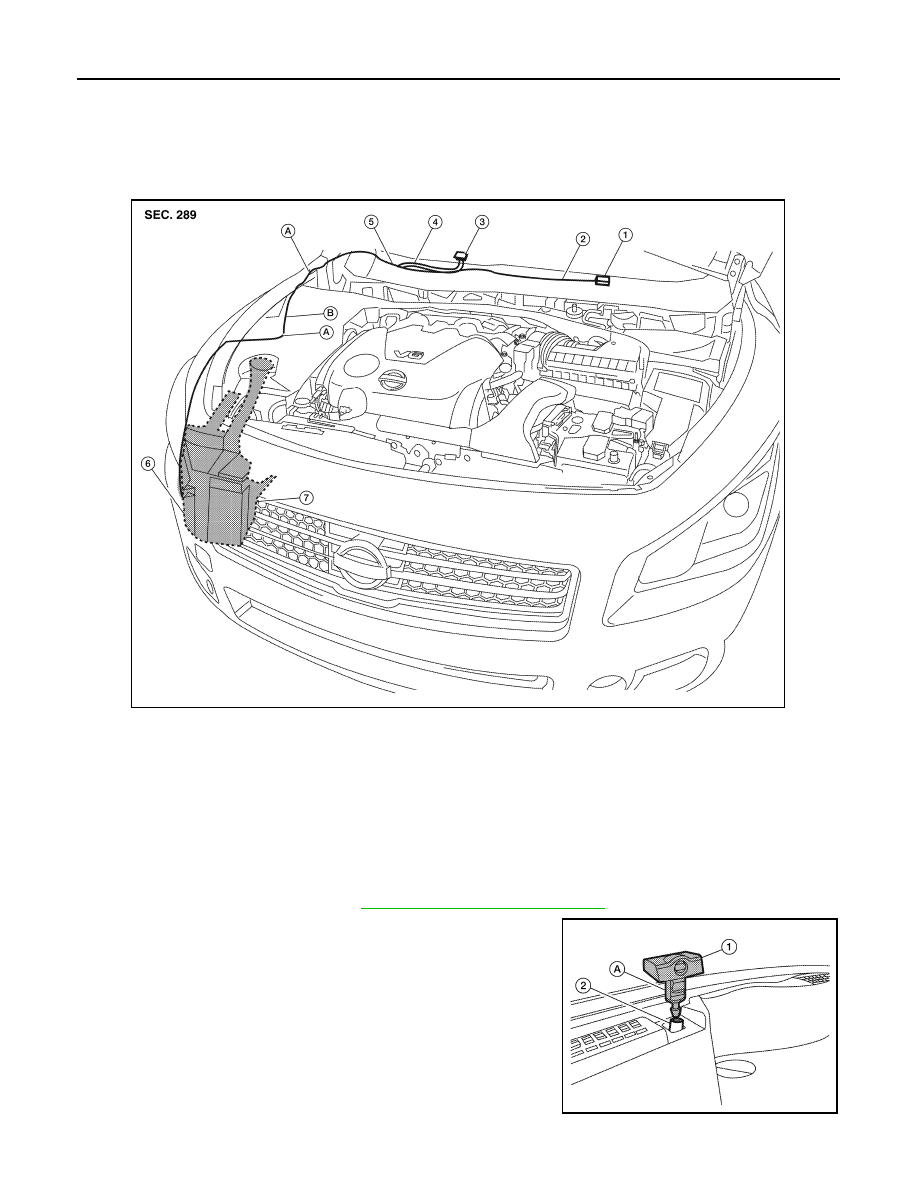

WASHER TUBE
WASHER TUBE : Layout

INFOID:0000000009465493

FRONT WASHER NOZZLE
FRONT WASHER NOZZLE : Removal and Installation

INFOID:0000000009465494

REMOVAL

1. Remove the cowl top grille. Refer to

EXT-21, "Removal and Installation"

.

2. Push washer nozzle tab (A) to release the washer nozzle (1)

from the cowl top grille, then disconnect the washer nozzle hose

(2).

INSTALLATION

1.

Washer nozzle (LH)

2.

Washer nozzle hose (LH)

3.

Washer nozzle (RH)

4.

Washer nozzle hose (RH)

5.

Y-tube connector

6.

Washer tank hose

7.

Washer tank

A.

Tube connectors

B.

Clip

ALLIA0908ZZ

ALLIA0652ZZ

FRONT WASHER

WW-81

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

Installation is in the reverse order of removal.

• Adjust nozzle spray location. Refer to

WW-81, "FRONT WASHER NOZZLE : Adjustment"

.

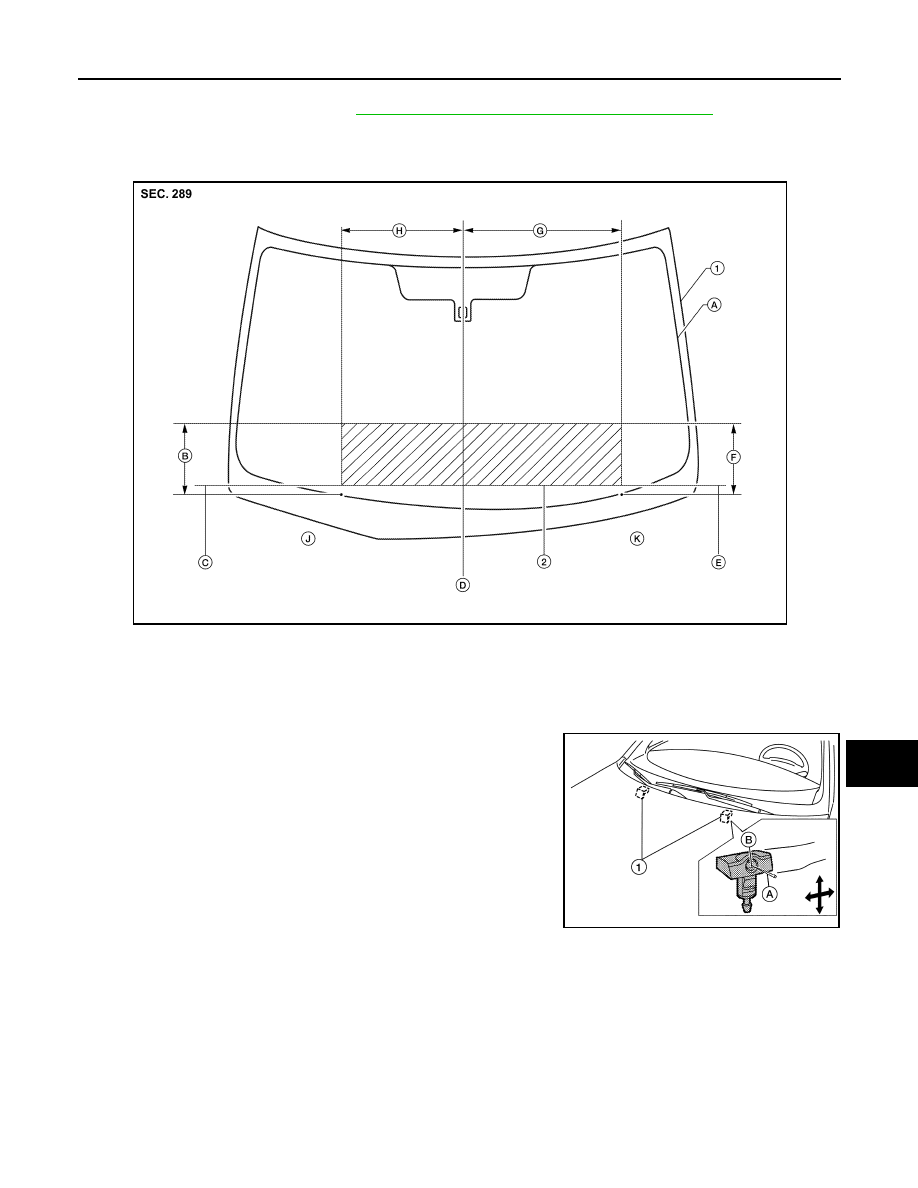

FRONT WASHER NOZZLE : Adjustment

INFOID:0000000009465495

• To adjust the front washer nozzles (1), insert a suitable tool (A) into

the nozzle hole (B) and move it up or down and left or right to

adjust the spray into the specified spray zone.

WASHER TANK
WASHER TANK : Removal and Installation

INFOID:0000000009465496

REMOVAL

1.

Windshield

2.

Spray zone

A.

Black printed frame line

B.

301.6 mm (11.87 in)

C.

24.7 mm (0.97 in)

D.

Windshield vertical center line

E.

24.4 mm (0.96 in)

F.

301.3 mm (11.86 in)

G.

502.3 mm (19.78 in)

H.

501.4 mm (19.74 in)

J.

RH side of windshield

K.

LH side of windshield

ALLIA0944ZZ

ALLIA0779ZZ

WW-82

< REMOVAL AND INSTALLATION >

FRONT WASHER

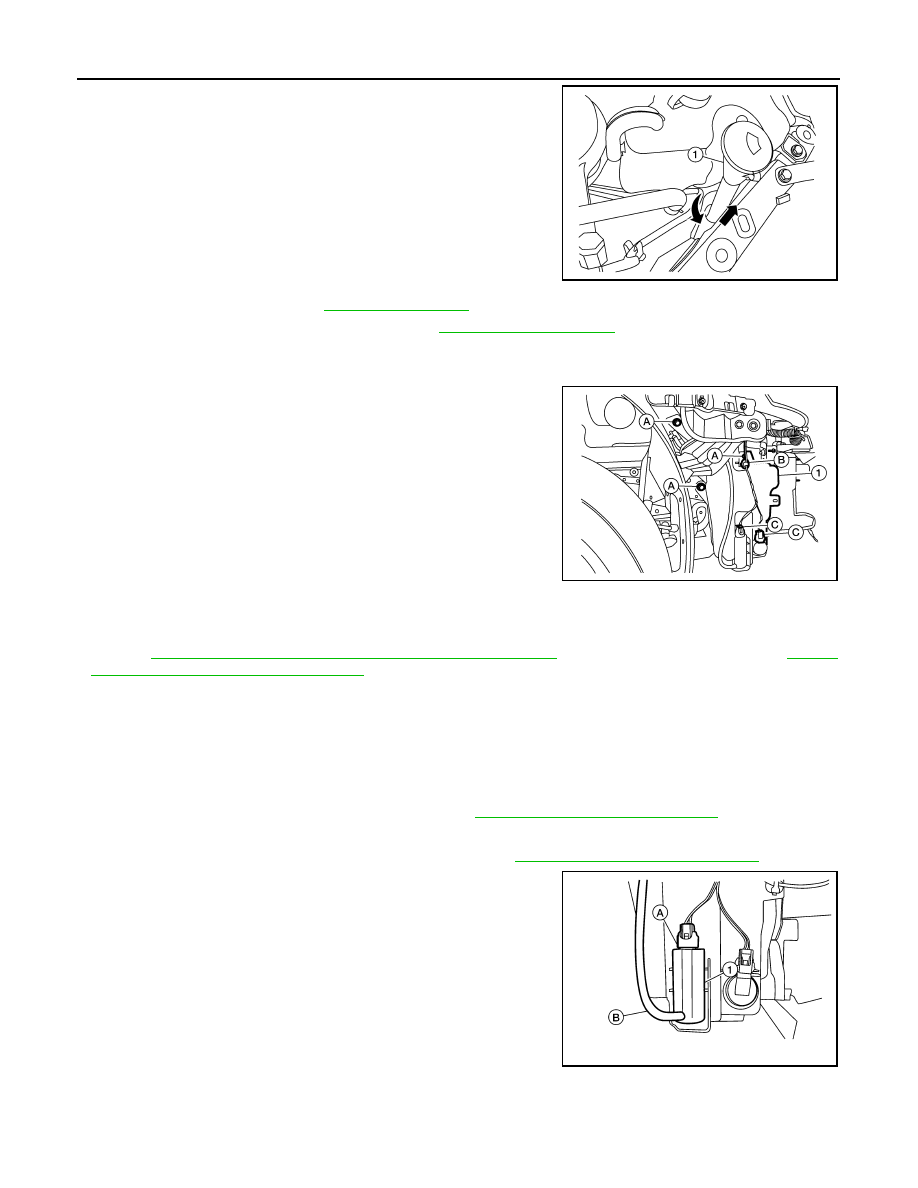

1. Remove the washer tank filler tube (1).

2. Remove RH front tire. Refer to

WT-60, "Adjustment"

.

3. Position the RH fender protector back. Refer to

EXT-23, "Exploded View"

.

4. Remove engine under cover.
5. Remove side under cover.
6. Disconnect the washer pump and washer fluid level sensor con-

nectors (C), then detach the connector harness clip (B).

7. Remove the washer tank bolts (A), disconnect the washer pump

hose and remove the washer tank (1).

INSTALLATION

Installation is in the reverse order of removal.

• After installation, add NISSAN specified fluid up to the upper level of washer tank inlet, and check for leaks.

Refer to

MA-15, "FOR USA AND CANADA : Fluids and Lubricants"

 (for United States and Canada),

MA-16,

"FOR MEXICO : Fluids and Lubricants"

 (for Mexico).

FRONT WASHER PUMP
FRONT WASHER PUMP : Removal and Installation

INFOID:0000000009465497

REMOVAL

1. Position the RH front fender protector back. Refer to

EXT-24, "Removal and Installation"

.

2. Remove the engine under cover.
3. Remove the RH front fender protector side cover. Refer to

EXT-24, "Removal and Installation"

.

4. Disconnect the front washer pump connector (A), and washer

pump hose (B).

5. Remove the front washer pump (1).
6. Remove the front washer pump grommet.

INSTALLATION

Installation is in the reverse order of removal.

ALLIA0029ZZ

ALLIA0030ZZ

ALKIA1886ZZ

FRONT WASHER

WW-83

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

• After installation, add NISSAN specified fluid up to the upper level of washer tank inlet, and check for leaks.

Refer to

MA-15, "FOR USA AND CANADA : Fluids and Lubricants"

. (for United States and Canada),

MA-16,

"FOR MEXICO : Fluids and Lubricants"

 (for Mexico).
