WW-72

< SYMPTOM DIAGNOSIS >

NORMAL OPERATING CONDITION

NORMAL OPERATING CONDITION

Description

INFOID:0000000010048973

FRONT WIPER MOTOR PROTECTION FUNCTION

• IPDM E/R may stop the front wiper to protect the front wiper motor if any obstruction (operation resistance)

such as a large amount of snow is detected during the front wiper operation.

• At that time turn OFF the front wiper and remove the foreign object. Then wait for approximately 20 seconds

or more and reactivate the front wiper. The wiper will operate normally.

PRECAUTIONS

WW-73

< PRECAUTION >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000009724062

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along

with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain

types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS

system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front

air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.

Information necessary to service the system safely is included in the SR and SB section of this Service Man-

ual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by

an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag

Module, see the SR section.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-

ness connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

• When working near the Airbag Diagnosis Sensor Unit or other Airbag System sensors with the Igni-

tion ON or engine running, DO NOT use air or electric power tools or strike near the sensor(s) with a

hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing

serious injury.

• When using air or electric power tools or hammers, always switch the Ignition OFF, disconnect the

battery and wait at least three minutes before performing any service.

Precaution for Procedure without Cowl Top Cover

INFOID:0000000009465487

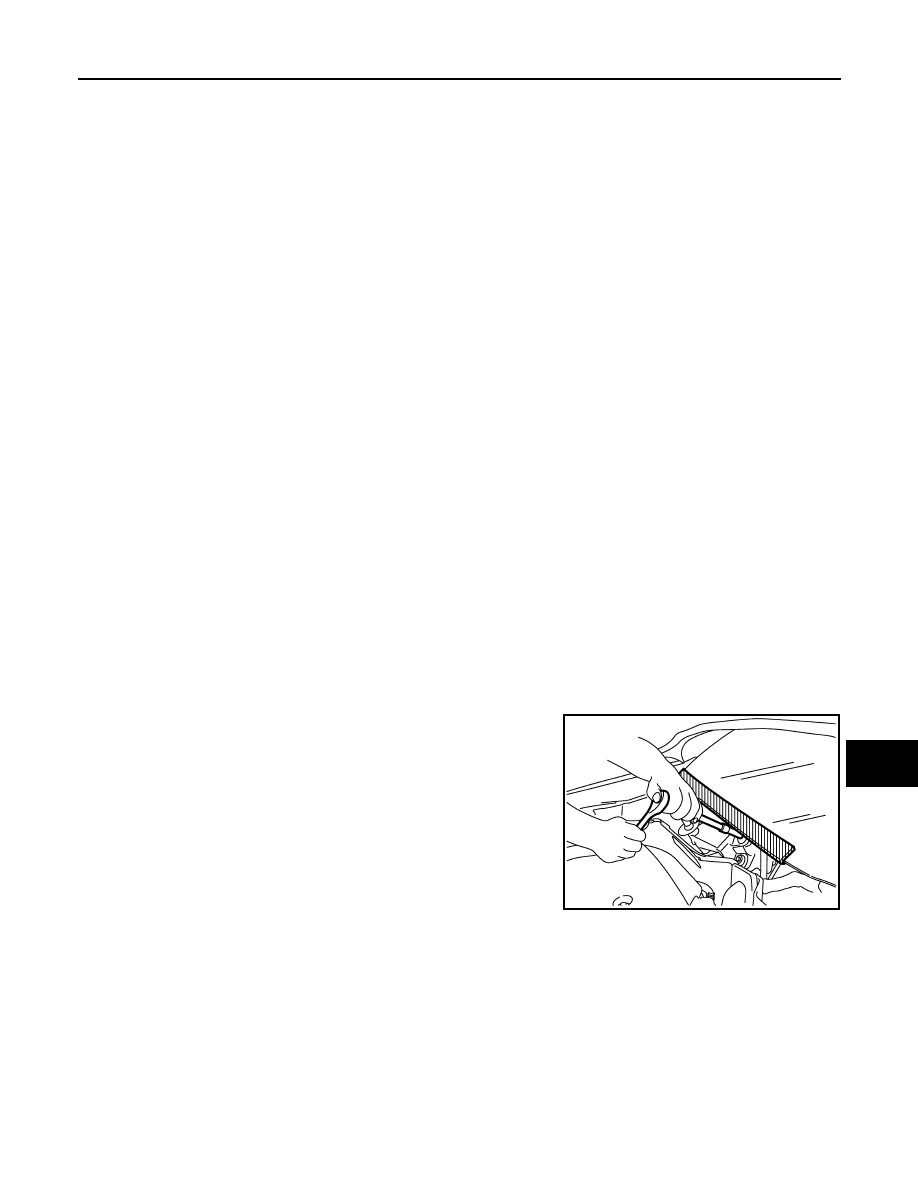

When performing the procedure after removing cowl top cover, cover

the lower end of windshield with urethane, etc.

PIIB3706J

WW-74

< REMOVAL AND INSTALLATION >

FRONT WIPER

REMOVAL AND INSTALLATION

FRONT WIPER

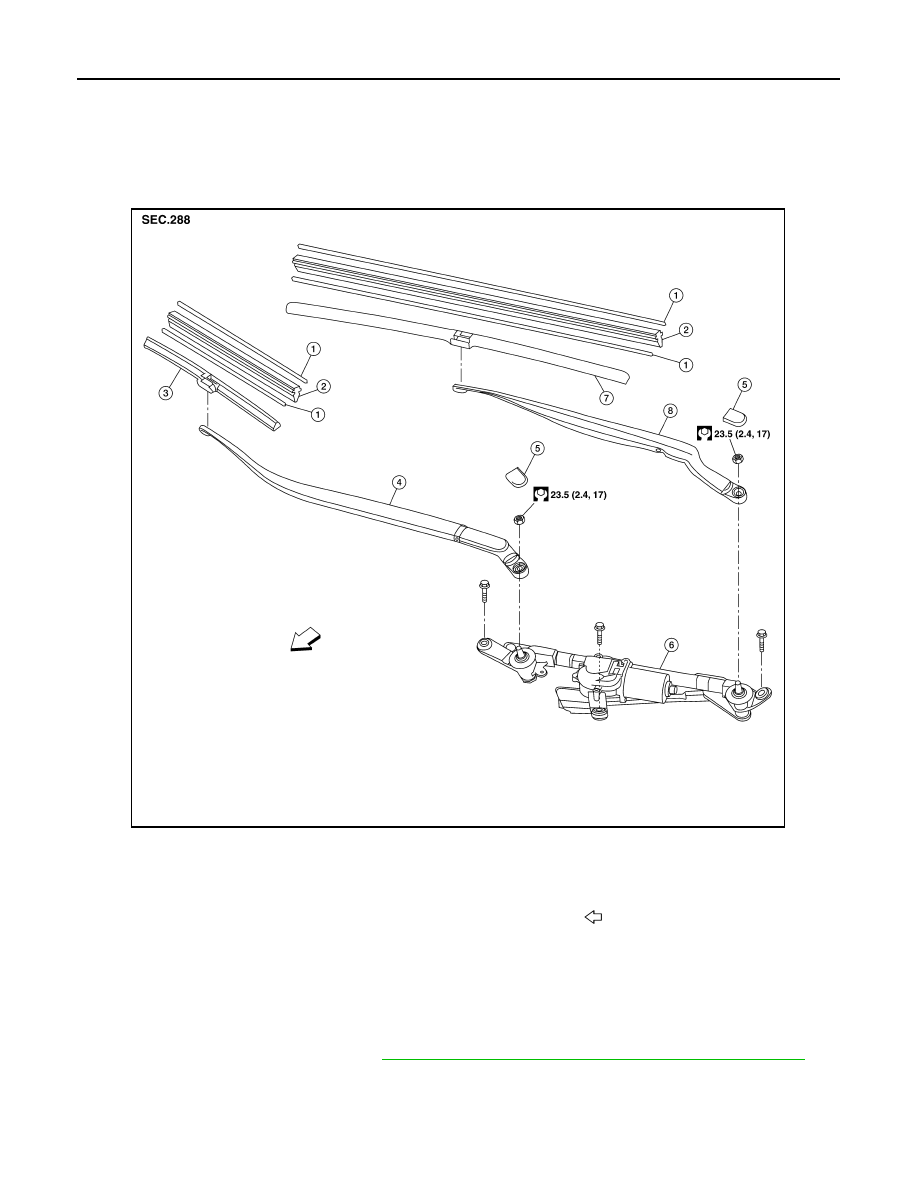

Exploded View

INFOID:0000000009465488

FRONT WIPER BLADE REFILL
FRONT WIPER BLADE REFILL : Removal and Installation

INFOID:0000000009465489

REMOVAL

1. Remove the front wiper blade. Refer to

WW-77, "FRONT WIPER BLADE : Removal and Installation"

.

1.

Rib (part of wiper blade refill)

2.

Wiper blade refill

3.

Front RH wiper blade assembly (in-
cludes wiper blade refill)

4.

Front RH wiper arm

5.

Wiper arm cap

6.

Front wiper drive assembly

7.

Front LH wiper blade assembly (in-
cludes wiper blade refill)

8.

Front LH wiper arm

Front

AWLIA1564GB

FRONT WIPER

WW-75

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

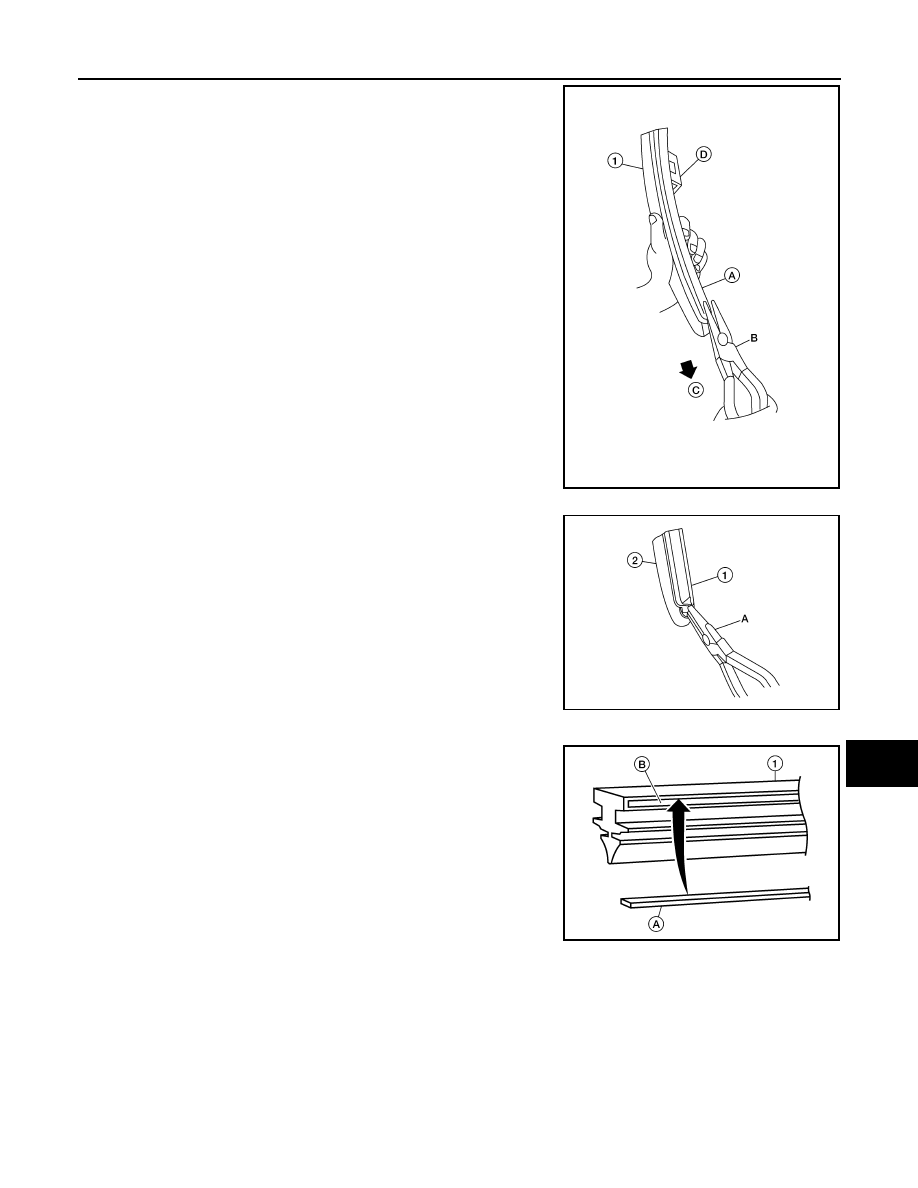

2. Hold the wiper blade refill lip at the end (A) of the front wiper

blade (1) with a suitable tool (B) as shown, and pull it firmly in

the direction (C).

• U clip (part of the front wiper blade assembly) (D)

• If the wiper blade refill lip is torn due to wear, insert a suitable

tool (A) into the space between the end of the wiper blade refill

(1) and the front wiper blade (2) and pull the wiper blade refill

(1) out as shown.

INSTALLATION

1. If the rib (A) has become detached from the wiper blade refill (1),

check that the curve of the rib (A) is in the same direction as the

curve of the wiper blade refill (1) and insert the rib (A) into the slit

(B) in the wiper blade refill (1) as shown.

ALLIA0860ZZ

ALLIA0861ZZ

ALLIA0866ZZ
