FRONT WIPER

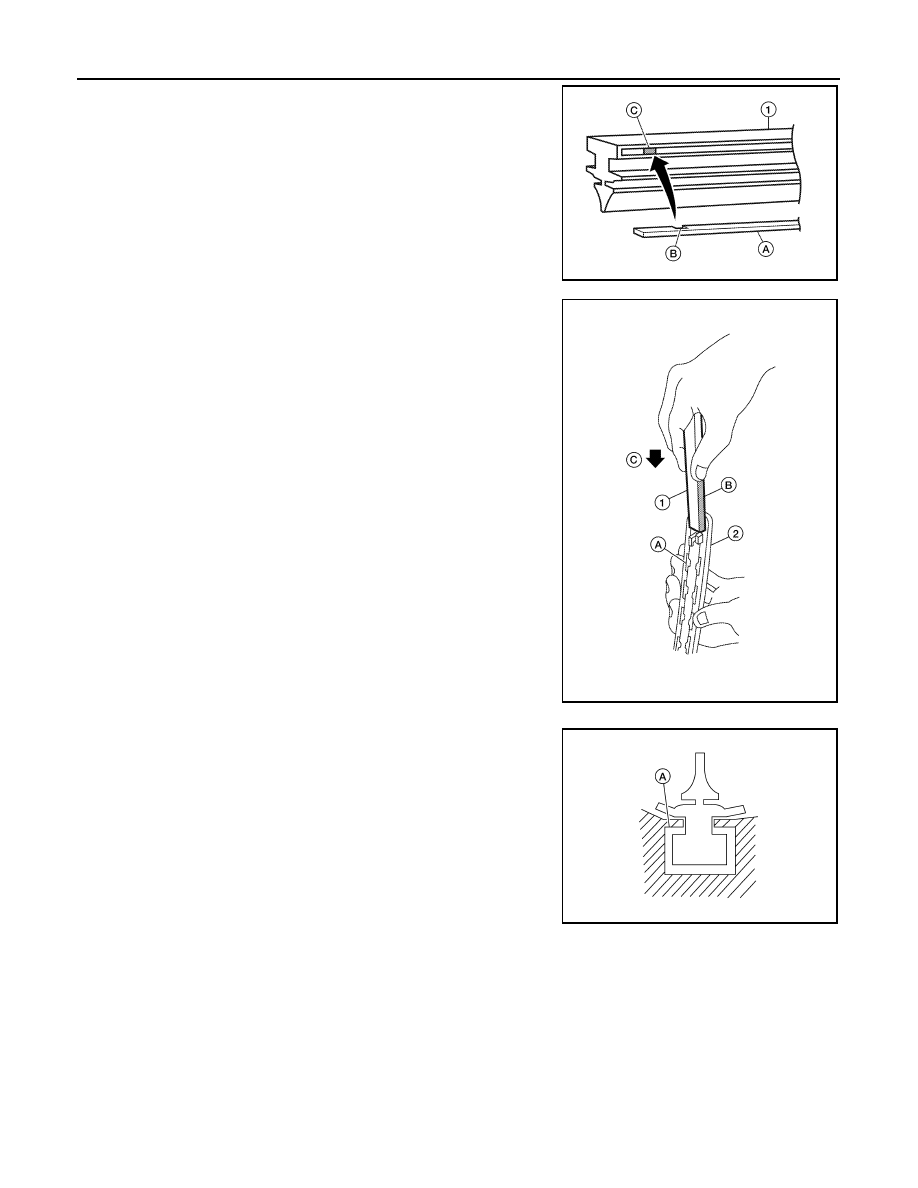

• If the rib (A) has a notch (B), insert the rib (A) into the wiper

blade refill (1) so the notch (B) fits over the protrusion (C) in

the wiper blade refill (1) as shown.

2. Insert the wiper blade refill (1) tip into the end of the front wiper

blade (2) in the direction (C). Push the wiper blade refill (1) in

while pressing it into the end of the front wiper blade (2) as

shown. After the wiper blade refill is fully inserted, remove the

holder (B).

• Tab [part of front wiper blade (2)] (A)

• Make sure to slide the refill into the front wiper blade so that

the wiper blade refill is held by the tabs (A) on the front wiper

blade as shown.

ALLIA0867ZZ

ALLIA0862ZZ

ALLIA0863ZZ

FRONT WIPER

WW-77

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

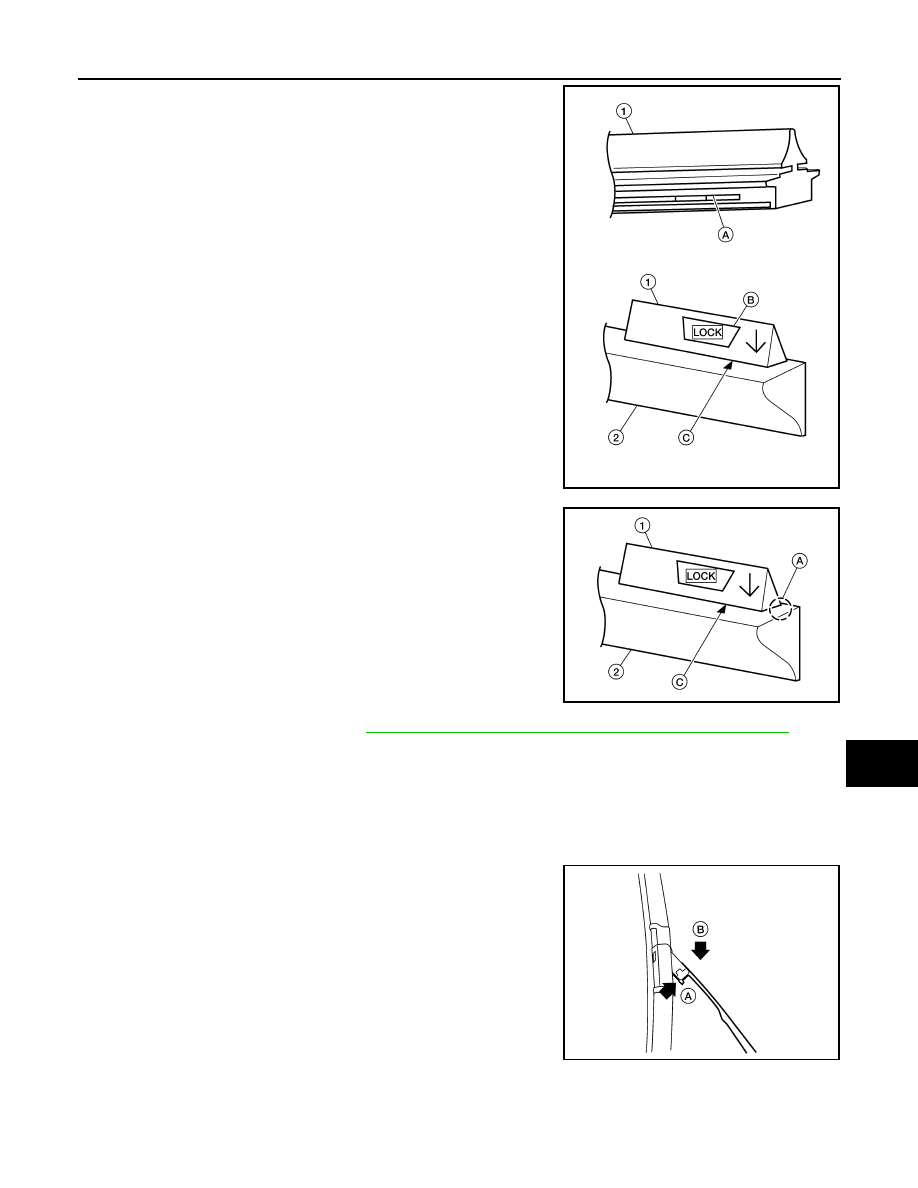

3. Push the wiper blade refill (1) until the tabs on the front wiper

blade (2) fit into the stoppers (A) in the end of the wiper blade

refill (1). Make sure the LOCK mark (B) on the wiper blade refill

(1) is aligned with the lock point symbol (C) on the front wiper

blade (2) as shown.

4. Before installing the front wiper blade assembly, make sure that

the wiper blade refill (1) end is fully covered by the front wiper

blade (2) in area (A) as shown.

5. Install the front wiper blade. Refer to

WW-77, "FRONT WIPER BLADE : Removal and Installation"

.

FRONT WIPER BLADE
FRONT WIPER BLADE : Removal and Installation

INFOID:0000000009465490

REMOVAL

1. Lift the front wiper arm and wiper blade assembly away from the windshield.
2. Rotate the front wiper blade assembly and push the release tab

(A), then move the front wiper blade assembly down (B) the

front wiper arm.

3. Remove the front wiper blade assembly.

INSTALLATION

CAUTION:

• After the front wiper blade assembly installation, return the front wiper arm to the original position

on the windshield to prevent damage when the hood is opened.

ALLIA0864ZZ

ALLIA0865ZZ

AWLIA1565ZZ

WW-78

< REMOVAL AND INSTALLATION >

FRONT WIPER

• Check that the front wiper blade assembly contacts the windshield properly; otherwise the front

wiper arm may be damaged from wind pressure while driving.

1. Insert the front wiper blade assembly onto the front wiper arm and slide it up until it clicks into place.
2. Rotate the front wiper blade assembly so the dimple is in the groove.
3. Lay the front wiper arm and front wiper blade assembly back down on the windshield.

FRONT WIPER ARMS
FRONT WIPER ARMS : Removal and Installation

INFOID:0000000009465491

REMOVAL

1. Turn wiper switch ON to operate wiper motor and then turn wiper switch OFF (auto stop).
2. Open hood, remove arm caps, and remove wiper arm nuts.
3. Raise wiper arm, and remove wiper arm from the vehicle.

INSTALLATION

1. Clean up the pivot area as shown. This will reduce the possibility

of wiper arm looseness.

2. Prior to wiper arm installation, turn wiper switch ON to operate wiper motor and then turn wiper switch

OFF (auto stop).

3. Push wiper arm onto pivot shaft, paying attention to blind spline.
4. Lift the blade up and then set it down onto glass surface to set the blade center immediately before tem-

porarily tightening the wiper arm nuts.

5. Spray washer fluid. Turn wiper switch ON to operate wiper motor and then turn wiper switch OFF (auto

stop).

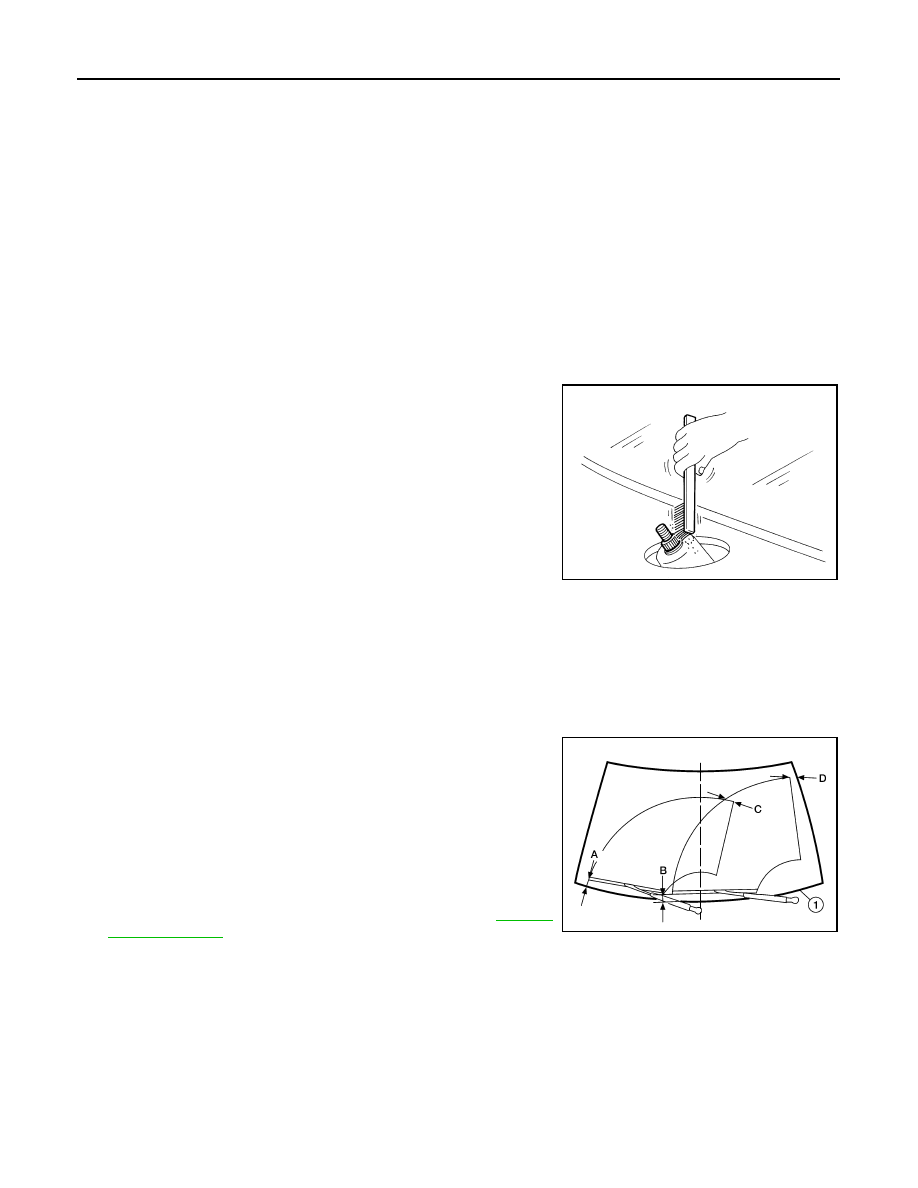

6. Make sure that wiper blades stop within clearance (A), (B), (C)

and (D).

• Windshield glass (1)

7. Tighten wiper arm nuts to specification. Refer to

WW-74,

"Exploded View"

.

8. Attach wiper arm caps.

ADJUSTMENT

To adjust the wiper arm stop location, the wiper arm must be removed and installed. Follow the FRONT

WIPER ARM removal and installation procedure.

FRONT WIPER DRIVE ASSEMBLY
FRONT WIPER DRIVE ASSEMBLY : Removal and Installation

INFOID:0000000009465492

REMOVAL

SEL024J

Clearance (A)

: 62.5

± 7.5 mm (2.461 ± 0.295 in)

Clearance (B)

: 67.8

± 7.5 mm (2.669 ± 0.295 in)

Clearance (C)

: 29.2 mm (1.150 in)

Clearance (D)

: 57.7 mm (2.272 in)

BKIA0254E

FRONT WIPER

WW-79

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

1. Turn wiper switch ON to operate wiper motor and then turn wiper switch OFF (auto stop).
2. Remove wiper arms. Refer to

WW-78, "FRONT WIPER ARMS : Removal and Installation"

.

3. Remove hood ledge covers.
4. Remove the cowl top grille. Refer to

EXT-20, "Exploded View"

.

5. Disconnect washer hose from the lower cowl top extension brace.
6. Remove the lower cowl top extension brace. Refer to

EXT-21, "Removal and Installation"

.

7. Detach the wiper drive harness clip from the wiper drive assembly frame.

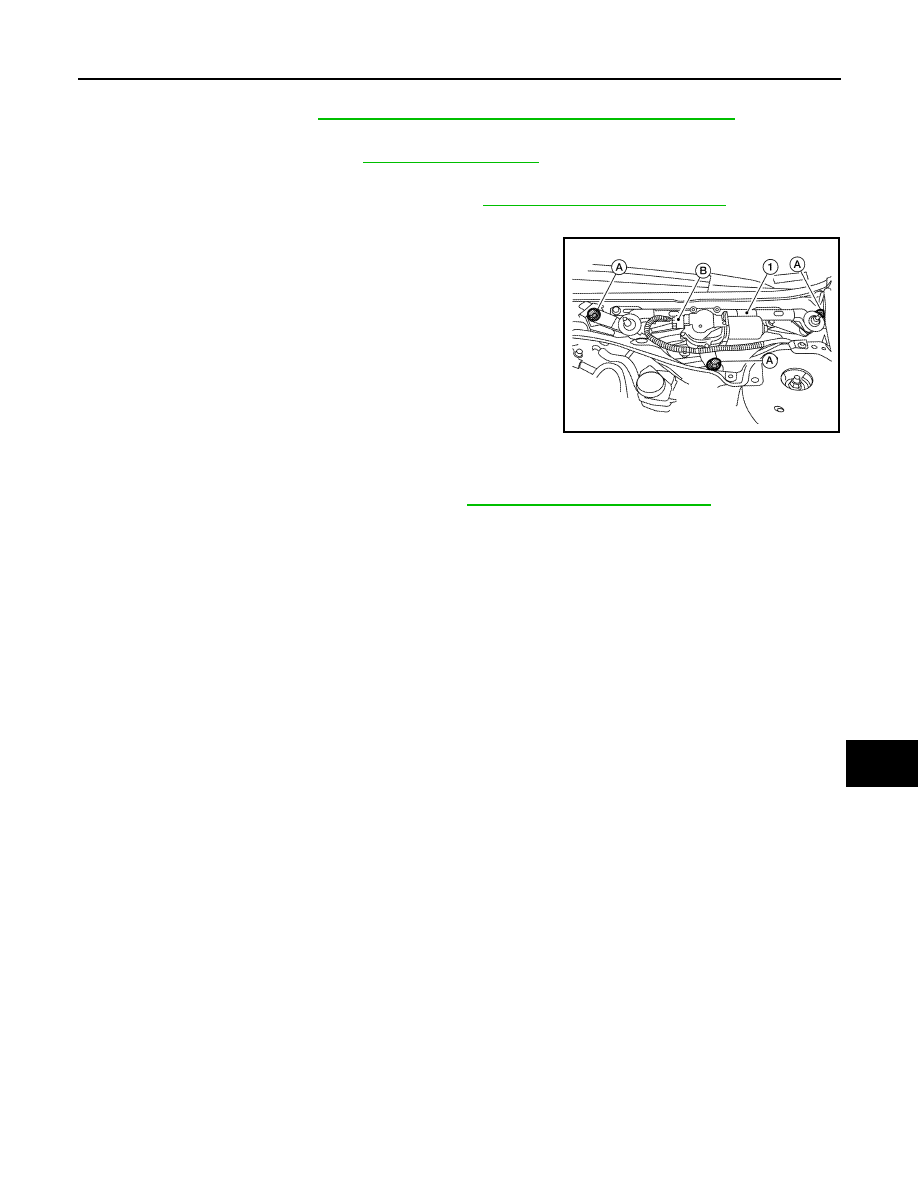

8. Remove the front wiper drive assembly bolts (A), disconnect the

wiper drive motor connector (B) and remove the front wiper drive

assembly (1).

INSTALLATION

Installation is in the reverse order of removal.

• Adjust wiper arm stop location as necessary. Refer to

EXT-21, "Removal and Installation"

.

ALLIA0027ZZ
