Nissan Maxima. Manual - part 1186
DUCTS AND GRILLES
VTL-13
< REMOVAL AND INSTALLATION >
C
D
E
F
G
H
J
K
L
M
A
B
VTL
N
O
P

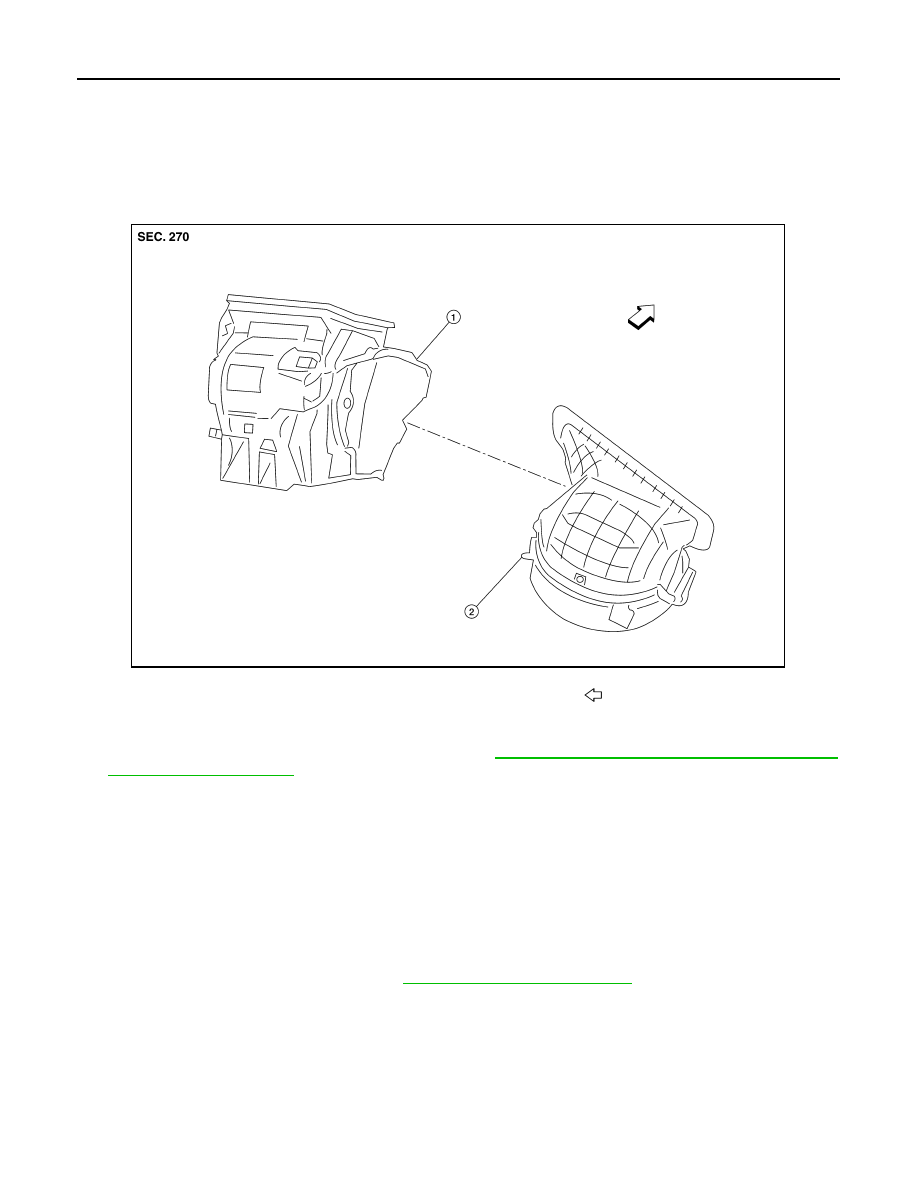

SIDE VENTILATOR GRILLES : Removal and Installation
INFOID:0000000009466251
NOTE:
This procedure should only be used if the side ventilator grille is going to be reused for installation and not
replaced with a new one.
REMOVAL
1. Remove the instrument panel. Refer to
IP-11, "Removal and Installation"
2. Remove the upper ventilator duct from the instrument panel.

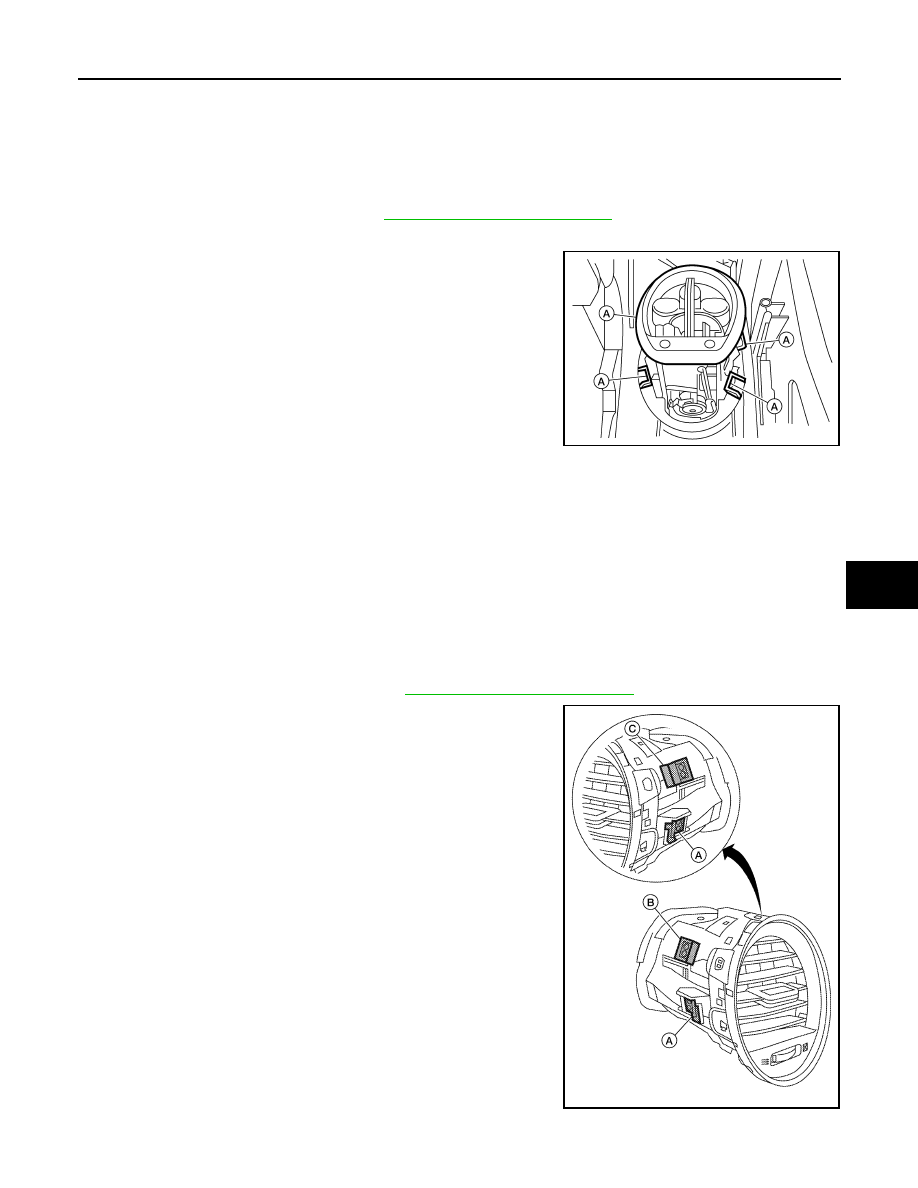

3. Release the clips (A) with a suitable tool and push the side ven-
tilator grille out the front of the instrument panel.
CAUTION:
Use care to remove the side ventilator grille so as not to
damage the instrument panel.
INSTALLATION
Installation is in the reverse order of removal.
CAUTION:
Use care when inserting the side ventilator grille so as not to damage the instrument panel.
SIDE VENTILATOR GRILLES : Replacement
INFOID:0000000009466252

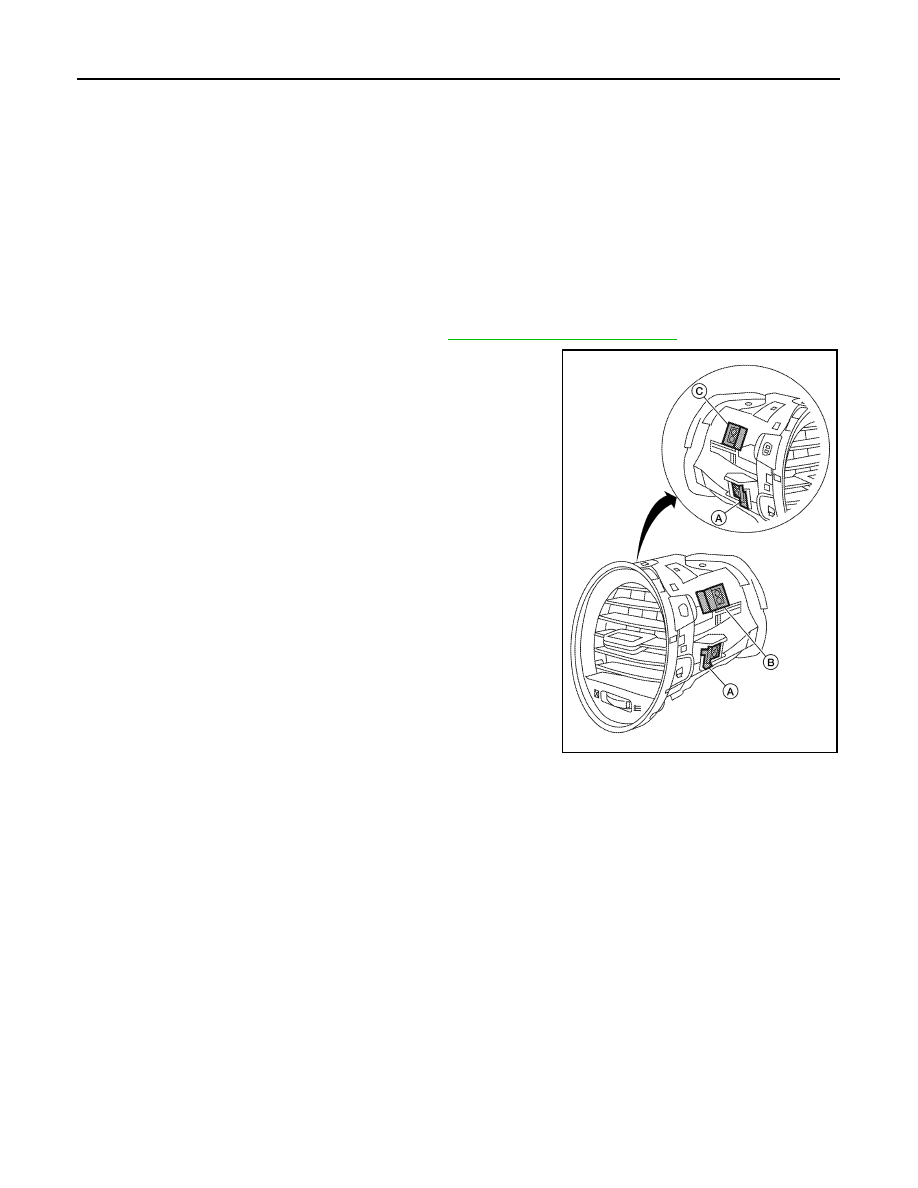

SIDE VENTILATOR GRILLE (RH)
CAUTION:
This procedure should only be used when replacing the side ventilator grille (RH) with a new one, as
the side ventilator grille will be damaged during removal and cannot be reused.
Removal
1. Remove the glove box assembly. Refer to
IP-20, "Removal and Installation"
2. Depress the LH and RH bottom clips (A) and the LH upper clip
(B) with suitable tools.
CAUTION:
Use care when inserting the suitable tool so as not to dam-
age the instrument panel.
3. Grip the front of the side ventilator grille with a suitable tool to
pull from the front and use your hand to push from behind to
remove the side ventilator grille from the instrument panel. Dis-
card the side ventilator grille.
CAUTION:
• The RH upper clip (C) will bend when the side ventilator
grille is removed.
• Use care when removing the side ventilator grille so as
not to damage the instrument panel.
• The side ventilator grille cannot be reused.
Installation
ALFIA0165ZZ
ALFIA0163ZZ
