AUTOMATIC AIR CONDITIONER SYSTEM

VTL-5

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

SYSTEM DESCRIPTION

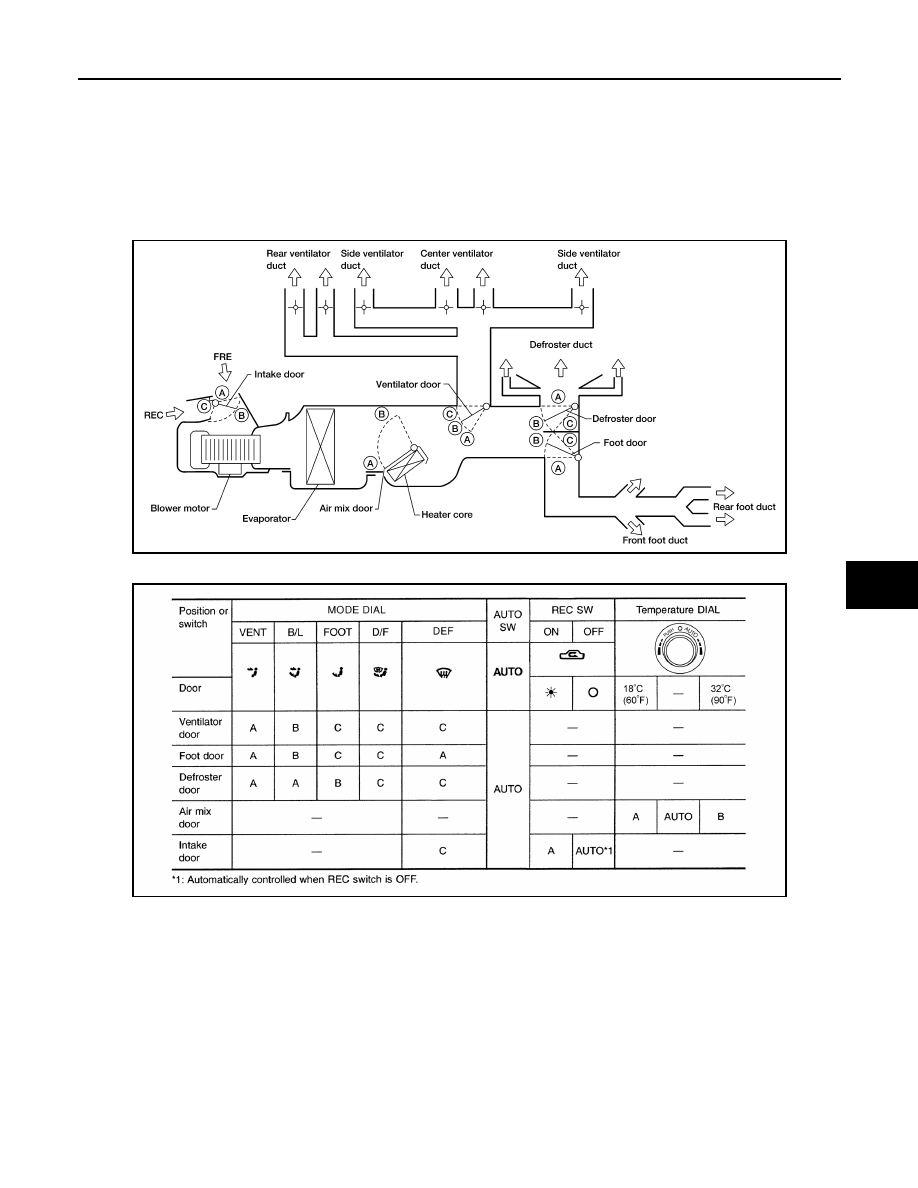

AUTOMATIC AIR CONDITIONER SYSTEM

WITH COLOR DISPLAY
WITH COLOR DISPLAY : Switches And Their Control Function

INFOID:0000000009466238

WITH COLOR DISPLAY : Discharge Air Flow

INFOID:0000000009466239

LJIA0179E

AWIIA1418GB

VTL-6

< SYSTEM DESCRIPTION >

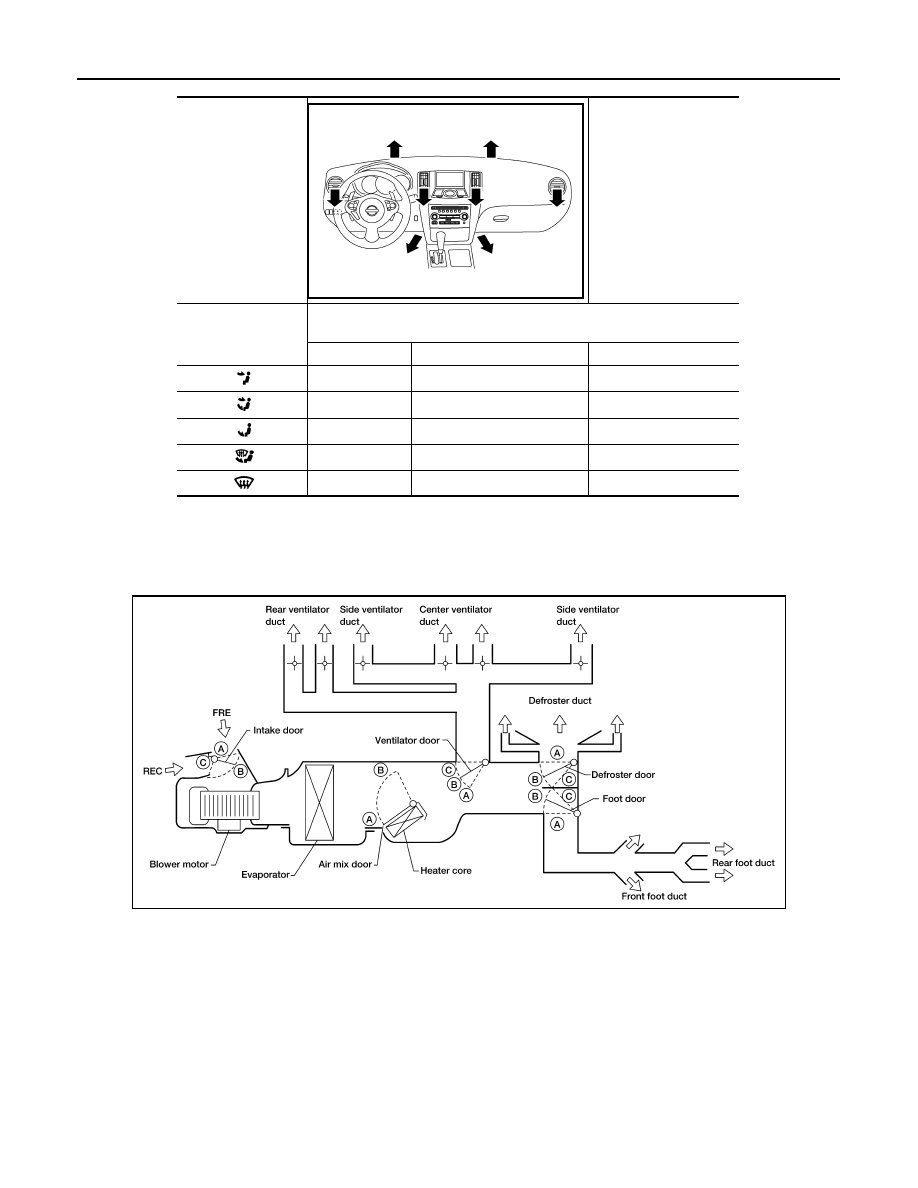

AUTOMATIC AIR CONDITIONER SYSTEM

WITH MONOCHROME DISPLAY
WITH MONOCHROME DISPLAY : Switches And Their Control Function

INFOID:0000000009466240

Mode door position

Air outlet/distribution

Vent

Foot

Defroster

100%

—

—

57%

43%

—

27%

50%

23%

27%

41%

32%

22%

—

78%

AWIIA1105ZZ

LJIA0179E

AUTOMATIC AIR CONDITIONER SYSTEM

VTL-7

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

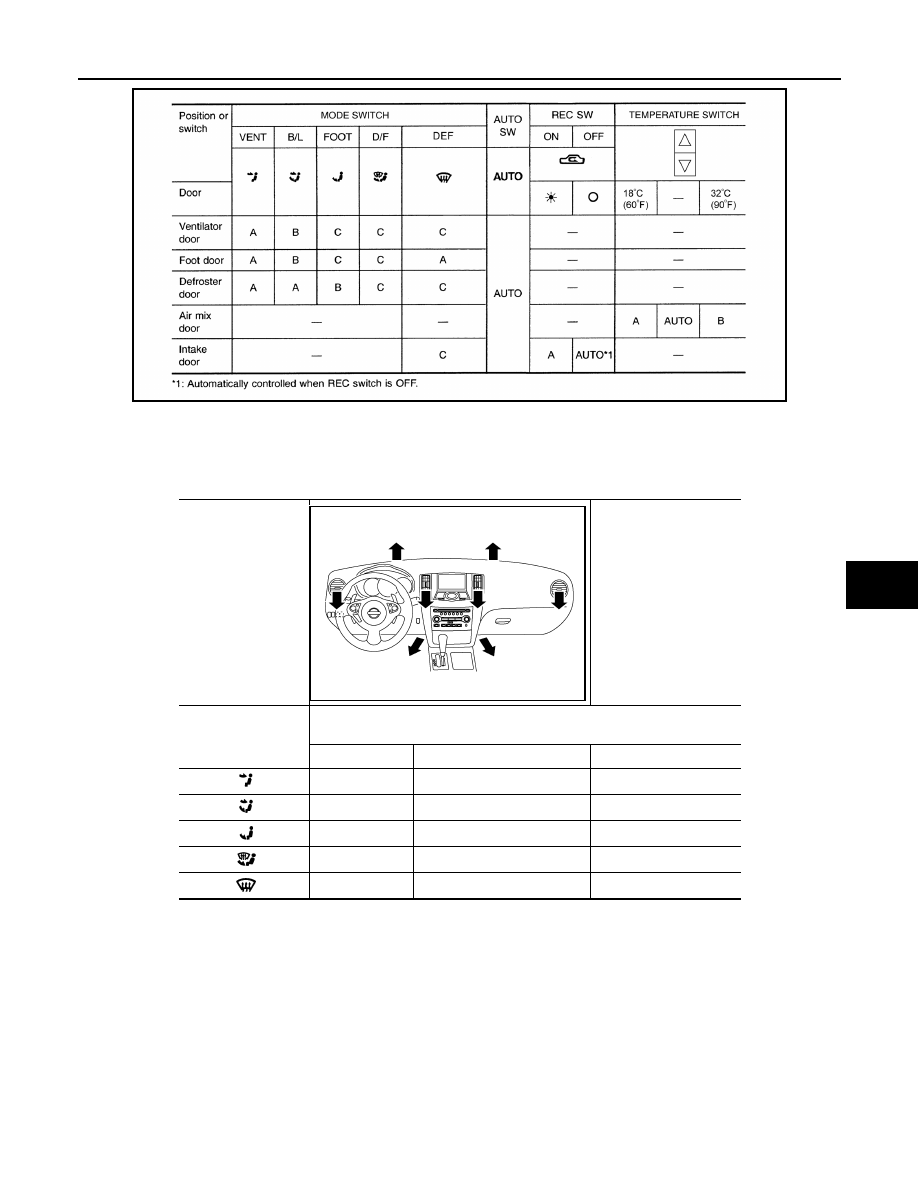

WITH MONOCHROME DISPLAY : Discharge Air Flow

INFOID:0000000009466241

AWIIA1419GB

Mode door position

Air outlet/distribution

Vent

Foot

Defroster

100%

—

—

57%

43%

—

27%

50%

23%

27%

41%

32%

22%

—

78%

AWIIA1105ZZ

VTL-8

< PERIODIC MAINTENANCE >

IN-CABIN MICROFILTER

PERIODIC MAINTENANCE

IN-CABIN MICROFILTER

Removal and Installation

INFOID:0000000009466242

REMOVAL

1. Disengage the filter cover tab (1) by pushing up and pull out to

remove the filter cover.

2. Remove the in-cabin microfilter from the blower unit.

INSTALLATION

Installation is in the reverse order of removal.

ALIIA0016ZZ
